Powertrain Control Module (PCM): Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. NOTE: This step is only necessary when installing a new component.

    Download the module information to the diagnostic tool using the Programmable Modules Installation routine. Refer to: Module Programming . Use the General Equipment: Ford Diagnostic Equipment

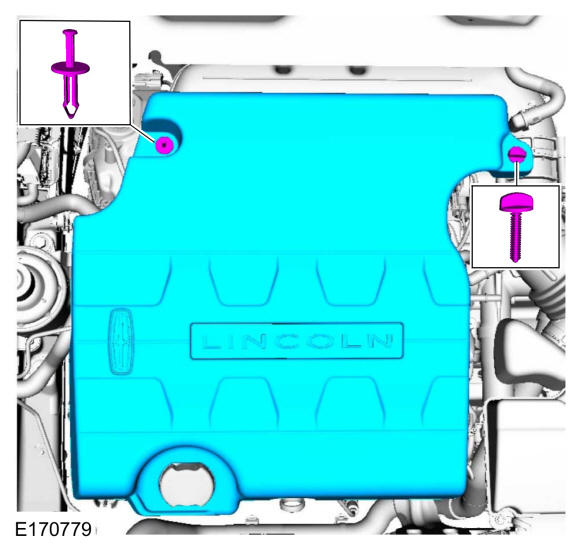

    • Remove the pushpin and screw. Remove the engine appearance cover.
    GFD236799Courtesy of FORD MOTOR COMPANY

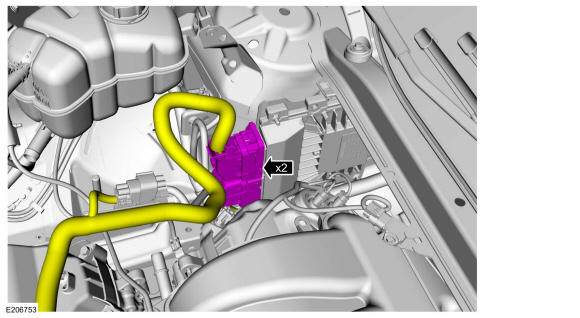

  3. Disconnect the PCM harness connectors.
    GFD236805Courtesy of FORD MOTOR COMPANY

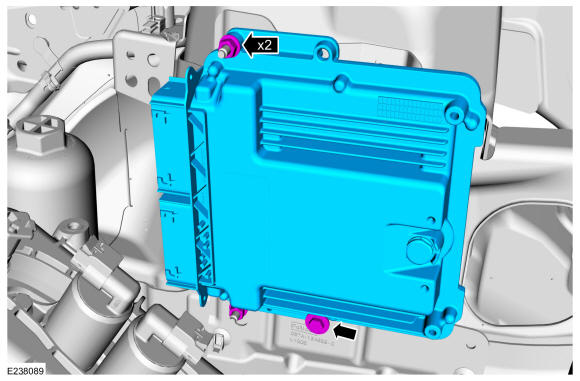

  4. Remove the retainers and the PCM.

    Torque: 89 lb.in (10 Nm)

GFD236768Courtesy of FORD MOTOR COMPANY
