Rear Seat Climate Control Module [SCMF]: Removal

NOTE: SCMF (rear seat climate control module) is located within the LH seat backrest. PMI is required when a new SCMF (rear seat climate control module) is installed.

NOTE: This step is only necessary when installing a new component.

NOTE: The PMI process must begin with the current SCMF installed. If the current SCMF does not respond to the diagnostic scan tool, the tool may prompt for As-Built Data as part of the repair.

Using a diagnostic scan tool, begin the PMI process for the SCMF (rear seat climate control module) following the on-screen instructions.
Remove the rear seat backrest. Refer to: Rear Seat Backrest - Vehicles With: 40/20/40 Split Second Row Seating .

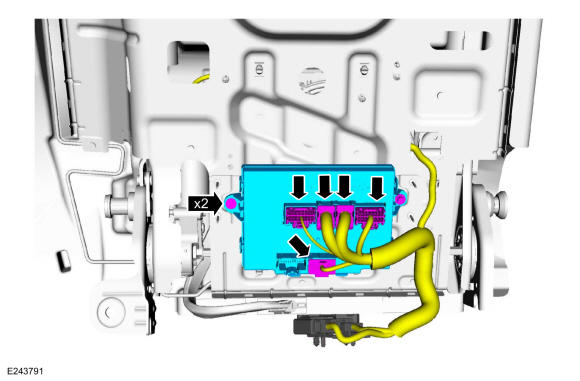

Remove the bolts and disconnect the electrical connectors.
