Heated Rear Seat Module: Removal

  1. Remove the rear seat cushion. Refer to: Rear Seat Cushion .

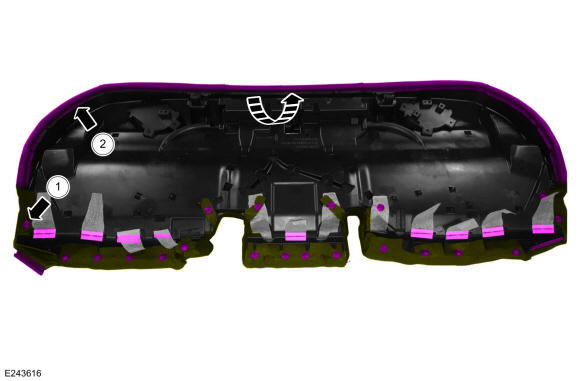

  2. Invert the rear seat cushion cover.

    1. Remove the pin-type retainers.
    2. Detach the J-clips.

    GFD238873Courtesy of FORD MOTOR COMPANY
  3. Lift the rear seat cushion and foam from the seat frame.
    GFD238874Courtesy of FORD MOTOR COMPANY

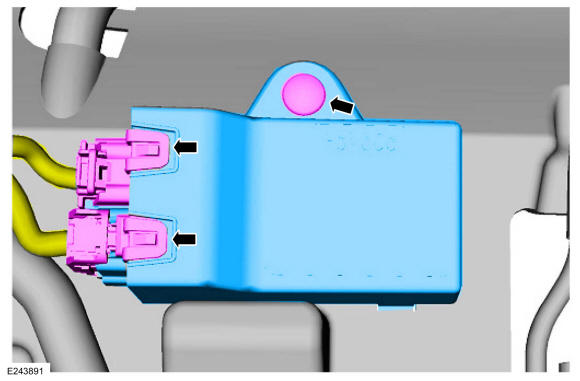

  4. Disconnect the electrical connectors, remove the pin-type retainer and remove the heated rear seat module.
GFD238875Courtesy of FORD MOTOR COMPANY
