Shift Solenoids (SS): Notes

Material

Item	Specification
Motorcraft ® MERCON ® LV Automatic Transmission Fluid XT-10-QLVC (US); CXT-10-LV12 (Canada)	MERCON ® LV

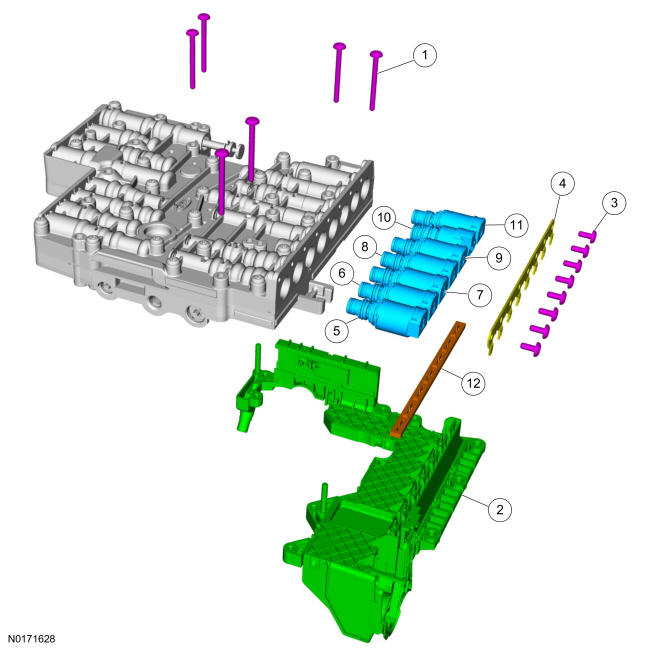

Fig 1: Exploded View Of Shift Solenoids

GFD136068

Courtesy of FORD MOTOR COMPANY

Item	Part Number	Description
1	W707884	Main control-to-molded leadframe bolts
2	7G276	Molded leadframe
3	W707885	Solenoid hold-down bracket bolt (8 required)
4	7Z369	Solenoid hold-down bracket
5	7G383	SSA, Forward (1, 2, 3, 4) clutch, normally low VFS (brown nozzle).
6	7G383	SSB, Direct (3, 5, R) clutch, normally high VFS (black nozzle).
7	7G383	SSC, Intermediate (2, 6) clutch, normally low VFS (brown nozzle).
8	7G383	LPC solenoid, normally high VFS (black nozzle).
9	7G383	SSD, low/reverse/overdrive clutch, normally high VFS (black nozzle).
10	7G484	SSE, normally off ON/OFF solenoid.
11	7G383	TCC solenoid, normally low VFS (brown nozzle).
12	-	Foam strip seal
