Overdrive Clutch Assembly: Disassembly

  1. 1.

    Position the O/D clutch assembly in the Clutch End Play Gauge and remove the T3 thrust bearing.
GFD136202Courtesy of FORD MOTOR COMPANY

  1. 2.

    Remove the O/D clutch pack snap ring.
GFD136203Courtesy of FORD MOTOR COMPANY

  1. 3.

    Remove the O/D clutch pack.
GFD136204Courtesy of FORD MOTOR COMPANY

  1. 4.

    Using the Spring Washer Compressor and a press, remove and discard the O/D clutch balance piston retaining ring.
GFD136205Courtesy of FORD MOTOR COMPANY

  1. 5.

    Remove the O/D clutch balance piston.
GFD136206Courtesy of FORD MOTOR COMPANY

  1. 6.

    Remove the O/D clutch return spring.
GFD136207Courtesy of FORD MOTOR COMPANY

  1. 7.

    Remove the O/D clutch apply piston.
GFD136208Courtesy of FORD MOTOR COMPANY

  1. 8.

    Remove and discard the outer O-ring seal on the O/D clutch balance piston.
GFD136209Courtesy of FORD MOTOR COMPANY

  1. 9.

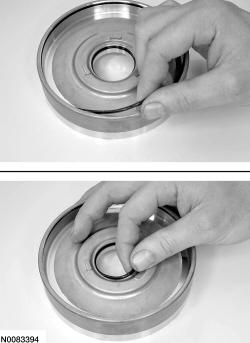

    Remove and discard both the inner (one large and one small) O-ring seals on the O/D clutch apply piston.
GFD136210Courtesy of FORD MOTOR COMPANY

  1. 10.

    Remove and discard the Teflon ® seals.
GFD136211Courtesy of FORD MOTOR COMPANY
