Removal And Installation

All vehicles

1. 1.

   Remove the Steering Column Control Module (SCCM). Refer to Steering Column Switches .

1. 2.

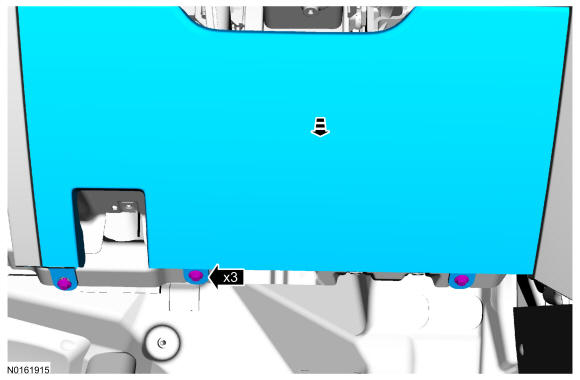

   Remove the steering column opening trim panel.

Courtesy of FORD MOTOR COMPANY

Vehicles with power column

1. 3.

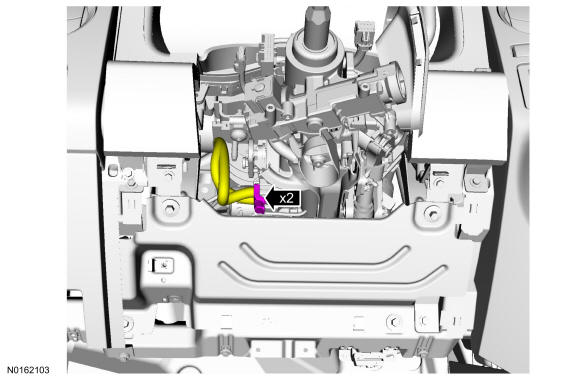

   Disconnect the power tilt motor and power telescopic motor electrical connectors.

Courtesy of FORD MOTOR COMPANY

Vehicles with selector lever

1. 4.

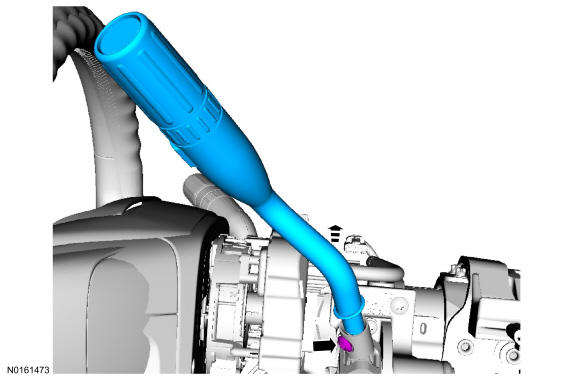

   Remove the bolt and the selector lever from the steering column.
   • To install, tighten the bolt to 18 Nm (13 lb-ft).

Courtesy of FORD MOTOR COMPANY

All vehicles

1. 5.


   NOTE: Power column shown, manual column similar.

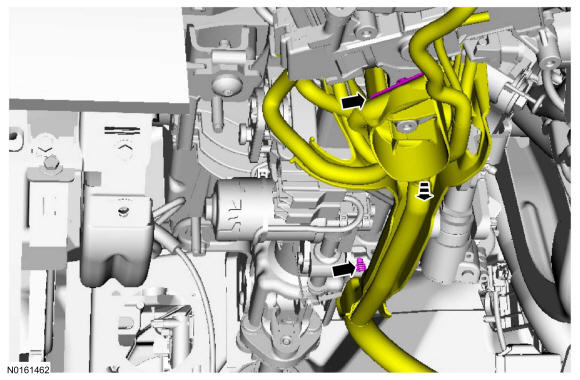

   Detach the wire harness retainers from the steering column and position the wire harness aside.

Courtesy of FORD MOTOR COMPANY

1. 6.


   WARNING: Do not reuse steering column shaft bolts. This may result in fastener failure and steering column shaft detachment or loss of steering control. Failure to follow this instruction may result in serious injury to vehicle occupant(s).

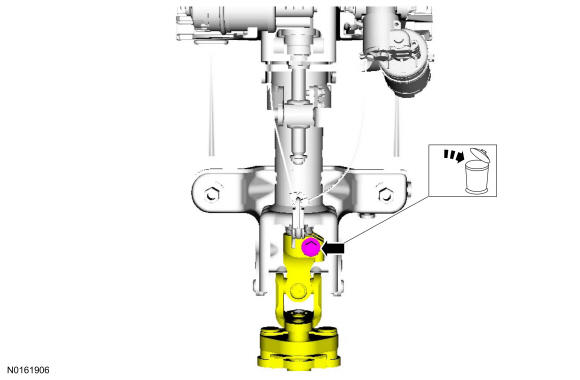

   Remove the bolt and disconnect the upper steering column shaft from the steering column.

   • To install, tighten the new bolt to 28 Nm (21 lb-ft).

Courtesy of FORD MOTOR COMPANY

1. 7.


   WARNING: Do not reuse steering column nuts. This may result in fastener failure and steering column detachment or loss of steering control. Failure to follow this instruction may result in serious injury to vehicle occupant(s).

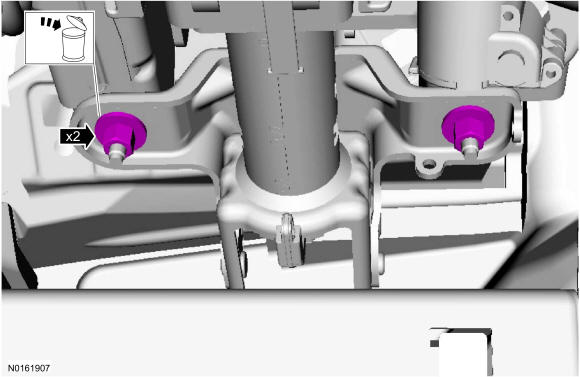

   Remove the steering column nuts.

   • To install, tighten the new nuts to 30 Nm (22 lb-ft).

Courtesy of FORD MOTOR COMPANY

1. 8.

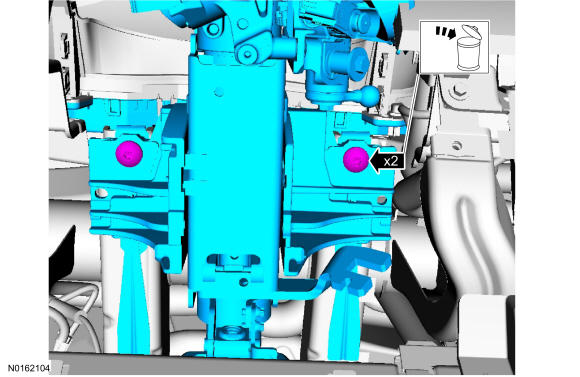

   Remove the bolts and the steering column.
   • To install, tighten the new bolts to 28 Nm (21 lb-ft).

Courtesy of FORD MOTOR COMPANY

1. 9.

   To install, reverse the removal procedure.
