Fuse And Relay Location

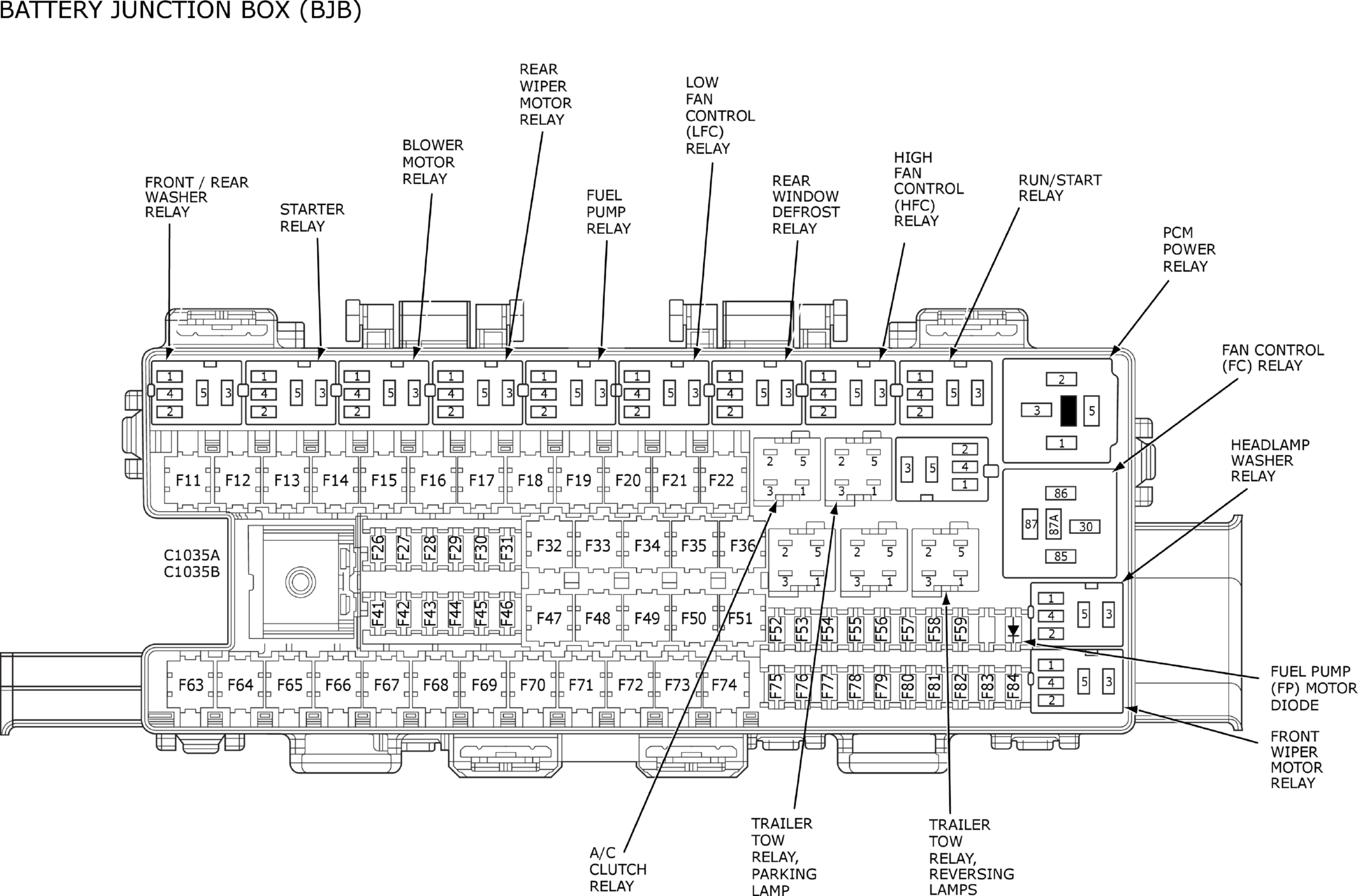

Fig 1: Battery Junction Box Component Location
GFDW59932Courtesy of FORD MOTOR COMPANY

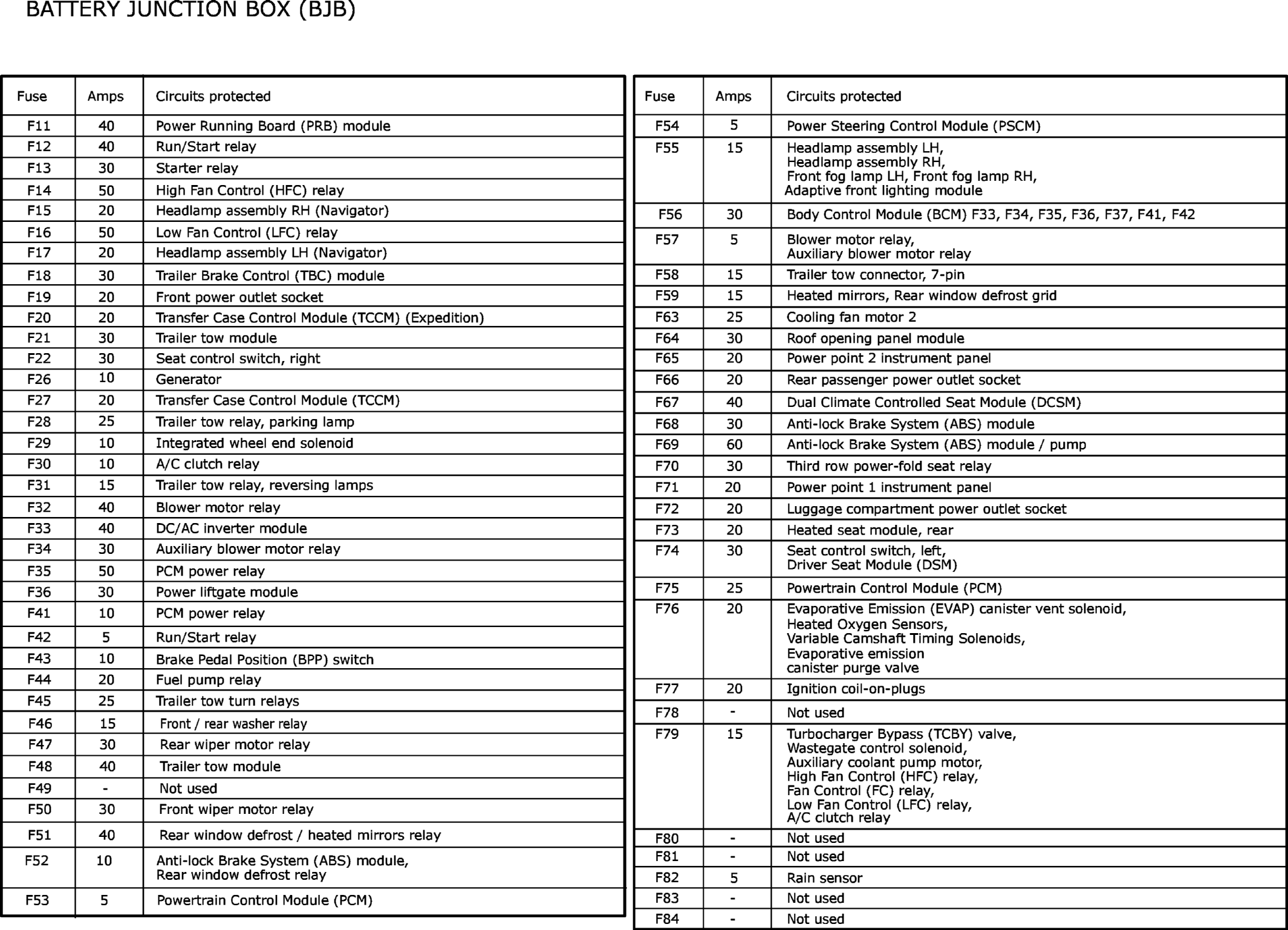

Fig 2: Battery Junction Box Component Location Legend
GFDW59933Courtesy of FORD MOTOR COMPANY

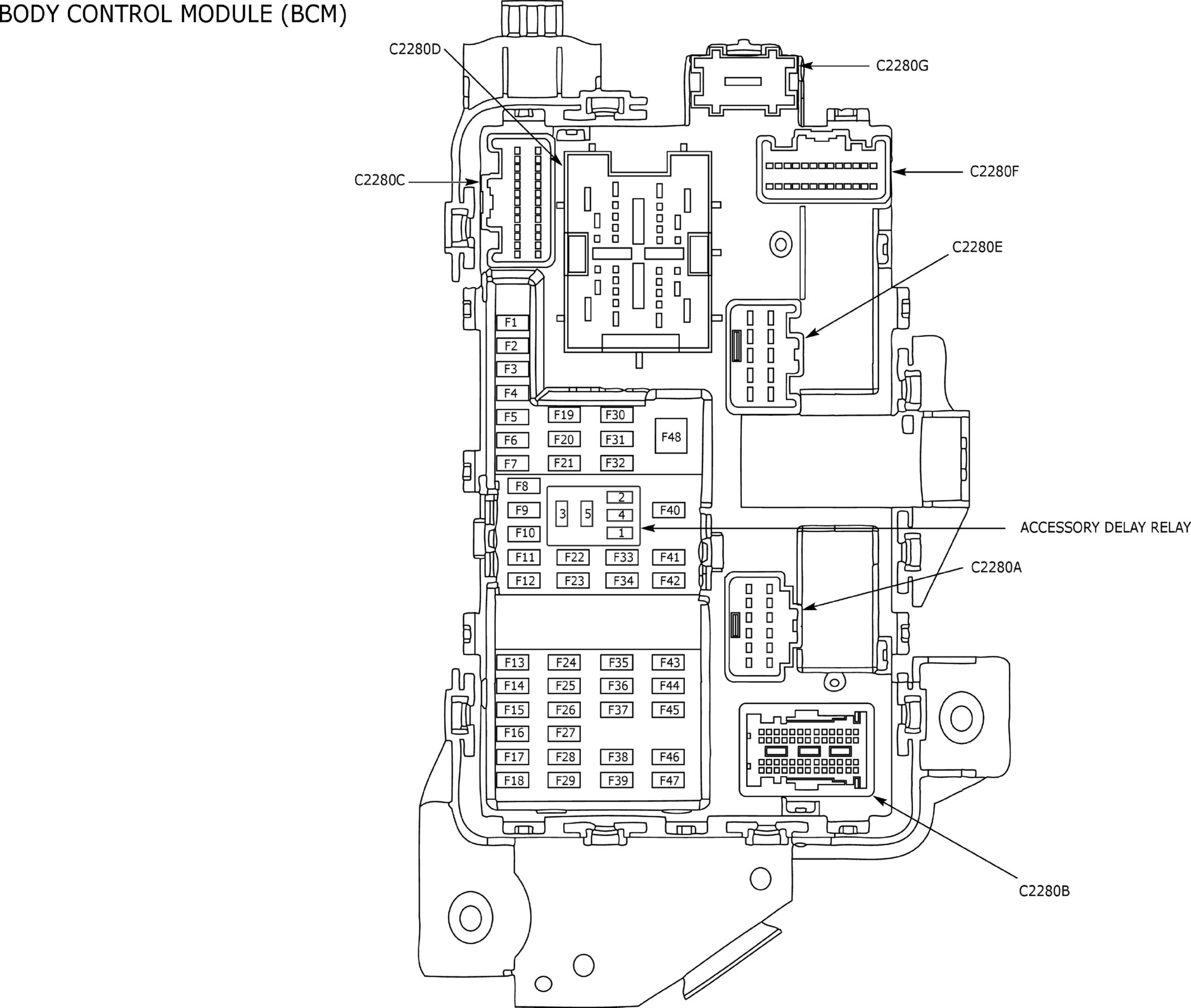

Fig 3: Body Control Module Component Location
GFDW59934Courtesy of FORD MOTOR COMPANY

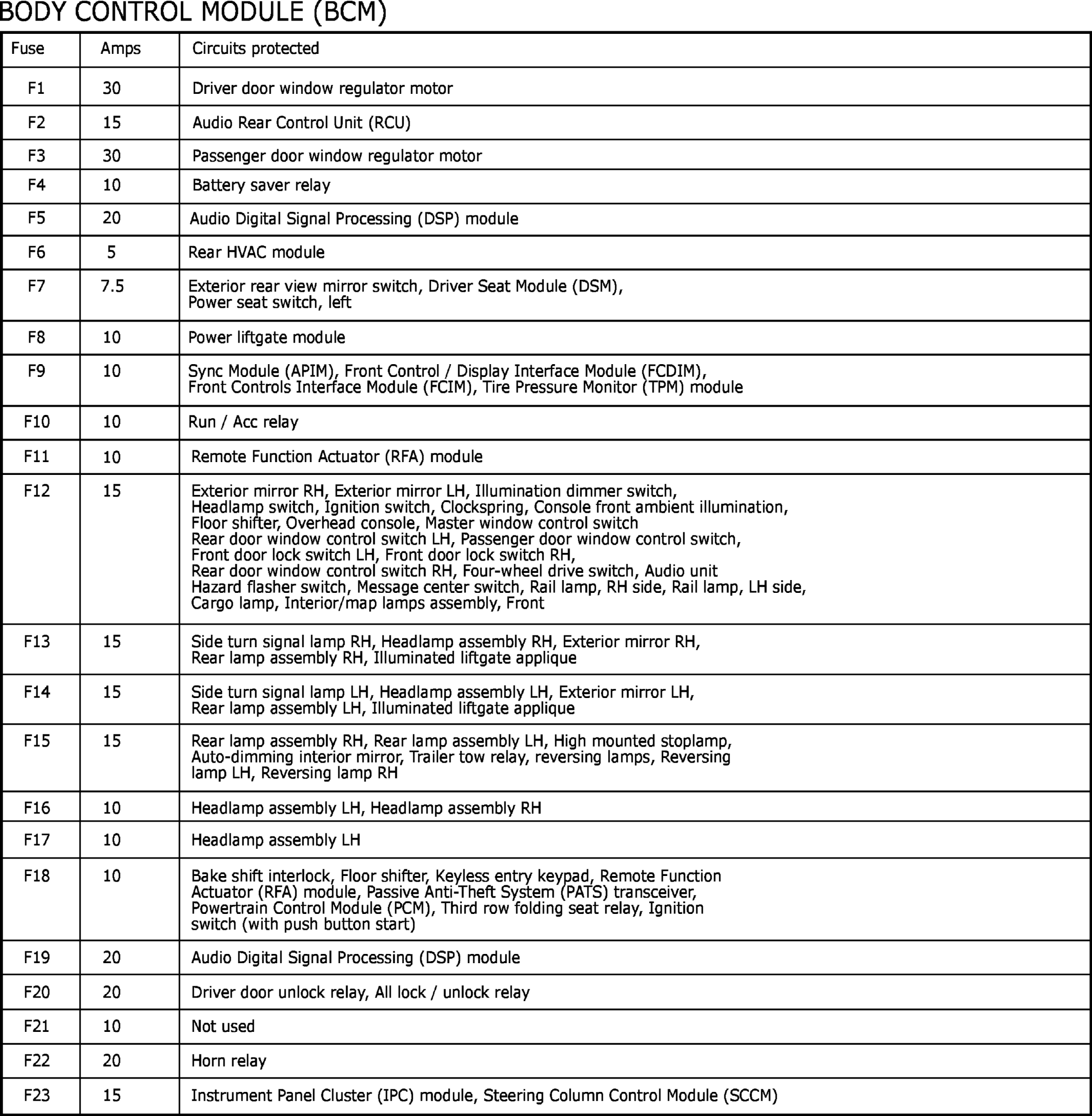

Fig 4: Body Control Module Component Location Legend (1 of 2)
GFDW59935Courtesy of FORD MOTOR COMPANY

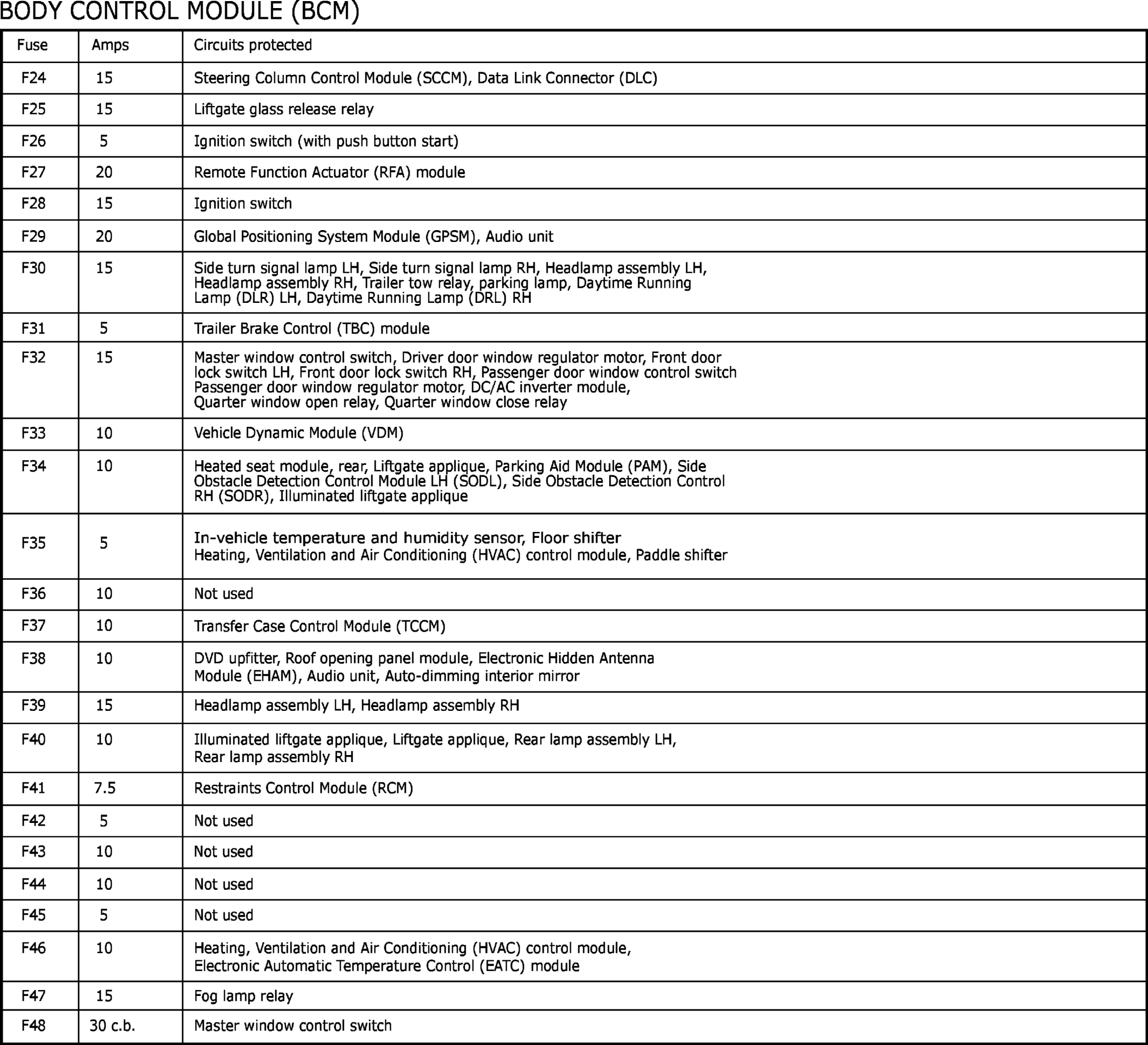

Fig 5: Body Control Module Component Location Legend (2 of 2)
GFDW59936Courtesy of FORD MOTOR COMPANY

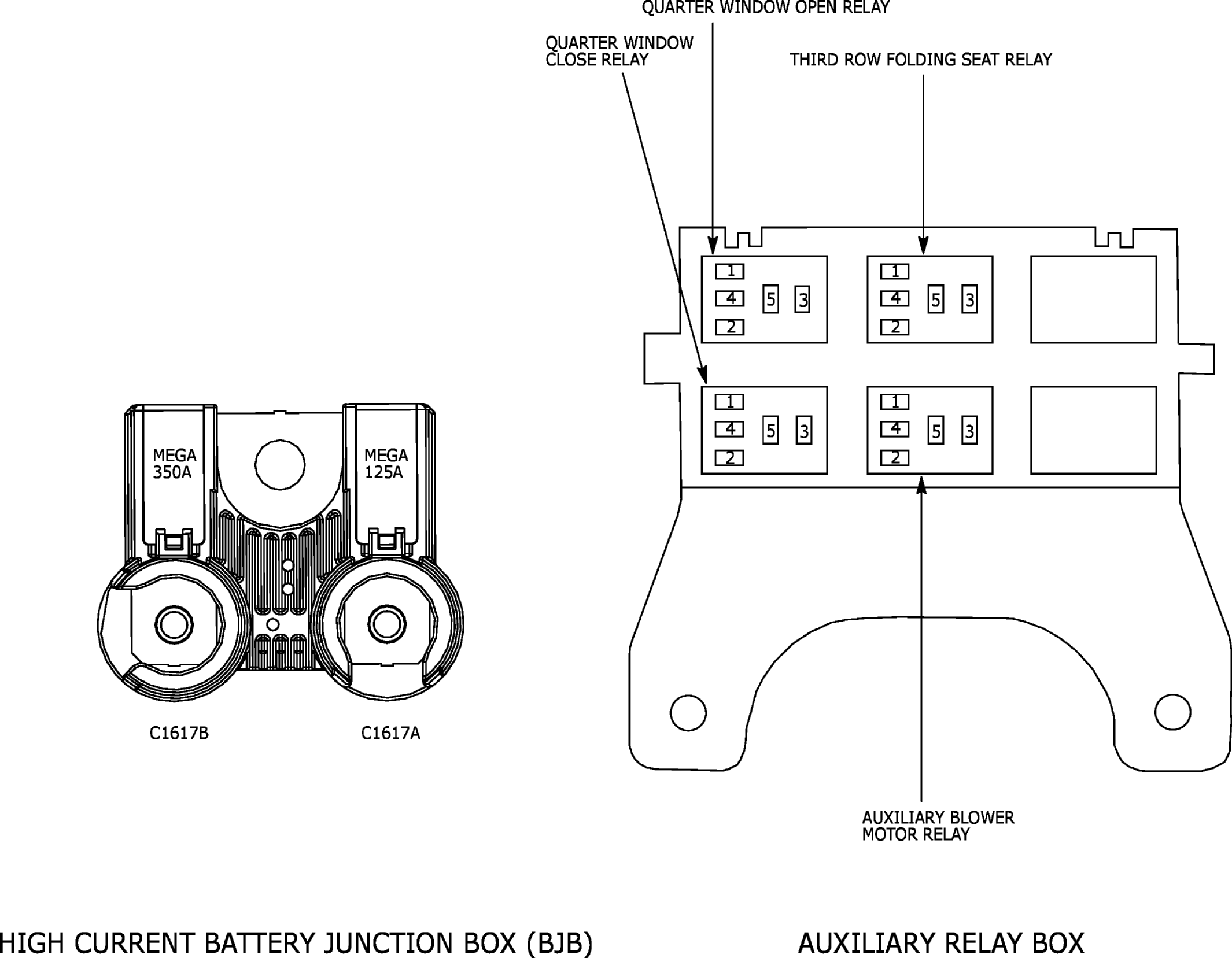

Fig 6: High Current Battery Junction Box Location & Auxiliary Relay Box Component Location
GFDW59937Courtesy of FORD MOTOR COMPANY
