Seat - Front: Installation

  1. 1.

    To install, reverse the removal procedure.

  1. 2.

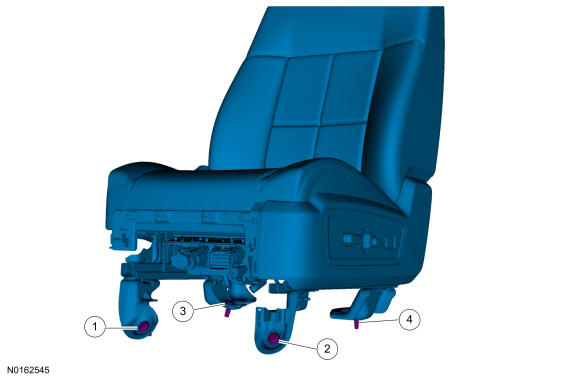

    Install the front seat bolts in the following sequence:

    1. 1.

      Install the front seat front inboard bolt.
      • Tighten to 40 Nm (30 lb-ft).

    1. 2.

      Install the front seat front outboard bolt.
      • Tighten to 40 Nm (30 lb-ft).

    1. 3.

      Install the front seat rear inboard bolt.
      • Tighten to 40 Nm (30 lb-ft).

    1. 4.

      Install the front seat rear outboard bolt.
      • Tighten to 40 Nm (30 lb-ft).
GFD137587Courtesy of FORD MOTOR COMPANY

  1. 3.

    Repower the SRS. Refer to SRS Depowering and Repowering in the General Procedures portion of Supplemental Restraint System .
