Selector Lever Bezel: Removal

All vehicles

1. 1.

   Remove the selector lever knob. Refer to Selector Lever Knob .

1. 2.

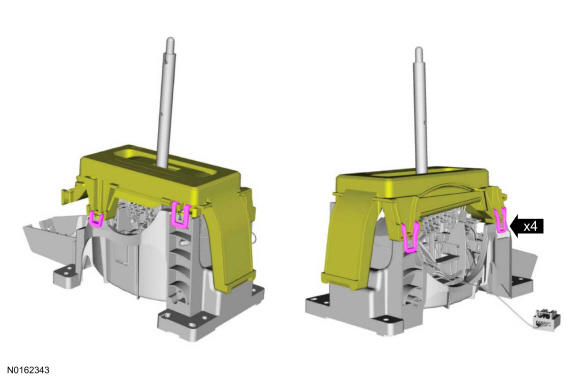

   Lift the tabs on the selector lever bezel and lift the bezel for access to the electrical harness.

Courtesy of FORD MOTOR COMPANY

Expedition

1. 3.

   Disconnect the lamp connectors from the bezel.

Courtesy of FORD MOTOR COMPANY

Navigator

1. 4.

   Disconnect and detach the LED electrical connector.

Courtesy of FORD MOTOR COMPANY

All vehicles

1. 5.

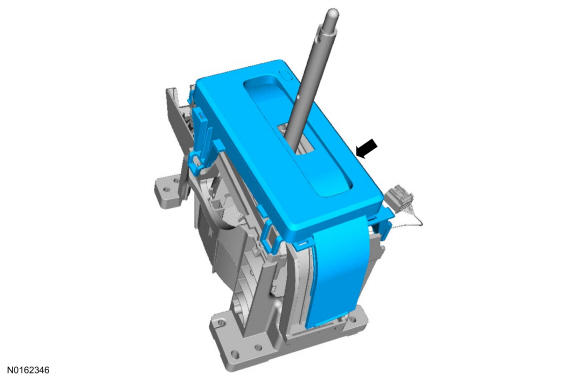

   Remove the selector lever bezel.

Courtesy of FORD MOTOR COMPANY
