Steering Column Motor: Installation

  1. 1.

    To install, reverse the removal procedure.

  1. 2.

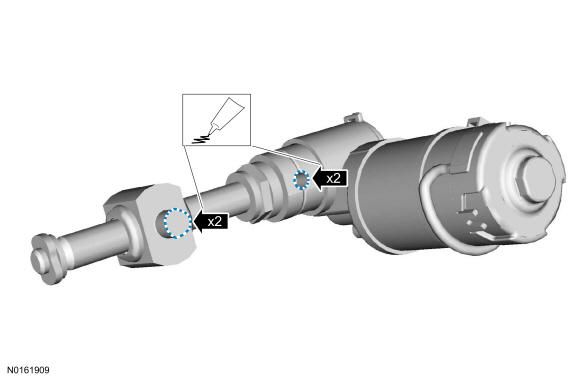

    Apply grease (supplied with the new motor) to the trunnion nut axles and the telescopic motor lead screw housing holes.
GFD134941Courtesy of FORD MOTOR COMPANY

  1. 3.

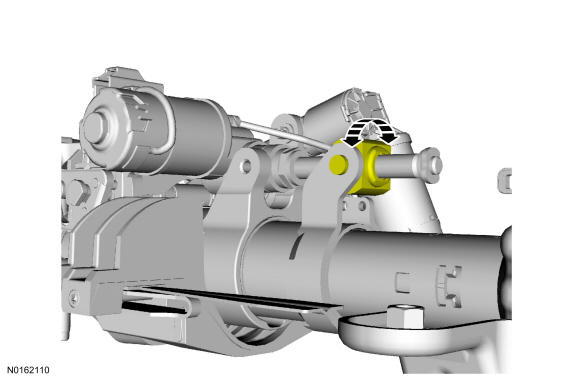

    NOTE: If necessary, make small alignment adjustments by pivoting the tilt bracket.

    Rotate the trunnion nut until the correct length is achieved to align the leadscrew housing with the threaded holes in the support arm.

GFD134942Courtesy of FORD MOTOR COMPANY
