Component Testing: Relays

WARNING: This page is about a different car, the 2016 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

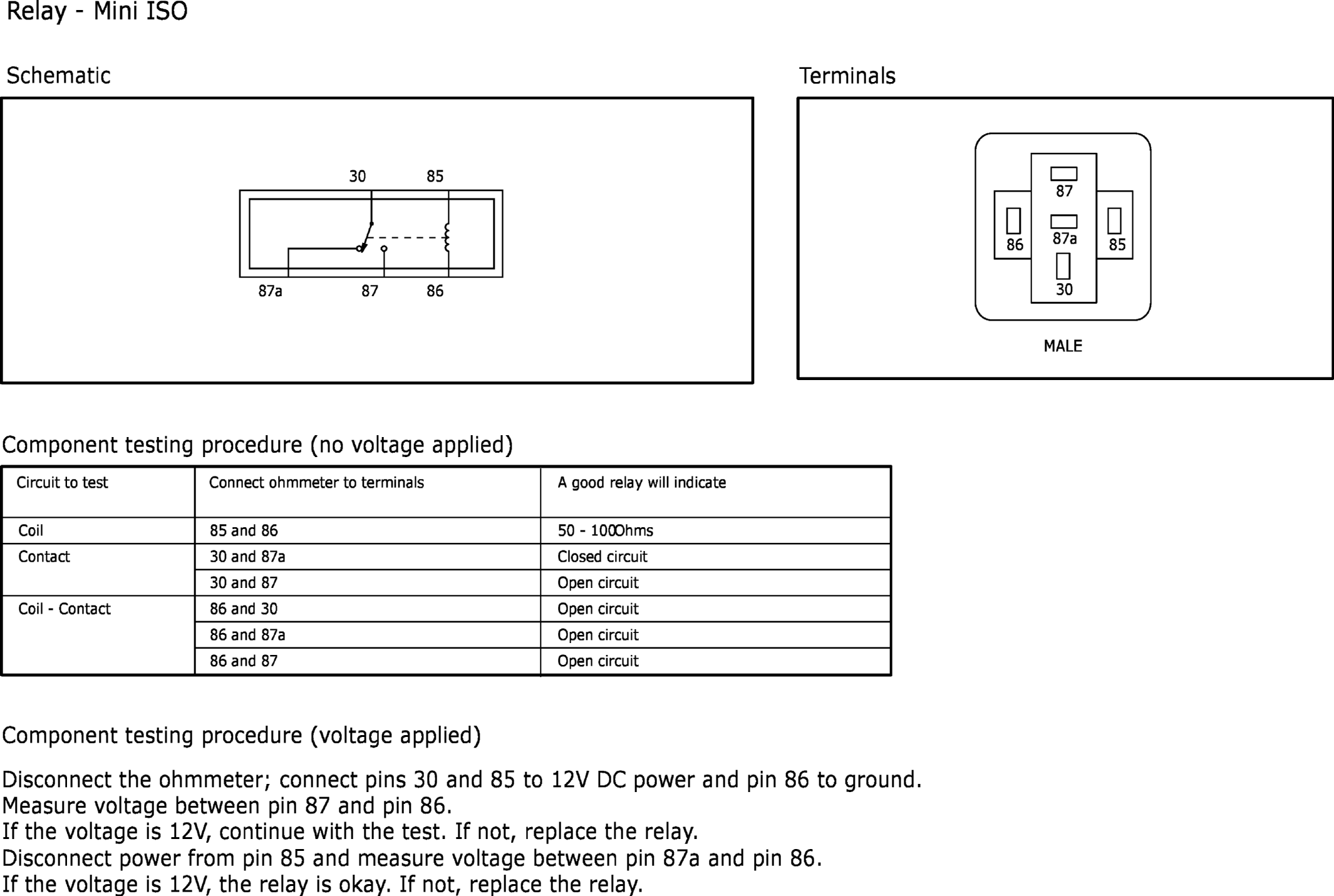

Fig 1: Relay - Mini ISO

Courtesy of FORD MOTOR COMPANY

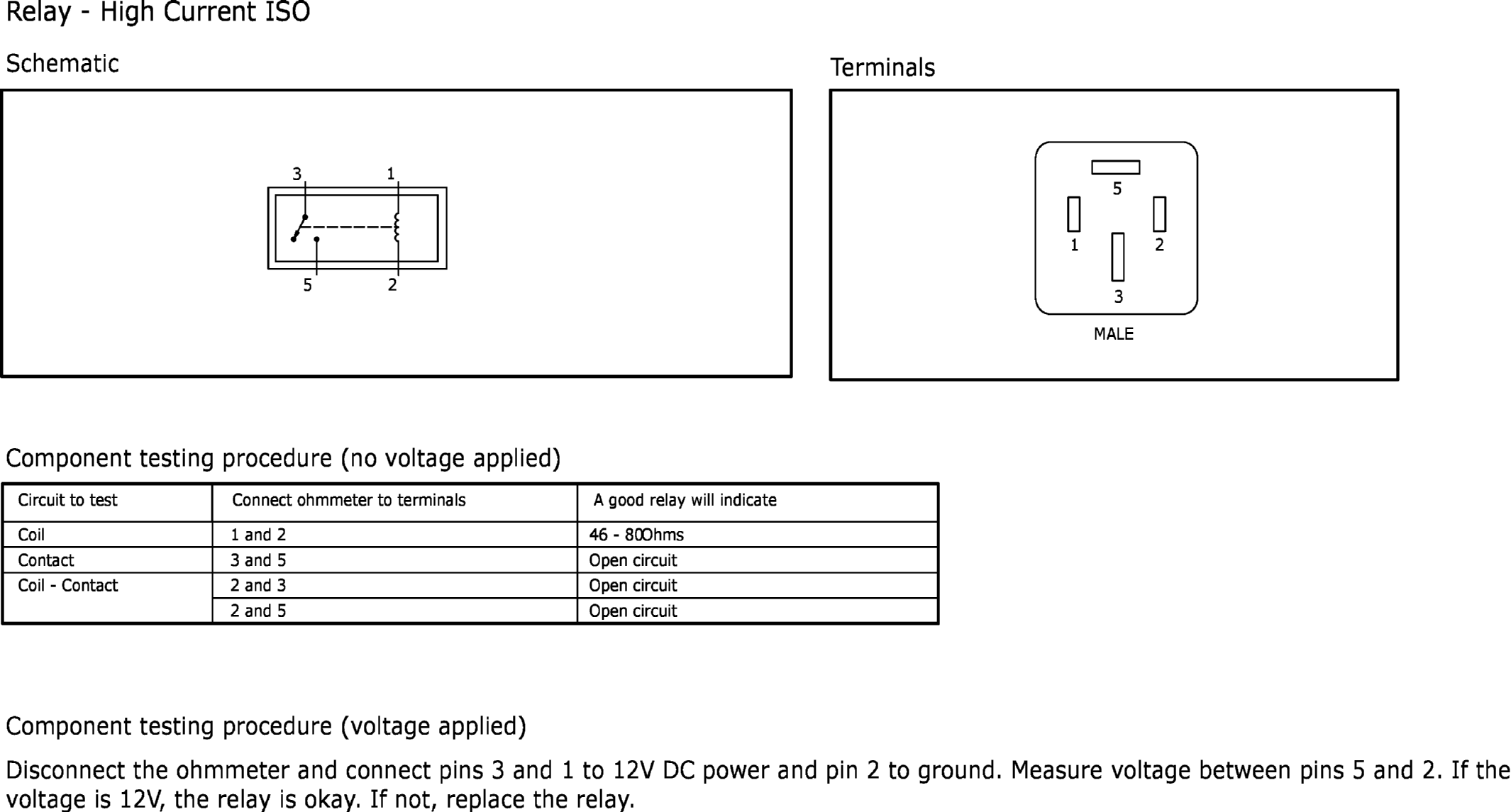

Fig 2: Relay - High Current ISO

Courtesy of FORD MOTOR COMPANY

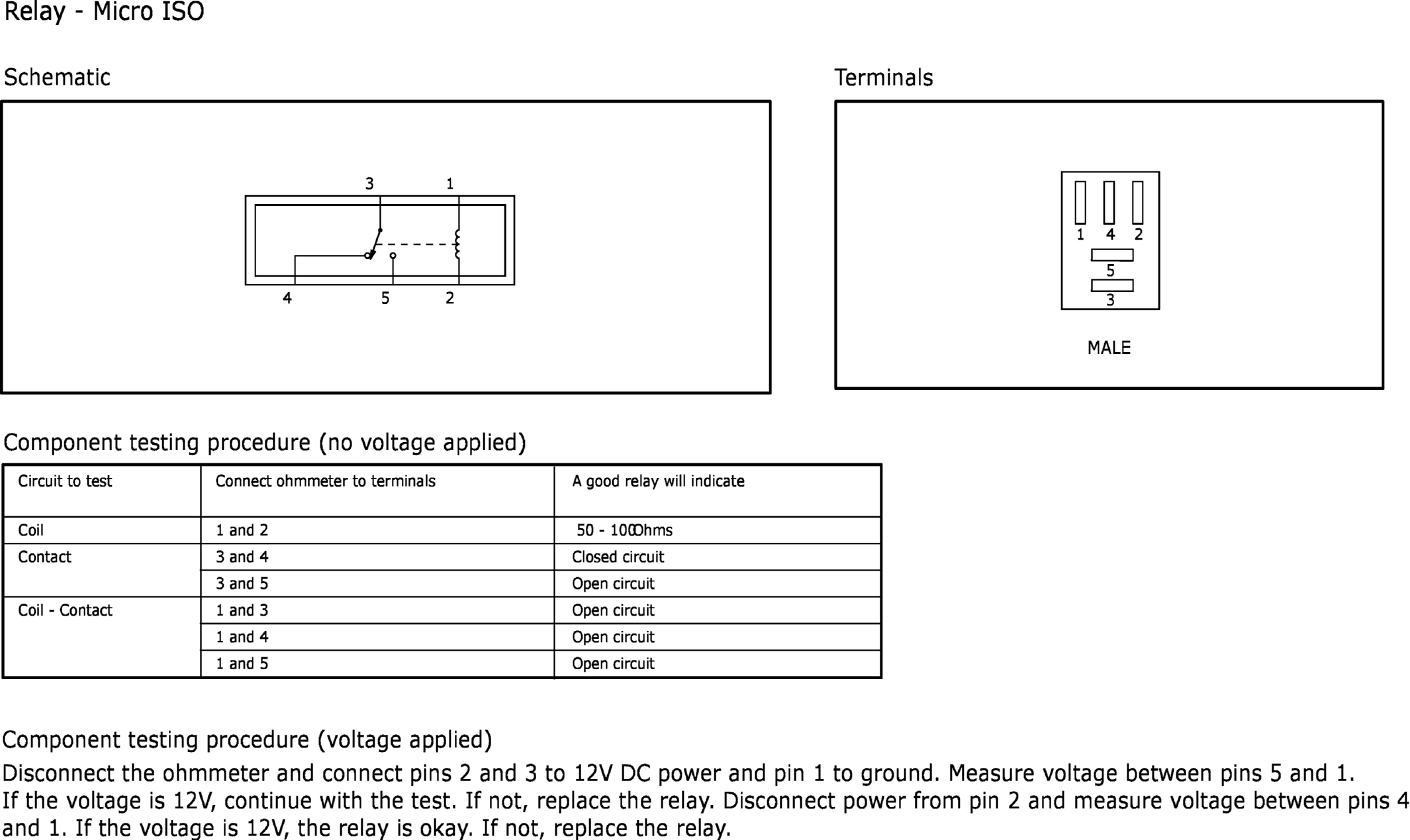

Fig 3: Relay - Micro ISO

Courtesy of FORD MOTOR COMPANY

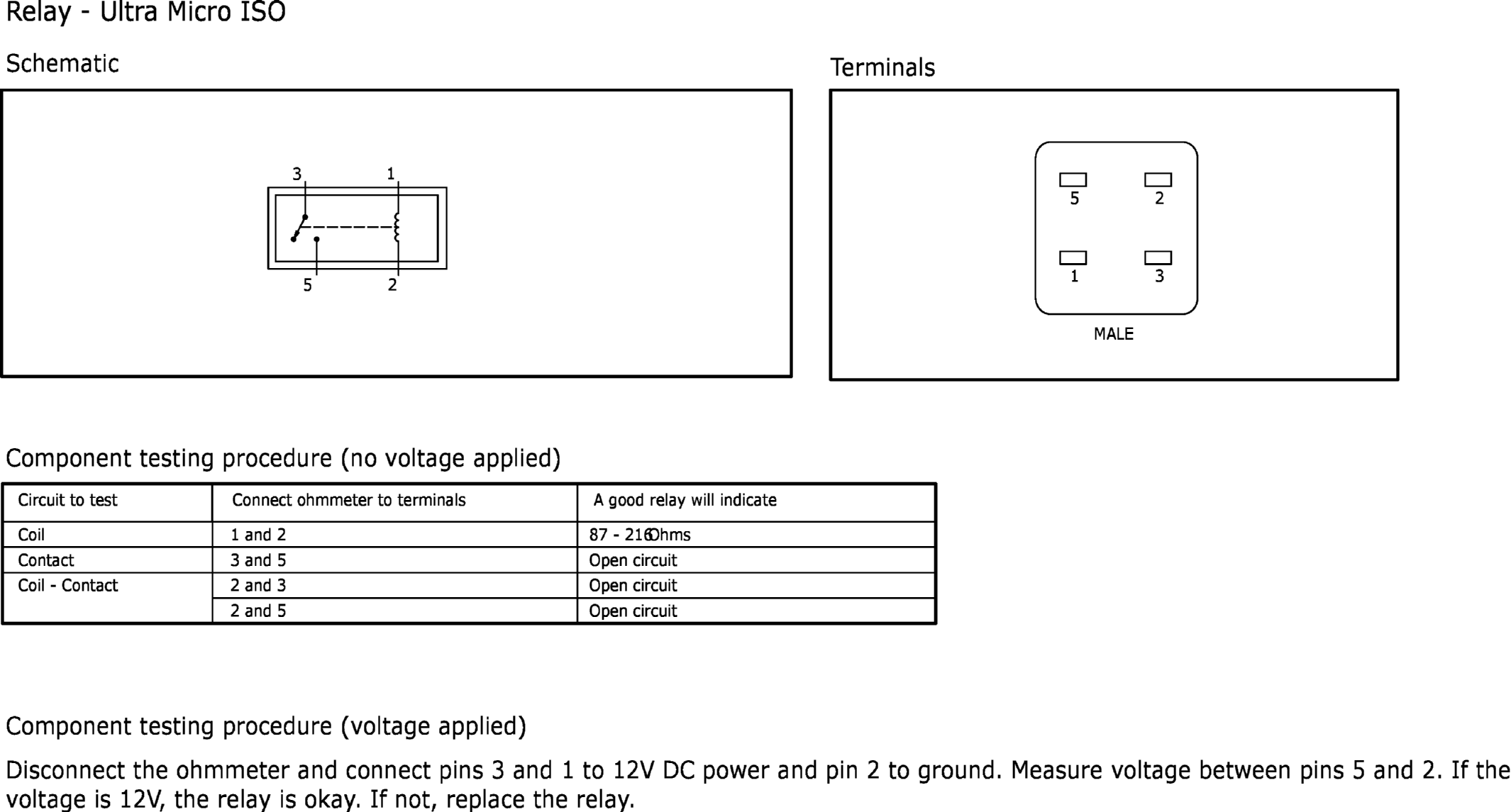

Fig 4: Relay - Ultra Micro ISO

Courtesy of FORD MOTOR COMPANY

Fig 5: Relay - Mini ISO

Courtesy of FORD MOTOR COMPANY

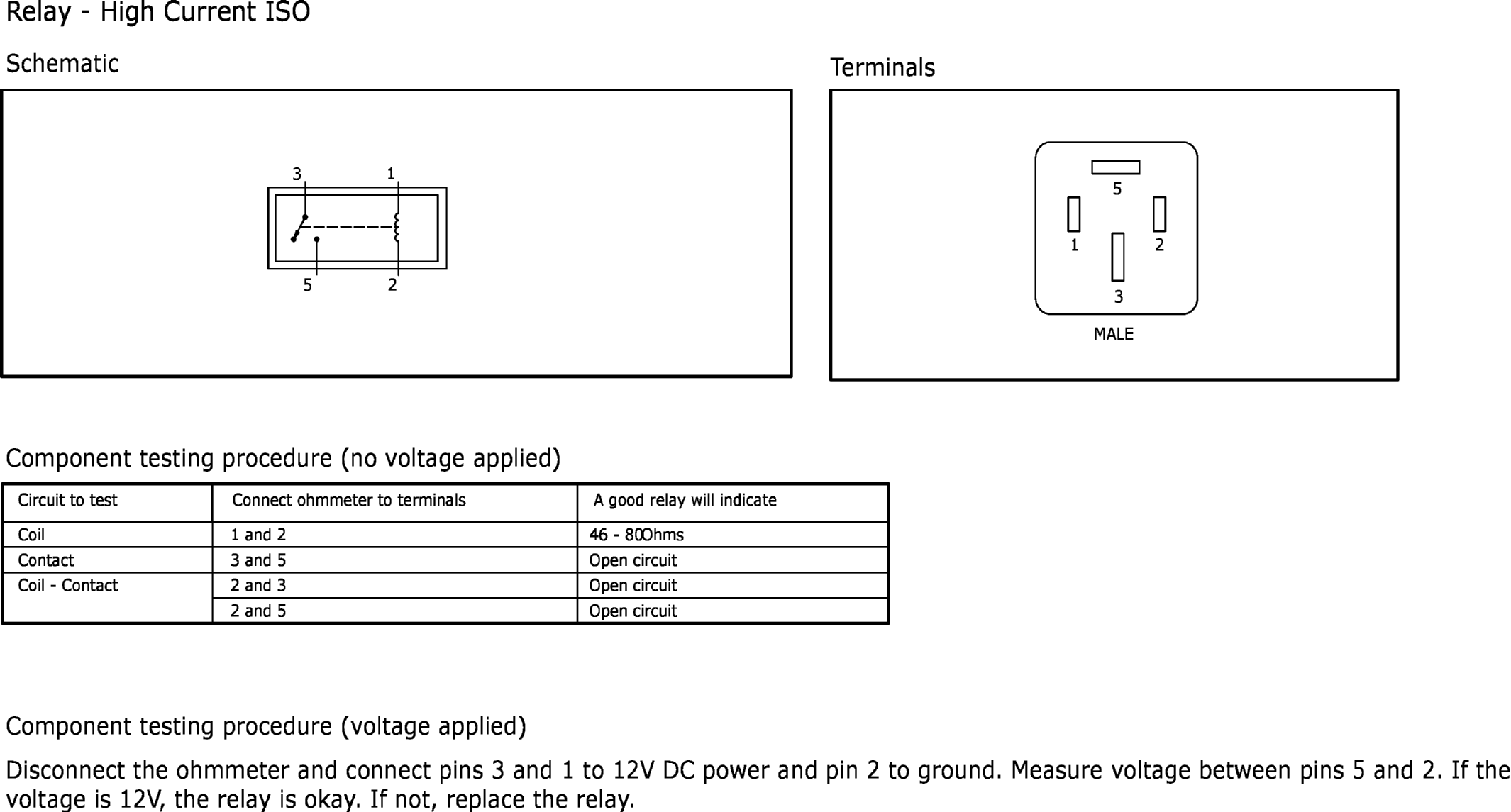

Fig 6: Relay - High Current ISO

Courtesy of FORD MOTOR COMPANY

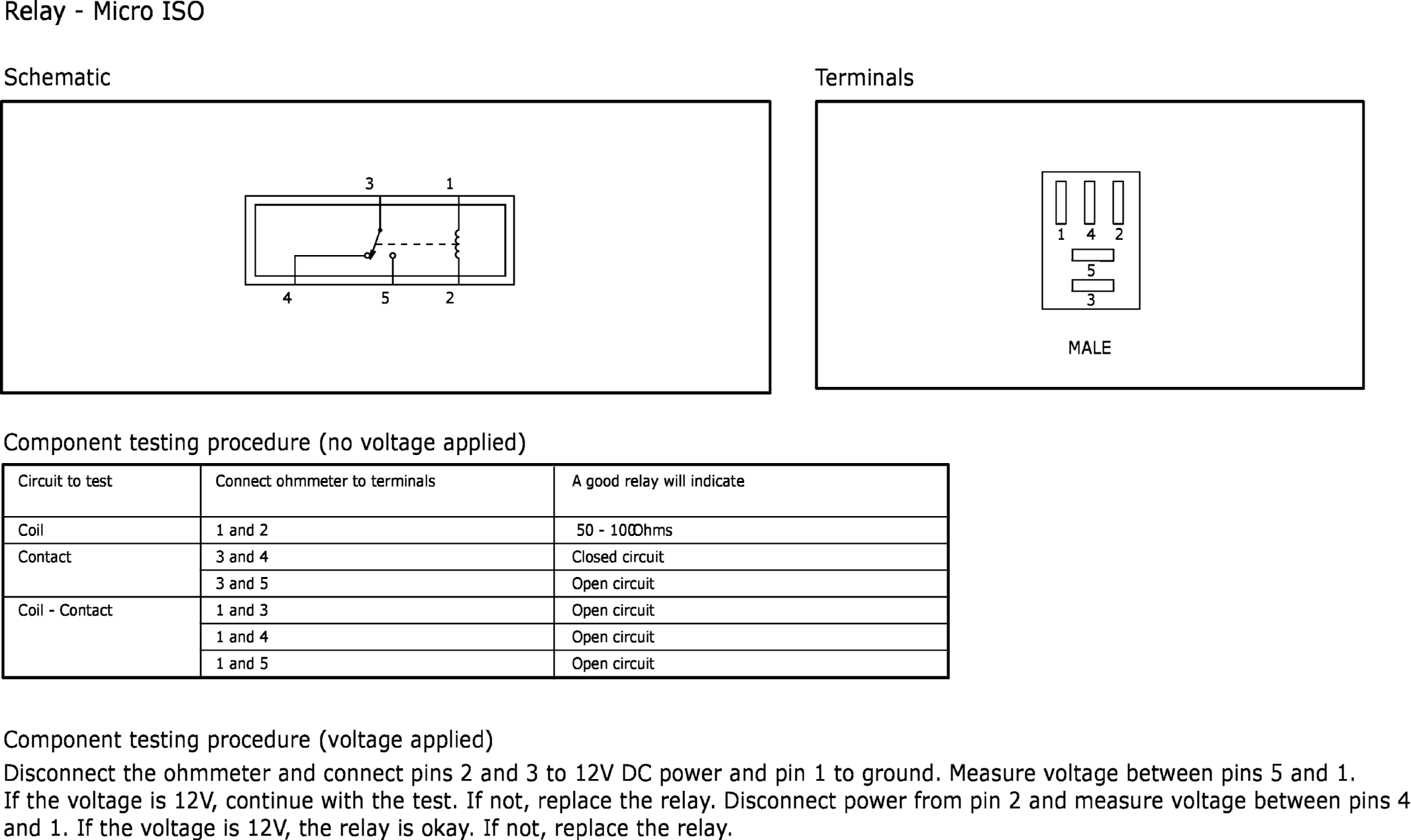

Fig 7: Relay - Micro ISO

Courtesy of FORD MOTOR COMPANY

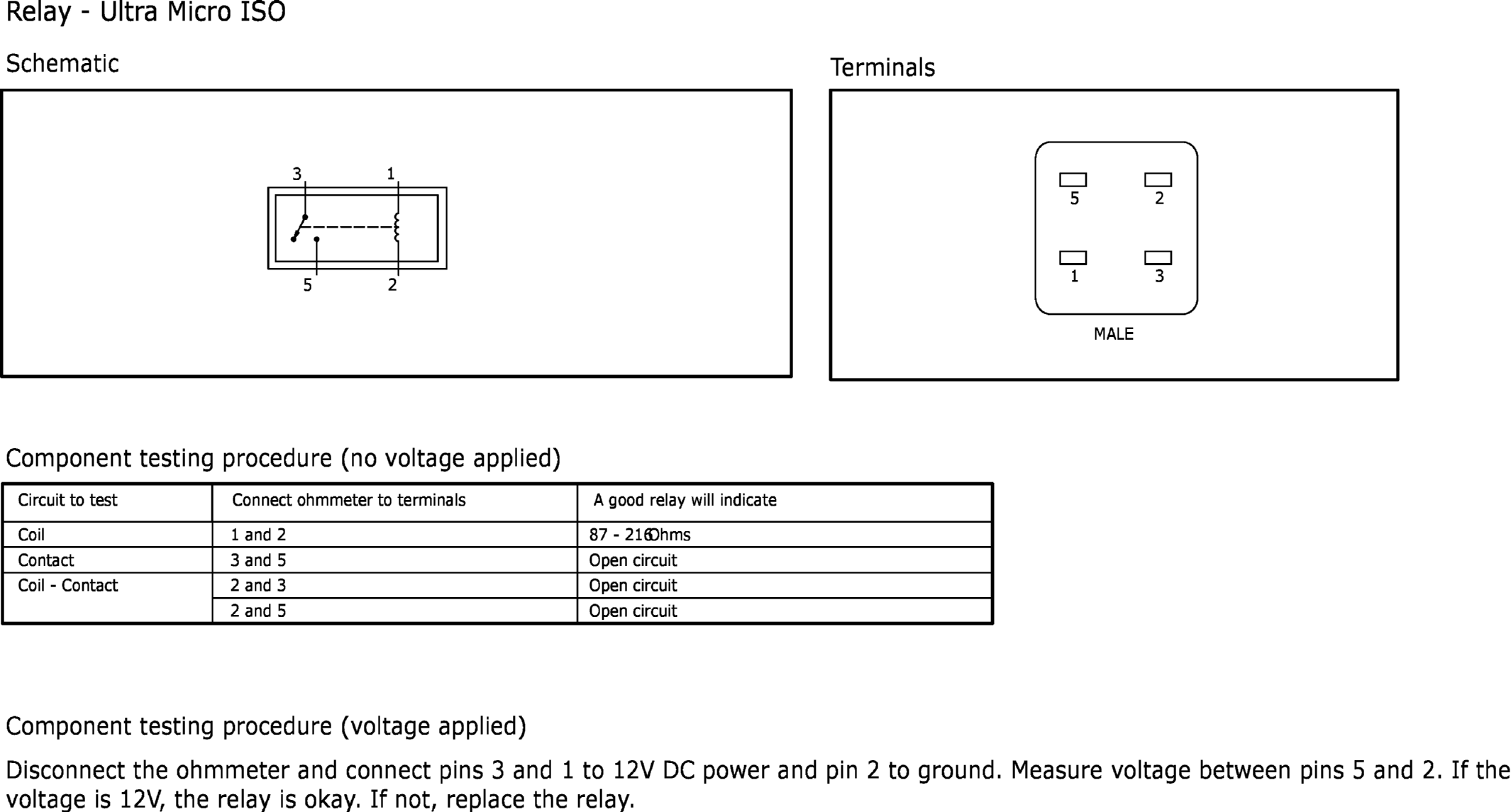

Fig 8: Relay - Ultra Micro ISO

Courtesy of FORD MOTOR COMPANY
