Intake Manifold: Removal
- 4.
Remove the Air Cleaner Outlet Pipe. Refer to: Intake Air Distribution and Filtering .
- 6.
Detach the turbocharger inlet pipe from the bracket. Loosen the turbocharger inlet pipe clamp and remove the turbocharger inlet pipe.
- 8.
Disconnect the TB electrical connector.- Detach the TB electrical connector wiring harness retainer from the TB.
- 10.
- Loosen the clamp and position the vacuum hose aside.
- Use the General Equipment: - Hose Clamp Remover/Installer

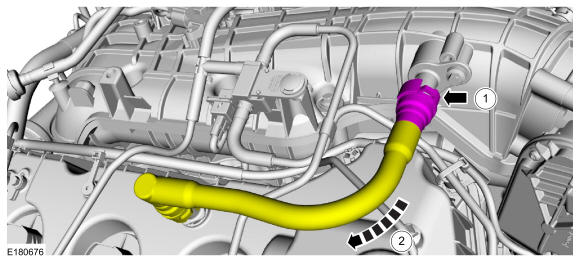

- Disconnect the fuel vapor tube from the intake manifold and position the tube aside. Fuel System General Information
- Loosen the clamp and position the vacuum hose aside.
- 11.
Disconnect the Manifold Absolute Pressure (MAP) sensor and the EVAP canister purge valve electrical connectors. Remove the bolt for the EVAP canister purge valve and position aside.
- 13.
- Disconnect the vacuum hose and position aside.
- Remove the pin-type retainer, the retaining plate and position the vacuum solenoid assembly aside.
- 14.

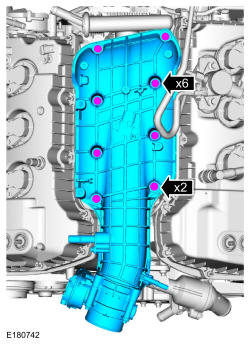

Loosen the bolts and remove the intake manifold.- Remove and discard the gaskets.
- Clean and inspect all of the sealing surfaces of the cylinder heads and the intake manifold.
