Direct Clutch Assembly: Notes
Special Tool (s)
| Compressor, Clutch Spring 307-015 (T65L-77515-A) | |
| Compressor, Clutch Spring 307-552 | |
| Dial Indicator Gauge with Holding Fixture 100-002 (TOOL-4201-C) or equivalent | |
| End Play Gauge, Clutch 307-555 |
Material
| Item | Specification |
| Motorcraft ® MERCON ® LV Automatic Transmission Fluid XT-10-QLVC (US); CXT-10-LV12 (Canada) | MERCON ® LV |

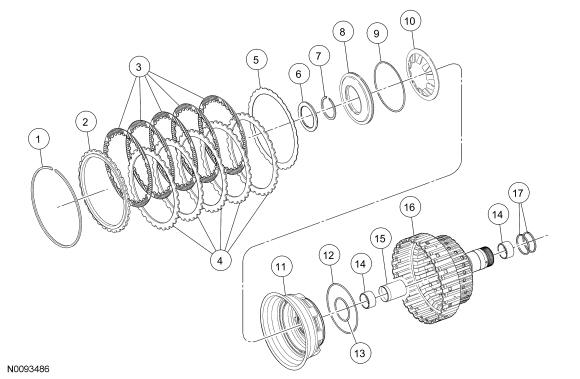

Direct Clutch Assembly
| Item | Part Number | Description |
|---|---|---|
| 1 | 7D483 | Direct clutch pressure plate retaining ring |
| 2 | 7B066 | Direct clutch pressure plate (thickness model dependent) |
| 3 | 7B164 | Direct clutch internal splined friction plates (quantity model dependent) |
| 4 | 7B442 | Direct clutch external splined steel plates (quantity model dependent) |
| 5 | - | Direct clutch cushion plate (wave spring) |
| 6 | 7C096 | Bearing (T5) |
| 7 | 7A577 | Piston retaining ring |
| 8 | 7A262 | Direct clutch balance piston |
| 9 | 7A548 | Direct clutch balance piston seal |
| 10 | 7B488 | Return spring |
| 11 | 7A262 | Direct clutch apply piston |
| 12 | 7A548 | Direct clutch apply piston outer seal |
| 13 | 7C099 | Direct clutch apply piston inner seal |
| 14 | - | Direct clutch bushing hubs (part of 7F283) (2 required) |
| 15 | - | Gear shaft tube sleeve (part of 7F283) |
| 16 | 7F283 | Direct clutch cylinder |
| 17 | 7D020 | Seal shell cylinders |
