Third Row Power-Fold Seat Switch, Left

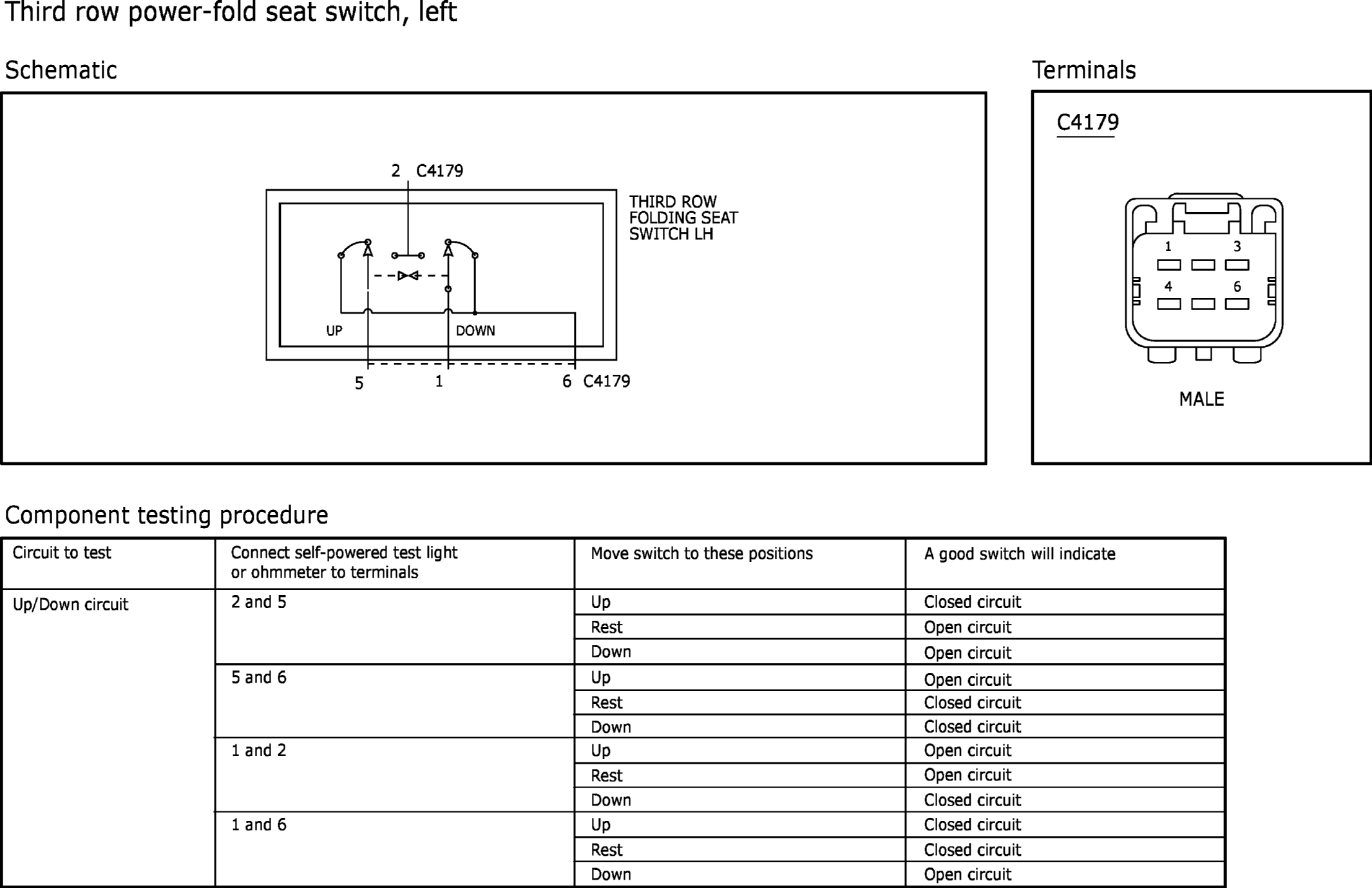

Fig 1: Third Row Power-Fold Seat Switch, Left

GFDW60230

Courtesy of FORD MOTOR COMPANY
