Front Display Interface Module (FDIM) (Navigator)

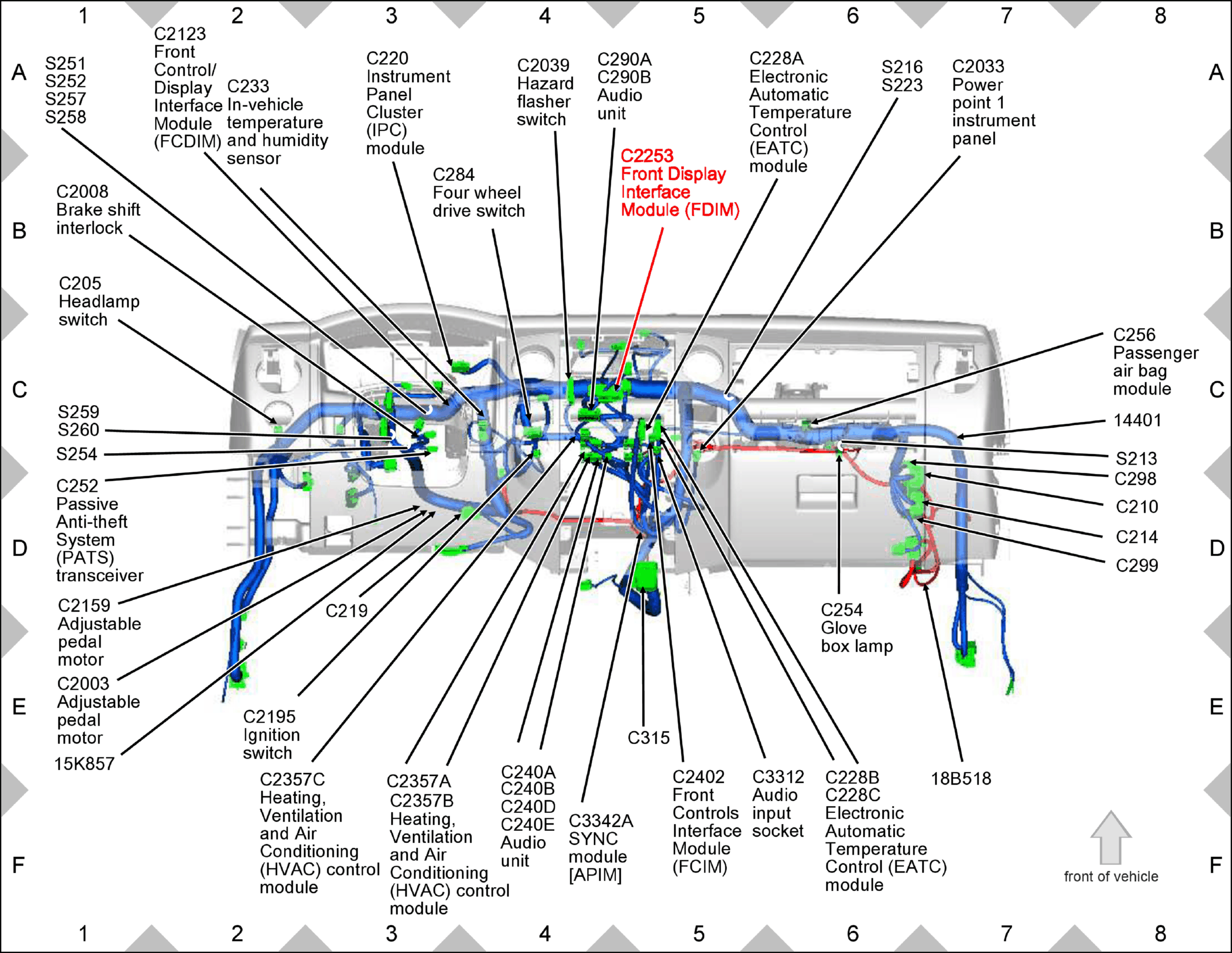

Fig 1: Front Display Interface Module (FDIM) (Navigator)

GFDW59013

Courtesy of FORD MOTOR COMPANY
