Front Controlor Display Interface Module (FCDIM) (Expedition)

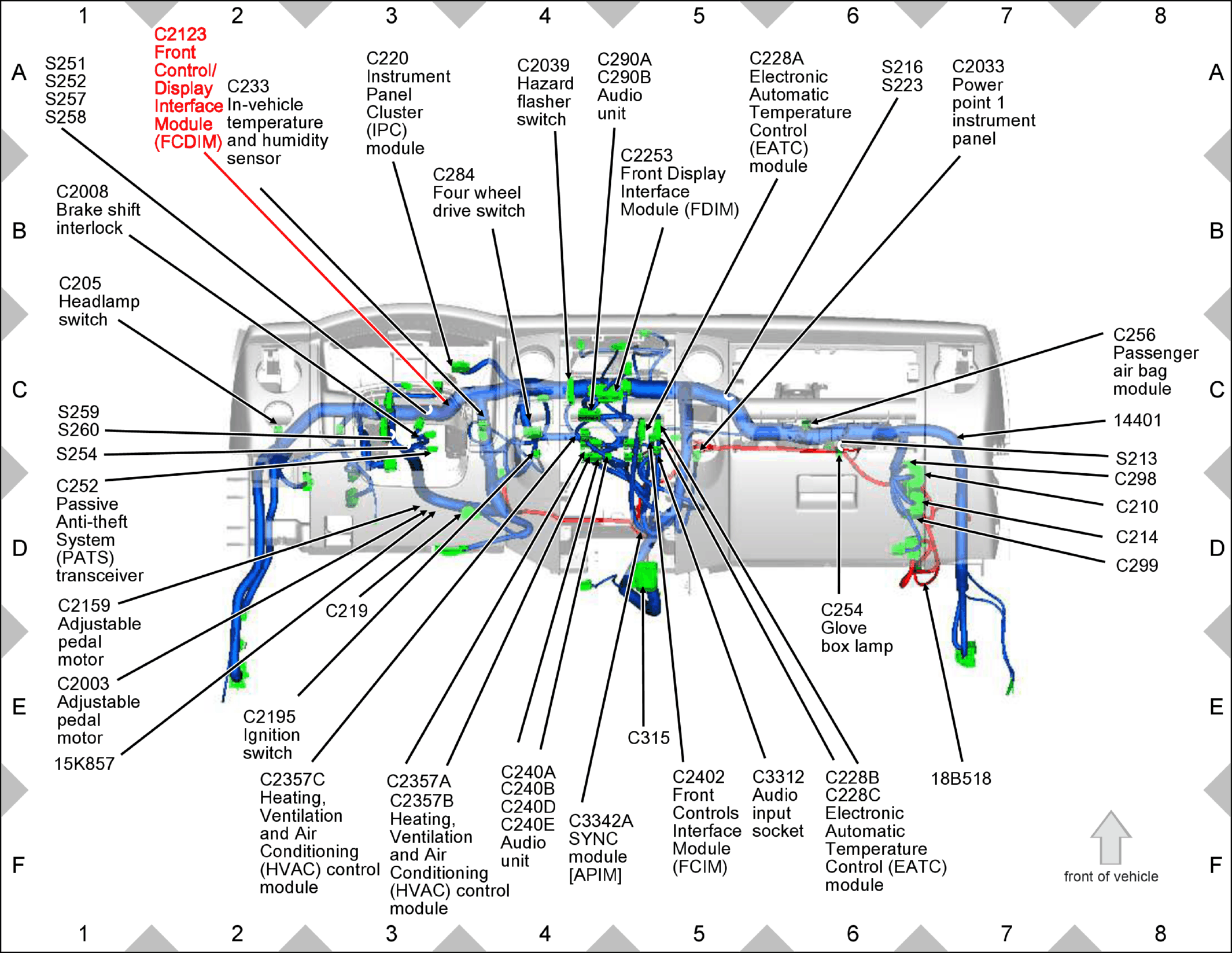

Fig 1: Front Controlor Display Interface Module (FCDIM) (Expedition) Components Location

GFDW59011

Courtesy of FORD MOTOR COMPANY
