Removal And Installation

1.

NOTE: This step is only necessary when installing a new component.

NOTE: The PMI process must begin with the current DSM installed. If the current DSM does not respond to the diagnostic scan tool, the tool may prompt for As-Built Data as part of the repair.

Using a diagnostic scan tool, begin the PMI process for the DSM following the on-screen instructions.

2.

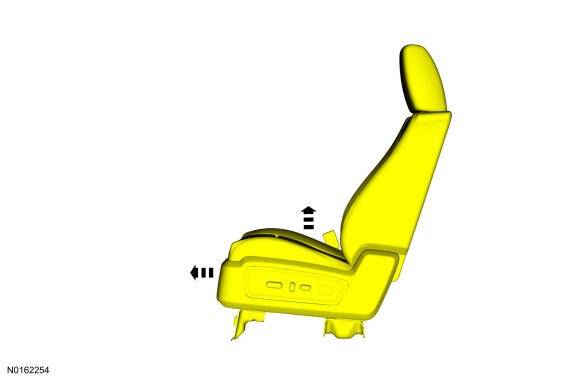

Position the driver seat forward (enough for DSM access) and to the full upward position.

GFD137542

Courtesy of FORD MOTOR COMPANY

3.

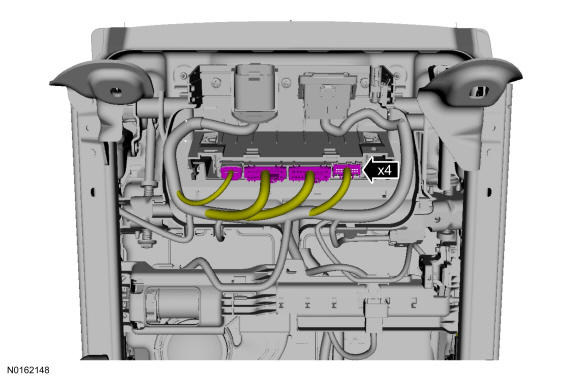

Disconnect the DSM electrical connectors.

GFD137543

Courtesy of FORD MOTOR COMPANY

4.

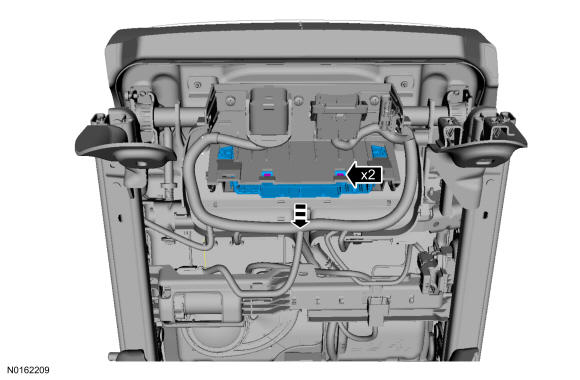

Release the locking tabs and remove the DSM.

GFD137544

Courtesy of FORD MOTOR COMPANY

5.

To install, reverse the removal procedure.

6.

NOTE: This step is only necessary when installing a new component.

Using a diagnostic scan tool, complete the PMI process for the DSM following the on-screen instructions.

7.

NOTE: This step is only necessary when installing a new component.

Operate the seat in all directions through the full range of travel to set soft stops and avoid a premature stopping point occurrence after the vehicle is returned to the customer.
