Upshift Paddle Switch: Removal

  1. Remove the drive air bag. Refer to: Driver Airbag . REFER to: Driver Airbag - Vehicles With: Adaptive Steering .

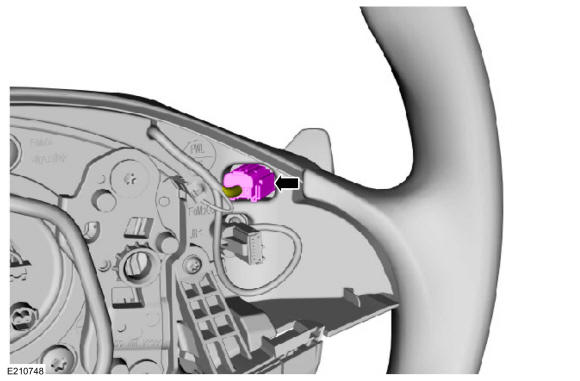

  2. Disconnect the upshift paddle switch electrical connector.
    GFD220510Courtesy of FORD MOTOR COMPANY

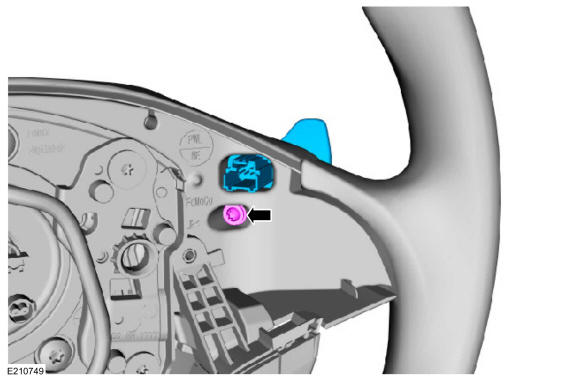

  3. Remove the screw and the upshift paddle switch.
GFD220511Courtesy of FORD MOTOR COMPANY
