Selector Lever Cable: Removal

  1. With the vehicle in N, position it on a hoist. Refer to: Jacking and Lifting - Overview .
  2. If equipped with a 2.7L EcoBoost, remove the RHCAC intake pipe. Refer to: Charge Air Cooler (CAC) Intake Pipe .
  3. If equipped with a 3.7L Duratec, remove the upper intake manifold. Refer to: Upper Intake Manifold 3.7L Duratec (227kW/301PS) .
  4. Disconnect the selector lever cable end from the transmission manual lever.
    GFD220484Courtesy of FORD MOTOR COMPANY

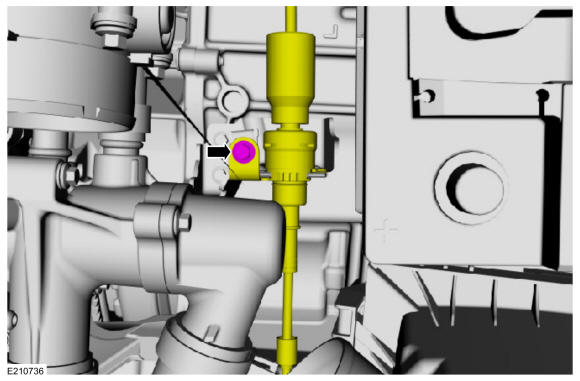

  5. Remove the selector lever cable retaining clip bolt.
    GFD220499Courtesy of FORD MOTOR COMPANY

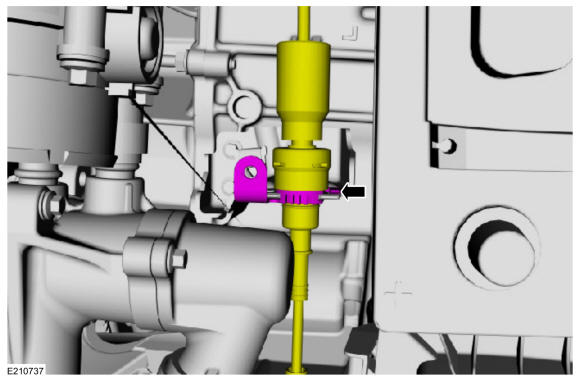

  6. Release the tab and detach the selector lever cable from the selector lever cable bracket.
    GFD220500Courtesy of FORD MOTOR COMPANY

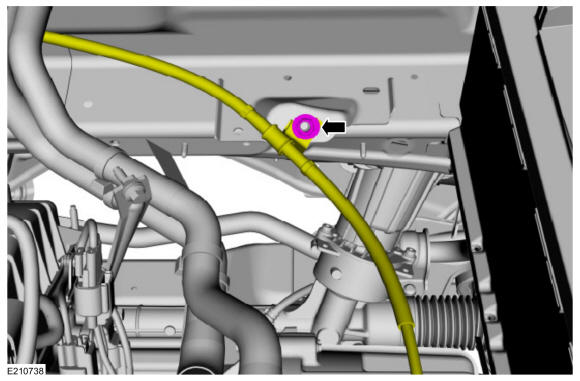

  7. Remove the selector lever cable nut.
    GFD220501Courtesy of FORD MOTOR COMPANY

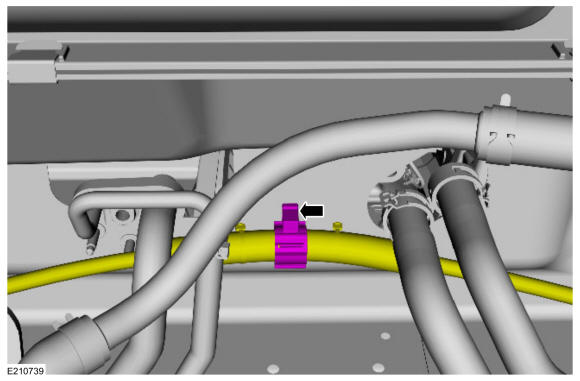

  8. Detach the selector lever cable retainer.
    GFD220502Courtesy of FORD MOTOR COMPANY
  9. Remove the RH fender splash shield. Refer to: Fender Splash Shield .
  10. Detach the selector lever cable from the TRCM lever.
    GFD220503Courtesy of FORD MOTOR COMPANY
  11. Remove the selector lever cable retaining clip bolt.
    GFD220504Courtesy of FORD MOTOR COMPANY
  12. Release the tab and detach the selector lever cable from the selector lever cable bracket.
    GFD220505Courtesy of FORD MOTOR COMPANY

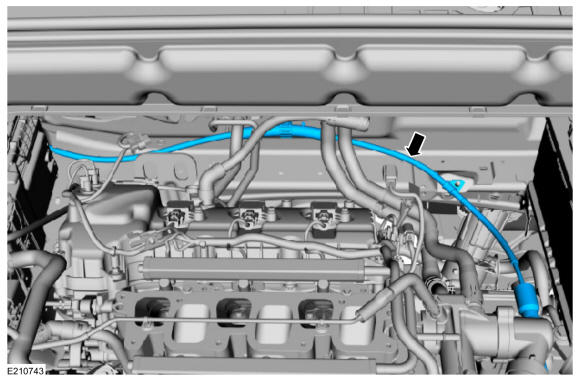

  13. Remove the selector lever cable.
GFD220506Courtesy of FORD MOTOR COMPANY
