Brake Shift Interlock Override Switch: Removal

NOTE: Removal steps in this procedure may contain installation details.

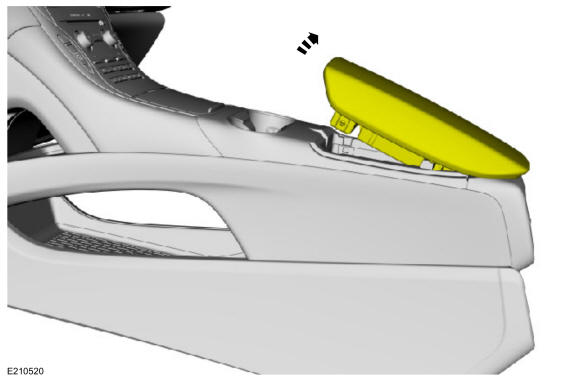

1. Open the console door.

   Courtesy of FORD MOTOR COMPANY

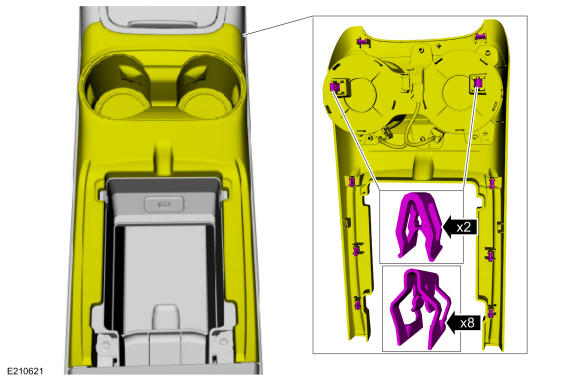

2. Detach the console trim panel.

   Courtesy of FORD MOTOR COMPANY

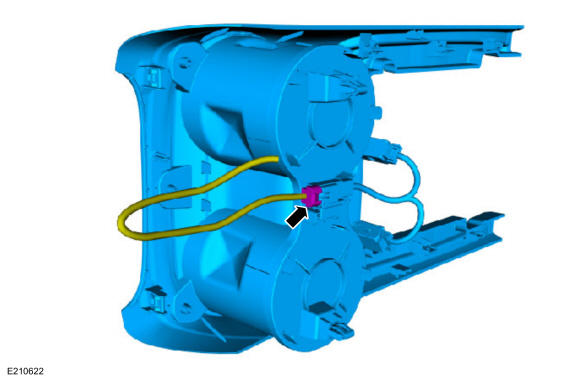

3. Disconnect the electrical connector and remove the console trim panel.

   Courtesy of FORD MOTOR COMPANY

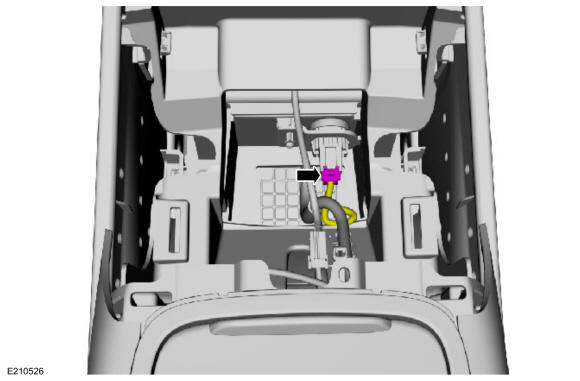

4. Disconnect the brake shift interlock override switch.

   Courtesy of FORD MOTOR COMPANY

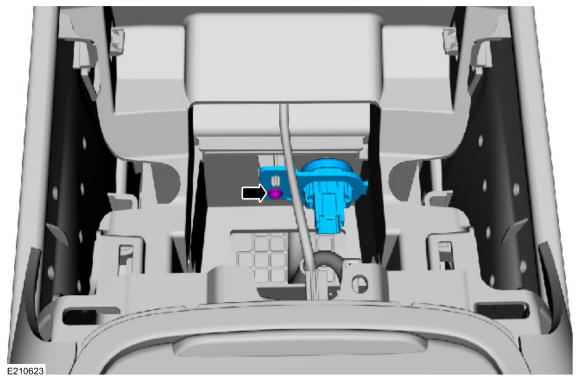

5. Remove the screw and the brake shift interlock override switch.

   Torque: 44 lb.in (5 Nm)

Courtesy of FORD MOTOR COMPANY
