External Controls - Component Location
External Controls - Component Location

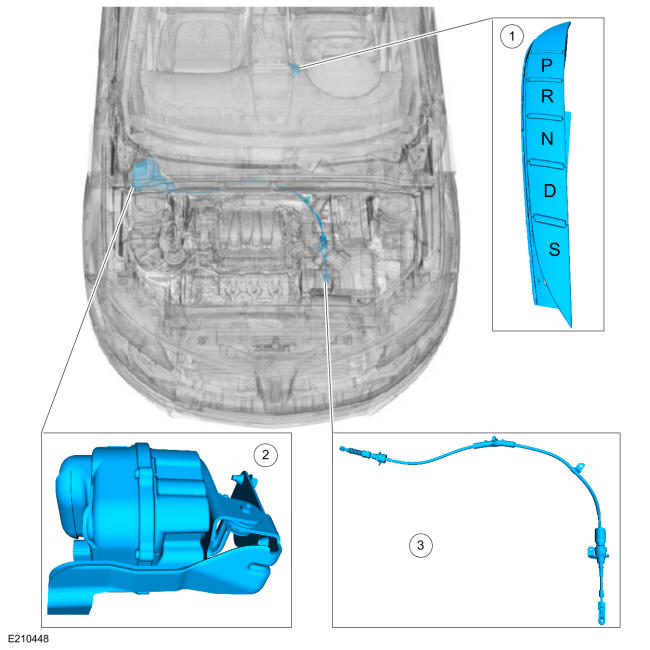

Courtesy of FORD MOTOR COMPANY
Item
Description
1
GSM
2
TRCM
3
Selector lever cable

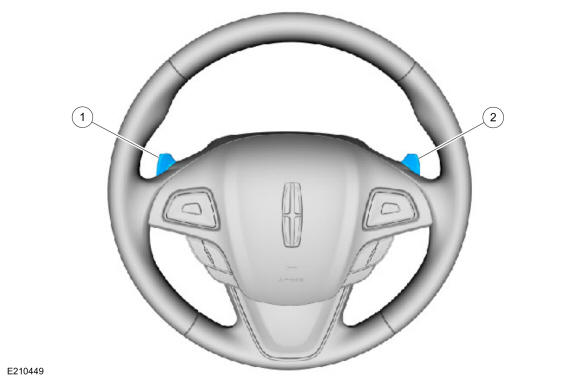

Courtesy of FORD MOTOR COMPANY
Item
Description
1
Downshift paddle switch
2
Upshift paddle switch

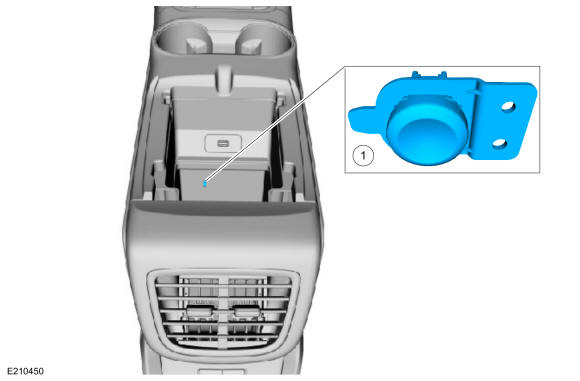

Courtesy of FORD MOTOR COMPANY
Item
Description
1
Brake transmission shift interlock override switch
