High-Pressure Fuel Pump: Installation

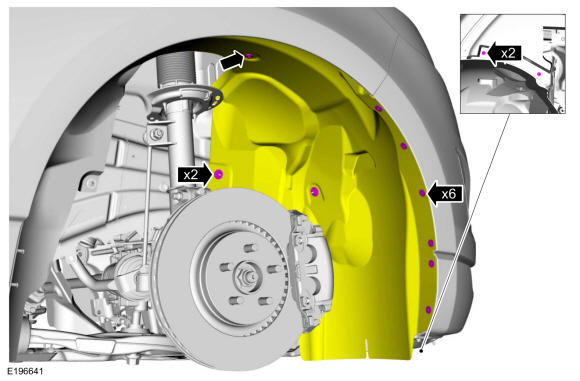

Remove the fasteners and position the fender splash shield aside.

Courtesy of FORD MOTOR COMPANY
NOTE: Only rotate the crankshaft Clockwise (CW) or damage to the engine may occur.

NOTE: The drive lobe for the high-pressure fuel pump must be at BDC (bottom dead center) for the high-pressure fuel pump installation.

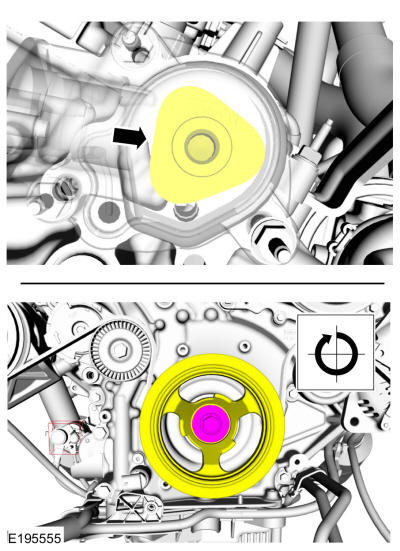

Using the crankshaft pulley bolt, turn the crankshaft until the high-pressure fuel pump drive lobe is at BDC.

Courtesy of FORD MOTOR COMPANY
Position the fender splash shield and install the retainers.

Courtesy of FORD MOTOR COMPANY

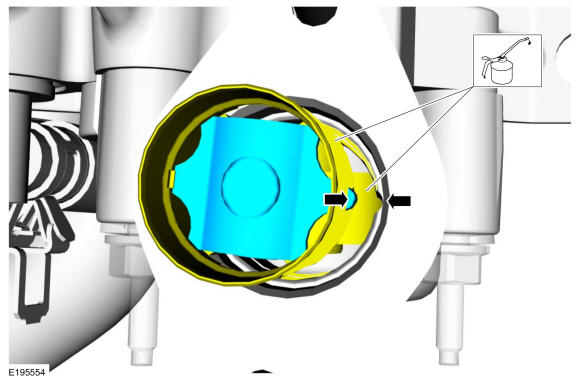

NOTE: Align the notch on the high-pressure fuel pump tappet and with the groove in the high-pressure fuel pump drive unit bore.

Apply clean engine oil to the high-pressure fuel pump drive unit bore, the drive lobe and the roller tappet. Install the high-pressure fuel pump tappet.

Courtesy of FORD MOTOR COMPANY
NOTE: Apply clean engine oil to the high-pressure fuel pump O-ring seals.

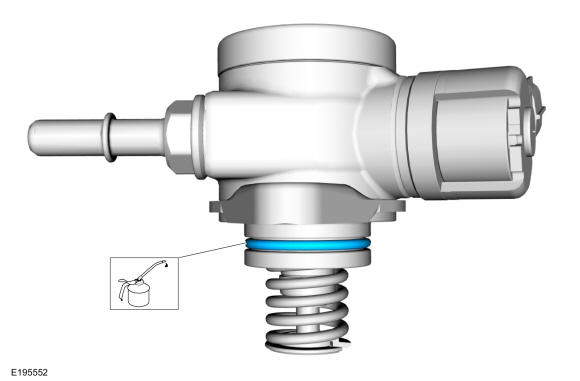

Install a new high-pressure fuel pump O-ring seal and lubricate with clean engine oil.

Courtesy of FORD MOTOR COMPANY

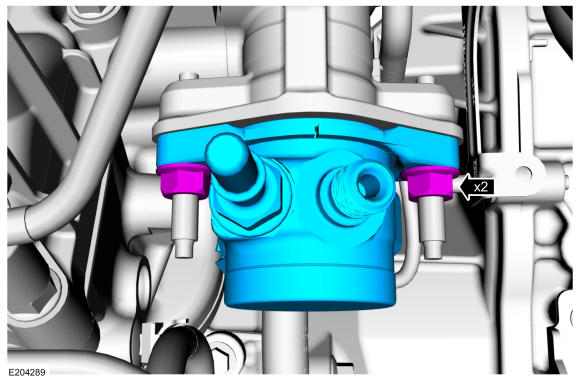

Install the high-pressure fuel pump, then install and finger tighten the high-pressure fuel pump nuts. Alternately tighten each of the high-pressure fuel pump nuts one complete revolution until seated. Then tighten the fuel high-pressure fuel pump nuts in the following 2 stages.
Torque:

Stage 1: 177 lb.in (20 Nm)

Stage 2: 45 °

Courtesy of FORD MOTOR COMPANY

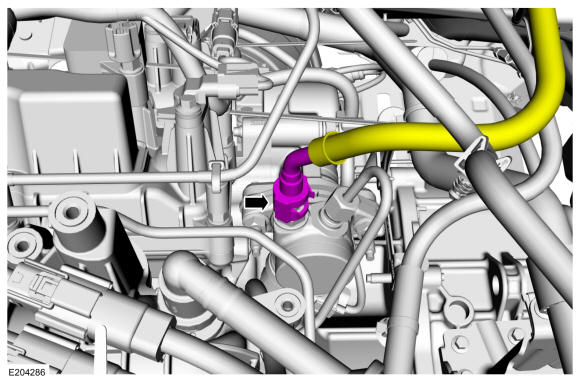

Connect the high-pressure fuel pump fuel feed tube quick release coupling. Refer to: Quick Release Coupling .

Courtesy of FORD MOTOR COMPANY

NOTE: Calculate the correct torque wrench setting for the following torque using the Torque Wrench Adapter Formulas in the chart below.

Courtesy of FORD MOTOR COMPANY

NOTE: Make sure that a new high-pressure fuel pump-to-fuel rail high-pressure fuel tube is installed.

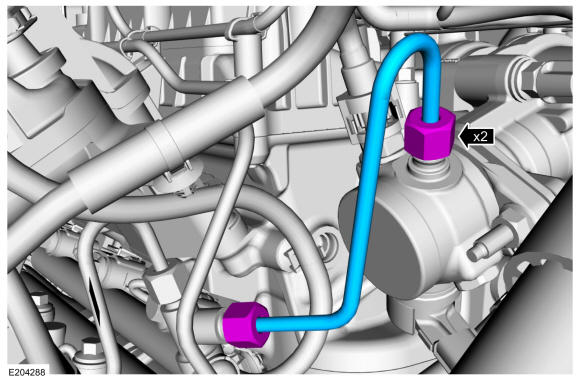

Install the high-pressure fuel pump-to-fuel rail high-pressure fuel tube and tighten the flare nuts finger tight, then tighten the flare nuts in the following 3 stages.

Torque:

Stage 1: 62 lb.in (7 Nm)

Stage 2: 89 lb.in (10 Nm)

Stage 3: 25 °

Courtesy of FORD MOTOR COMPANY

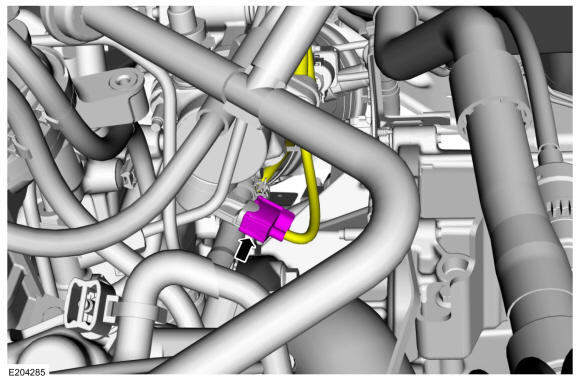

Connect the high-pressure fuel pump electrical connector.

Courtesy of FORD MOTOR COMPANY
Install the Charge Air Cooler (CAC) Intake Pipe - RH. Refer to: Charge Air Cooler (CAC) Intake Pipe .
Connect the battery. Refer to: Battery Disconnect and Connect .
Pressurize the fuel system. Refer to: Fuel System Pressure Release .
