Throttle Body
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the Air Cleaner(ACL) outlet pipe, refer to Intake Air Distribution and Filtering .

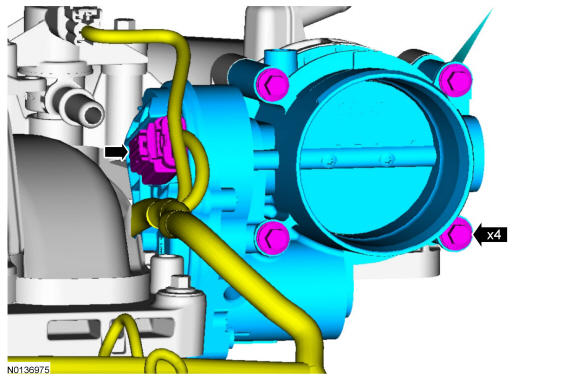

- Remove the throttle body retaining bolts and then remove the throttle body.
- Tighten to 10 Nm (89 lb-in).
-

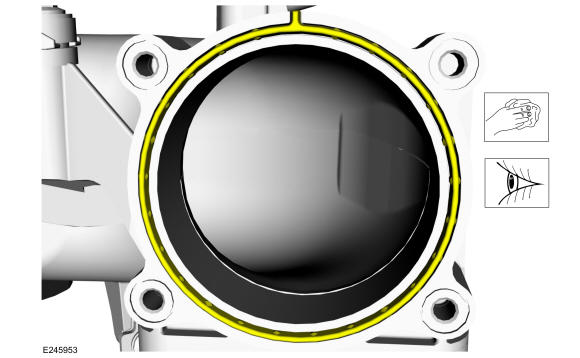

NOTE: Make sure that the mating faces are clean and free of foreign material.
Inspect the Throttle Body (TB) gasket, clean and replace the Throttle Body (TB) gasket as needed.
8 - To install, reverse the removal procedure.
