Exploded View Of Lower Engine Block

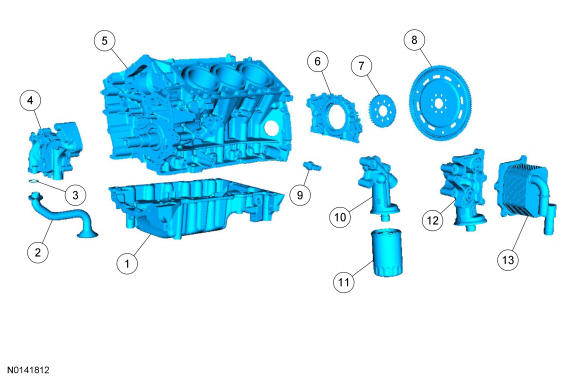

Lower Engine Block (View 1)
| Item | Part Number | Description |
|---|---|---|
| 1 | 6675 | Oil pan |
| 2 | 6622 | Oil pump screen and pickup tube |
| 3 | 6625 | Oil pump screen and pickup tube O-ring seal |
| 4 | 6621 | Oil pump |
| 5 | 6010 | Cylinder block |
| 6 | 6D327 | Crankshaft rear seal retainer |
| 7 | 12A227 | Crankshaft sensor ring |
| 8 | 6375 | Flexplate |
| 9 | 9278 | Engine Oil Pressure(EOP) switch |
| 10 | 6881 | Oil filter adapter |
| 11 | 6714 | Engine oil filter |
| 12 | 6881 | Oil filter adapter with oil cooler |
| 13 | 6A642 | Oil cooler |

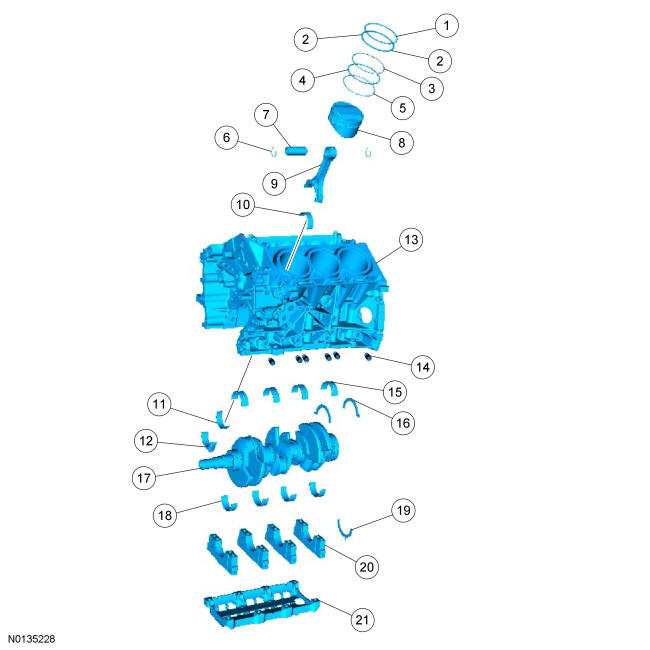

Lower Engine Block (View 2)
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Piston compression upper ring (part of 6148) (6 required) |
| 2 | - | Piston compression lower ring (part of 6148) (6 required) |
| 3 | - | Piston oil control upper segment ring (part of 6148) (6 required) |
| 4 | - | Piston oil control spacer (part of 6148) (6 required) |
| 5 | - | Piston oil control lower segment ring (part of 6148) (6 required) |
| 6 | 6140 | Piston pin retainer (12 required) |
| 7 | 6135 | Piston pin (6 required) |
| 8 | 6110 | Piston (6 required) |
| 9 | 6200 | Connecting rod (6 required) |
| 10 | 6211 | Connecting rod upper bearing (6 required) |
| 11 | 6211 | Connecting rod lower bearing (6 required) |
| 12 | - | Connecting rod cap (part of 6200) (6 required) |
| 13 | 6010 | Cylinder block |
| 14 | 6K868 | Piston oil cool valve (6 required) |
| 15 | 6333 | Cylinder block crankshaft main bearing (4 required) |
| 16 | 6A341 | Crankshaft upper thrust washer (2 required) |
| 17 | 6303 | Crankshaft |
| 18 | 6A338 | Lower crankshaft main bearings (4 required) |
| 19 | 6K302 | Crankshaft lower thrust washer |
| 20 | 6325 | Lower crankshaft main bearing caps (4 required) |
| 21 | 6C364 | Main bearing cap support brace |
