Steering Column Shaft - Intermediate: Notes

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

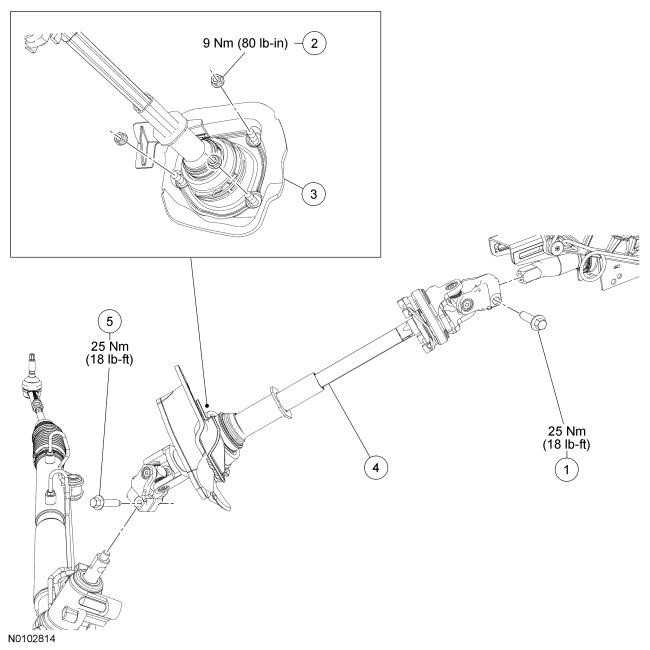

Fig 1: Exploded View Of Intermediate Steering Column Shaft With Torque Specifications

Courtesy of FORD MOTOR COMPANY

Item	Part Number	Description
1	W712961	Steering column shaft-to-steering column bolt
2	W705460	Steering column shaft boot nut
3	3C611	Steering column shaft boot
4	3B676	Steering column shaft
5	W712961	Steering column shaft-to-steering gear bolt
