Removal And Installation

If a new HSWM is being installed, connect the scan tool and upload the module configuration information from the HSWM. Refer to PMI in Module Configuration .

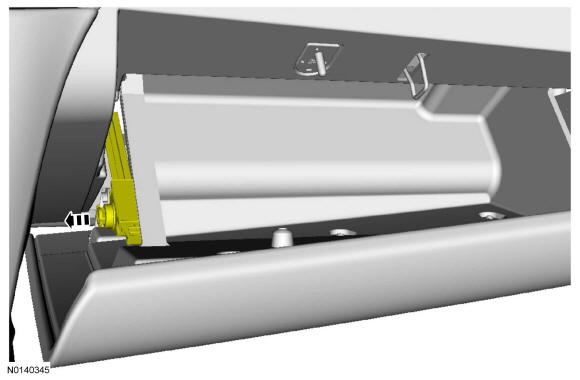

Courtesy of FORD MOTOR COMPANY

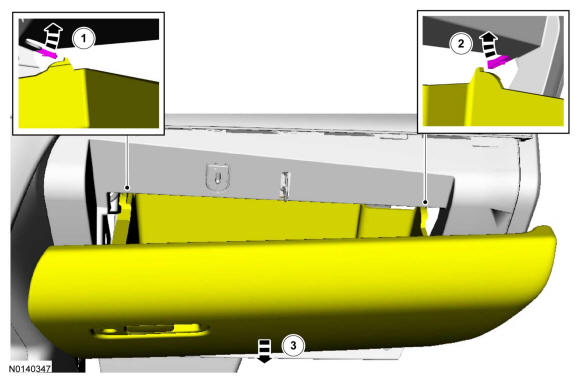

Courtesy of FORD MOTOR COMPANY

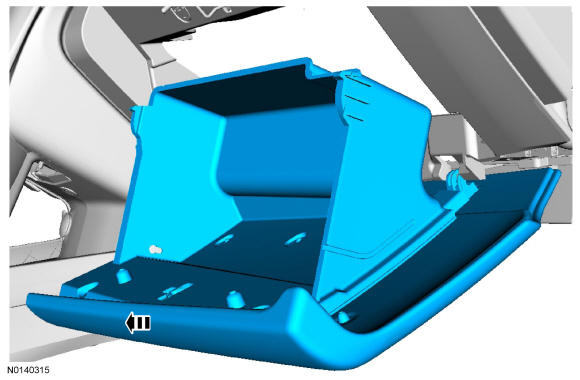

Courtesy of FORD MOTOR COMPANY

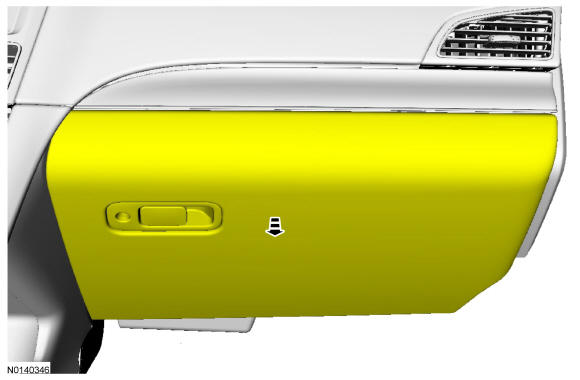

Courtesy of FORD MOTOR COMPANY

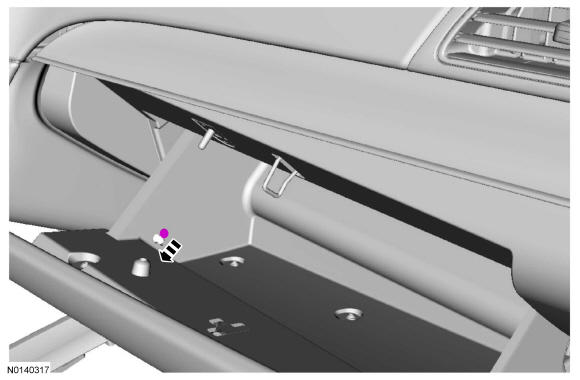

Courtesy of FORD MOTOR COMPANY

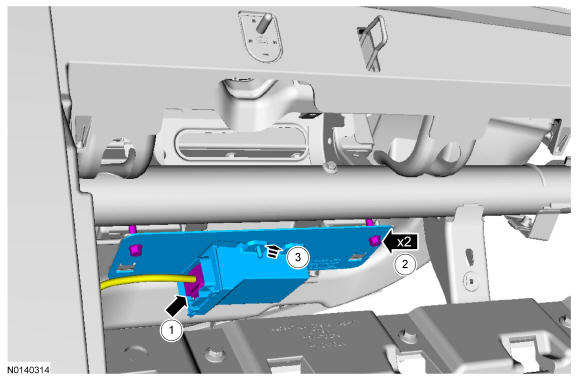

1. -
2. To install, tighten to 7 Nm (62 lb-in).
3. -
Courtesy of FORD MOTOR COMPANY
To install, reverse the removal procedure.
- If a new HSWM was installed, it must be configured (using vehicle as-built data or module configuration information retrieved earlier in this procedure). Refer to PMI in Module Configuration .
