Interior Lamp: Notes
WARNING: This page is about a different car, the 2016 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.

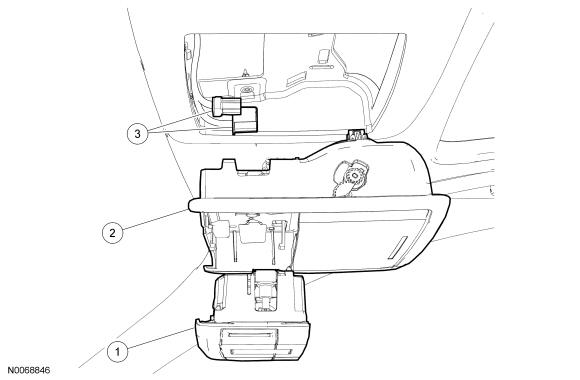

Front Interior Lamp
NOTE:
Overhead console with roof opening panel shown, other consoles similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | 13776 | Lamp assembly |
| 2 | 74519A70 | Overhead console |
| 3 | - | Overhead console electrical connectors (part of 14334) |

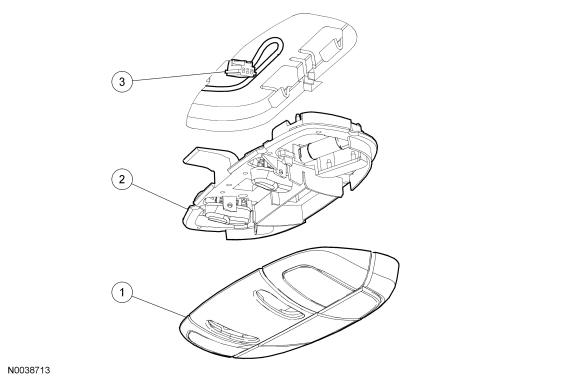

Second Or Third Row Interior Lamp
| Item | Part Number | Description |
|---|---|---|
| 1 | 13783 | Interior lamp lens |
| 2 | 13776 | Interior lamp |
| 3 | - | Interior lamp electrical connector (part of 14334) |
