Heated Window

WARNING: This page is about a different car, the 2016 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.

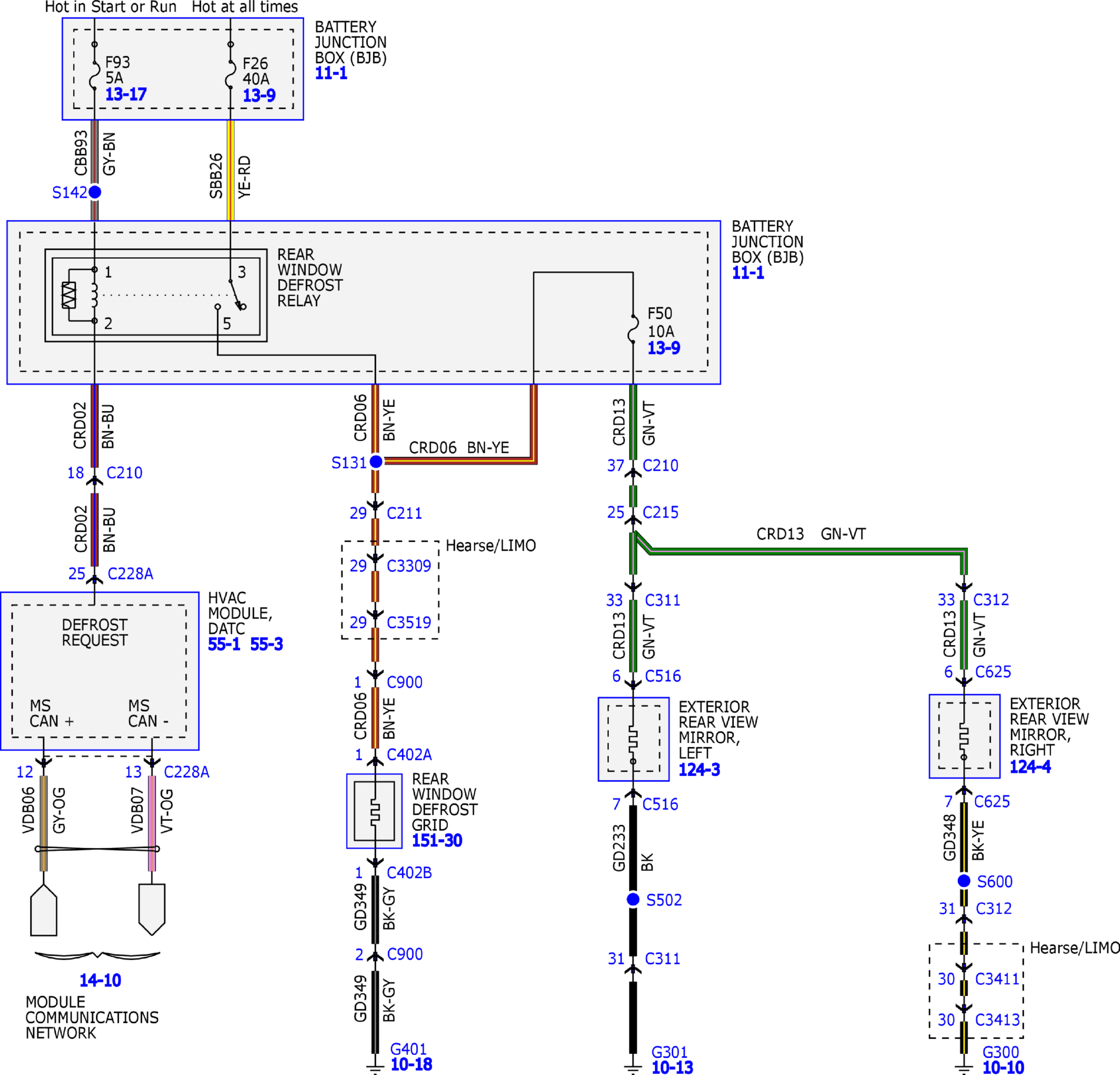

Fig 1: Heated Window Wiring Diagram
GFDW35972Courtesy of FORD MOTOR COMPANY
