WARNING: This page is about a different car, the 2016 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.

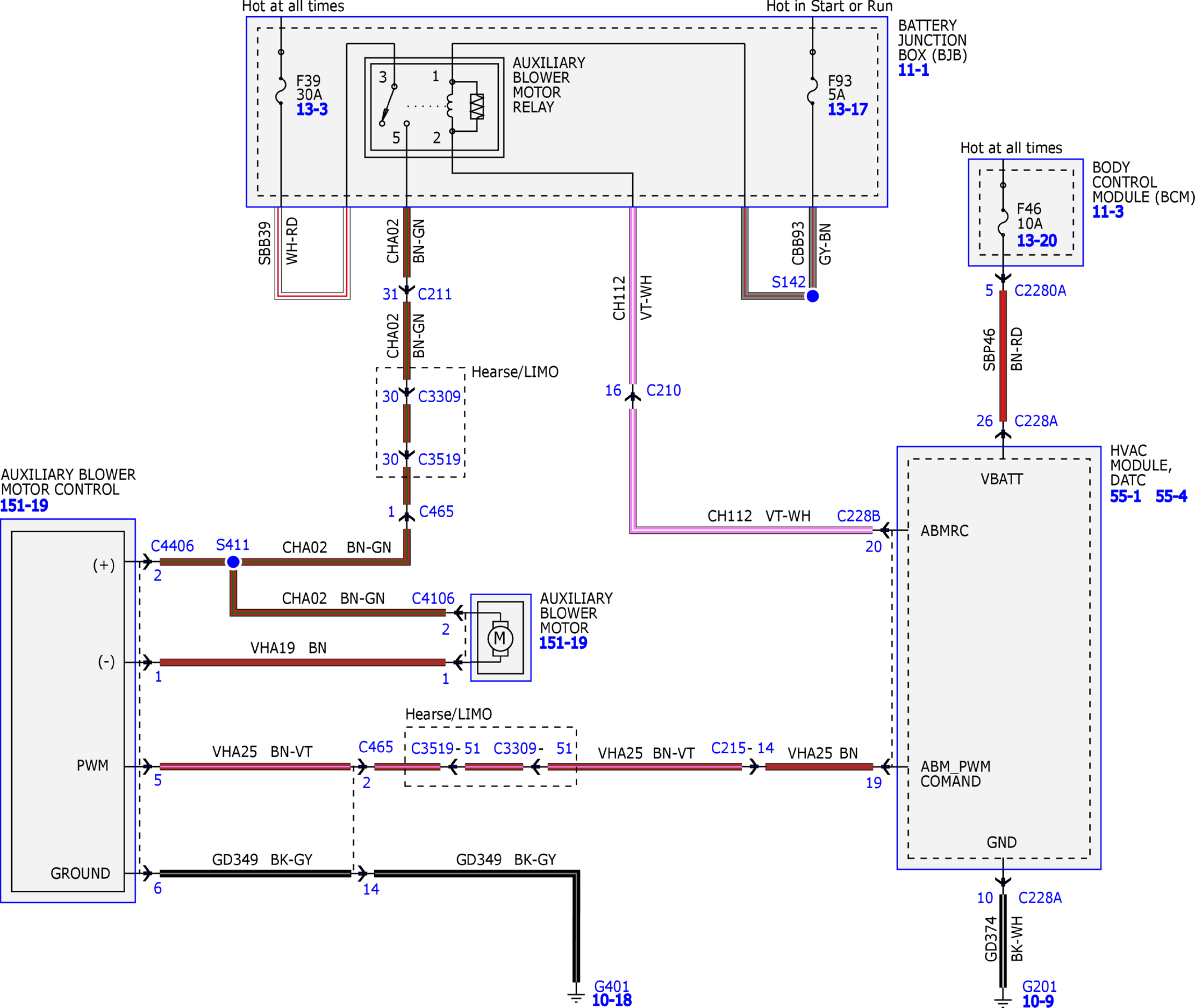

Fig 1: Auxiliary Climate Control Wiring Diagram (1 of 3)
Courtesy of FORD MOTOR COMPANY

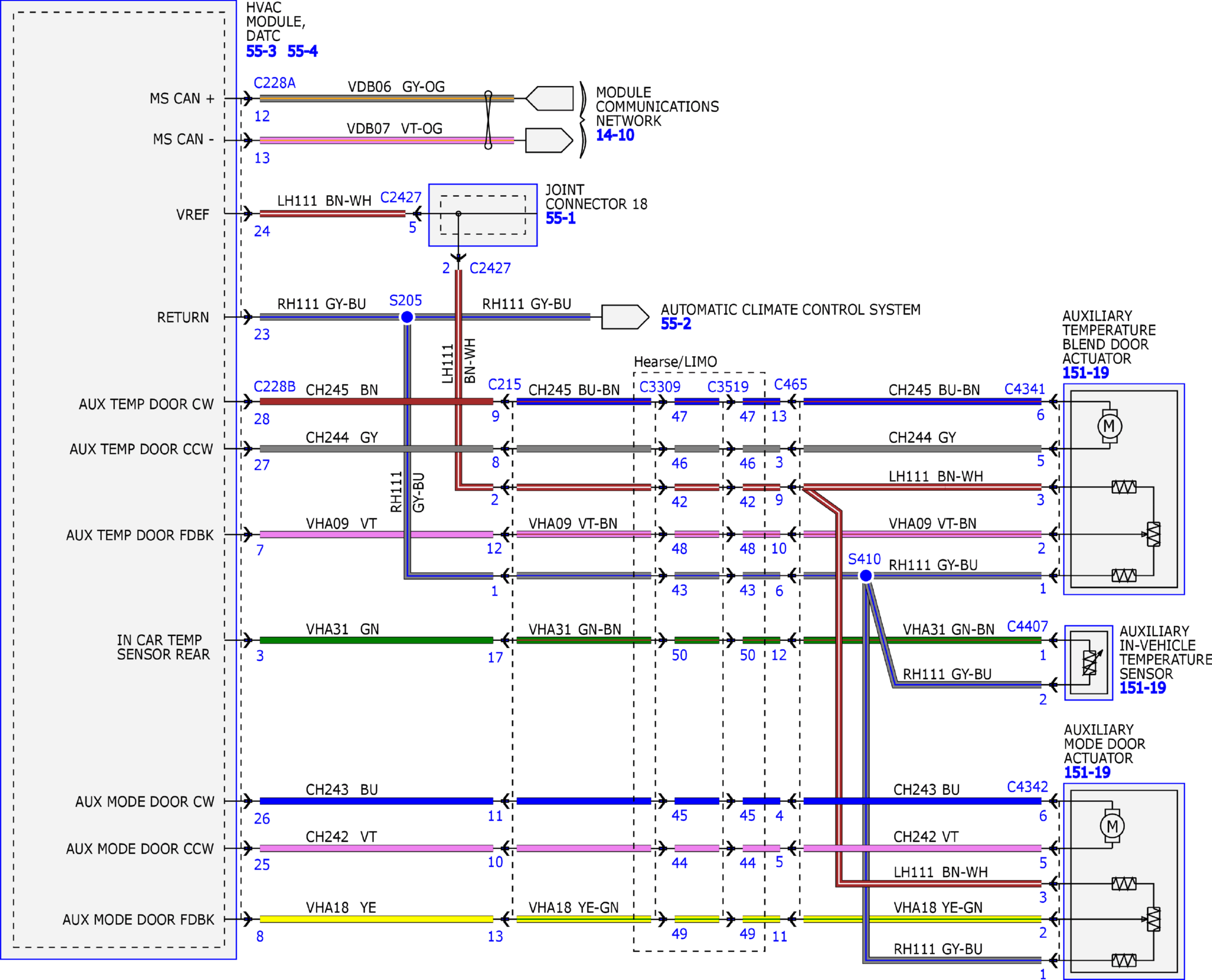

Fig 2: Auxiliary Climate Control Wiring Diagram (2 of 3)
Courtesy of FORD MOTOR COMPANY

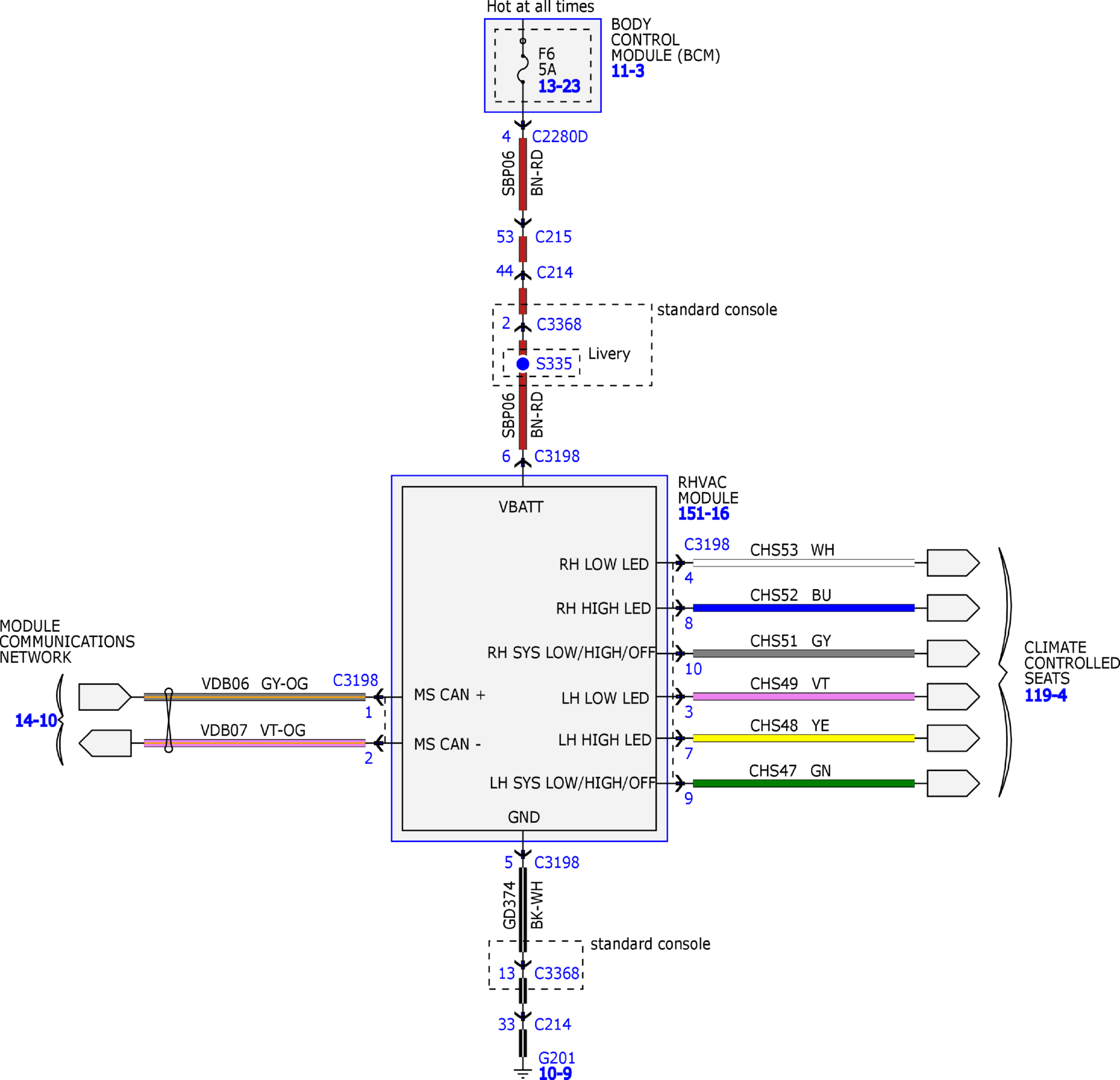

Fig 3: Auxiliary Climate Control Wiring Diagram (3 of 3)
