Variable Camshaft Timing (VCT) Oil Control Solenoid - 3.5L GTDI: Notes

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

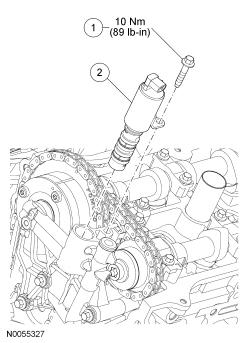

Fig 1: Exploded View Of Variable Camshaft Timing (VCT) Oil Control Solenoid With Torque Specifications (3.5L GTDI)

Courtesy of FORD MOTOR COMPANY

Item	Part Number	Description
1	W500215	Variable Camshaft Timing(VCT) oil control solenoid bolt
2	6B297	VCT oil control solenoid
