Fuel Rail Pressure (FRP) Sensor - 3.5L GTDI: Notes

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

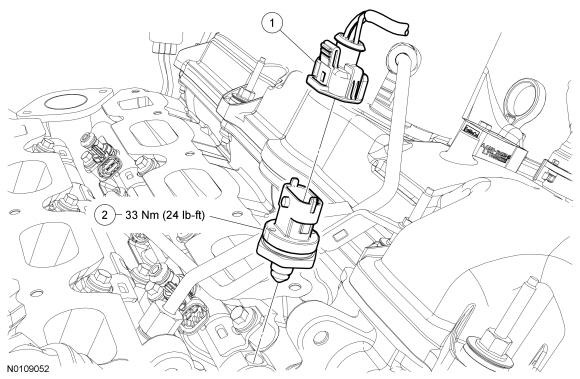

Fig 1: Exploded View Of Fuel Rail Pressure (FRP) Sensor With Torque Specifications (3.5L GTDI)
GFD92925Courtesy of FORD MOTOR COMPANY
Item Part Number Description
1 14A464 Fuel Rail Pressure(FRP) sensor electrical connector
2 9G756 FRP sensor
