Bearing Inspection

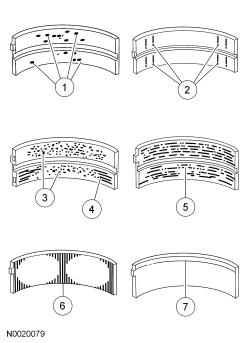

  1. Inspect bearings for the following defects:
    1. Cratering - fatigue failure
    2. Spot polishing - incorrect seating
    3. Imbedded dirty engine oil
    4. Scratching - dirty engine oil
    5. Base exposed - poor lubrication
    6. Both edges worn - journal damaged
    7. One edge worn - journal tapered or bearing not seated
    GFD91319Courtesy of FORD MOTOR COMPANY
