Interior Rear View Mirror: Installation

Mirror Type 1

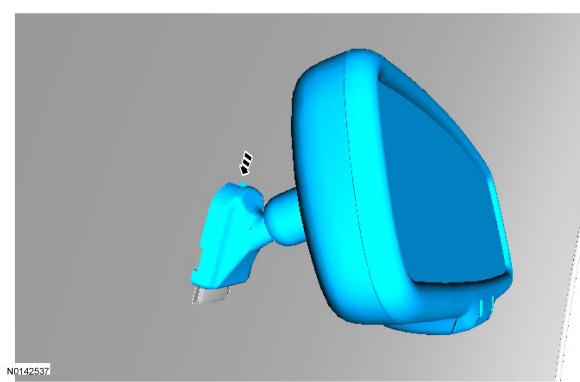

1. Slide the interior rear view mirror mount over the windshield bracket from the top.

   Courtesy of FORD MOTOR COMPANY

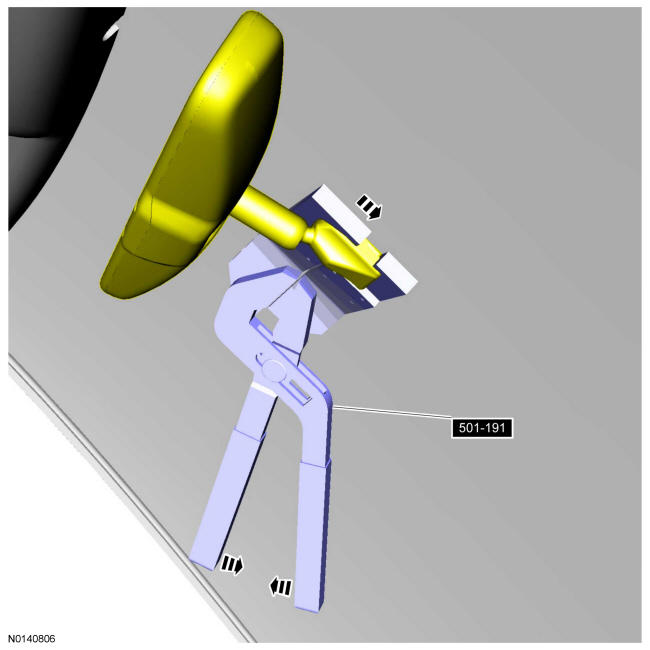

2. NOTE: An audible click will be heard as the mirror fully seats.

   Courtesy of FORD MOTOR COMPANY

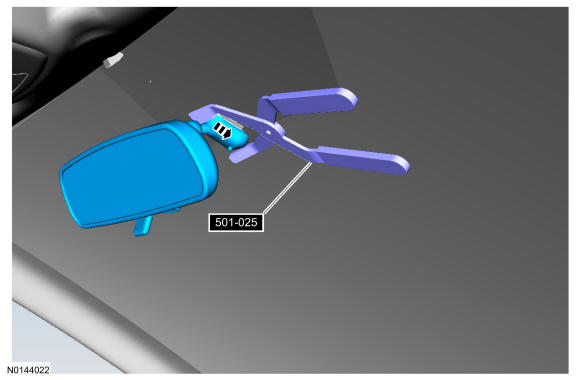

3. If equipped.

   Courtesy of FORD MOTOR COMPANY

4. If equipped, check the compass zone and calibration. Refer to Instrumentation, Message Center, and Warnin .

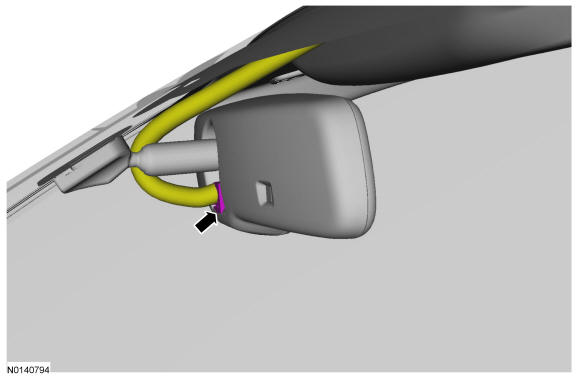

   Mirror Type 2

   Courtesy of FORD MOTOR COMPANY

5. If equipped with a compass module which requires calibration, check the compass zone adjustment and calibration. Refer to General Procedures in Section 413-01.

   Mirror Type 3

6. To install, reverse the removal procedure.

   Mirror Type 4

7. To install, reverse the removal procedure.
   • If a new mirror has been installed, download the IPM-A configuration information from the scan tool to the new IPM-A.
   • If the vehicle is equipped with lane departure and a new mirror has been installed, perform camera alignment using a scan tool.
