Strut and Spring Assembly: Notes
For information on Ford Color Coded Illustrations refer to OEM COLOR CODING
Material
| Item | Specification |
| Motorcraft ® Silicone Brake Caliper Grease and Dielectric CompoundXG-3-A | ESE-M1C171-A |

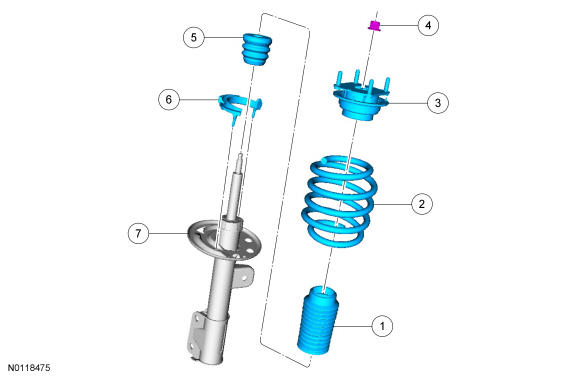

| Item | Part Number | Description |
|---|---|---|
| 1 | 18A047 | Dust boot |
| 2 | 5310 | Spring |
| 3 | 18183 | Upper strut mount |
| 4 | W713968 | Strut rod nut |
| 5 | 18198 | Jounce bumper |
| 6 | 5415 | Lower spring isolator |
| 7 | 18124 | Strut assembly |
