Connector Repair Procedures

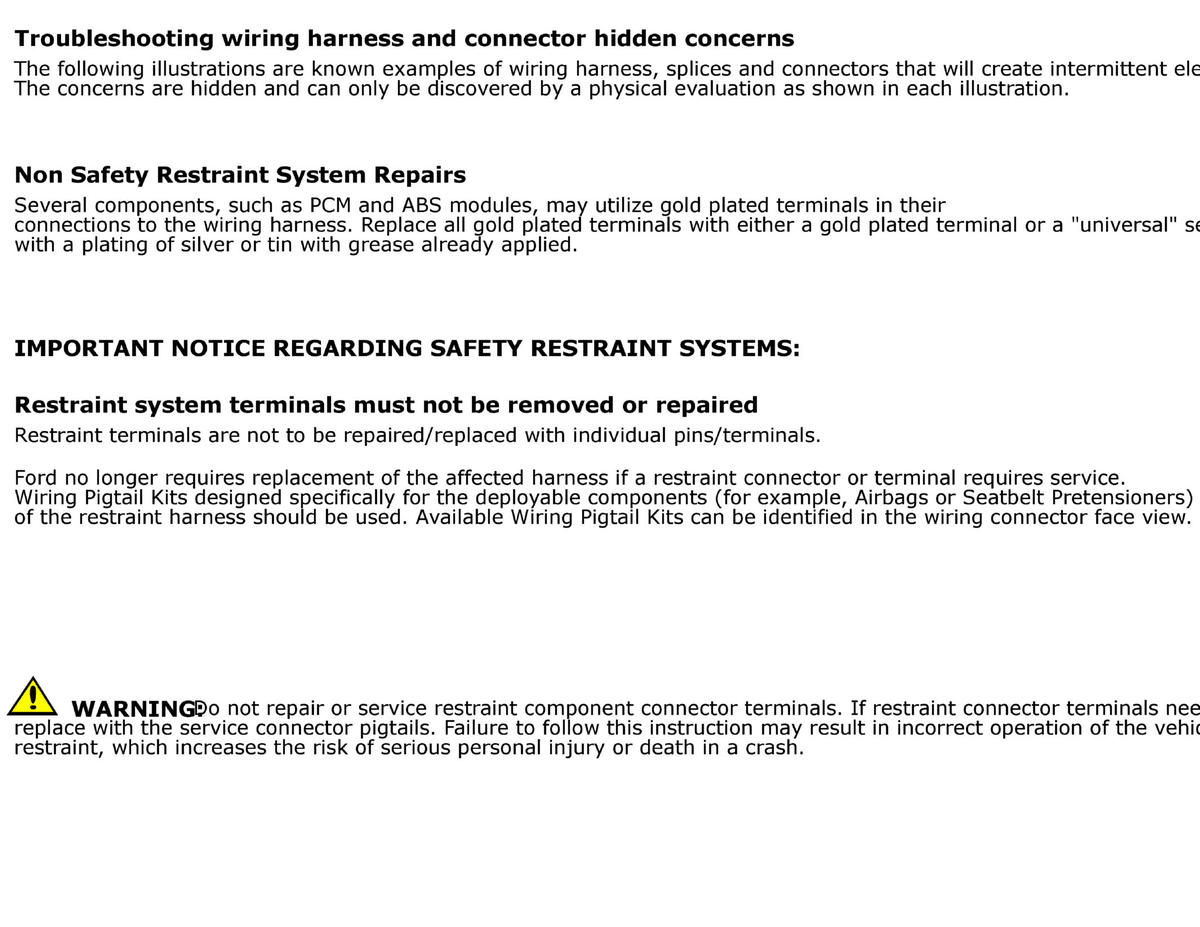

GFDW91860Courtesy of FORD MOTOR COMPANY

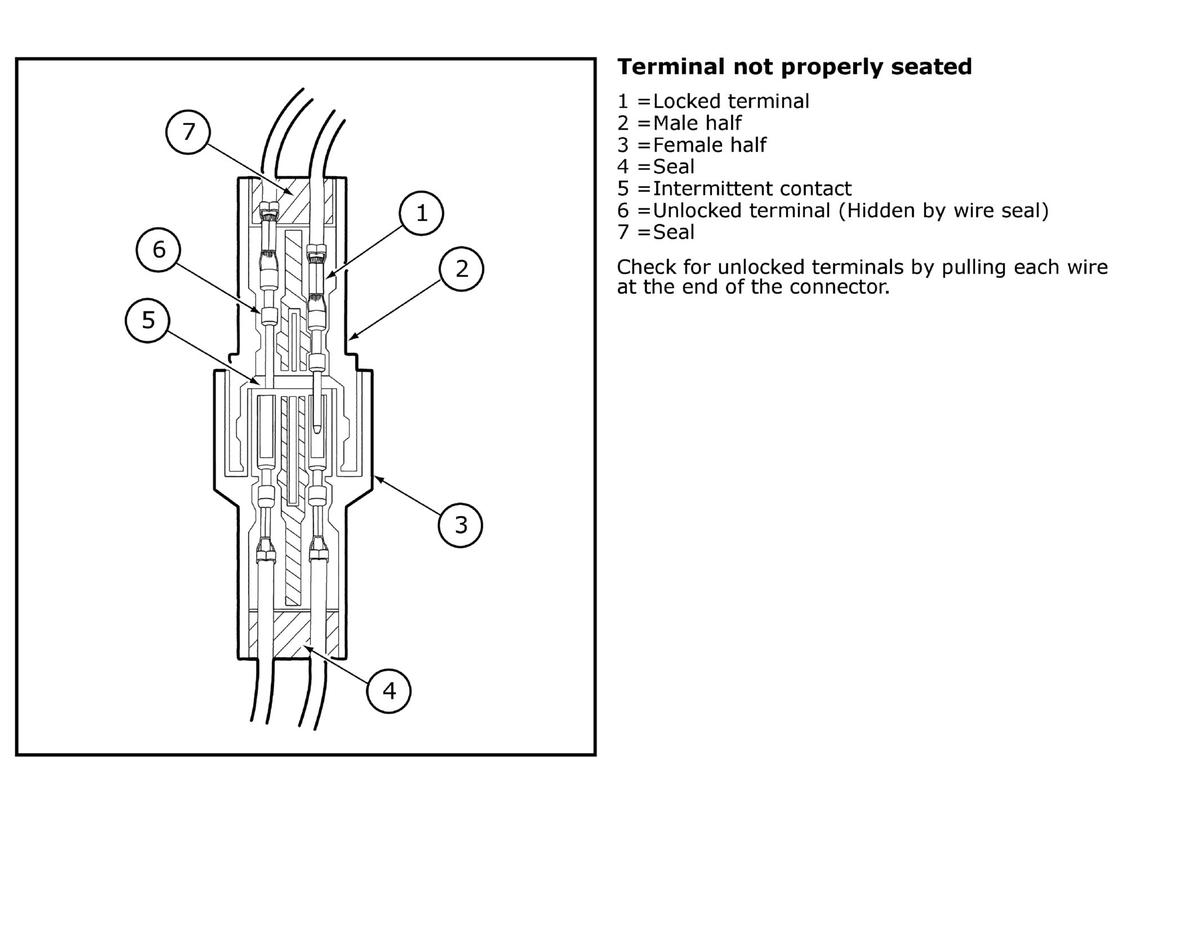

GFDW91861Courtesy of FORD MOTOR COMPANY

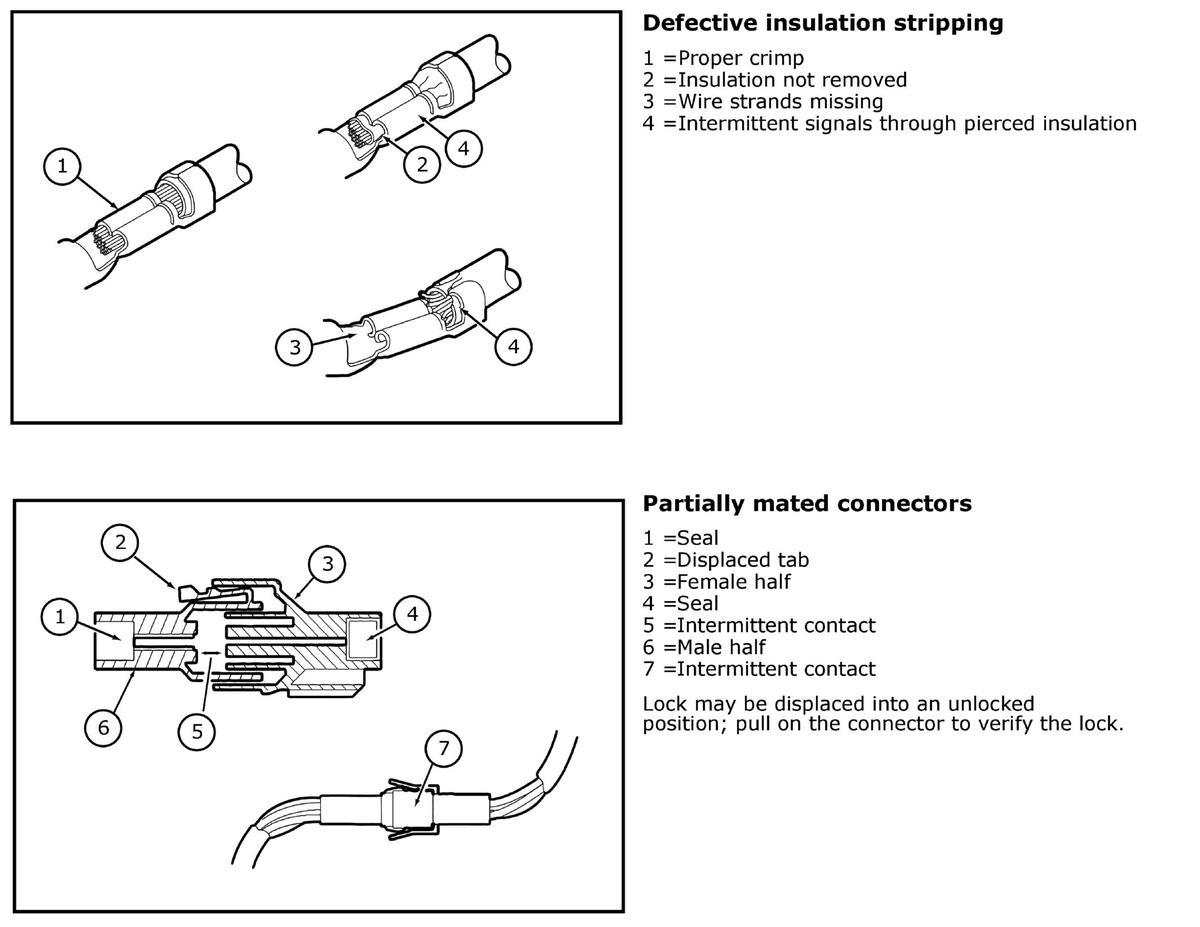

GFDW91862Courtesy of FORD MOTOR COMPANY

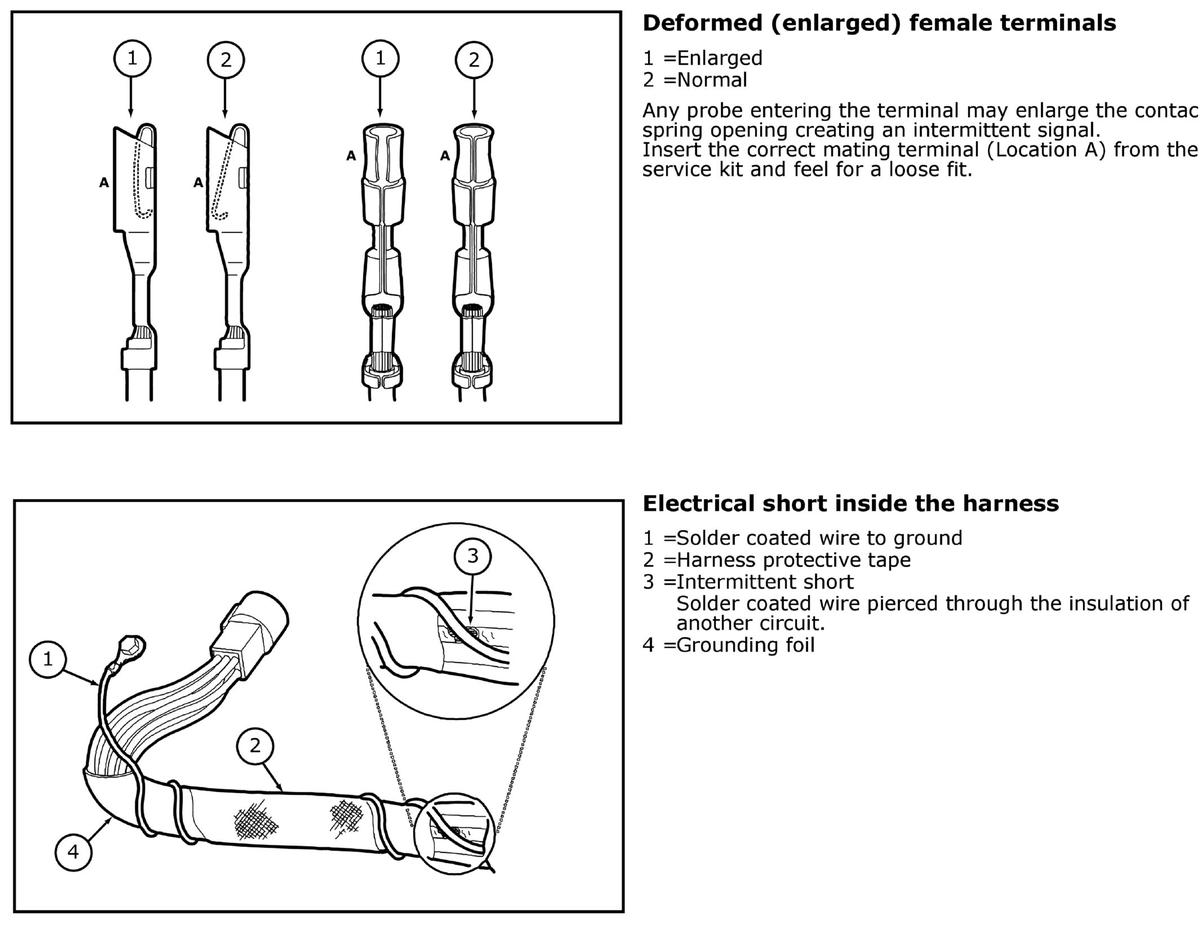

GFDW91863Courtesy of FORD MOTOR COMPANY
GFDW91864Courtesy of FORD MOTOR COMPANY

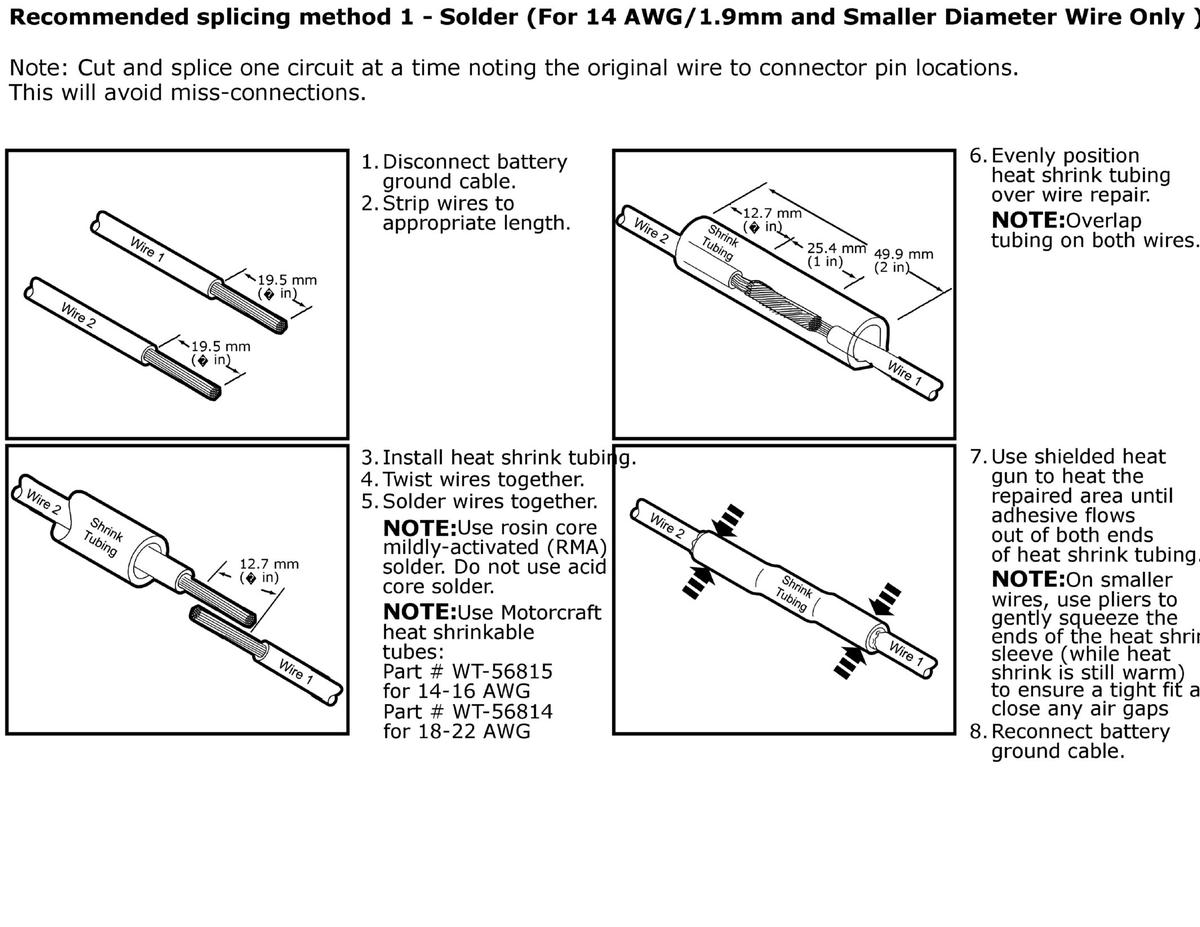

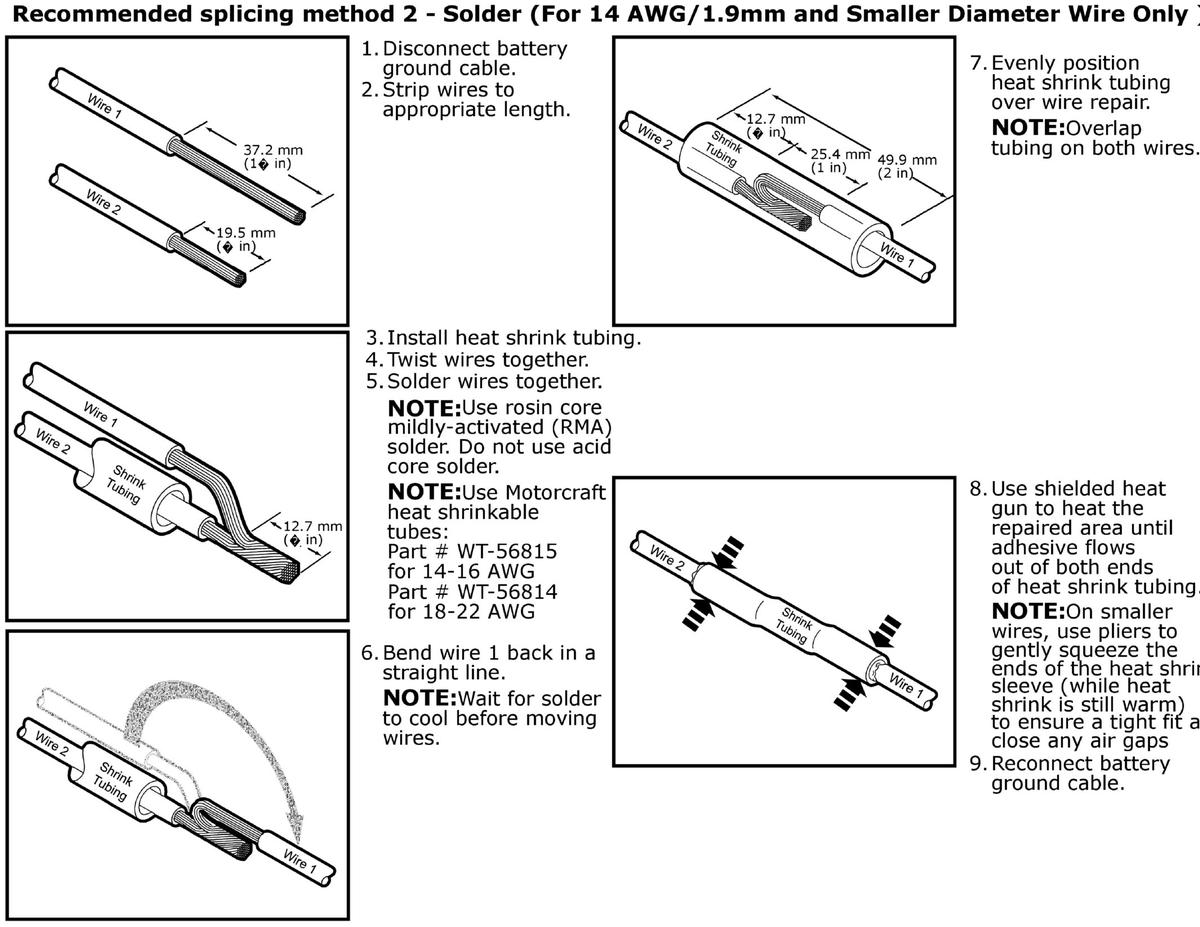

GFDW91865Courtesy of FORD MOTOR COMPANY

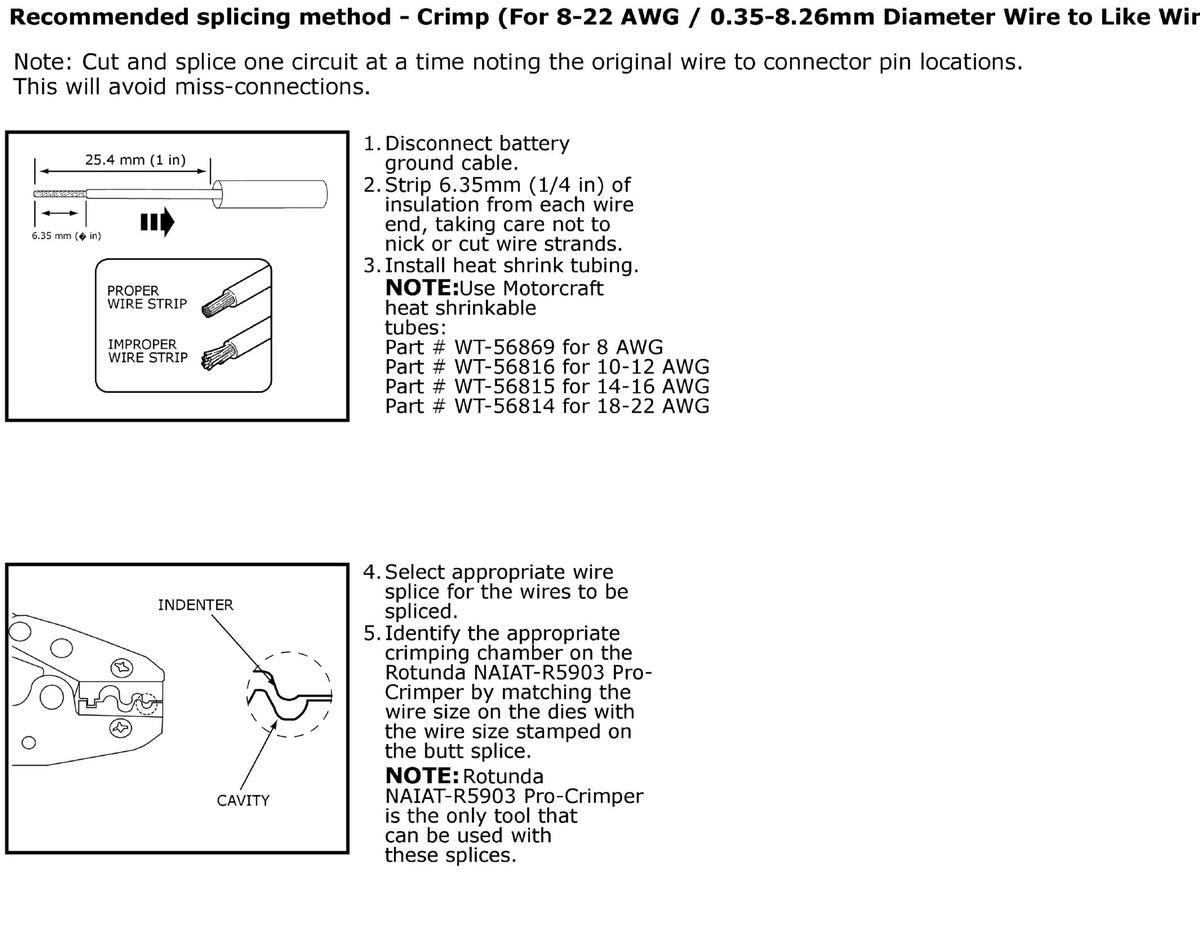

GFDW91866Courtesy of FORD MOTOR COMPANY

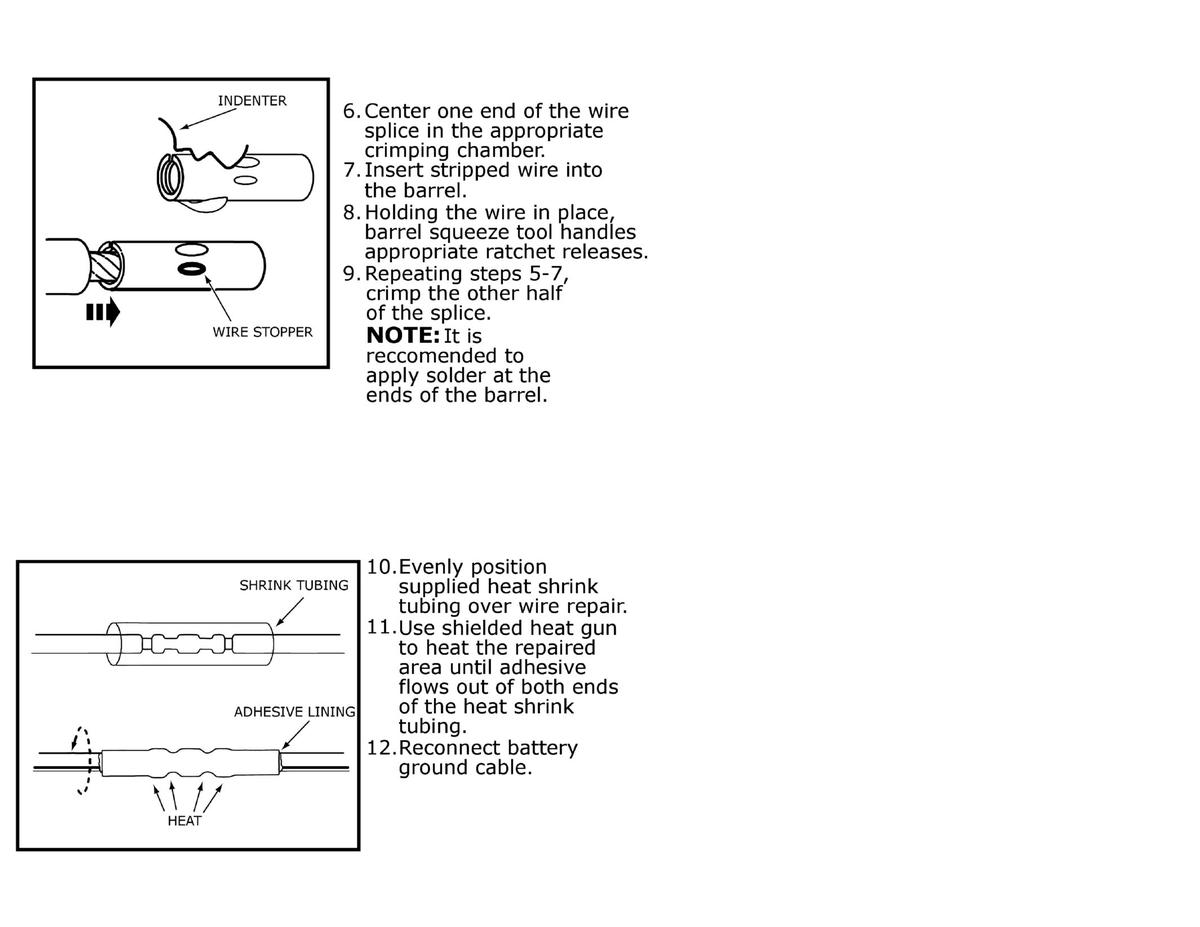

GFDW91867Courtesy of FORD MOTOR COMPANY

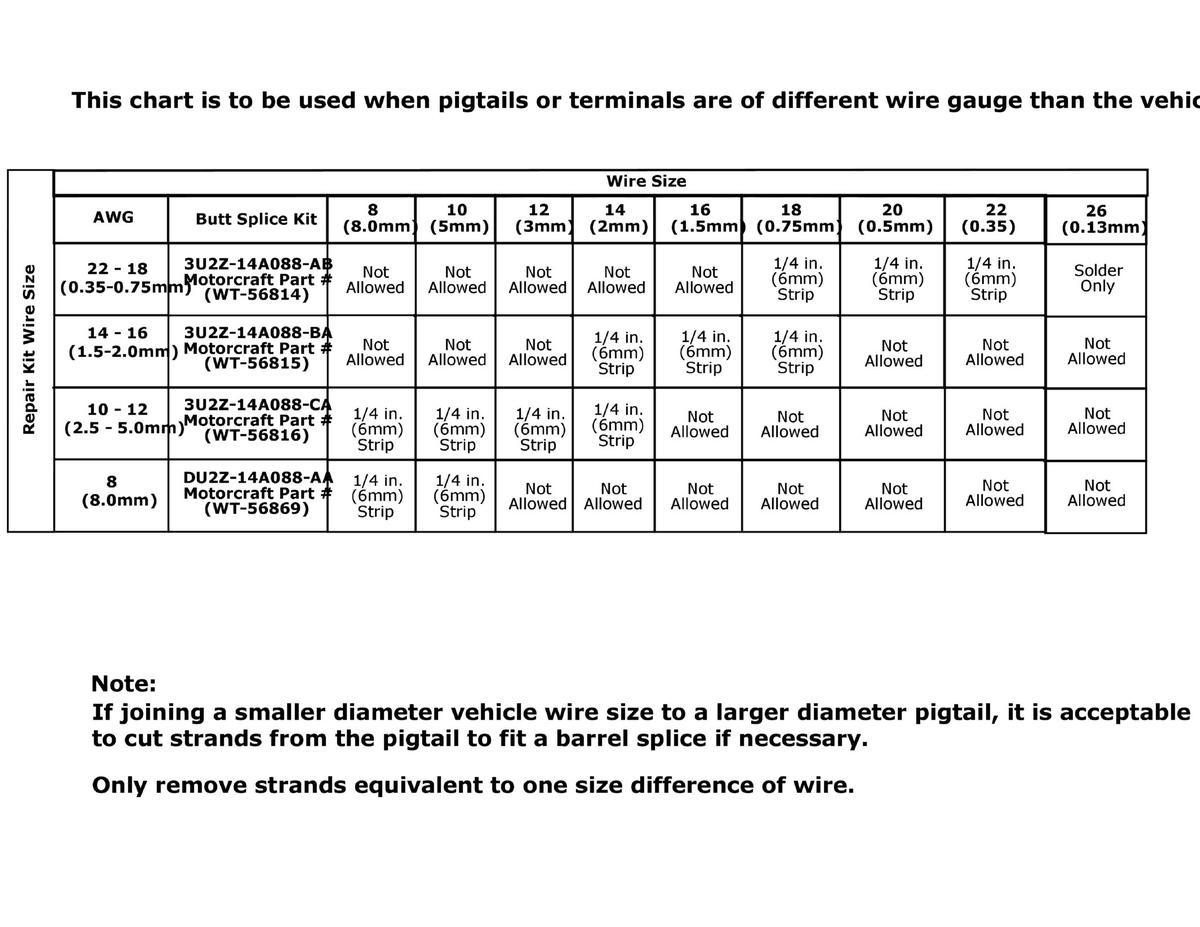

GFDW91868Courtesy of FORD MOTOR COMPANY
