Front Controls Interface Module (FCIM)

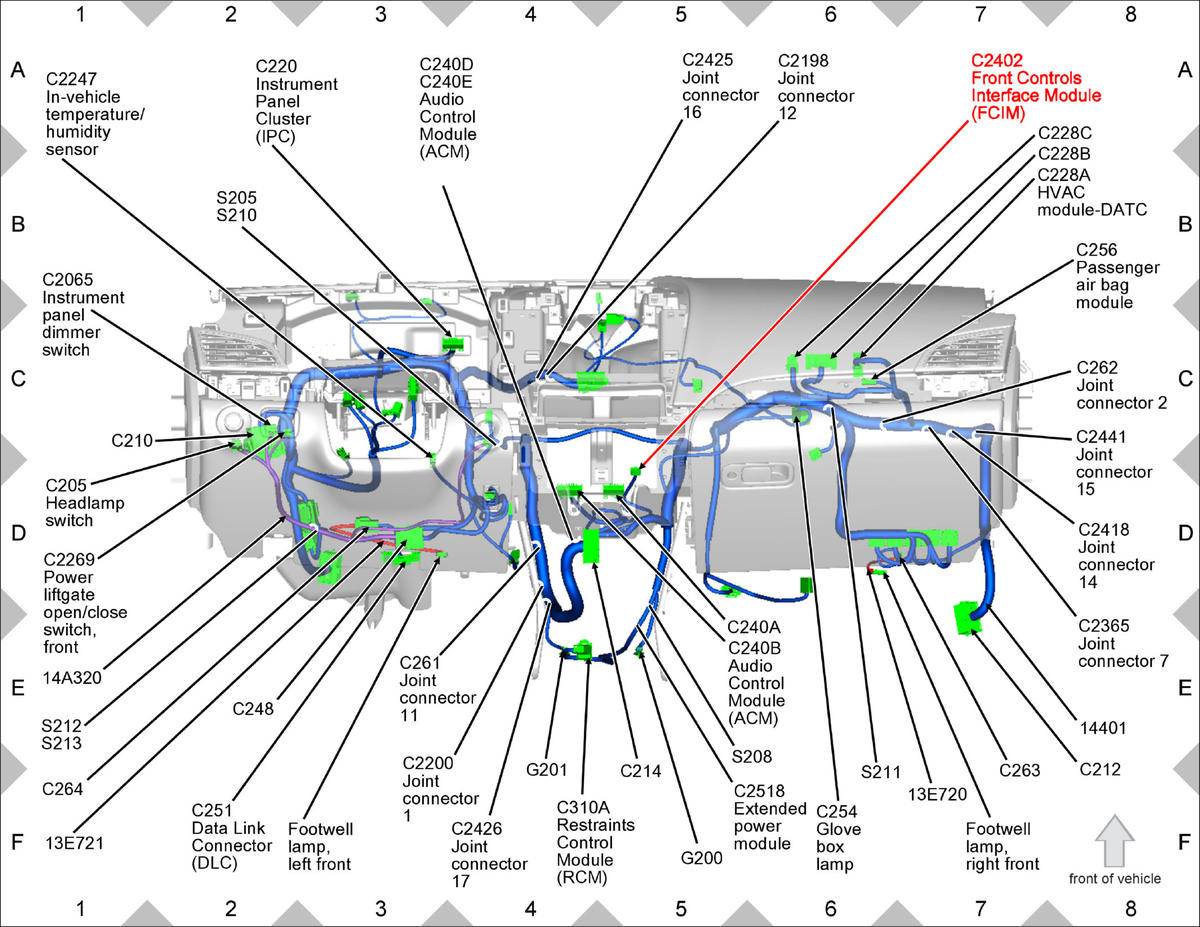

Fig 1: Front Controls Interface Module (FCIM) Components Location

GFDW90964

Courtesy of FORD MOTOR COMPANY
