Manifold Absolute Pressure (MAP)/Intake Air Temperature 2 (IAT2) - Sensor 3.5L GTDI: Removal

NOTE: The Turbocharger Boost Pressure(TCBP) /Charge Air Cooler Temperature(CACT) sensor and the Manifold Absolute Pressure(MAP) / Intake Air Temperature 2(IAT2) sensor are not interchangeable.

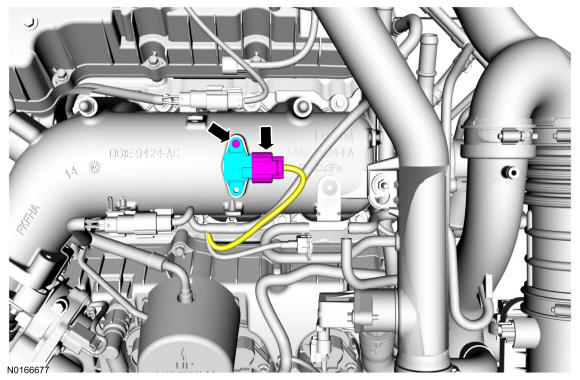

  1. Disconnect the MAP /IAT2 sensor electrical connector. Remove the retainer and the sensor.
    • Tighten to 6 Nm (53 lb-in).
    GFD231712Courtesy of FORD MOTOR COMPANY
