Driver Door Module (DDM): Notes

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

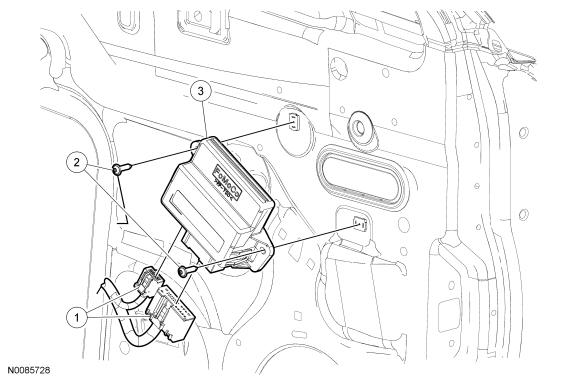

GFD95863Courtesy of FORD MOTOR COMPANY
Item Part Number Description
1 - Driver Door Module(DDM) electrical connectors (part of 14631)
2 W705314-S424-S424 DDM screws (2 required)
3 13C791 DDM
