Section 249 (Engine - 2.7L ECOBOOST (238KW/324PS)): Removal: Engine

Special Tool(s) / General Equipment

Courtesy of FORD MOTOR COMPANY	303-1246 Engine Spreader Bar TKIT-2006UF-FLM TKIT-2006UF-ROW
Courtesy of FORD MOTOR COMPANY	303-1634 Lift Eyes (2) TKIT-2014D-FL_ROW TKIT-2014D-ROW3
Courtesy of FORD MOTOR COMPANY	307-346 (T97T-7902-A) Retainer, Torque Converter TKIT-1997-F/FLM/LT TKIT-1998-LM (NavigatoR)
Courtesy of FORD MOTOR COMPANY	307-569 Disconnect Tool TOC Line (1/2) TKIT-2006U-F/FM TKIT-2006U-FLM/LM TKIT-2006U-ROW1 TKIT-2006U-ROW2
Tie Rod End Remover
Floor Crane
Adjustable Mounting Arm
Oil Drain Equipment
Cable Ties
Hose Clamp Remover/Installer
Powertrain Jack
Wooden Block

2WD/4WD

1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
2. Evacuate the A/C system. Refer to: Air Conditioning (A/C) System Recovery, Evacuation And Charging .
3. Release the fuel pressure. Refer to: Fuel System Pressure Release .

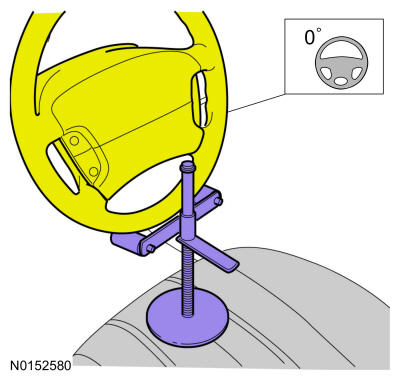

4. NOTE: Use a steering wheel holding device (such as Hunter ® 28-75-1 or equivalent).

   Using a suitable holding tool, hold the steering wheel in the straight-ahead position.

   Courtesy of FORD MOTOR COMPANY

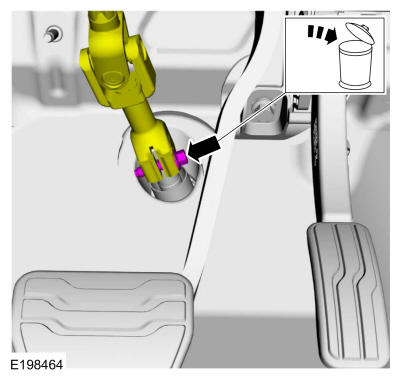

5. NOTE: Do not allow the intermediate shaft to rotate while it is disconnected from the gear or damage to the clockspring can occur. If there is evidence that the intermediate shaft has rotated, the clockspring must be removed and recentered. Refer to Supplemental Restraint System .
   • Remove and discard the steering intermediate shaft bolt.
   • Separate the steering intermediate shaft from the steering gear.

   Courtesy of FORD MOTOR COMPANY

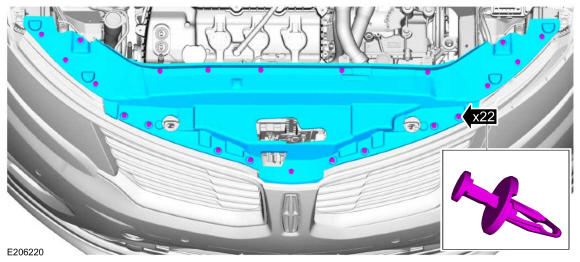

6. Remove the retainers and the upper air deflector.

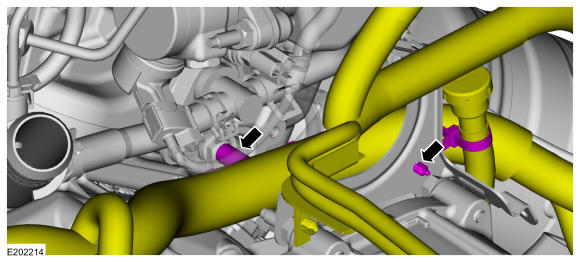

   Courtesy of FORD MOTOR COMPANY

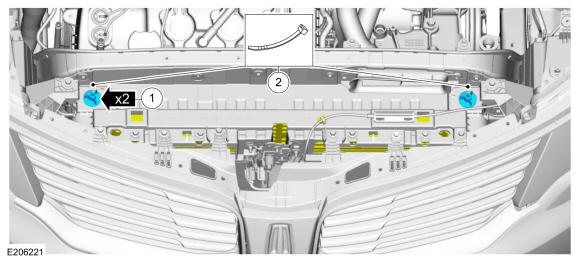

7. NOTE: Make sure the cooling module is secure before removing the bottom cooling module support panel.
   1. Remove the upper cooling module support brackets.
   2. Using cable ties or mechanics wire through the upper location holes, to support the cooling module. Use the General Equipment: Cable Ties

   Courtesy of FORD MOTOR COMPANY

8. Remove the front wheels and tires. Refer to: Wheel and Tire .

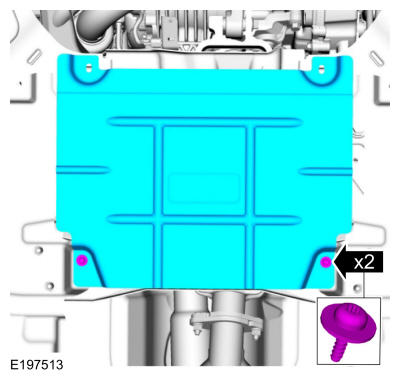

9. Remove the retainers and the underbody shield.

   Courtesy of FORD MOTOR COMPANY

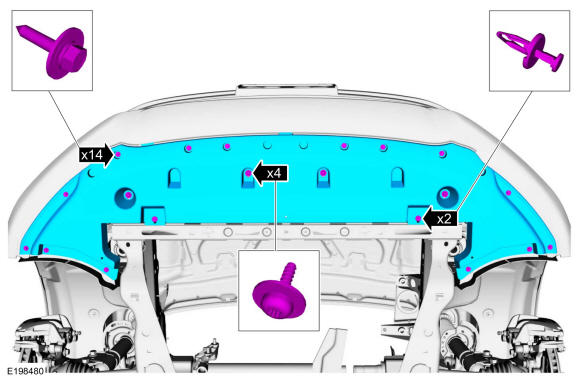

10. Remove the retainers and the front underbody shield.

    Courtesy of FORD MOTOR COMPANY

11. If equipped, remove the retainers and the underbody shield.

    Courtesy of FORD MOTOR COMPANY

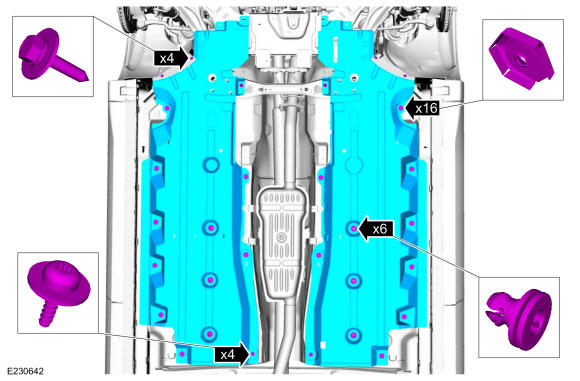

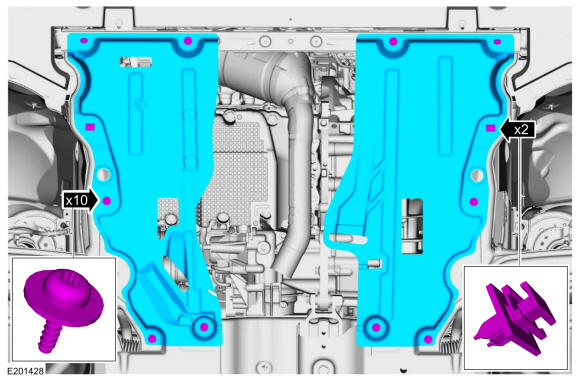

12. Remove the retainers and the underbody shields.

    Courtesy of FORD MOTOR COMPANY

13. Drain the engine cooling system. Refer to: Cooling System Draining, Vacuum Filling And Bleeding .

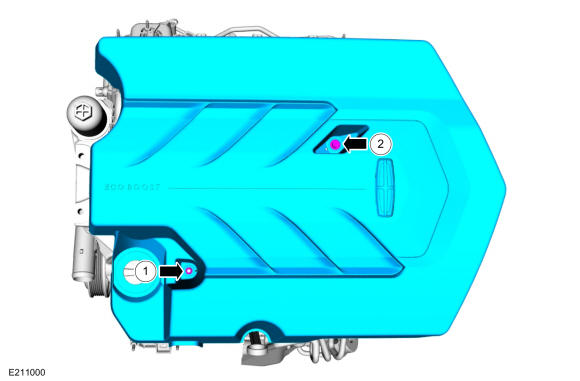

14. 1. Remove the nut.
    2. Remove the bolt.
    • Remove the engine appearance cover.

    Courtesy of FORD MOTOR COMPANY

15. Remove the following items:
    1. Refer to: Degas Bottle .
    2. Refer to: Air Cleaner .
    3. Refer to: Air Cleaner Outlet Pipe LH .
    4. Refer to: Air Cleaner Outlet Pipe RH .
    5. Refer to: Charge Air Cooler (CAC) Intake Pipe .
    6. Refer to: Charge Air Cooler (CAC) Outlet Pipe .
    7. Refer to: Accessory Drive Belt .
    8. Refer to: Battery Tray .

16. Remove the stud bolt and position aside the ground cable.

    Courtesy of FORD MOTOR COMPANY

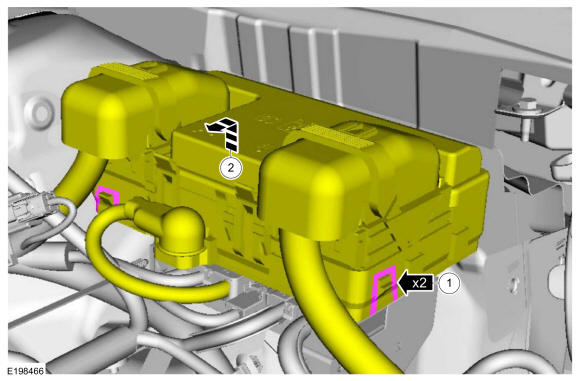

17. 1. Release the tabs.
    2. Lift and position top part of junction box aside.

    Courtesy of FORD MOTOR COMPANY

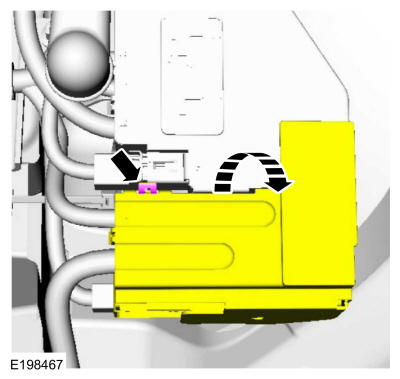

18. Release the tab and open cover.

    Courtesy of FORD MOTOR COMPANY

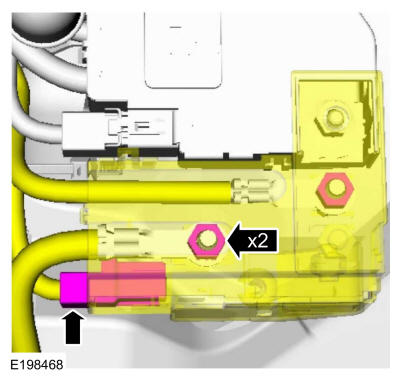

19. Remove the nuts and disconnect the electrical connector.

    Courtesy of FORD MOTOR COMPANY

20. Remove the bolt and detach the wiring harness retainers.

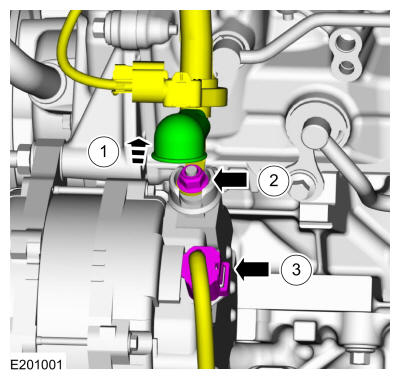

    Courtesy of FORD MOTOR COMPANY

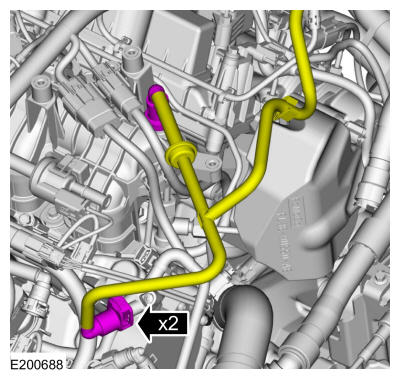

21. Disconnect the vacuum tube quick release couplings and position the tube aside. Refer to: Quick Release Coupling .

    Courtesy of FORD MOTOR COMPANY

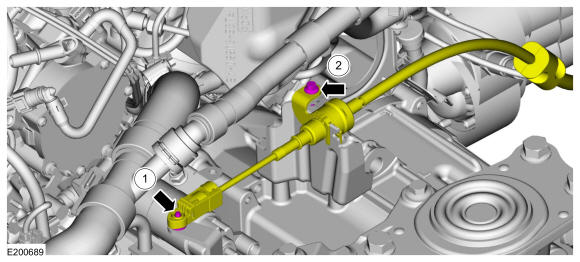

22. 1. Detach the cable from the transmission control lever.
    2. Remove the bolt and position the cable aside.

    Courtesy of FORD MOTOR COMPANY

23. 1. Detach the heater hose retainer.
    2. Loosen the radiator hose clamp.
    3. Lift the radiator hose off of the retaining tab and position the hose aside.

    Courtesy of FORD MOTOR COMPANY

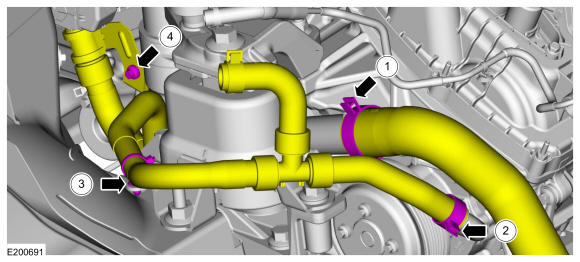

24. 1. Release the clamp and disconnect the lower radiator hose. Use the General Equipment: Hose Clamp Remover/Installer
    2. Release the clamp and disconnect the heater hose. Use the General Equipment: Hose Clamp Remover/Installer
    3. Detach the heater hose retainer.
    4. Remove the bolt and position the heater hose aside.

    Courtesy of FORD MOTOR COMPANY

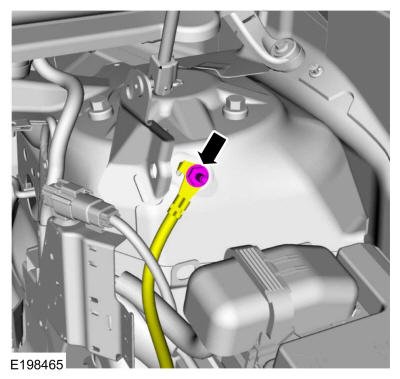

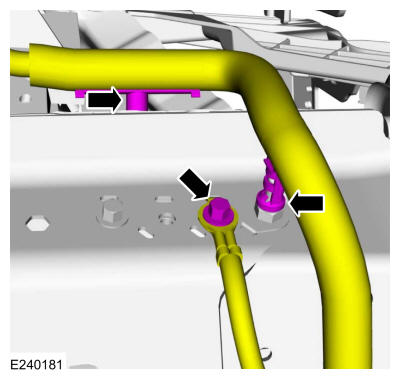

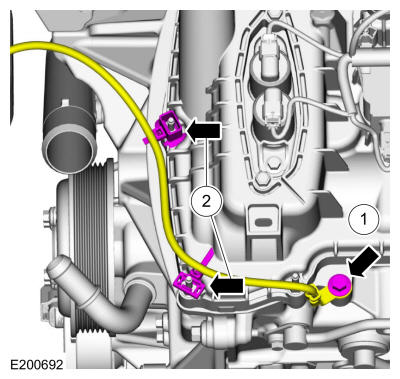

25. 1. Remove the ground wire bolt.
    2. Detach the retainers and position the ground wire aside.

    Courtesy of FORD MOTOR COMPANY

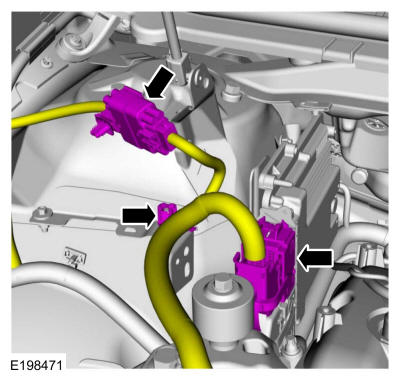

26. • Disconnect the engine harness electrical connector and retainer.
    • Disconnect the PCM electrical connector.

    Courtesy of FORD MOTOR COMPANY

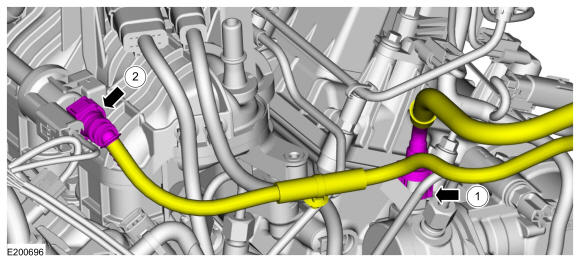

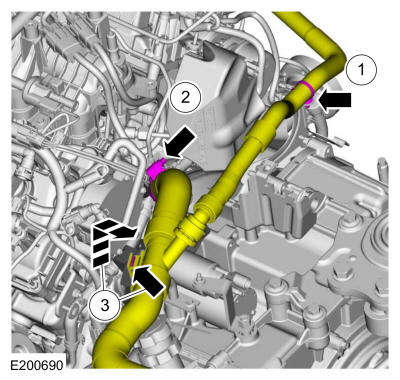

27. 1. Disconnect the high-pressure fuel pump fuel feed tube quick release coupling. Refer to: Quick Release Coupling .
    2. Disconnect the EVAP tube quick release coupling. Refer to: Quick Release Coupling .

    Courtesy of FORD MOTOR COMPANY

28. Detach the retainer and position the wiring harness aside.

    Courtesy of FORD MOTOR COMPANY

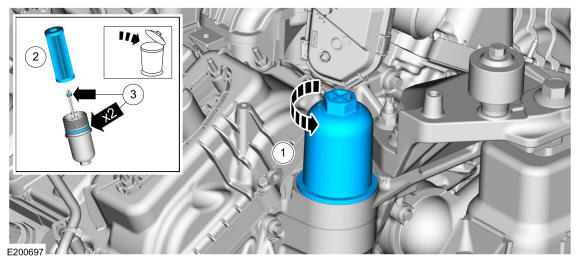

29. NOTE: Use a shop towel when removing the oil filter housing to prevent oil from spilling on the engine or accessory drive belt.
    1. Loosen the oil filter housing and allow the oil to drain out of the housing and down into the engine.
    2. Remove the oil filter housing and discard the oil filter element.
    3. Remove and discard the O-ring seals.

    Courtesy of FORD MOTOR COMPANY

30. Remove the transmission fluid cooler tube secondary latches.

    Courtesy of FORD MOTOR COMPANY

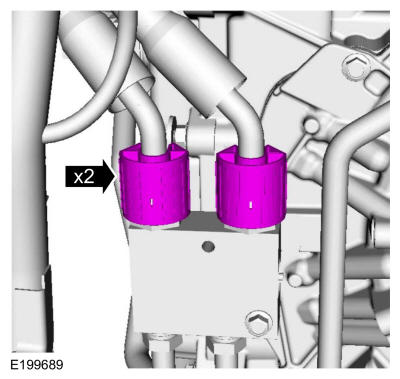

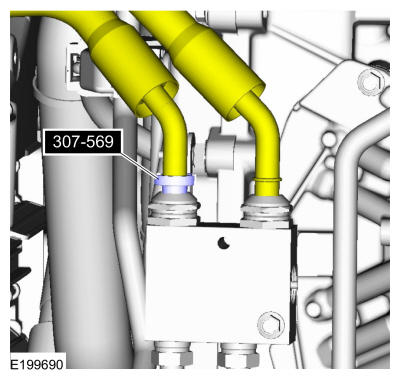

31. Using the special tool, disconnect the transmission fluid cooler tubes from the transmission fluid cooler thermal bypass valve. Use Special Service Tool: 307-569 Disconnect Tool TOC Line (1/2).

    Courtesy of FORD MOTOR COMPANY

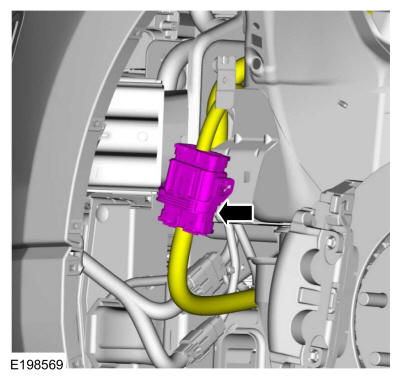

32. Detach and disconnect the engine harness electrical connector.

    Courtesy of FORD MOTOR COMPANY

33. Remove the RH front suspension height sensor. Refer to: Front Suspension Height Sensor .

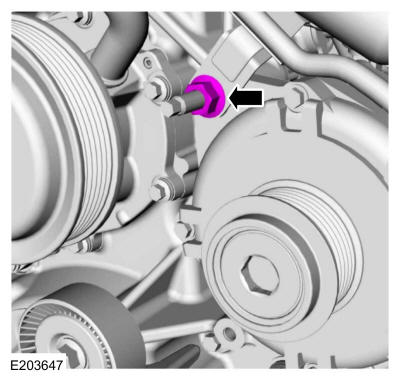

34. Remove the generator nut.

    Courtesy of FORD MOTOR COMPANY

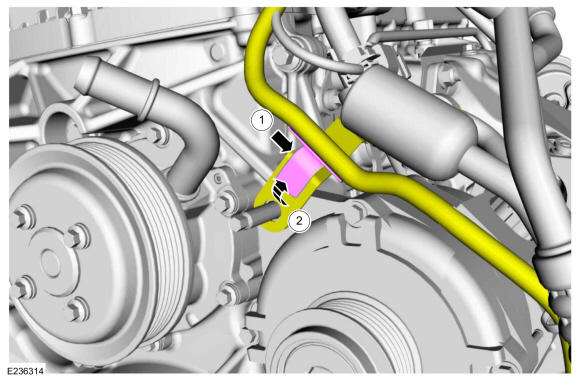

35. 1. Detach the wiring harness retainer.
    2. Position the A/C line bracket from the generator stud.

    Courtesy of FORD MOTOR COMPANY

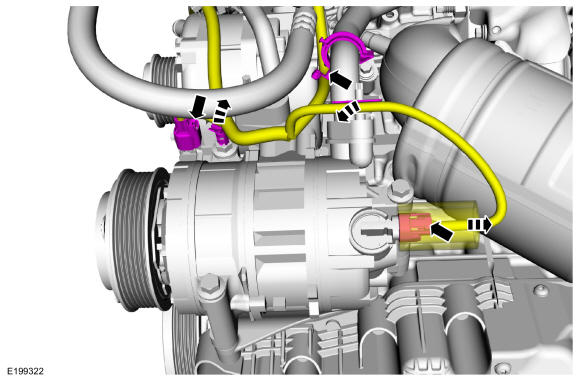

36. Detach the wiring harness retainers, slide up the insulator and disconnect the electrical connectors.

    Courtesy of FORD MOTOR COMPANY

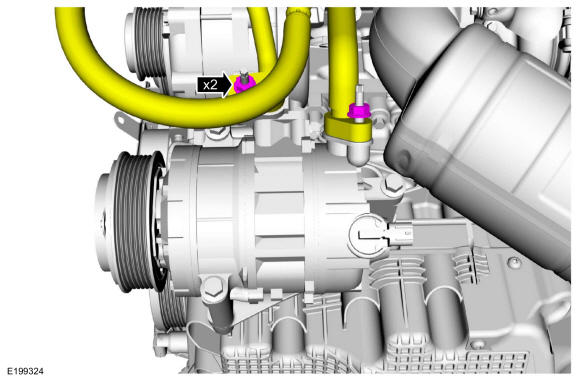

37. Remove the A/C compressor inlet and outlet line nuts and disconnect the fittings.
    • Discard the O-ring seals and gaskets.

    Courtesy of FORD MOTOR COMPANY

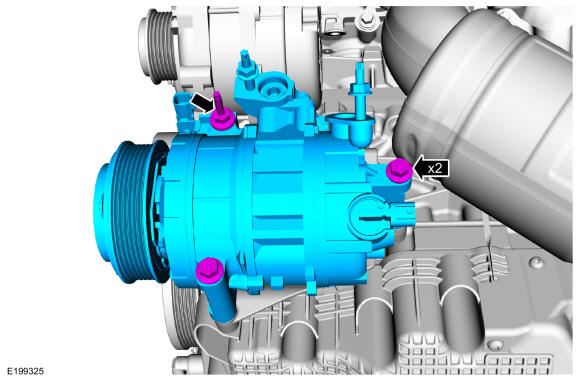

38. Remove the bolts, stud bolt and the A/C compressor.

    Courtesy of FORD MOTOR COMPANY

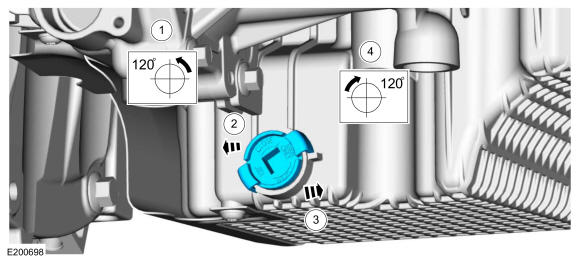

39. 1. Turn the oil drain plug counterclockwise 120 degrees. Use the General Equipment: Oil Drain Equipment
    2. Pull the oil drain plug out of the oil pan.
    3. After the oil has drained, push the oil drain plug into the oil pan.
    4. NOTE: Overtightening will damage the oil drain plug.

       Turn the oil drain plug clockwise 120 degrees.

    Courtesy of FORD MOTOR COMPANY

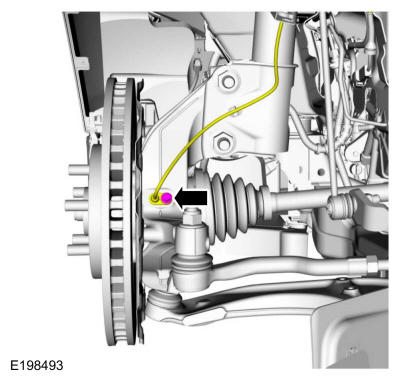

40. Remove the bolt and the LH anti-lock sensor.

    Courtesy of FORD MOTOR COMPANY

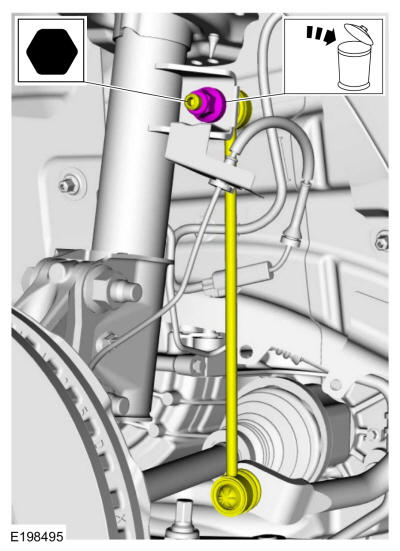

41. NOTE: Use the internal or external hex-holding feature to prevent the ball and stud from turning while removing or installing the stabilizer bar link nuts. The link boot seal must not be allowed to twist while tightening the link nuts or damage to the boot seal will occur.

    Remove the nut and position the LH sway bar link aside.

    Courtesy of FORD MOTOR COMPANY

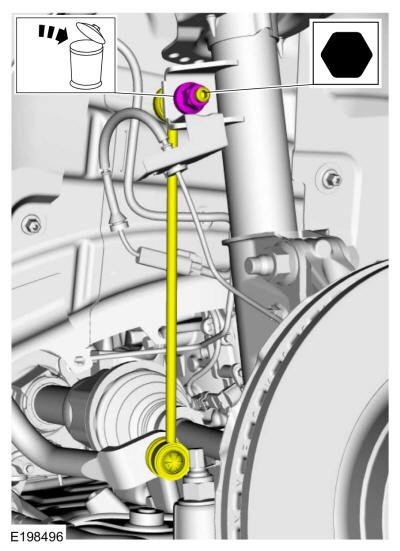

42. NOTE: Use the internal or external hex-holding feature to prevent the ball and stud from turning while removing or installing the stabilizer bar link nuts. The link boot seal must not be allowed to twist while tightening the link nuts or damage to the boot seal will occur.

    Remove the nut and position the RH sway bar link aside.

    Courtesy of FORD MOTOR COMPANY

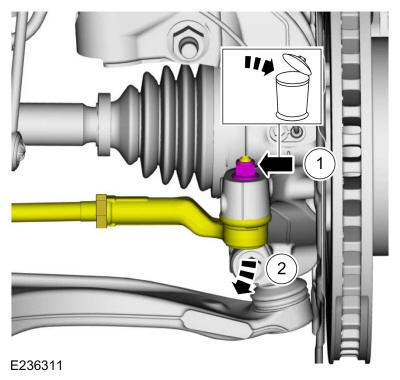

43. 1. Remove and discard the outer tie rod end nut.
    2. NOTE: Do not use a hammer to separate the outer tie-rod end from the wheel spindle or damage to the wheel spindle may result.
       NOTE: Use care when installing the tie rod end remover or damage to the outer tie-rod end boot may occur.

       Separate the outer tie rod end from the wheel knuckle. Use the General Equipment: Tie Rod End Remover

    Courtesy of FORD MOTOR COMPANY

44. Remove the following items:
    1. RH front halfshaft. Refer to: Front Halfshaft RH - FWD . Refer to: Front Halfshaft RH - 2.7L EcoBoost (238kW/324PS), All-Wheel Drive (AWD) .
    2. NOTE: Do not allow the brake caliper and anchor plate assembly to hang from the brake hose or damage to the hose can occur.

       Remove the LH brake disc. Refer to: Brake Disc .

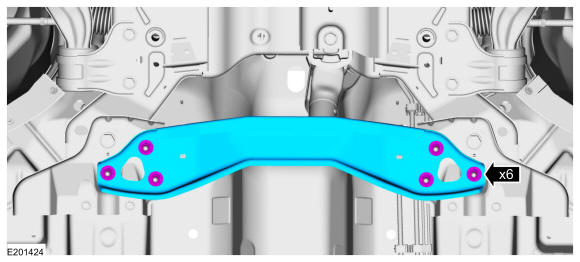

45. Remove the nuts and the subframe support bracket.

    Courtesy of FORD MOTOR COMPANY

46. Remove the following items:
    1. Exhaust flexible pipes. Refer to: Exhaust Flexible Pipe .
    2. LH catalytic convertor. Refer to: Catalytic Converter LH .

    4WD

47. Remove the driveshaft. Refer to: Rear Driveshaft .

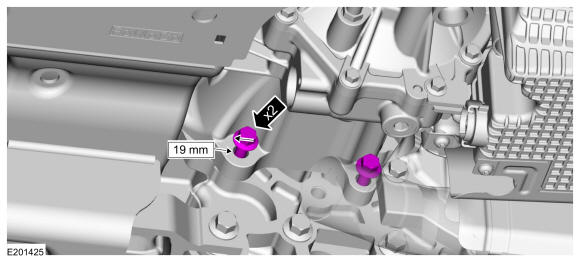

48. Loosen the PTU bolts 19 mm (0.75 in).

    Courtesy of FORD MOTOR COMPANY

    2WD/4WD

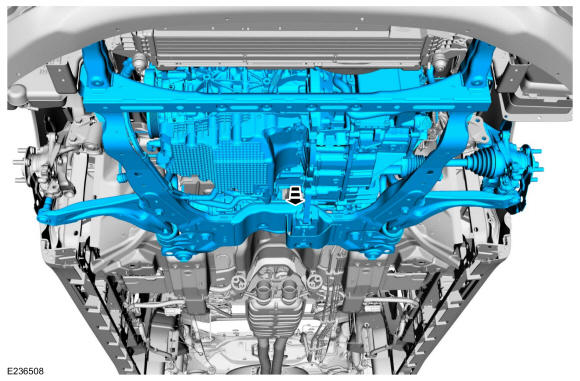

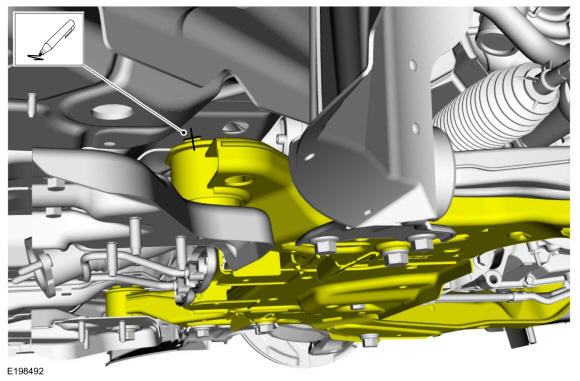

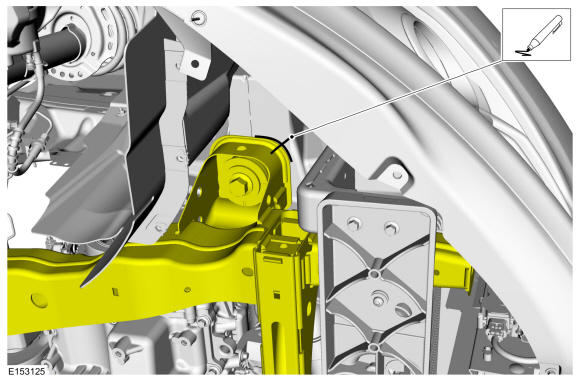

49. Mark the subframe location.

    Courtesy of FORD MOTOR COMPANY

50. Mark the subframe location.

    Courtesy of FORD MOTOR COMPANY

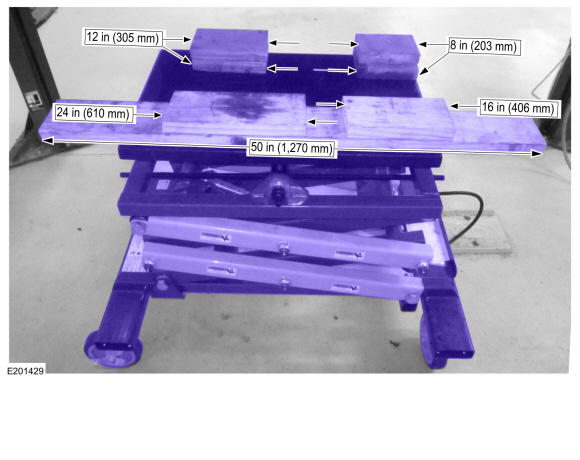

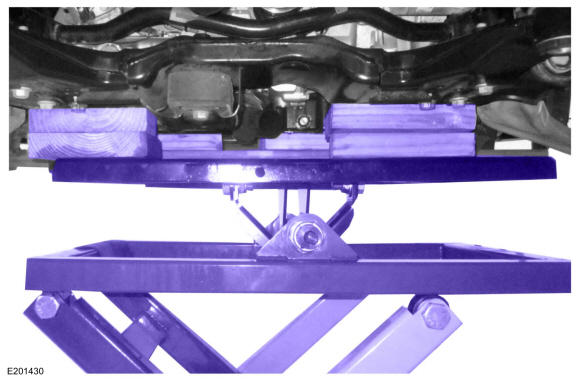

51. NOTE: The boards must be positioned to properly support the engine, transmission and subframe, and allow clearance between the powertrain jack and the exhaust components to prevent damage.

    Position lengths of 2 x 6 boards on the powertrain jack to support the oil pan, transmission and subframe. Use the General Equipment: Powertrain Jack Use the General Equipment: Wooden Block

    Courtesy of FORD MOTOR COMPANY

52. NOTE: View from rear of vehicle.

    Position the powertrain jack and boards under the engine, transmission and subframe. Use the General Equipment: Powertrain Jack Use the General Equipment: Wooden Block

    Courtesy of FORD MOTOR COMPANY

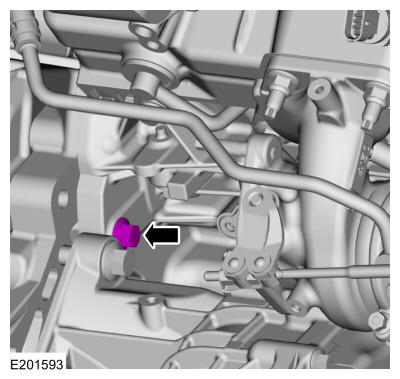

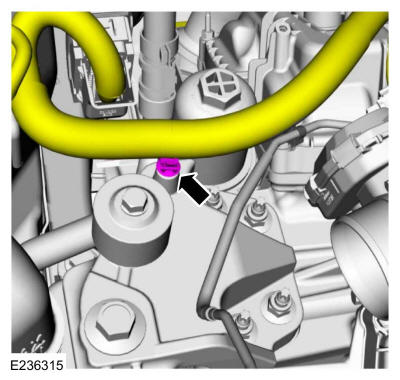

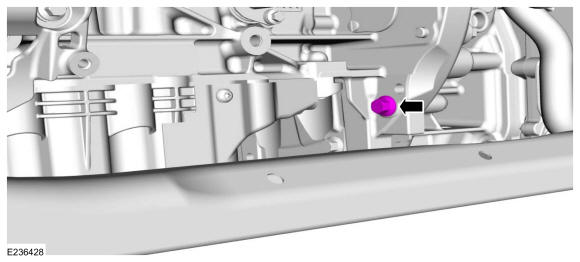

53. Remove the engine-to-transmission bolt.

    Courtesy of FORD MOTOR COMPANY

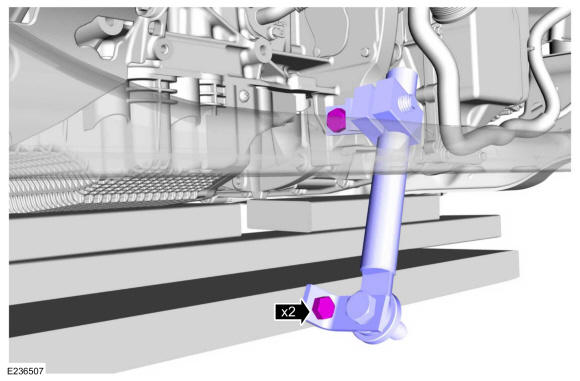

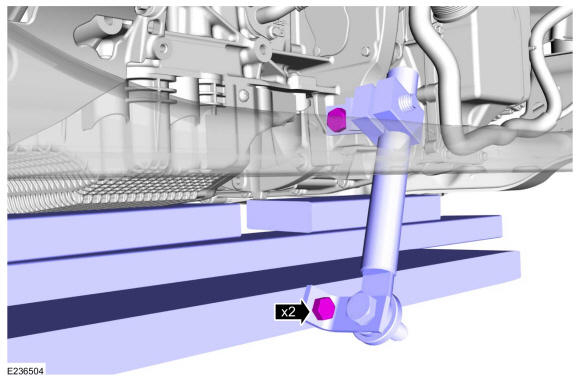

54. 1. Position the powertrain jack and boards under the powertrain and subframe. Use the General Equipment: Powertrain Jack Use the General Equipment: Wooden Block
    2. Install. Use the General Equipment: Adjustable Mounting Arm

    Courtesy of FORD MOTOR COMPANY

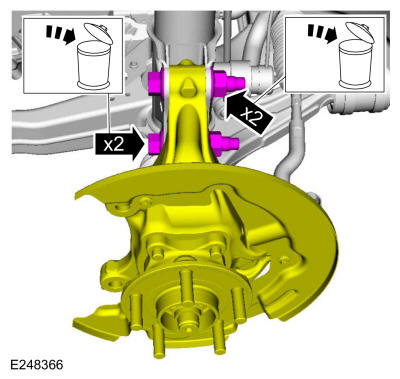

55. Remove and discard the nuts and the bolts.
    • Separate the LH knuckle from the strut.

    Courtesy of FORD MOTOR COMPANY

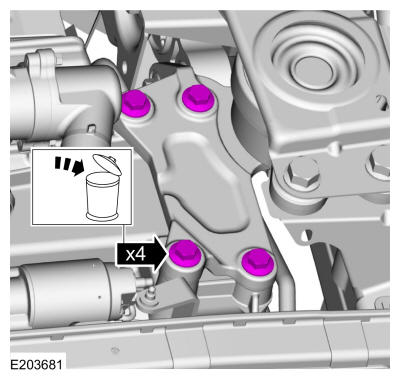

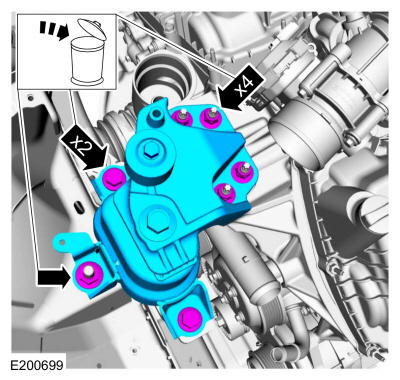

56. NOTE: The engine mount and bracket are serviced as an assembly. Do not remove the engine mount bracket-to-engine mount bolt, this fastener is not serviceable.
    • Remove and discard the nuts and bolts.
    • Remove the engine mount and bracket assembly.

    Courtesy of FORD MOTOR COMPANY

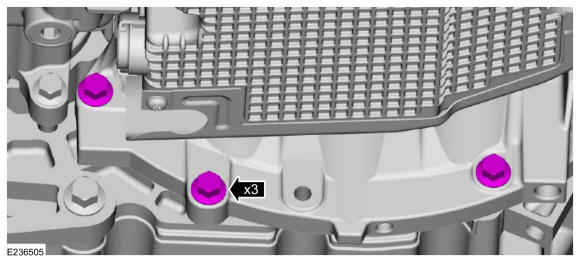

57. Remove and discard the transmission mount bolts.

    Courtesy of FORD MOTOR COMPANY

58. 1. Remove and discard the subframe bolts.
    2. Remove the bolts and the subframe brackets.

    Courtesy of FORD MOTOR COMPANY

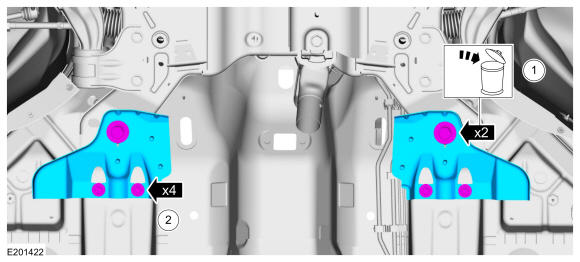

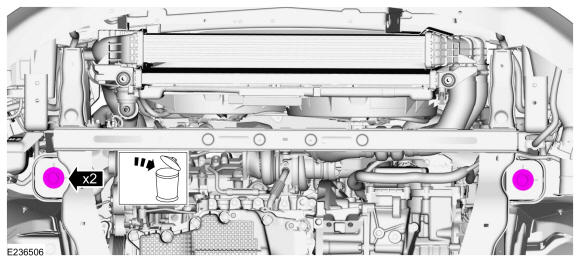

59. Remove and discard the subframe bolts.

    Courtesy of FORD MOTOR COMPANY

60. Using the powertrain jack, lower the powertrain and subframe as an assembly. Use the General Equipment: Powertrain Jack

    Courtesy of FORD MOTOR COMPANY

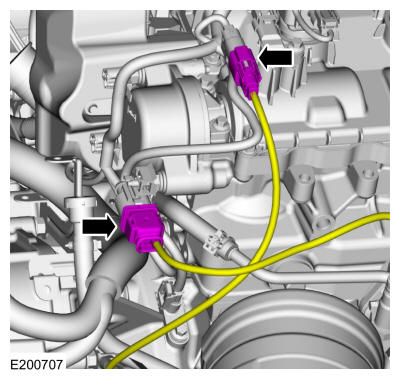

61. Disconnect the RH HO2S and RH catalyst monitor sensor electrical connectors.

    Courtesy of FORD MOTOR COMPANY

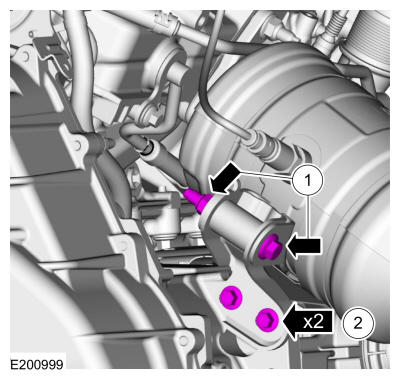

62. 1. Loosen.
    2. Remove.

    Courtesy of FORD MOTOR COMPANY

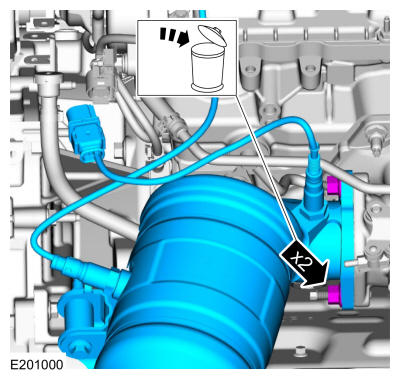

63. 1. Remove and discard the RH catalytic converter nuts.
    2. Remove the RH catalytic converter.

    Courtesy of FORD MOTOR COMPANY

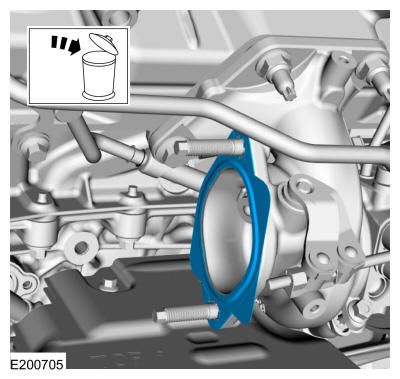

64. Remove and discard the RH catalytic converter gasket.

    Courtesy of FORD MOTOR COMPANY

65. 1. Lift up the generator cable protective cover.
    2. Remove the nut and disconnect the generator cable.
    3. Disconnect the generator electrical connector.

    Courtesy of FORD MOTOR COMPANY

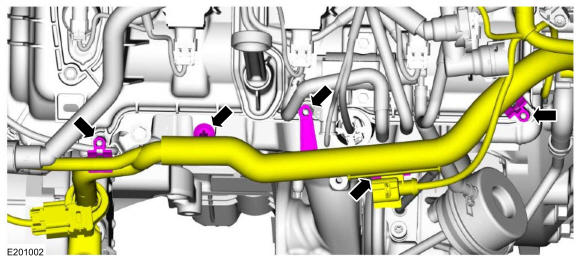

66. Detach the wiring harness retainers.

    Courtesy of FORD MOTOR COMPANY

67. • Detach the wiring harness retainer.
    • If equipped, detach the PTU vent hose retainer.

    Courtesy of FORD MOTOR COMPANY

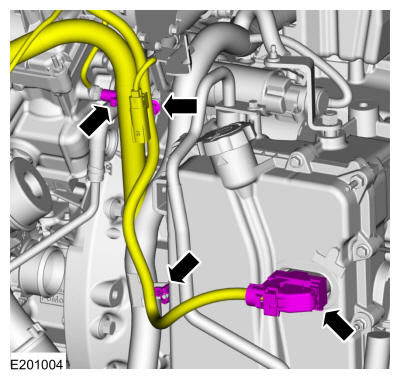

68. • Disconnect the transmission electrical connector.
    • Detach the wiring harness retainers.

    Courtesy of FORD MOTOR COMPANY

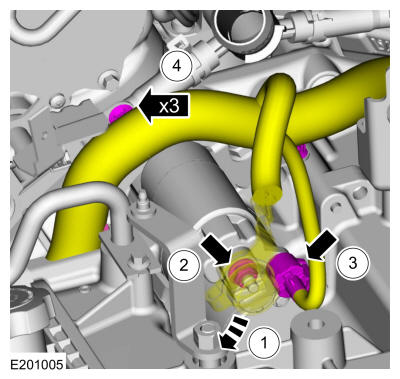

69. 1. Lift up the starter cable protective cover.
    2. Remove the nut and disconnect the starter cable.
    3. Disconnect the starter electrical connector.
    4. Detach the wiring harness retainers.

    Courtesy of FORD MOTOR COMPANY

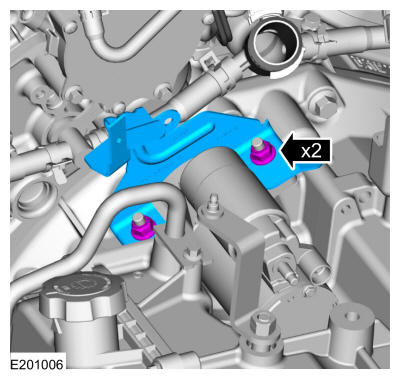

70. Remove the nuts and the bracket.

    Courtesy of FORD MOTOR COMPANY

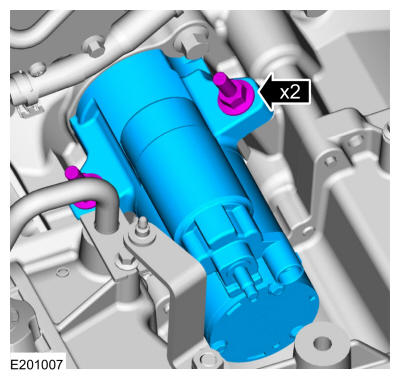

71. Remove the stud bolts and the starter.

    Courtesy of FORD MOTOR COMPANY

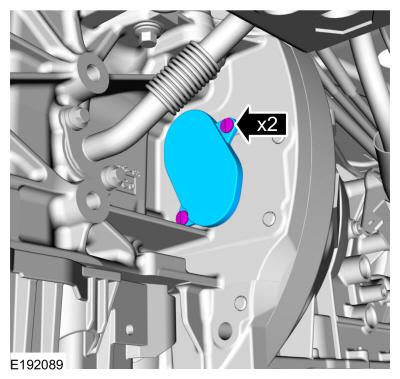

72. Remove the retainers and the access cover.

    Courtesy of FORD MOTOR COMPANY

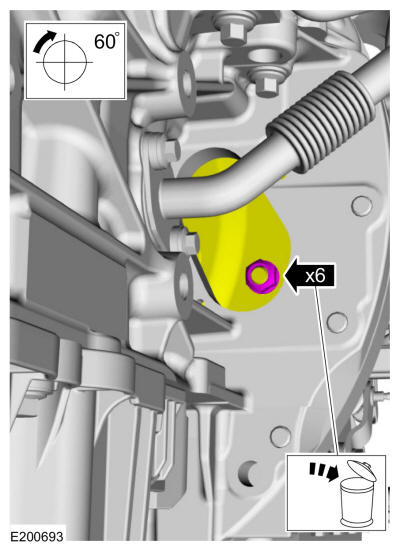

73. NOTE: Using the crankshaft pulley bolt, turn the engine clockwise.

    Remove and discard the torque converter nuts.

    Courtesy of FORD MOTOR COMPANY

    4WD

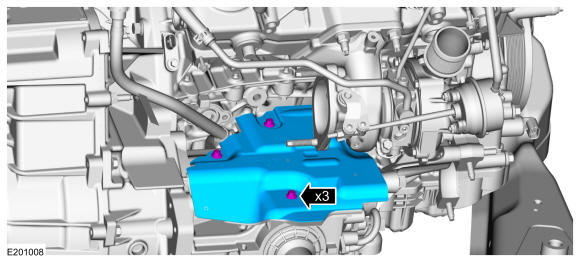

74. Remove the bolts and the heat shield.

    Courtesy of FORD MOTOR COMPANY

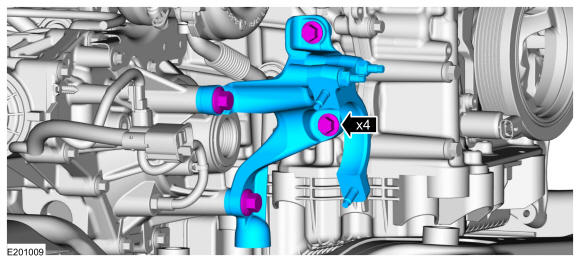

75. Remove the bolts and the bracket.

    Courtesy of FORD MOTOR COMPANY

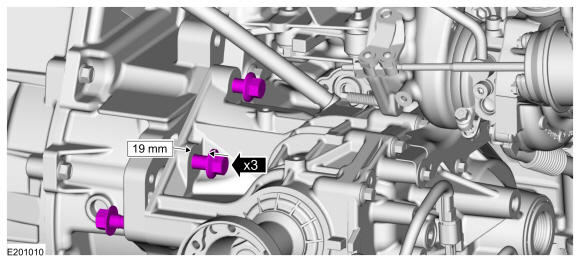

76. Loosen the PTU bolts 19 mm (0.75 in).

    Courtesy of FORD MOTOR COMPANY

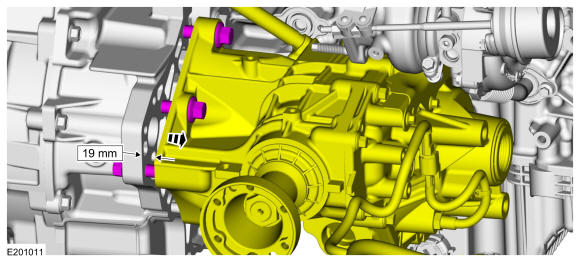

77. Separate the PTU from the transmission 19 mm (0.75 in).

    Courtesy of FORD MOTOR COMPANY

    2WD/4WD

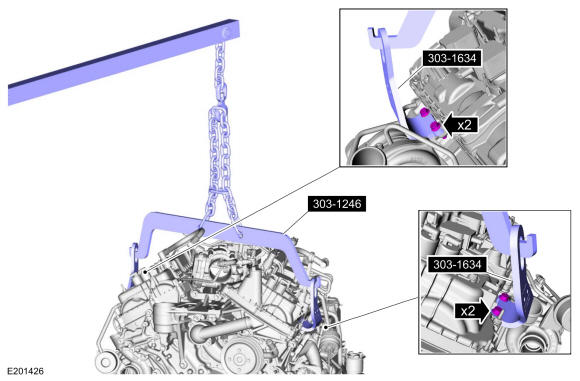

78. 1. Install Special Service Tool: 303-1634 Lift Eyes (2)., 303-1246 Engine Spreader Bar.
    2. Support the engine using the floor crane and length of chain with connecting links. Use the General Equipment: Floor Crane

    Courtesy of FORD MOTOR COMPANY

79. Remove. Use the General Equipment: Adjustable Mounting Arm

    Courtesy of FORD MOTOR COMPANY

80. NOTE: 4WD shown, 2WD similar.

    Remove the transmission bellhousing bolts.

    Courtesy of FORD MOTOR COMPANY

81. NOTE: 4WD shown, 2WD similar.

    If equipped, remove the transmission bellhousing bolt.

    Courtesy of FORD MOTOR COMPANY

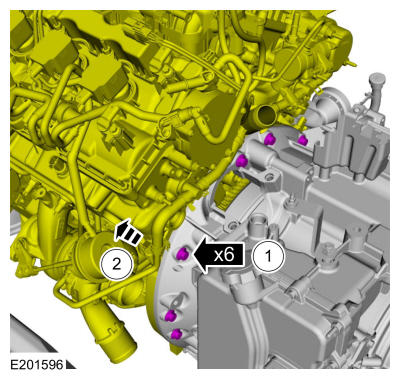

82. 1. Remove the bellhousing bolts.
    2. Separate the engine from the transmission.

    Courtesy of FORD MOTOR COMPANY

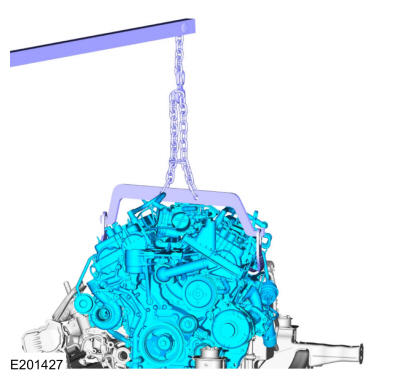

83. Remove the engine from the transmission and subframe assembly. Use the General Equipment: Floor Crane

    Courtesy of FORD MOTOR COMPANY

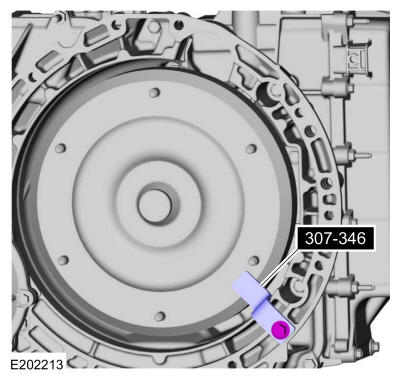

84. Install Special Service Tool: 307-346 (T97T-7902-A) Retainer, Torque Converter.

Courtesy of FORD MOTOR COMPANY
