Section 249 (Engine - 2.7L ECOBOOST (238KW/324PS)): Assembly: Engine

Special Tool(s) / General Equipment

Courtesy of FORD MOTOR COMPANY	205-153 (T80T-4000-W) Handle
Courtesy of FORD MOTOR COMPANY	303-1246 Engine Spreader Bar TKIT-2006UF-FLM TKIT-2006UF-ROW

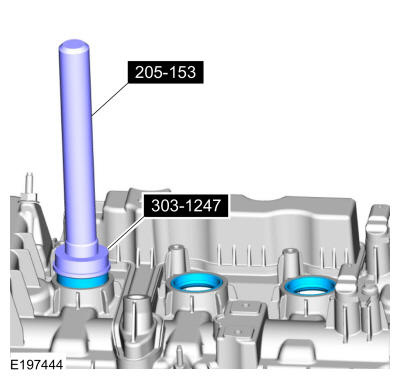

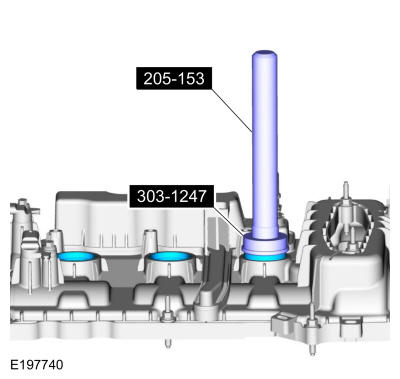

Courtesy of FORD MOTOR COMPANY	303-1247 VCT Spark Plug Tube Seal Remover and Installer TKIT-2006UF-FLM TKIT-2006UF-ROW
Courtesy of FORD MOTOR COMPANY	303-1248 Camshaft holding tools TKIT-2006UF-FLM TKIT-2006UF-ROW

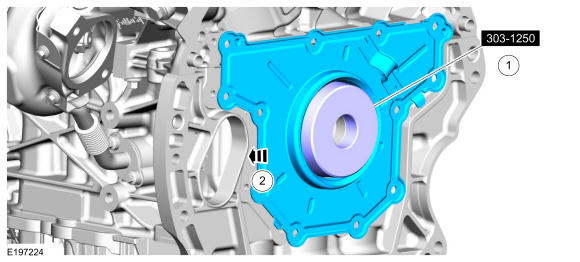

Courtesy of FORD MOTOR COMPANY	303-1250 Seal Installer, Rear Main TKIT-2006UFFLM

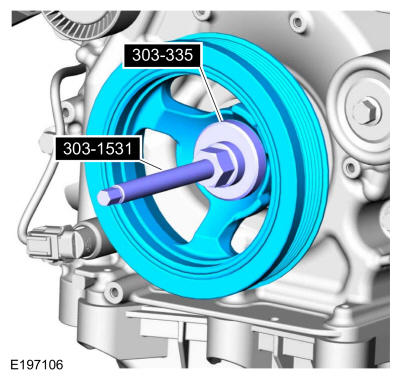

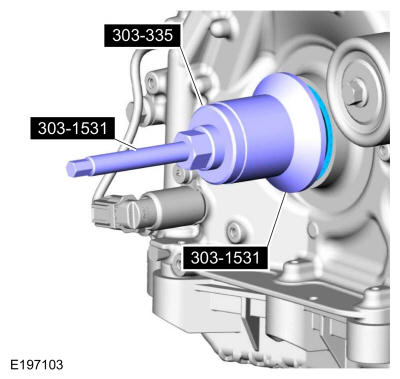

Courtesy of FORD MOTOR COMPANY	303-1531 Installer, Front Crank Seal and Damper

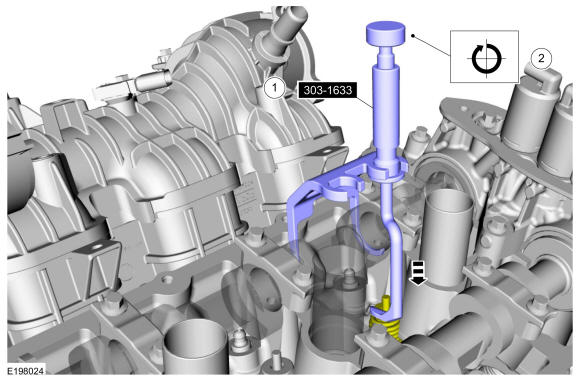

Courtesy of FORD MOTOR COMPANY	303-1633 Remover, Roller Rocker Follower TKIT-2014D-FL_ROW TKIT-2014D-ROW3
Courtesy of FORD MOTOR COMPANY	303-1634 Lift Eyes (2) TKIT-2014D-FL_ROW TKIT-2014D-ROW3
Courtesy of FORD MOTOR COMPANY	303-335 (T88T-6701-A) Installer, Front Cover Oil Seal TKIT-1988-F TKIT-1988-FLM
Floor Crane
Mounting Stand
Hose Clamp Remover/Installer
Flat-Bladed Screwdriver
Piston Ring Compressor
Vise
Vise Jaw Protectors

Materials

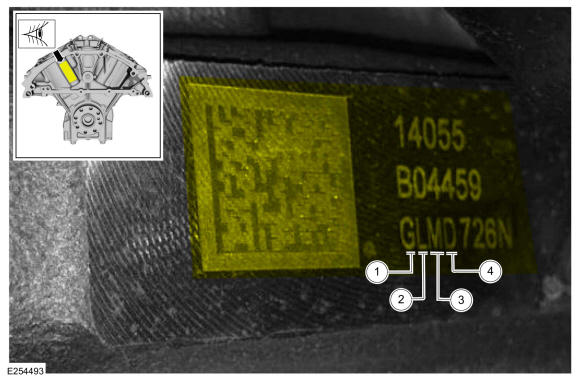

1. Read and record the four character code on the cylinder block. The first letter is the code for main No. 1, the second letter for main No. 2, the third letter for main No. 3 and the fourth letter for main No. 4.

   Courtesy of FORD MOTOR COMPANY

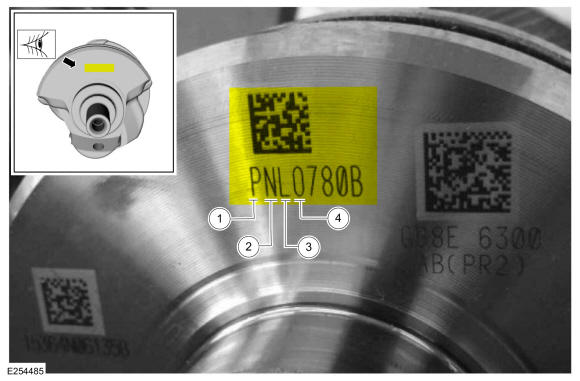

2. Read and record the four character code on the crankshaft face. The first letter is the code for main No. 1, the second letter for main No. 2, the third letter for main No. 3 and the fourth letter for main No. 4.

   Courtesy of FORD MOTOR COMPANY

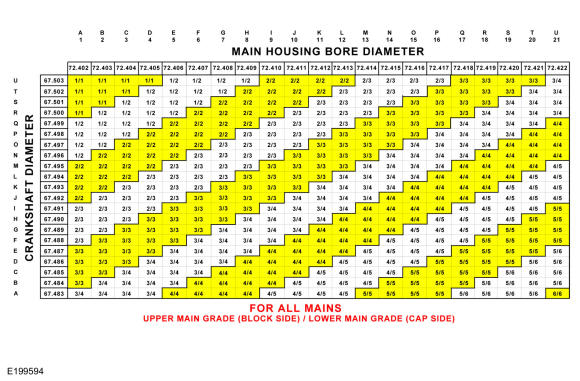

3. Using the data recorded earlier and the Bearing Select Fit Chart, determine the required bearing grade for the main bearings.
   1. Look at the bearing select fit chart and for each main, match the block and crankshaft code with its corresponding column or row by reading across the crankshaft row and down the block column to select the proper grade bearings for each main.
   2. For example, if the block code is GLMD and the crankshaft code is PNLO, main No. 1 should be assembled with grade 2 upper and lower bearings, as determined by the intersection of the

      G  block column and the

      P  crankshaft row. Main No. 2 should be assembled with grade 3 upper and lower bearings. Main No. 3 should be assembled with grade 3 upper and grade 4 lower bearings. Main No. 4 should be assembled with grade 2 upper and lower bearings.

   Courtesy of FORD MOTOR COMPANY

4. Install the piston cooling jets and bolts into the cylinder block.

   Torque: 89 lb.in (10 Nm)

   Courtesy of FORD MOTOR COMPANY

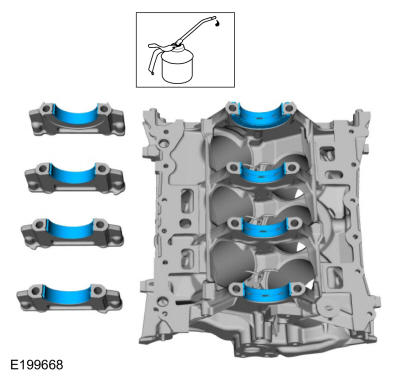

5. Install the crankshaft main bearings.
   • Install the crankshaft upper main bearings and thrust bearing into the cylinder block.
   • Install the crankshaft lower main bearings into the bearing caps.
   • Make sure all oil passages are aligned.
   • Lubricate all main bearings with clean engine oil.

     Material: Engine Oil - 5W30 - Synthetic Blend

   Courtesy of FORD MOTOR COMPANY

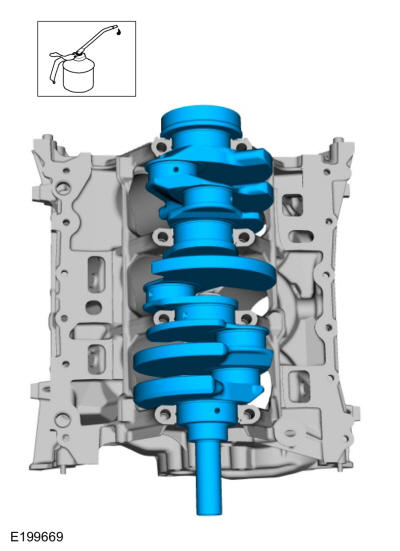

6. NOTE: Lubricate the crankshaft bearing journals with clean engine oil.

   Install the crankshaft into the cylinder block.

   Material: Engine Oil - 5W30 - Synthetic Blend

   Courtesy of FORD MOTOR COMPANY

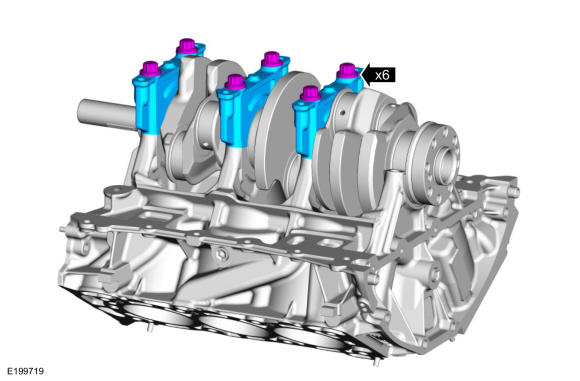

7. Install the No. 1, 2 and 3 main bearing caps and bolts on the cylinder block and, keeping the caps as square as possible, alternately draw the caps down evenly using the cap bolts.

   Material: Engine Oil - 5W30 - Synthetic Blend

   Courtesy of FORD MOTOR COMPANY

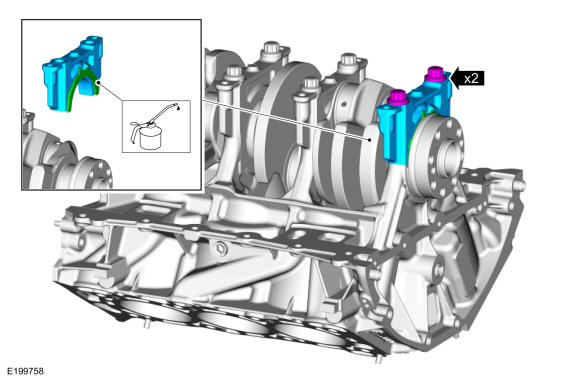

8. NOTE: Lubricate the lower thrust washer with clean engine oil.

   Install the lower thrust washer and the No. 4 main bearing cap and, keeping the cap as square as possible, alternately draw the cap down evenly using the cap bolts.

   Material: Engine Oil - 5W30 - Synthetic Blend

   Courtesy of FORD MOTOR COMPANY

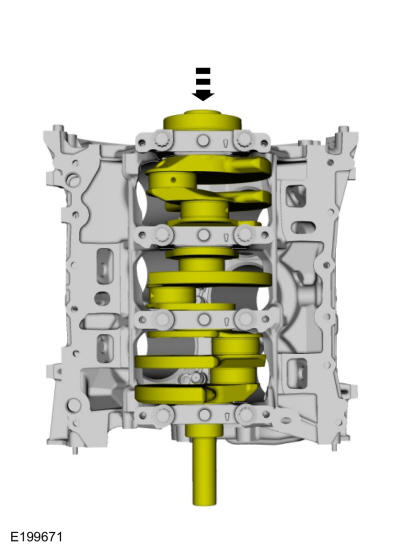

9. Push the crankshaft forward to seat the crankshaft thrust washer.

   Courtesy of FORD MOTOR COMPANY

10. Tighten the main bearing cap bolts.

    Torque:

    Stage 1: 30 lb.ft (40 Nm)

    Stage 2: Loosen: 360 °

    Stage 3: 26 lb.ft (35 Nm)

    Stage 4: 180 °

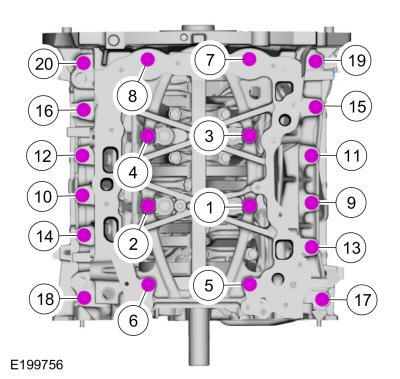

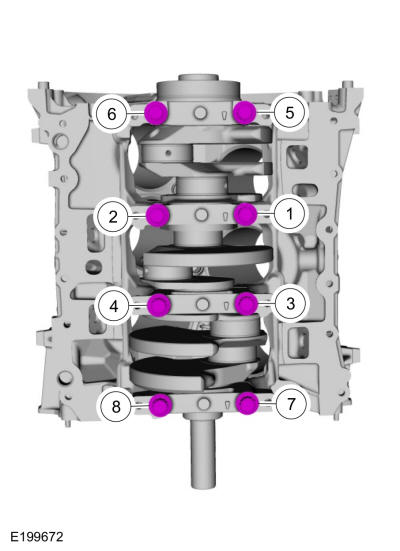

    Fig 1: Main Bearing Tightening Sequence

    Courtesy of FORD MOTOR COMPANY
11. • Check the crankshaft end play. Refer to: Specifications .
    • Check the piston-to-cylinder block and piston ring clearances. Refer to: Specifications .
    • Assemble the pistons and position the piston ring gaps. Refer to: Piston .

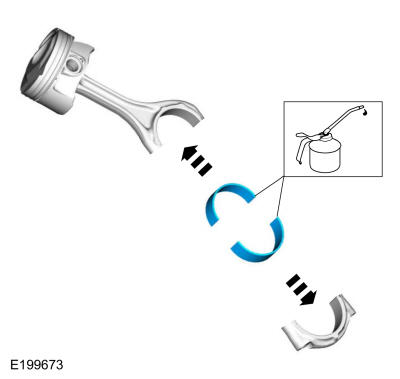

12. Lubricate with clean engine oil and install the connecting rod bearings.

    Material: Engine Oil - 5W30 - Synthetic Blend

    Courtesy of FORD MOTOR COMPANY

13. 1. For assembly purposes the bump on the connecting rod will face the same way as the bump on the connecting rod cap.

    Courtesy of FORD MOTOR COMPANY

14. 1. For assembly purposes the bowl on the dome of the piston should be facing toward the intake of the engine.
    2. On the RH bank the bump on the connecting rod should face the front of the engine.
    3. On the LH bank the bump on the connecting rod should face the rear of the engine.

    Courtesy of FORD MOTOR COMPANY

15. NOTE: Do not scratch the cylinder walls or crankshaft journals with the connecting rod or engine damage may occur.
    NOTE: Do not allow the piston connecting rods to come in contact with the piston cooling jets or engine damage may occur.
    NOTE: Lubricate the piston with clean engine oil.

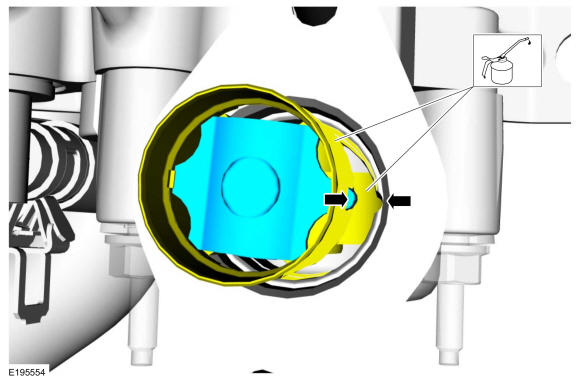

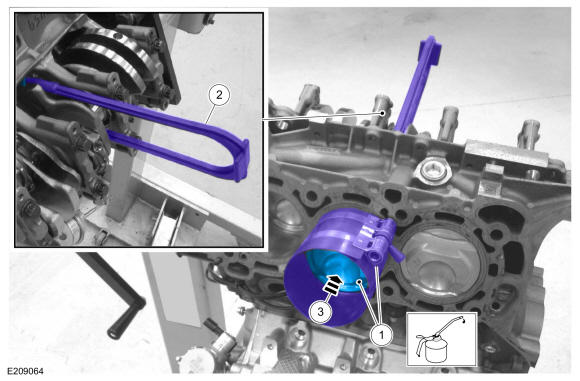

    • Position the piston assembly and piston ring installer into the cylinder. Use the General Equipment: Piston Ring Compressor

      Material: Engine Oil - 5W30 - Synthetic Blend

    • NOTE: A commercially available piston rod installer must be used to prevent damage to the crankshaft journal.

      Install a piston rod installer over the crankshaft journal and into the bolt holes of the connecting rod.

    • Push the piston into the cylinder bore and guide the connecting rod onto the crankshaft journal.

    Courtesy of FORD MOTOR COMPANY

16. NOTE: The rod cap installation must keep the same orientation as marked during disassembly or engine damage may occur.
    NOTE: The connecting rod caps are of the "cracked" design and must mate with the connecting rod ends. Excessive bearing clearance will result if not mated correctly.

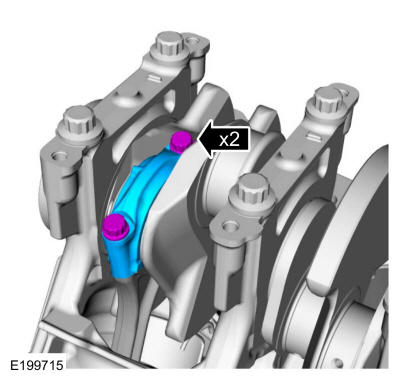

    1. Install the connecting rod cap and bearing.

       Torque:

       Stage 1: 24 lb.ft (32 Nm)

       Stage 2: Loosen: 180 °

       Stage 3: 24 lb.ft (32 Nm)

       Stage 4: 90 °

    2. Repeat the steps for each of the remaining pistons.

    Courtesy of FORD MOTOR COMPANY

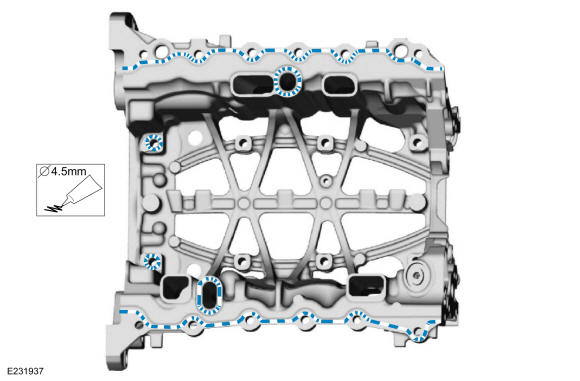

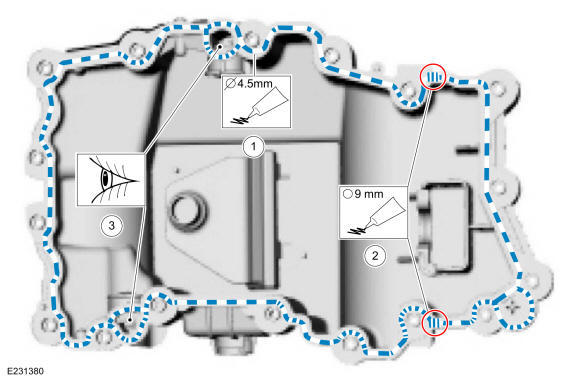

17. NOTE: If the engine block skirt stiffener is not installed, aligned and the bolts tightened to minimum specification within 10 minutes, the sealant must be removed and the sealing area cleaned.

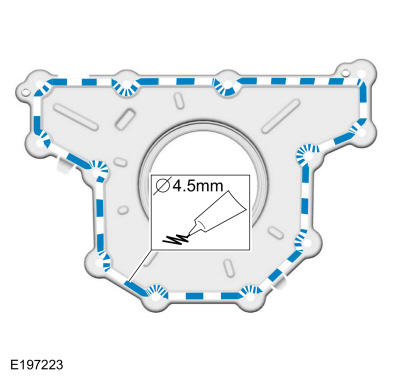

    Apply a 4.5 mm (0.18 in) bead of Motorcraft ® High Performance Engine RTV Silicone to the engine block skirt stiffener.

    Material: Motorcraft ® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

    Courtesy of FORD MOTOR COMPANY

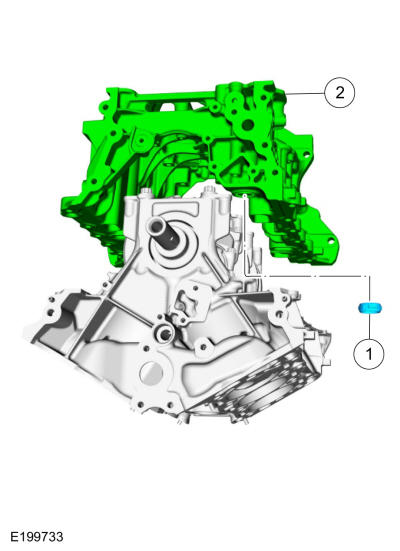

18. 1. Position the oil seal.
    2. Install the engine block skirt stiffener.

    Courtesy of FORD MOTOR COMPANY

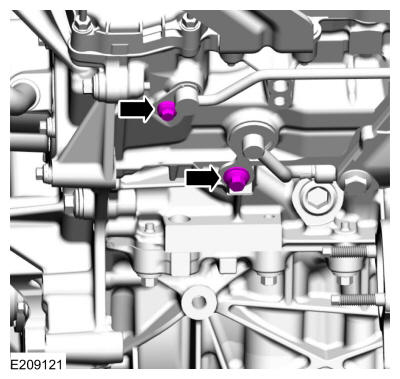

19. 1. Install the bolts finger tight.
    2. Tighten the 2 bolts.

       Torque:

       Stage 1: 177 lb.in (20 Nm)

       Stage 2: Loosen: 360 °

    Courtesy of FORD MOTOR COMPANY

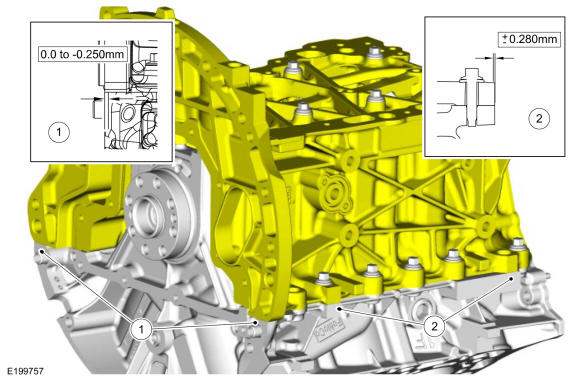

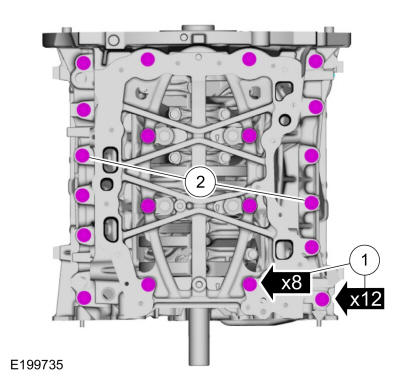

20. 1. Using a straight edge, align the rear face of the engine block skirt stiffener to the rear face of the engine block, flush or up to 0.250 mm (0.01 in) underflush.
    2. Using a straight edge, align the machined bosses on the left side of the engine block skirt stiffener to the machined bosses on the left side of the engine block flush or within 0.280 mm (0.011) of flush.

    Courtesy of FORD MOTOR COMPANY

21. NOTE: If the engine block skirt stiffener bolts minimal torque is not completed within 10 minutes of sealant application, or if final torque is not met within 60 minutes of sealant application the parts must be removed and the sealant must be removed and the sealing area cleaned.

    Tighten the engine block skirt stiffener bolts.

    Torque:

    Stage 1: 177 lb.in (20 Nm)

    Stage 2: 18 lb.ft (24 Nm)

    Courtesy of

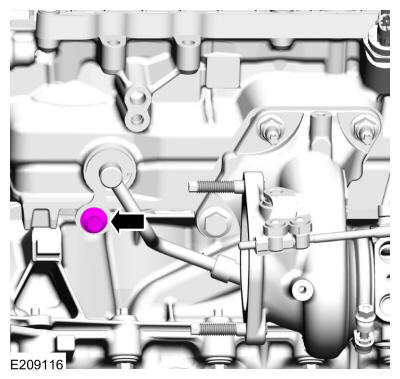

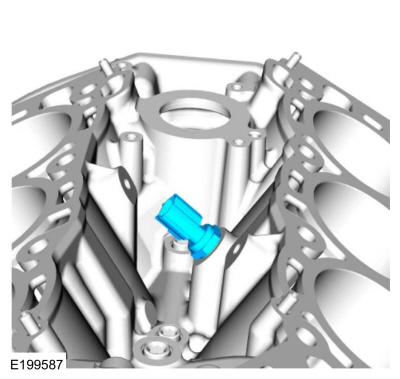

22. NOTE: Do not reuse the ECT sensor, install a new sensor.

    Install a new ECT sensor.

    Torque: 20 lb.ft (27 Nm)

    Courtesy of FORD MOTOR COMPANY

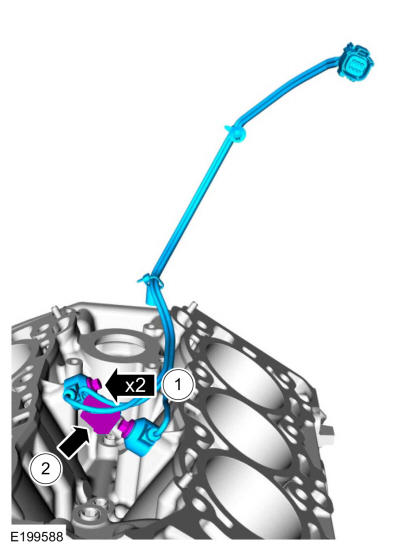

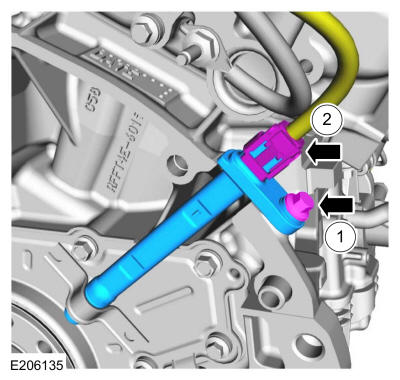

23. 1. Install the KS assembly and the bolts.

       Torque: 89 lb.in (10 Nm)

    2. Connect the ECT sensor electrical connector.

    Courtesy of FORD MOTOR COMPANY

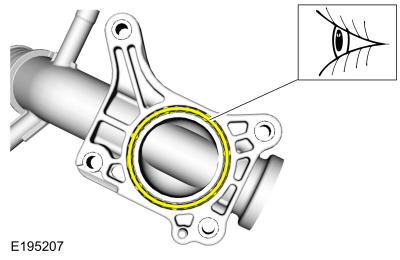

24. Inspect the coolant outlet connector pipe gasket and replace if damaged.

    Courtesy of FORD MOTOR COMPANY

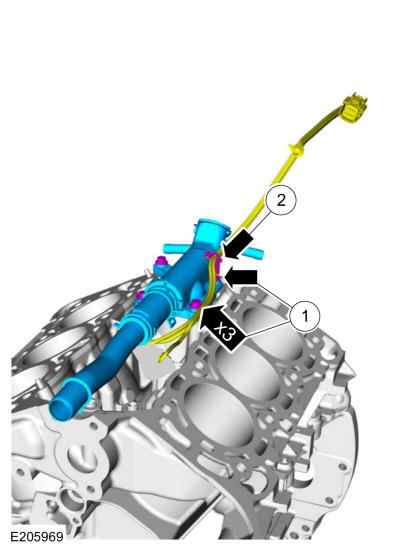

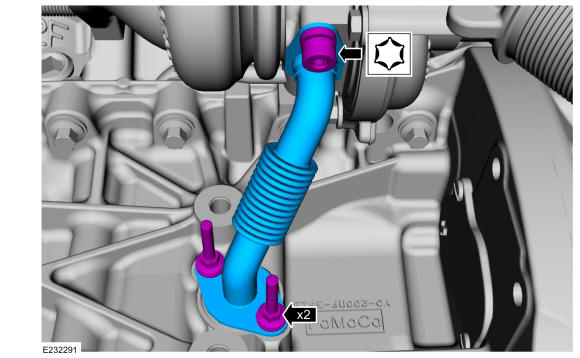

25. 1. Install the coolant outlet connector pipe, the bolts and the stud bolt.

       Torque: 89 lb.in (10 Nm)

    2. Attach the wiring harness retainer to the stud bolt.

    Courtesy of FORD MOTOR COMPANY

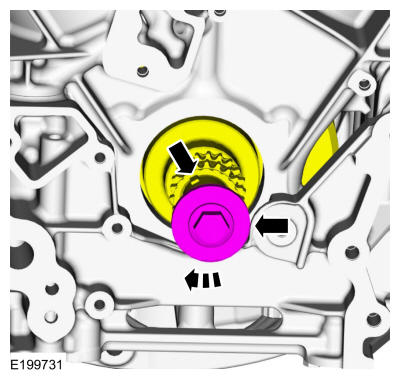

26. NOTE: A timing mark is stamped on both faces of the crankshaft sprocket. The sprocket can be installed with either of the faces positioned outward.

    Install the crankshaft sprocket.

    Courtesy of FORD MOTOR COMPANY

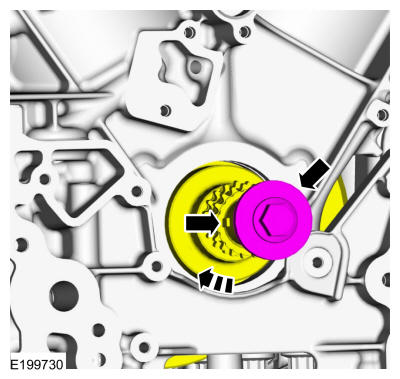

27. NOTE: Rotate the crankshaft utilizing only the original crankshaft pulley bolt. Failure to follow this direction may cause damage to the crankshaft and result in engine failure.

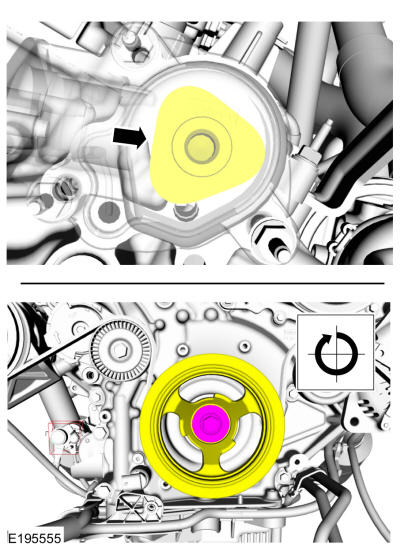

    Install the original crankshaft pulley bolt and rotate the crankshaft clockwise until the keyway is at the 9 o'clock position.

    Courtesy of FORD MOTOR COMPANY

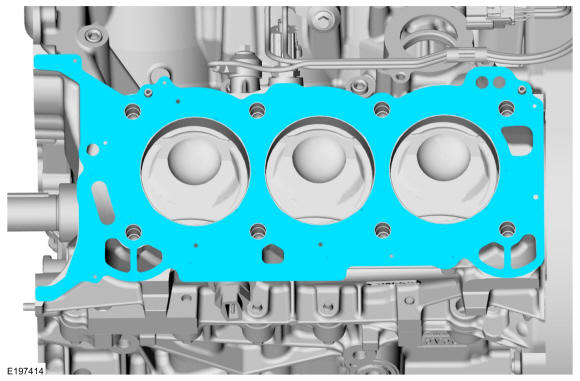

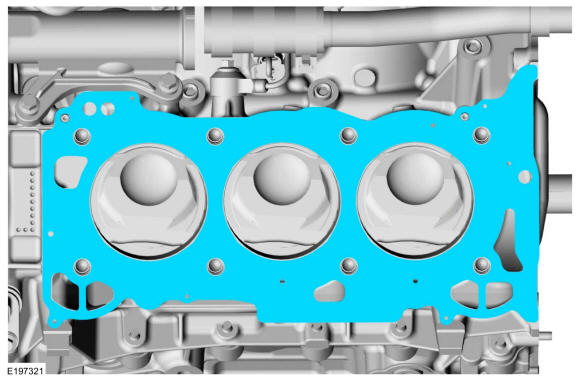

28. Install a new cylinder head gasket.

    Courtesy of FORD MOTOR COMPANY

29. • Install the cylinder head.
    • Install new cylinder head bolts.

      Torque:

      Stage 1: 177 lb.in (20 Nm)

      Stage 2: Loosen: 2 turn(s)

      Stage 3: 37 lb.ft (50 Nm)

      Stage 4: 180 °

    Courtesy of FORD MOTOR COMPANY

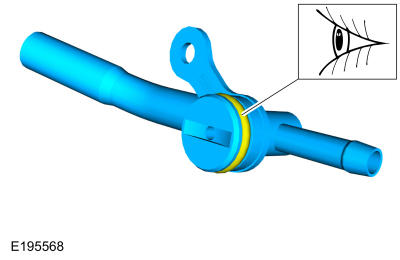

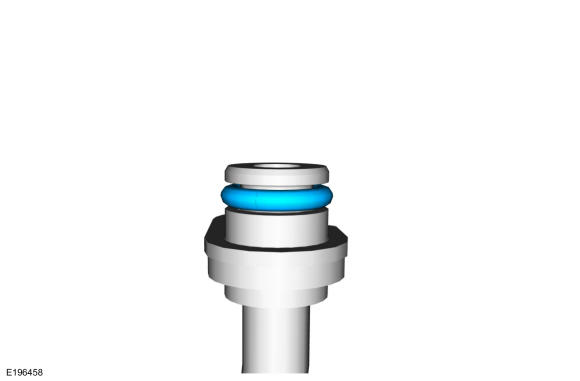

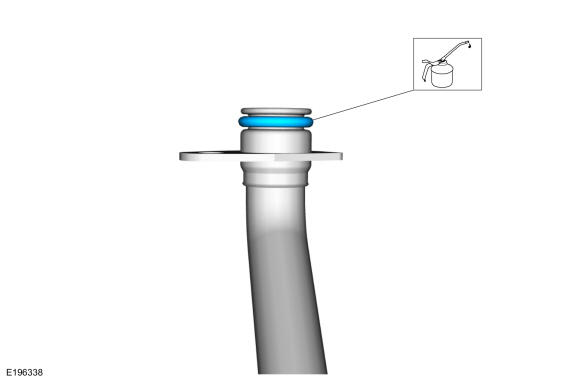

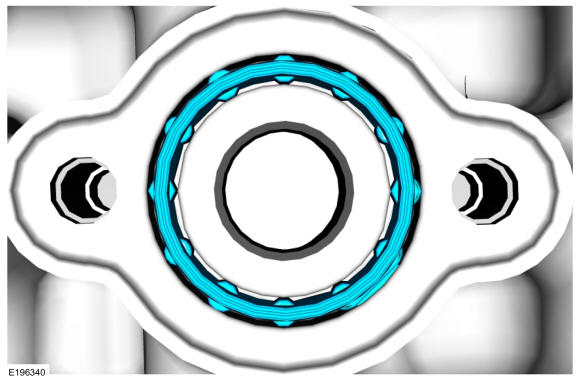

30. Inspect the O-ring and replace if damaged.

    Courtesy of FORD MOTOR COMPANY

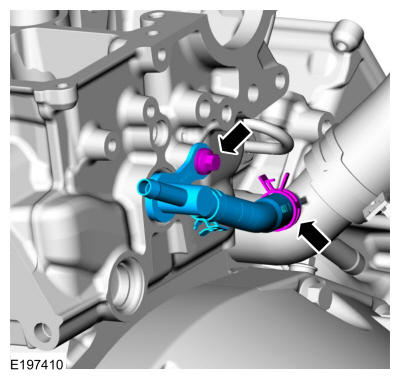

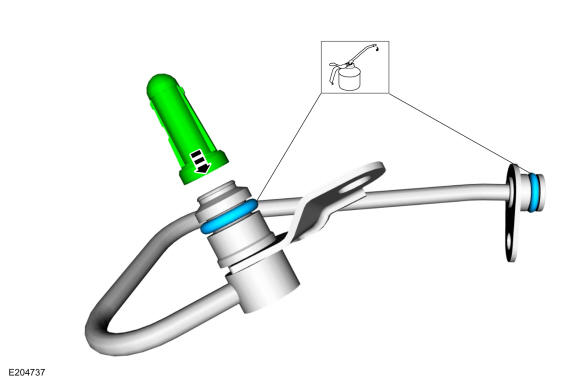

31. 1. Install the cylinder head to coolant outlet connector hose assembly and the bolt.

       Torque: 89 lb.in (10 Nm)

    2. Connect the coolant hose and the clamp. Use the General Equipment: Hose Clamp Remover/Installer

    Courtesy of FORD MOTOR COMPANY

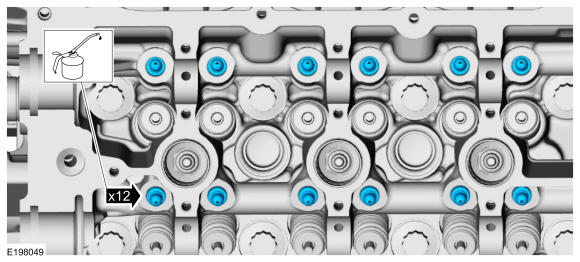

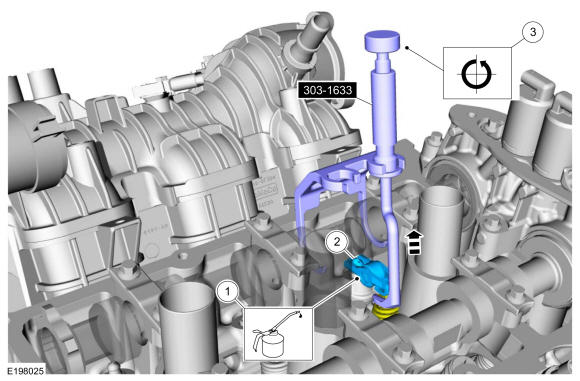

32. NOTE: Do not install the camshaft roller followers at this time. The roller followers will be installed later in the procedure. If the roller followers are installed prior to the camshafts, the camshaft caps can become distorted during the camshaft tightening process and result in upper end engine noise or severe damage to the engine.
    NOTE: If the original hydraulic lash adjusters are to be reinstalled, they must be installed in their original locations.

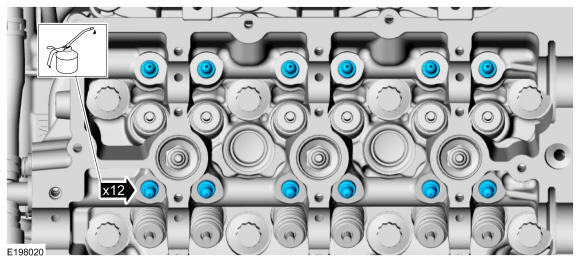

    1. Lubricate the hydraulic lash adjusters with clean engine oil.

       Material: Engine Oil - 5W30 - Synthetic Blend

    2. Install the hydraulic lash adjusters.

    Courtesy of FORD MOTOR COMPANY

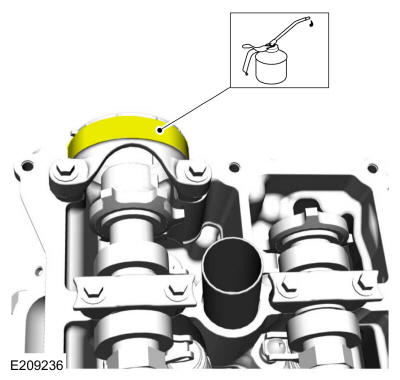

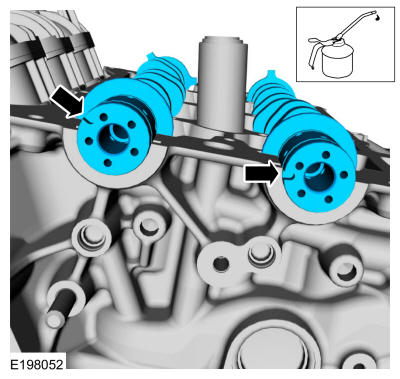

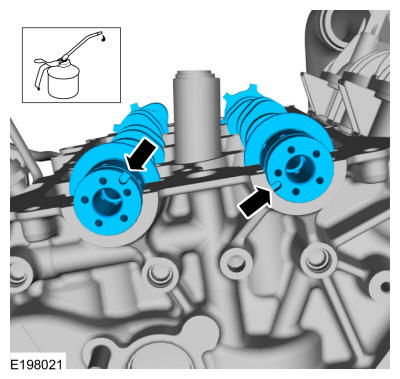

33. NOTE: Lubricate the camshafts with clean engine oil prior to installation.

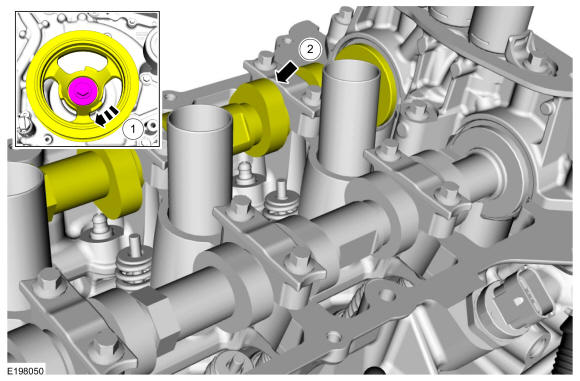

    Install the intake and exhaust camshafts in the neutral position. Align the D-slots as shown in the illustration.

    Material: Engine Oil - 5W30 - Synthetic Blend

    Courtesy of FORD MOTOR COMPANY

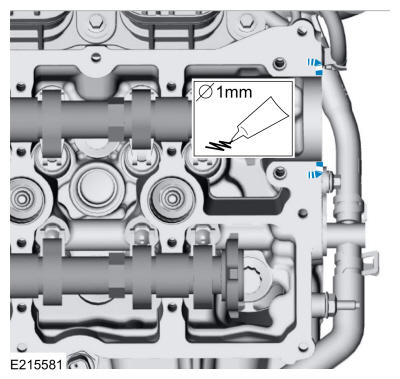

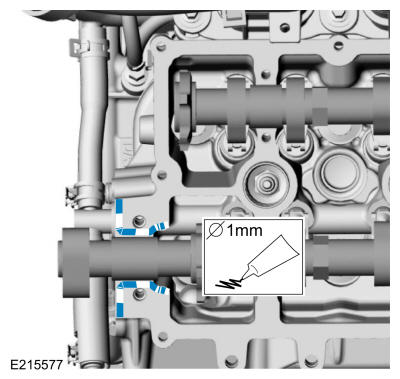

34. Apply a 1 mm bead of sealant to the rear camshaft cap mounting surface of the cylinder head.

    Material: Flange Sealant / CU7Z-19B508-A (WSS-M2G348-A11)

    Courtesy of FORD MOTOR COMPANY

35. NOTE: Do not tighten at this time.

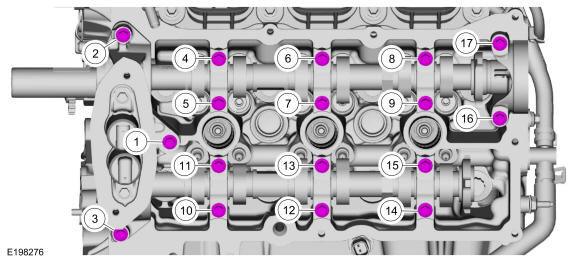

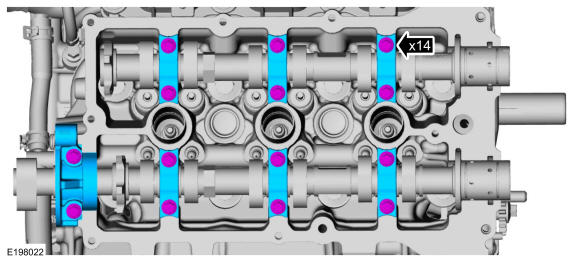

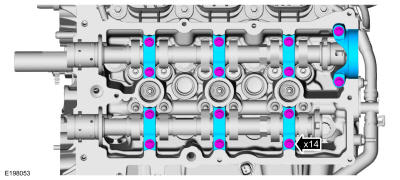

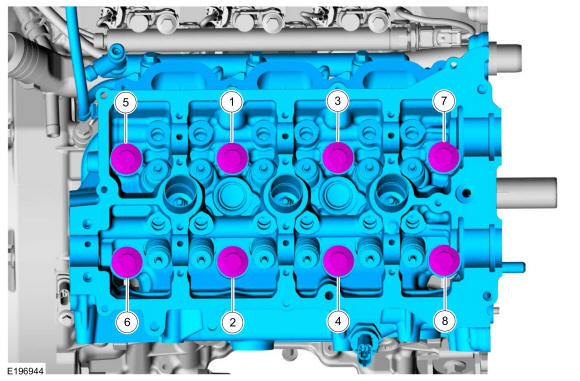

    Install the camshaft bearing caps and the bolts.

    Courtesy of FORD MOTOR COMPANY

36. NOTE: Do not tighten at this time.

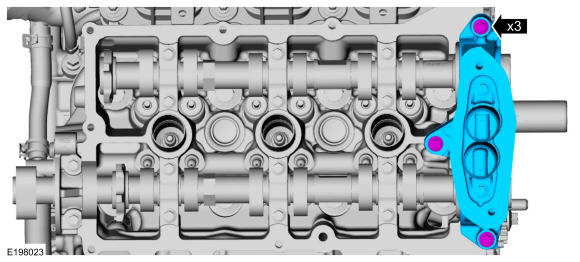

    Install the front camshaft bearing mega cap and the 3 bolts.

    Courtesy of FORD MOTOR COMPANY

37. Tighten the bolts.

    Torque: 133 lb.in (15 Nm)

    Courtesy of FORD MOTOR COMPANY

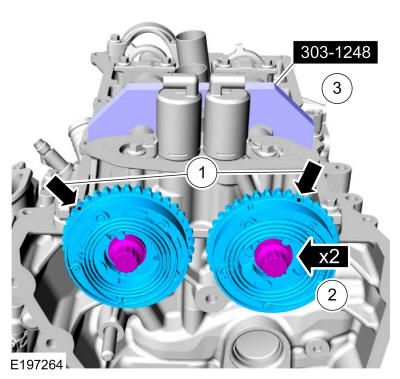

38. NOTE: The VCT units have 2 timing marks on them, a triangle and a circle. For installation of the LH side the circle marks are used.
    1. Install the VCT units. The circle  timing marks on the VCT units will be at the 10 o'clock (intake) and 12:30 (exhaust) positions as shown in the illustration. Install Special Service Tool: 303-1248 Camshaft holding tools.
    2. Install the new VCT unit bolts.

       Torque:

       Stage 1: 30 lb.ft (40 Nm)

       Stage 2: Loosen: 360 °

       Stage 3: 37 lb.ft (50 Nm)

       Stage 4: 90 °

    3. Remove Special Service Tool: 303-1248 Camshaft holding tools.

    Courtesy of FORD MOTOR COMPANY

39. Install a new cylinder head gasket.

    Courtesy of FORD MOTOR COMPANY

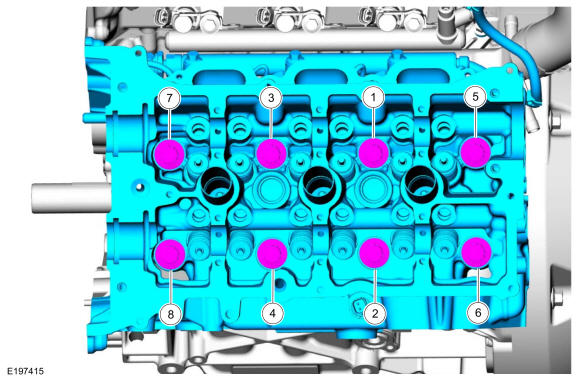

40. • Install the cylinder head.
    • Install new cylinder head bolts.

      Torque:

      Stage 1: 177 lb.in (20 Nm)

      Stage 2: Loosen: 2 turn(s)

      Stage 3: 37 lb.ft (50 Nm)

      Stage 4: 180 °

    Courtesy of FORD MOTOR COMPANY

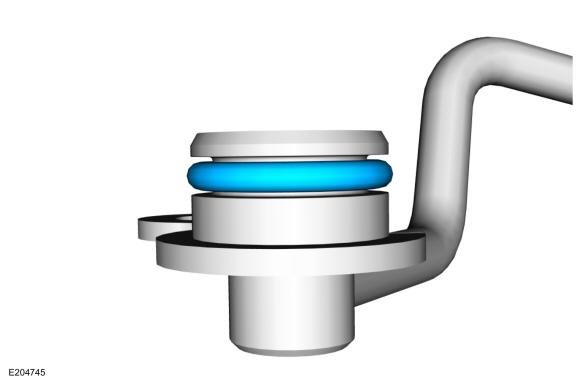

41. Inspect the O-ring and replace if damaged.

    Courtesy of FORD MOTOR COMPANY

42. 1. Install the cylinder head to coolant outlet connector hose assembly and the bolt.

       Torque: 89 lb.in (10 Nm)

    2. Connect the coolant hose and the clamp. Use the General Equipment: Hose Clamp Remover/Installer

    Courtesy of FORD MOTOR COMPANY

43. NOTE: Do not install the camshaft roller followers at this time. The roller followers will be installed later in the procedure. If the roller followers are installed prior to the camshafts, the camshaft caps can become distorted during the camshaft tightening process and result in upper end engine noise or severe damage to the engine.
    NOTE: If the original hydraulic lash adjusters are to be reinstalled, they must be installed in their original locations.
    1. Lubricate the hydraulic lash adjusters with clean engine oil.

       Material: Engine Oil - 5W30 - Synthetic Blend

    2. Install the hydraulic lash adjusters.

    Courtesy of FORD MOTOR COMPANY

44. NOTE: Lubricate the camshafts with clean engine oil prior to installation.

    Install the intake and exhaust camshafts in the neutral position. Align the D-slots as shown in the illustration.

    Material: Engine Oil - 5W30 - Synthetic Blend

    Courtesy of FORD MOTOR COMPANY

45. Apply a 1 mm bead of sealant to the rear camshaft cap mounting surface of the cylinder head.

    Material: Flange Sealant / CU7Z-19B508-A (WSS-M2G348-A11)

    Courtesy of FORD MOTOR COMPANY

46. NOTE: Do not tighten at this time.

    Install the camshaft bearing caps and the bolts.

    Courtesy of FORD MOTOR COMPANY

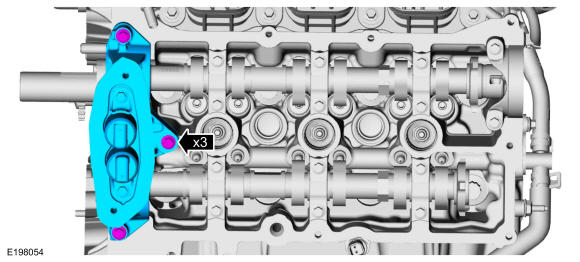

47. NOTE: Do not tighten at this time.

    Install the front camshaft bearing mega cap and the 3 bolts.

    Courtesy of FORD MOTOR COMPANY

48. Tighten the bolts.

    Torque: 133 lb.in (15 Nm)

    Courtesy of FORD MOTOR COMPANY

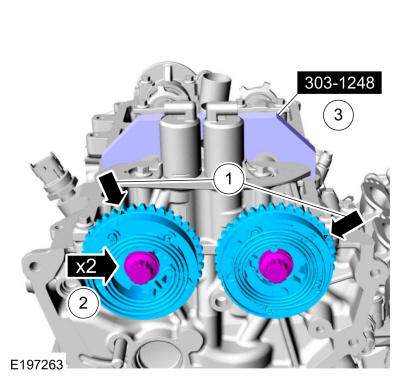

49. NOTE: The VCT units have 2 timing marks on them, a triangle and a circle. For installation of the RH side the triangle marks are used.
    1. Install the VCT units. The triangle  timing marks on the VCT units will be at the 2 o'clock (intake) and 11 o'clock (exhaust) positions as shown in the illustration. Install Special Service Tool: 303-1248 Camshaft holding tools.
    2. Install the new VCT unit bolts.

       Torque:

       Stage 1: 30 lb.ft (40 Nm)

       Stage 2: Loosen: 360 °

       Stage 3: 37 lb.ft (50 Nm)

       Stage 4: 90 °

    3. Remove Special Service Tool: 303-1248 Camshaft holding tools.

    Courtesy of FORD MOTOR COMPANY

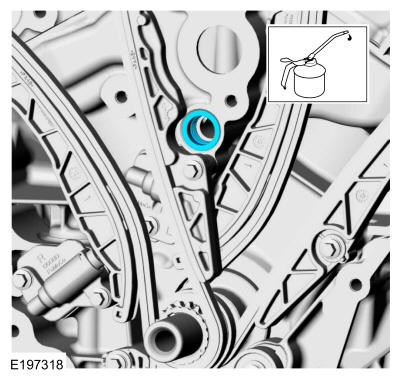

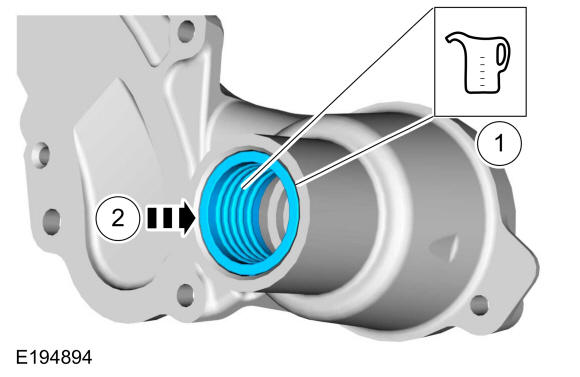

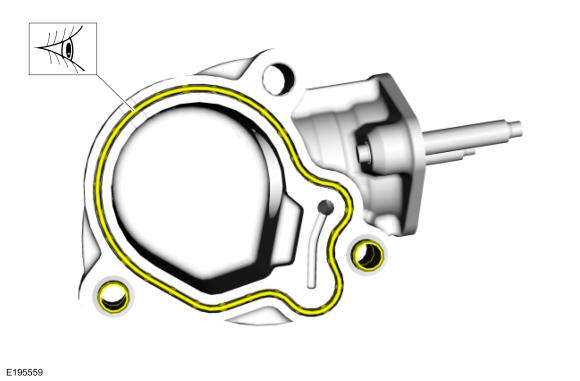

50. Prime the oil pump. Add 2 tablespoons of clean engine oil to the oil pump and rotate the oil pump by hand.
51. Install the oil pump and the bolts.

    Torque:

    Stage 1: 89 lb.in (10 Nm)

    Stage 2: 45 °

    Courtesy of FORD MOTOR COMPANY

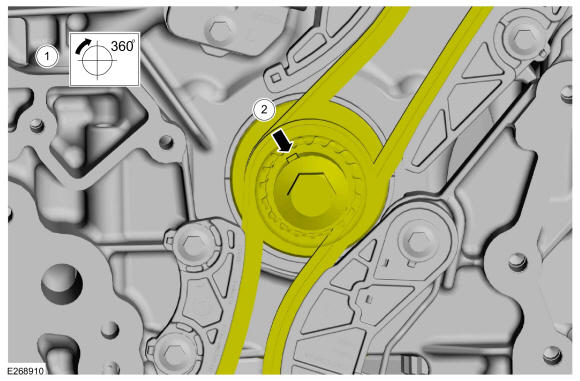

52. Using the original crankshaft pulley bolt, rotate the crankshaft clockwise until the keyway is at the 11 o'clock position.

    Courtesy of FORD MOTOR COMPANY

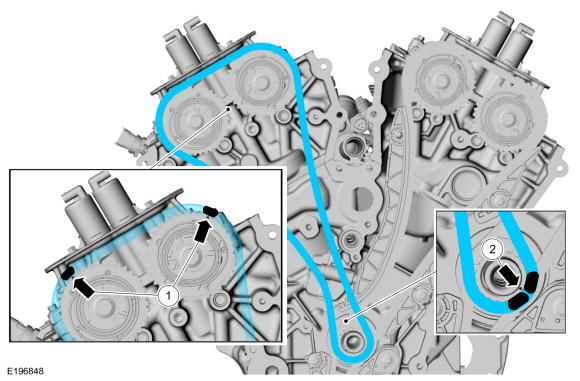

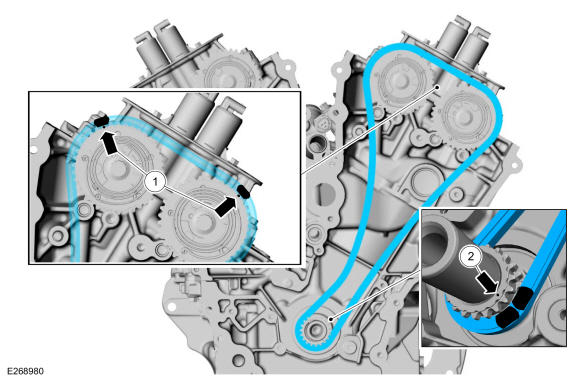

53. NOTE: The VCT units have 2 timing marks on them, a triangle and a circle. For removal and installation of the LH side the circle marks are used.
    1. Install the LH timing chain with the single colored links aligned with the circle  timing marks on the VCT units.
    2. Install the double colored links so they straddle the timing mark on the outward face of the crankshaft sprocket.

    Courtesy of FORD MOTOR COMPANY

54. Install the LH timing chain guide and bolts.

    Torque: 89 lb.in (10 Nm)

    Courtesy of FORD MOTOR COMPANY

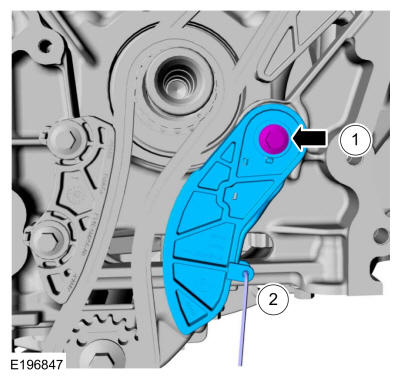

55. Install the LH timing chain tensioner arm.

    Courtesy of FORD MOTOR COMPANY

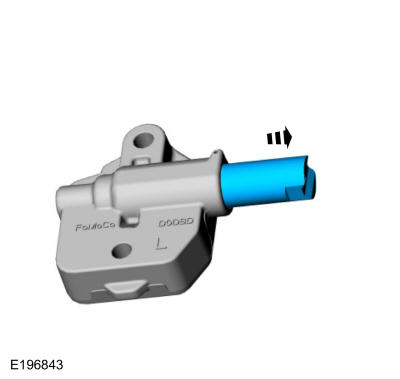

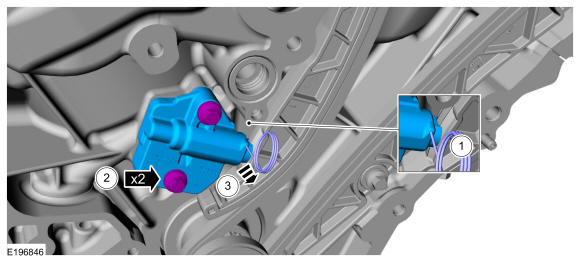

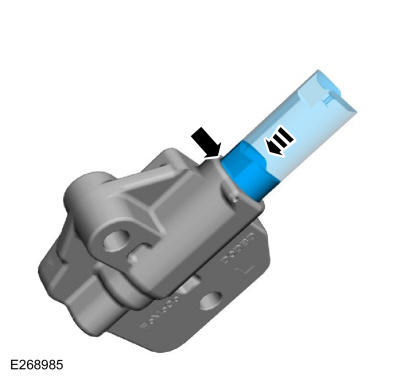

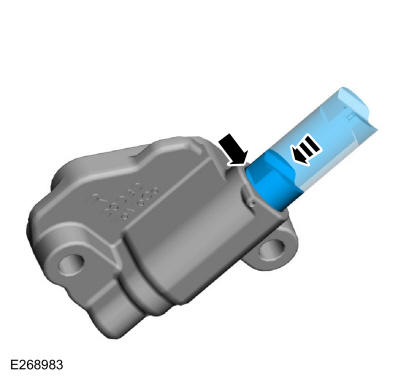

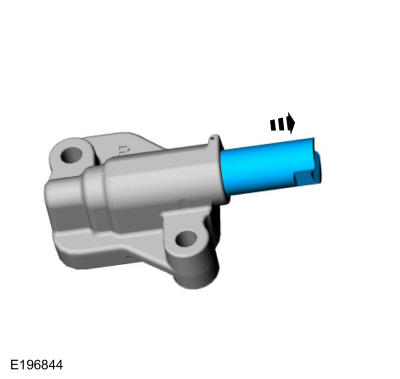

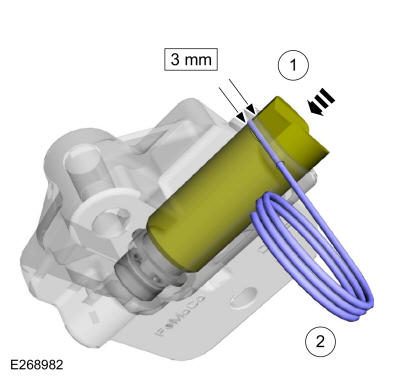

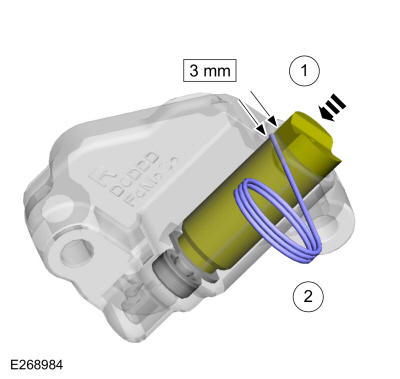

56. Slide the tensioner cylinder out of the LH timing chain tensioner housing.

    Courtesy of FORD MOTOR COMPANY

57. NOTE: Use vise jaw protectors or cover the jaws of the vise with clean shop towels to prevent damage to the surface of the tensioner ratchet mechanism.

    Mount the flat machined surfaces on the end of the tensioner cylinder into a vise.

    1. Using a flat-bladed screwdriver apply light downward pressure on the end of the tensioner ratchet mechanism. Use the General Equipment: Vise Use the General Equipment: Vise Jaw Protectors Use the General Equipment: Flat-Bladed Screwdriver
    2. Rotate the screwdriver clockwise approximately one turn.
    3. An audible click will be heard when the tensioner ratchet mechanism locks into place.

    Courtesy of FORD MOTOR COMPANY

58. Slide the tensioner cylinder into the tensioner housing until it contacts the bottom of the bore. The shoulder of the tensioner cylinder will be flush with the top of the housing.

    Courtesy of FORD MOTOR COMPANY

59. 1. Firmly press the tensioner cylinder into the tensioner housing until the shoulder of the tensioner cylinder is approximately 3 mm (0.125 in) below the top of the housing.
    2. Install a retaining pin into the hole in the housing to lock the tensioner cylinder in the retracted position.

    Courtesy of FORD MOTOR COMPANY

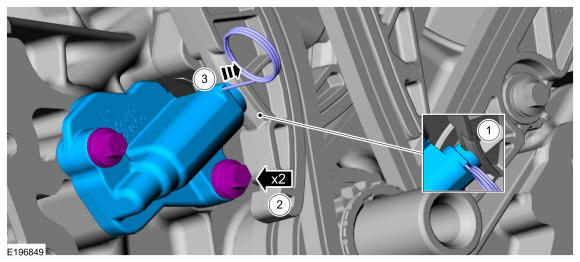

60. 1. Position the LH timing chain tensioner with the end of the tensioner correctly engaged to the tensioner arm.
    2. Install the bolts.

       Torque: 89 lb.in (10 Nm)

    3. Remove the pin to allow the tensioner cylinder to extend and press against the timing chain tensioner arm.

    Courtesy of FORD MOTOR COMPANY

61. Install the oil pump drive chain.

    Courtesy of FORD MOTOR COMPANY

62. Install the oil pump drive chain guide and the bolts.

    Torque: 89 lb.in (10 Nm)

    Courtesy of FORD MOTOR COMPANY

63. 1. Install the oil pump drive chain tensioner and the bolt.

       Torque: 89 lb.in (10 Nm)

    2. Remove the pin.

    Courtesy of FORD MOTOR COMPANY

64. NOTE: The crankshaft must be rotated clockwise one revolution (360 degrees). Failure to do so will result in incorrect camshaft timing.
    1. Rotate the crankshaft clockwise one revolution (360 degrees).
    2. Position the crankshaft sprocket keyway at the 11 o'clock position.

    Courtesy of FORD MOTOR COMPANY

65. Remove and discard the original crankshaft pulley bolt.

    Courtesy of FORD MOTOR COMPANY

66. NOTE: A timing mark is stamped on both faces of the crankshaft sprocket. The sprocket can be installed with either of the faces positioned outward.

    Install the crankshaft sprocket.

    Courtesy of FORD MOTOR COMPANY

67. NOTE: The VCT units have 2 timing marks on them, a triangle and a circle. For removal and installation of the RH side the triangle marks are used.
    1. Install the RH timing chain with the single colored links aligned with the triangle  timing marks on the VCT units.
    2. Install the double colored links so they straddle the timing mark on the crankshaft sprocket.

    Courtesy of FORD MOTOR COMPANY

68. Install the RH timing chain guide and bolts.

    Torque: 89 lb.in (10 Nm)

    Courtesy of FORD MOTOR COMPANY

69. Install the RH timing chain tensioner arm.

    Courtesy of FORD MOTOR COMPANY

70. Slide the tensioner cylinder out of the RH timing chain tensioner housing.

    Courtesy of FORD MOTOR COMPANY

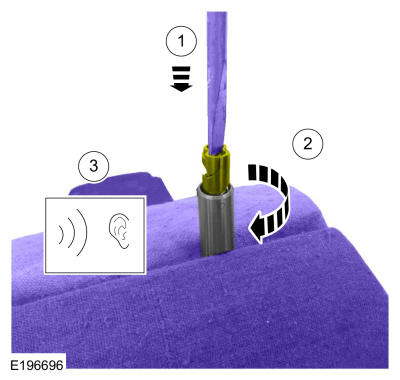

71. NOTE: Use vise jaw protectors or cover the jaws of the vise with clean shop towels to prevent damage to the surface of the tensioner ratchet mechanism.

    Mount the flat machined surfaces on the end of the tensioner cylinder into a vise.

    1. Using a flat-bladed screwdriver apply light downward pressure on the end of the tensioner ratchet mechanism. Use the General Equipment: Vise Use the General Equipment: Vise Jaw Protectors Use the General Equipment: Flat-Bladed Screwdriver
    2. Rotate the screwdriver clockwise approximately one turn.
    3. An audible click will be heard when the tensioner ratchet mechanism locks into place.

    Courtesy of FORD MOTOR COMPANY

72. Slide the tensioner cylinder into the tensioner housing until it contacts the bottom of the bore. The shoulder of the tensioner cylinder will be flush with the top of the housing.

    Courtesy of FORD MOTOR COMPANY

73. 1. Firmly press the tensioner cylinder into the tensioner housing until the shoulder of the tensioner cylinder is approximately 3 mm (0.125 in) below the top of the housing.
    2. Install a retaining pin into the hole in the housing to lock the tensioner cylinder in the retracted position.

    Courtesy of FORD MOTOR COMPANY

74. 1. Position the RH timing chain tensioner with the end of the tensioner correctly engaged to the tensioner arm.
    2. Install the bolts.

       Torque: 89 lb.in (10 Nm)

    3. Remove the pin to allow the tensioner cylinder to extend and press against the timing chain tensioner arm.

    Courtesy of FORD MOTOR COMPANY

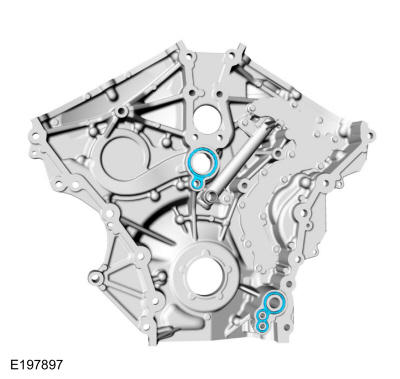

75. Install new engine front cover gaskets.

    Courtesy of FORD MOTOR COMPANY

76. Lubricate and install a new oil gallery seal (6G068).

    Material: Engine Oil - 5W30 - Synthetic Blend

    Courtesy of FORD MOTOR COMPANY

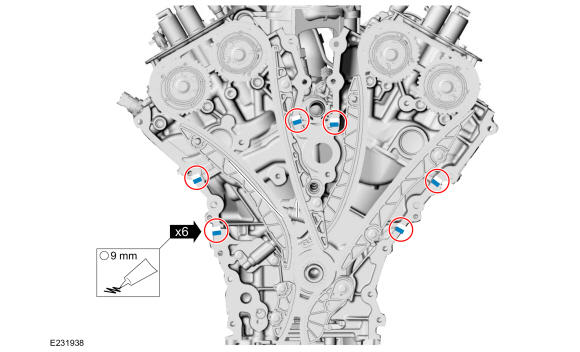

77. NOTE: Failure to use Motorcraft ® High Performance Engine RTV Silicone may cause the engine oil to foam excessively and result in serious engine damage.
    NOTE: The engine front cover must be installed within 10 minutes of applying the sealer and the bolts must be installed and tightened to 2-5 Nm (18-44 lb-in) within 15 of applying the sealer. Final tightening of the bolts must be completed within 60 minutes of applying the sealer. Failure to follow this procedure can cause future oil leakage.

    Apply a 9 mm (0.35 in) bead of Motorcraft ® High Performance Engine RTV Silicone to the cylinder block skirt-to-cylinder block joint and the cylinder head-to-cylinder block joint areas as indicated.

    Material: Motorcraft ® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

    Courtesy of FORD MOTOR COMPANY

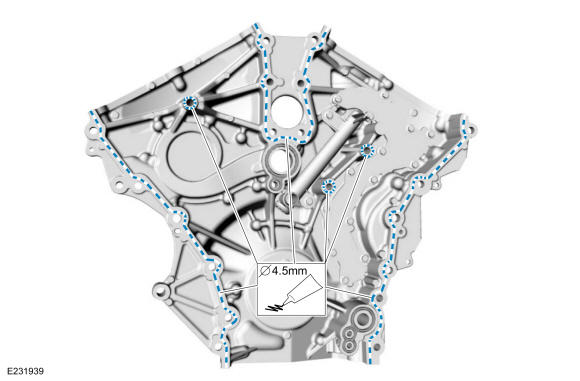

78. NOTE: Failure to use Motorcraft ® High Performance Engine RTV Silicone may cause the engine oil to foam excessively and result in serious engine damage.
    NOTE: The engine front cover must be installed within 10 minutes of applying the sealer and the bolts must be installed and tightened to 2-5 Nm (18-44 lb-in) within 15 of applying the sealer. Final tightening of the bolts must be completed within 60 minutes of applying the sealer. Failure to follow this procedure can cause future oil leakage.

    Apply a 4.5 mm (0.18 in) bead of Motorcraft ® High Performance Engine RTV Silicone to the engine front cover sealing surfaces including the inner bolt bosses.

    Material: Motorcraft ® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

    Courtesy of FORD MOTOR COMPANY

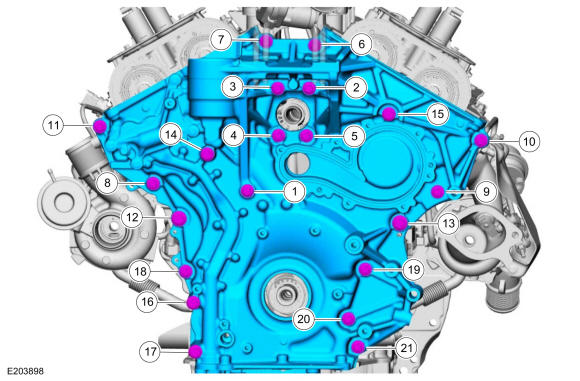

79. Install the engine front cover and the fasteners.

    Torque:

    Stage 1: Tighten bolts 1 thru 11 to: 18 lb.ft (24 Nm)

    Stage 2: Tighten bolts 12 thru 13 to: 35 lb.ft (48 Nm)

    Stage 3: Tighten bolts 14 thru 21 to: 18 lb.ft (24 Nm)

    Courtesy of FORD MOTOR COMPANY

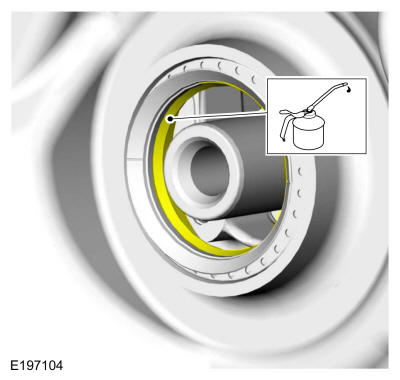

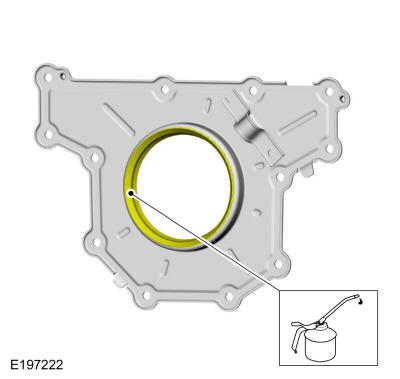

80. Lubricate the engine front cover bore with clean engine oil.

    Material: Engine Oil - 5W30 - Synthetic Blend

    Courtesy of FORD MOTOR COMPANY

81. Using the special tools, install the new crankshaft front oil seal. Use Special Service Tool: 303-335 (T88T-6701-A) Installer, Front Cover Oil Seal., 303-1531 Installer, Front Crank Seal and Damper.

    Courtesy of FORD MOTOR COMPANY

82. Lubricate the crankshaft front seal inner lip with clean engine oil.

    Material: Engine Oil - 5W30 - Synthetic Blend

    Courtesy of FORD MOTOR COMPANY

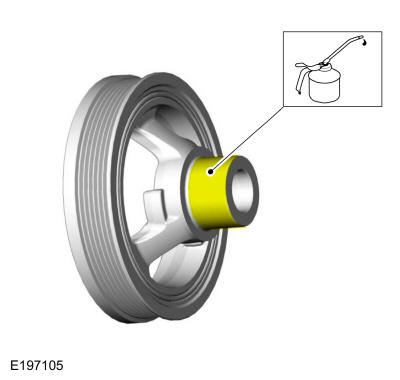

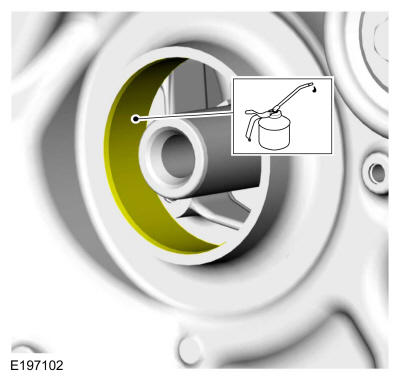

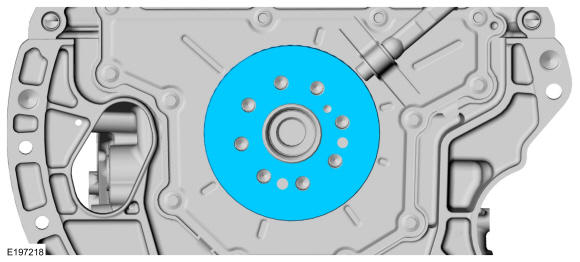

83. Lubricate the crankshaft pulley sealing surface with clean engine oil prior to installation.

    Material: Engine Oil - 5W30 - Synthetic Blend

    Courtesy of FORD MOTOR COMPANY

84. Using the special tools, install the crankshaft pulley. Use Special Service Tool: 303-335 (T88T-6701-A) Installer, Front Cover Oil Seal., 303-1531 Installer, Front Crank Seal and Damper.

    Courtesy of FORD MOTOR COMPANY

85. NOTE: Use a universal pulley holder (such as an OTC 4754, or equivalent).

    Using a universal pulley holder, install and tighten a new crankshaft pulley bolt.

    Torque:

    Stage 1: 166 lb.ft (225 Nm)

    Stage 2: Loosen: 360 °

    Stage 3: 26 lb.ft (35 Nm)

    Stage 4: 270 °

    Courtesy of FORD MOTOR COMPANY

86. Rotate the crankshaft pulley bolt clockwise to position the camshaft lobe upward for the camshaft roller follower to be installed.

    Courtesy of FORD MOTOR COMPANY

87. 1. Install Special Service Tool: 303-1633 Remover, Roller Rocker Follower.
    2. Turn the knob on the special tool clockwise to depress the valve and spring.

    Courtesy of FORD MOTOR COMPANY

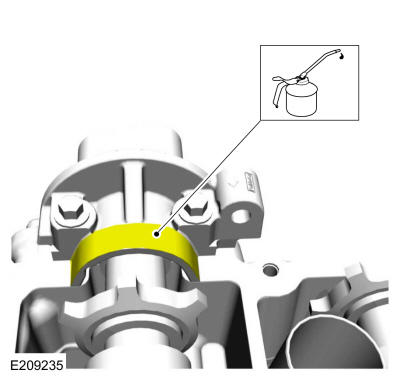

88. 1. Lubricate the camshaft roller follower with clean engine oil.

       Material: Engine Oil - 5W30 - Synthetic Blend

    2. Install the camshaft roller follower.
    3. Turn the knob on the special tool counterclockwise to raise the valve and spring. Remove Special Service Tool: 303-1633 Remover, Roller Rocker Follower.
    • Repeat steps for the remaining camshaft roller followers.

    Courtesy of FORD MOTOR COMPANY

89. NOTE: Installation of new seals is only required if damaged seals were removed.

    Using the special tools, install new spark plug tube seals. Use Special Service Tool: 205-153 (T80T-4000-W) Handle., 303-1247 VCT Spark Plug Tube Seal Remover and Installer.

    Courtesy of FORD MOTOR COMPANY

90. Install a new gasket.

    Courtesy of FORD MOTOR COMPANY

91. Apply clean engine oil to the surface.

    Material: Engine Oil - 5W30 - Synthetic Blend

    Courtesy of FORD MOTOR COMPANY

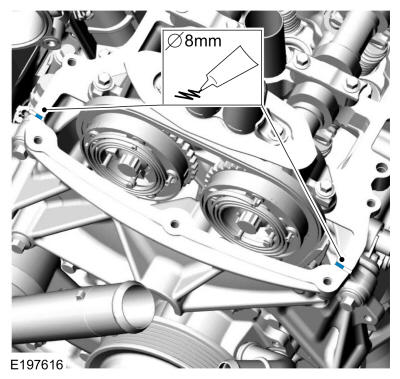

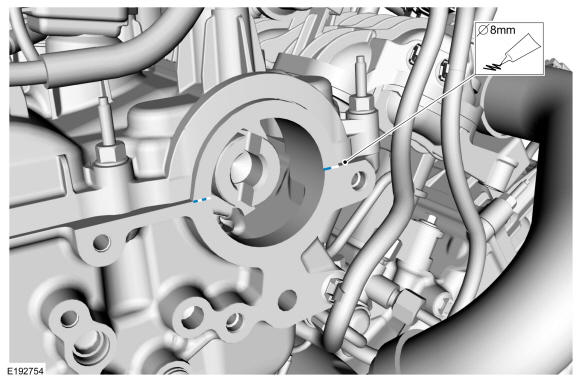

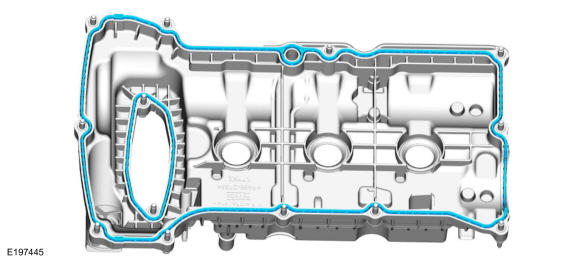

92. NOTE: If the valve cover is not installed and the fasteners tightened within 10 minutes, the sealant must be removed and the sealing area cleaned.

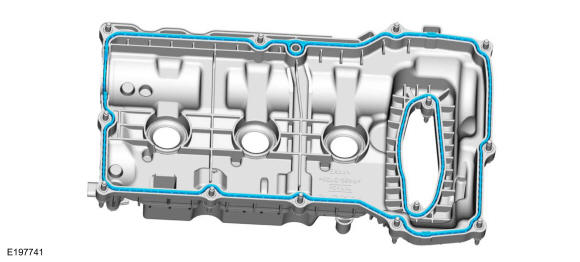

    Apply an 8 mm (0.31 in) bead of Motorcraft ® High Performance Engine RTV Silicone to the engine front cover-to-cylinder head joints.

    Material: Motorcraft ® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

    Courtesy of FORD MOTOR COMPANY

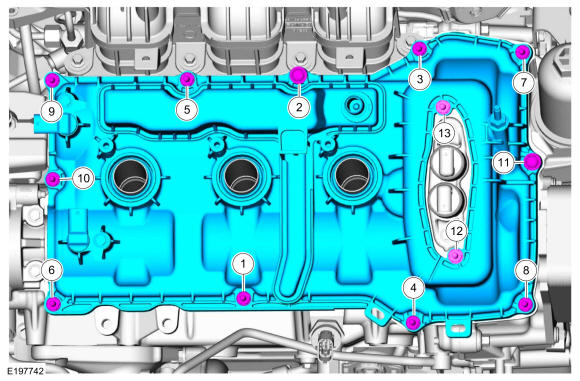

93. Install the valve cover and tighten the bolts.

    Torque: 89 lb.in (10 Nm)

    Courtesy of FORD MOTOR COMPANY

94. NOTE: Installation of new seals is only required if damaged seals were removed.

    Using the special tools, install new spark plug tube seals. Use Special Service Tool: 205-153 (T80T-4000-W) Handle., 303-1247 VCT Spark Plug Tube Seal Remover and Installer.

    Courtesy of FORD MOTOR COMPANY

95. Install a new gasket.

    Courtesy of FORD MOTOR COMPANY

96. Apply clean engine oil to the surface.

    Material: Engine Oil - 5W30 - Synthetic Blend

    Courtesy of FORD MOTOR COMPANY

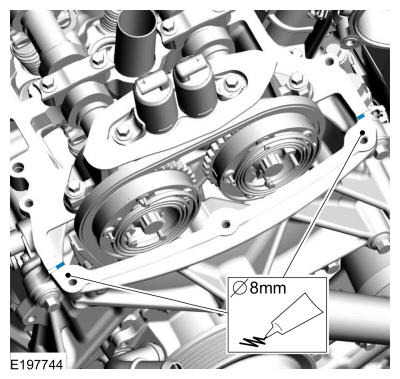

97. NOTE: If the valve cover is not installed and the fasteners tightened within 10 minutes, the sealant must be removed and the sealing area cleaned.

    Apply an 8 mm (0.31 in) bead of Motorcraft ® High Performance Engine RTV Silicone to the engine front cover-to-cylinder head joints.

    Material: Motorcraft ® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

    Courtesy of FORD MOTOR COMPANY

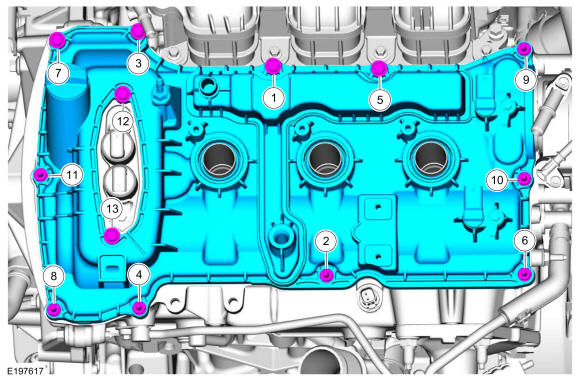

98. Install the valve cover and tighten the bolts.

    Torque: 89 lb.in (10 Nm)

    Courtesy of FORD MOTOR COMPANY

99. Install a new oil pump seal.

    Courtesy of FORD MOTOR COMPANY

100. NOTE: Failure to use Motorcraft ® High Performance Engine RTV Silicone may cause the engine oil to foam excessively and result in serious engine damage.
     NOTE: The oil pan must be installed within 10 minutes of applying the sealer and the bolts must be installed and tightened to 2-5 Nm (18-44 lb-in) within 15 of applying the sealer. Final tightening of the bolts must be completed within 60 minutes of applying the sealer. Failure to follow this procedure can cause future oil leakage.
     1. Apply a 4.5 mm (0.18 in) bead of Motorcraft ® High Performance Engine RTV Silicone to the new oil pan.

        Material: Motorcraft ® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

     2. Apply a 9 mm (0.35 in) bead of Motorcraft ® High Performance Engine RTV Silicone to the engine front cover-to-cylinder block joint areas on the new oil pan.

        Material: Motorcraft ® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

     3. Inspect the crankcase ventilation passages to make sure they are not blocked by any sealer applied.

     Courtesy of FORD MOTOR COMPANY

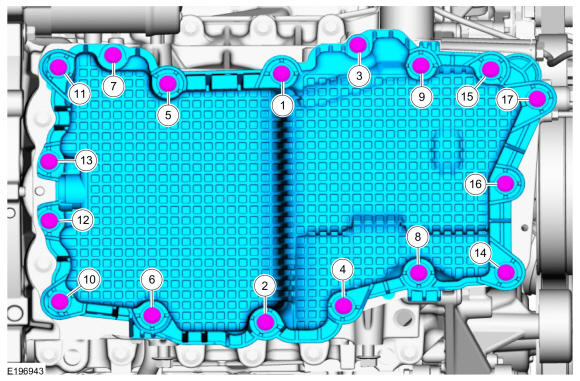

101. Install the new oil pan and the bolts.

     Torque:

     Stage 1: 31 lb.in (3.5 Nm)

     Stage 2: 89 lb.in (10 Nm)

     Courtesy of FORD MOTOR COMPANY

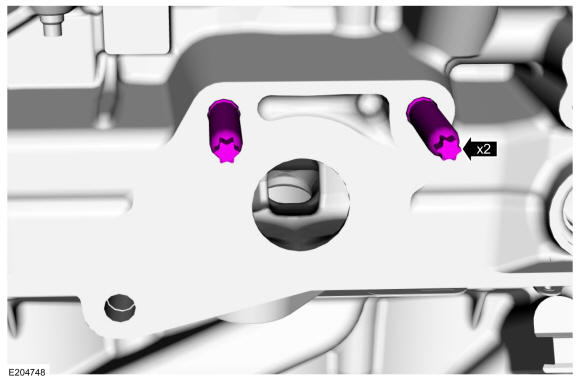

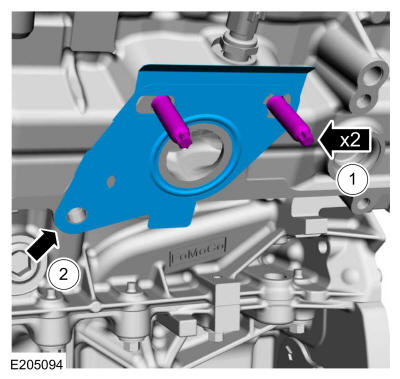

102. Install and tighten the TC mounting studs.

     Torque: 102 lb.in (11.5 Nm)

     Courtesy of FORD MOTOR COMPANY

103. Install the new TC gasket.

     Courtesy of FORD MOTOR COMPANY

104. Install a new TC coolant supply tube O-ring seal. Lubricate the new O-ring seal with clean engine coolant.

     Material: Motorcraft ® Orange Prediluted Antifreeze/Coolant / VC-3DIL-B (WSS-M97B44-D2)

     Courtesy of FORD MOTOR COMPANY

105. Install the new TC oil supply tube O-ring seals and the new oil filter. Lubricate the new TC oil supply tube O-ring seals with clean engine oil.

     Material: Engine Oil - 5W30 - Synthetic Blend

     Courtesy of FORD MOTOR COMPANY

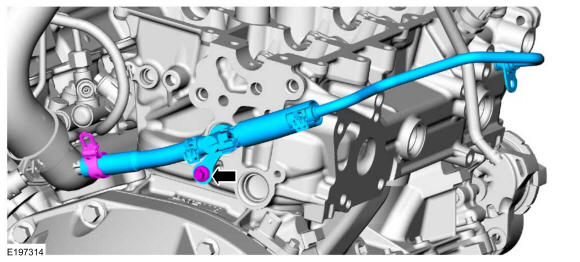

106. Install the TC oil supply tube and the bolt.

     Torque: 89 lb.in (10 Nm)

     Courtesy of FORD MOTOR COMPANY

107. NOTE: Be careful not to damage the new filter when installing the oil supply tube into the engine block.

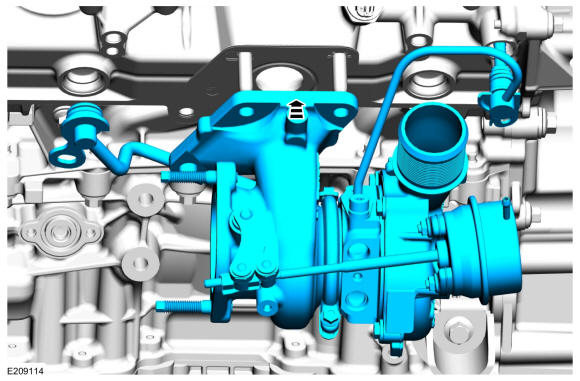

     Position the TC assembly onto the studs. Install the coolant supply and oil supply tubes into the engine block while installing the TC.

     Courtesy of FORD MOTOR COMPANY

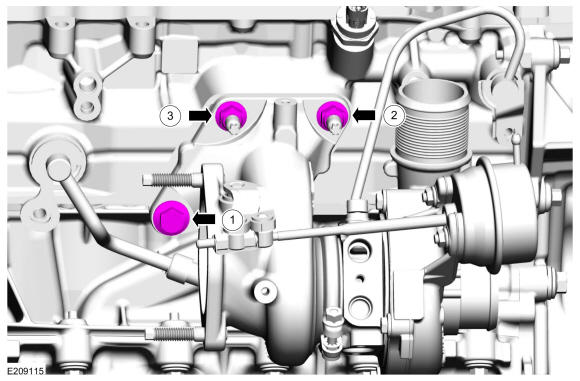

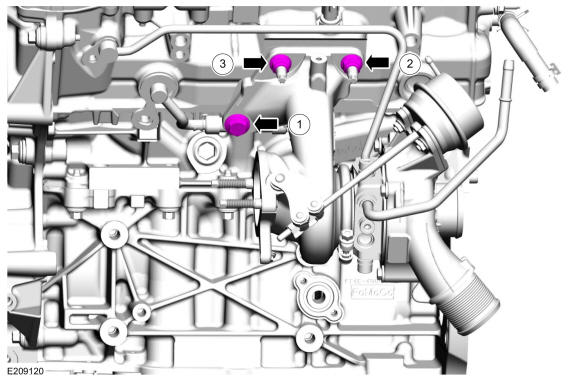

108. Install the nuts and bolt.

     Torque:

     1: 44 lb.ft (60 Nm)

     2: 44 lb.ft (60 Nm)

     3: 27 lb.ft (37 Nm)

     Re-tighten 1: 44 lb.ft (60 Nm)

     Re-tighten 2: 44 lb.ft (60 Nm)

     Re-tighten 3: 27 lb.ft (37 Nm)

     Courtesy of FORD MOTOR COMPANY

109. Install the TC coolant supply tube bolt.

     Torque: 89 lb.in (10 Nm)

     Courtesy of FORD MOTOR COMPANY

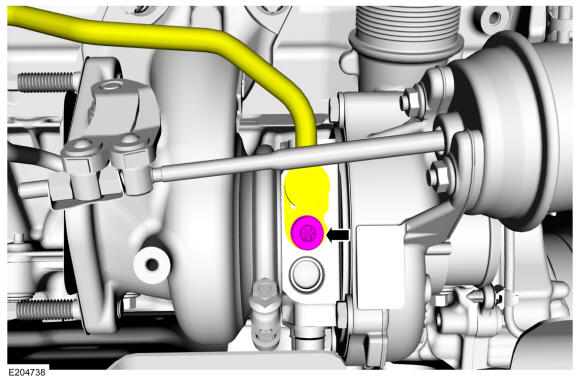

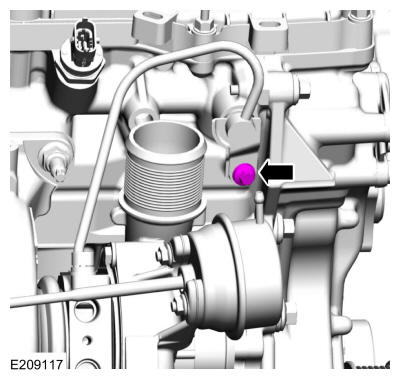

110. Install the TC oil supply tube bolt.

     Torque: 89 lb.in (10 Nm)

     Courtesy of FORD MOTOR COMPANY

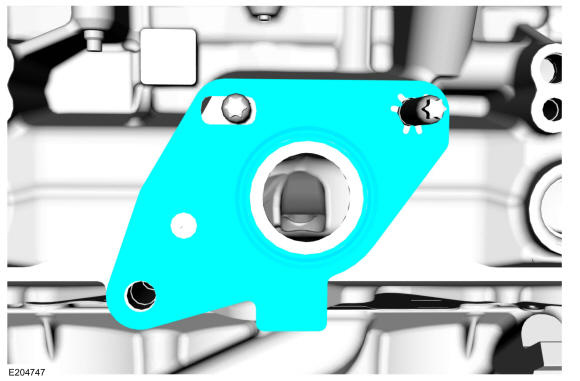

111. Install the new TC oil return tube-to-engine block gasket.

     Courtesy of FORD MOTOR COMPANY

112. Install a new TC oil return tube O-ring seal and then lubricate with clean engine oil.

     Material: Engine Oil - 5W30 - Synthetic Blend

     Courtesy of FORD MOTOR COMPANY

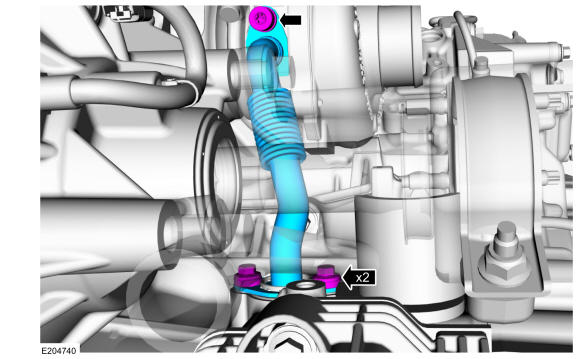

113. NOTE: AWD shown FWD is similar.

     Install the TC oil return tube and the bolts.

     Torque: 89 lb.in (10 Nm)

     Courtesy of FORD MOTOR COMPANY

114. Install a new TC coolant return tube O-ring seal. Lubricate the new O-ring seal with clean engine coolant.

     Material: Motorcraft ® Orange Prediluted Antifreeze/Coolant / VC-3DIL-B (WSS-M97B44-D2)

     Courtesy of FORD MOTOR COMPANY

115. Install the TC coolant return tube to the TC and install the bolt.

     Torque: 89 lb.in (10 Nm)

     Courtesy of FORD MOTOR COMPANY

116. • Install new TC mounting studs.

       Torque: 102 lb.in (11.5 Nm)

     • Install a new TC gasket.

     Courtesy of FORD MOTOR COMPANY

117. Install a new TC coolant supply tube O-ring seal. Lubricate the new O-ring seal with clean engine coolant.

     Material: Motorcraft ® Orange Prediluted Antifreeze/Coolant / VC-3DIL-B (WSS-M97B44-D2)

     Courtesy of FORD MOTOR COMPANY

118. Install the new TC oil supply tube O-ring seals and the new oil filter. Lubricate the new TC oil supply tube O-ring seals with clean engine oil.

     Material: Engine Oil - 5W30 - Synthetic Blend

     Courtesy of FORD MOTOR COMPANY

119. Install the TC oil supply tube and the bolt.

     Torque: 89 lb.in (10 Nm)

     Courtesy of FORD MOTOR COMPANY

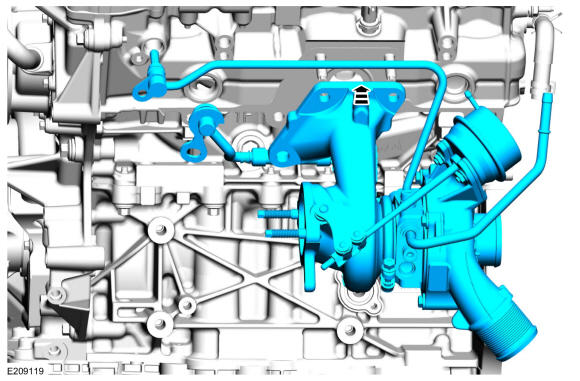

120. NOTE: Be careful not to damage the new filter when installing the oil supply tube into the engine block.

     Position the TC assembly onto the studs. Install the coolant supply and oil supply tubes into the engine block while installing the TC.

     Courtesy of FORD MOTOR COMPANY

121. Install the nuts and bolt.

     Torque:

     1: 44 lb.ft (60 Nm)

     2: 44 lb.ft (60 Nm)

     3: 27 lb.ft (37 Nm)

     Re-tighten 1: 44 lb.ft (60 Nm)

     Re-tighten 2: 44 lb.ft (60 Nm)

     Re-tighten 3: 27 lb.ft (37 Nm)

     Courtesy of FORD MOTOR COMPANY

122. Install the TC coolant supply and oil supply tube bolts.

     Torque: 89 lb.in (10 Nm)

     Courtesy of FORD MOTOR COMPANY

123. Connect the TC coolant return hose. Use the General Equipment: Hose Clamp Remover/Installer

     Courtesy of FORD MOTOR COMPANY

124. Install the new TC oil return tube-to-engine block gasket.

     Courtesy of FORD MOTOR COMPANY

125. Install a new TC oil return tube O-ring seal and then lubricate with clean engine oil.

     Material: Engine Oil - 5W30 - Synthetic Blend

     Courtesy of FORD MOTOR COMPANY

126. Install the TC oil return tube, then install and tighten the bolts.

     Torque: 89 lb.in (10 Nm)

     Courtesy of FORD MOTOR COMPANY

127. • Lubricate the inside and the outside diameter of the grommet with clean engine coolant.

       Material: Motorcraft ® Orange Concentrated Antifreeze/Coolant / VC-3-B (WSS-M97B44-D)

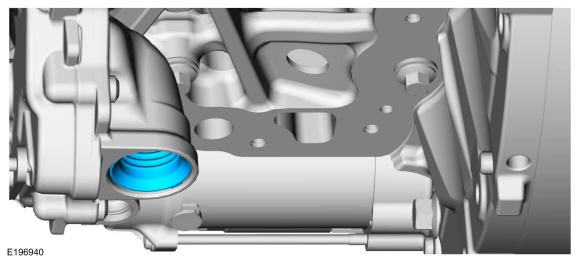

     • Install the grommet so it is flush with the rear of the coolant pump housing.

     Courtesy of FORD MOTOR COMPANY

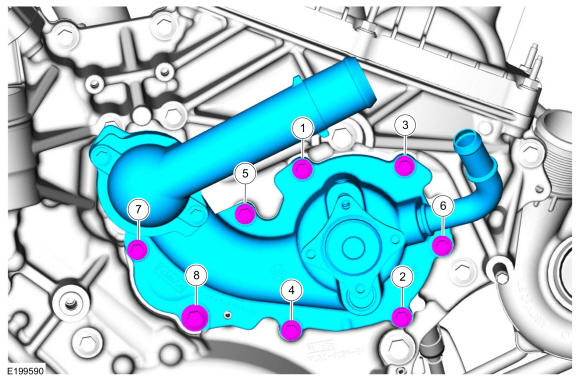

128. NOTE: Verify the front cover dowel pins are aligned to the coolant pump and that the coolant pump is fully seated prior to installing the fasteners.
     • Using a new gasket, install the coolant pump and the fasteners.

       Torque:

       Fasteners 1-7:

       Stage 1: 89 lb.in (10 Nm)

       Stage 2: 45 °

     • Torque:

       Fastener 8: 18 lb.ft (24 Nm)

     Courtesy of FORD MOTOR COMPANY

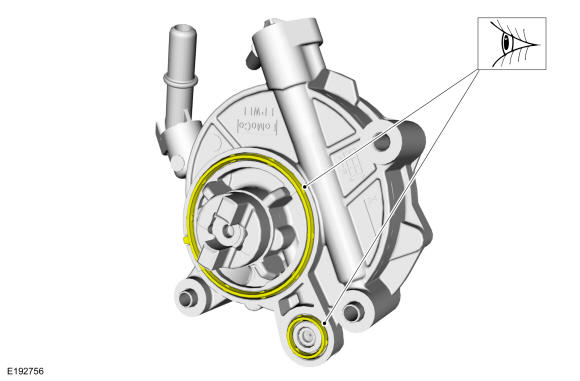

129. Inspect the gaskets and replace if damaged.

     Courtesy of FORD MOTOR COMPANY

130. NOTE: If the brake vacuum pump is not secured within 10 minutes of sealant application, the sealant must be removed and the sealing area cleaned with metal surface prep. Failure to follow this procedure can cause future oil leakage.

     Apply 8 mm (0.14 in) beads of Motorcraft ® High Performance Engine RTV Silicone as shown.

     Courtesy of FORD MOTOR COMPANY

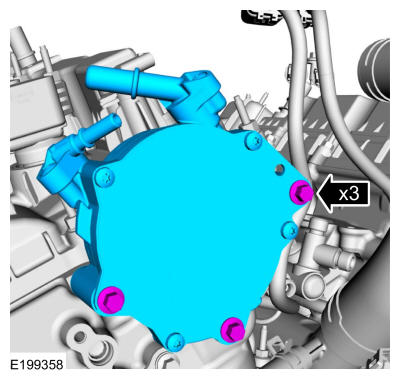

131. Install the brake vacuum pump and the bolts.

     Torque: 89 lb.in (10 Nm)

     Courtesy of FORD MOTOR COMPANY

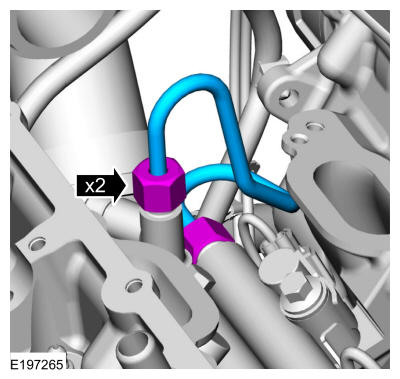

132. Install a new fuel rail-to-fuel rail high-pressure fuel tube and finger tighten the flare nuts.
     • Final tighten the flare nuts.

       Torque:

       Stage 1: 62 lb.in (7 Nm)

       Stage 2: 89 lb.in (10 Nm)

       Stage 3: 25 °

     Courtesy of FORD MOTOR COMPANY

133. Inspect the high-pressure fuel pump drive unit gasket and replace if damaged.

     Courtesy of FORD MOTOR COMPANY

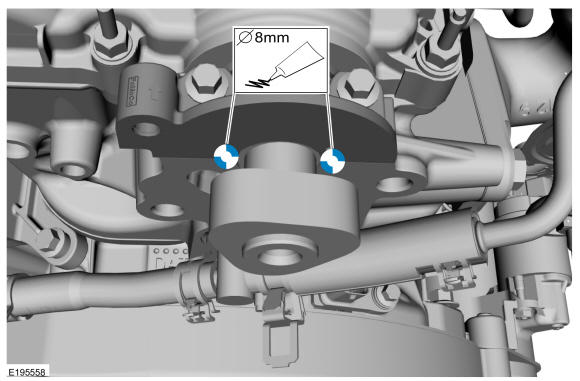

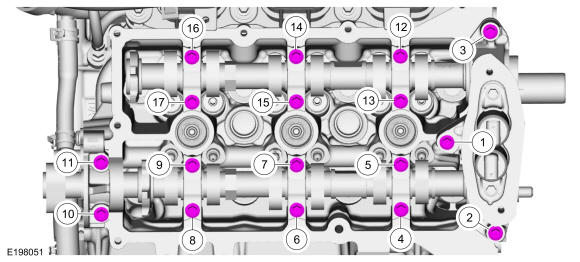

134. Apply 8 mm dots of sealant to the camshaft bearing cap and cylinder head seam as shown.

     Material: Motorcraft ® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

     Courtesy of FORD MOTOR COMPANY

135. Install the high-pressure fuel pump drive unit and stud bolts.

     Torque:

     Stage 1: 177 lb.in (20 Nm)

     Stage 2: 45 °

     Courtesy of FORD MOTOR COMPANY

136. NOTE: Only rotate the crankshaft Clockwise (CW) or damage to the engine may occur.
     NOTE: The drive lobe for the high-pressure fuel pump must be at BDC (bottom dead center) for the high-pressure fuel pump installation.

     Using the crankshaft pulley bolt, turn the crankshaft until the high-pressure fuel pump drive lobe is at BDC.

     Courtesy of FORD MOTOR COMPANY

137. NOTE: Align the notch on the high-pressure fuel pump tappet and with the groove in the high-pressure fuel pump drive unit bore.

     Apply clean engine oil to the high-pressure fuel pump drive unit bore, the drive lobe and the roller tappet. Install the high-pressure fuel pump tappet.

     Material: engine oil - 5W30

     Courtesy of FORD MOTOR COMPANY

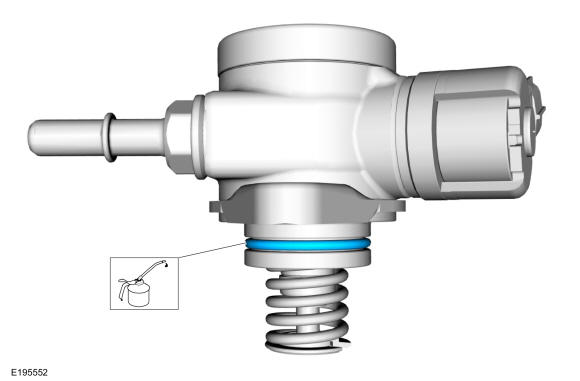

138. NOTE: Apply clean engine oil to the high-pressure fuel pump O-ring seals.

     Install a new high-pressure fuel pump O-ring seal and lubricate with clean engine oil.

     Material: engine oil - 5W30

     Courtesy of FORD MOTOR COMPANY

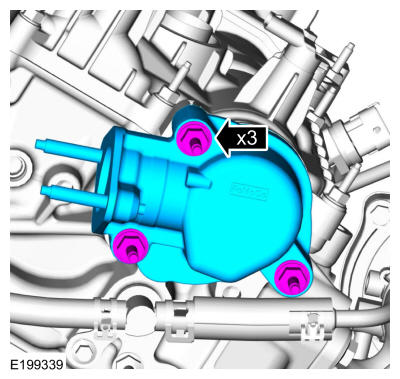

139. Install the high-pressure fuel pump, then install and finger tighten the high-pressure fuel pump nuts. Alternately tighten each of the high-pressure fuel pump nuts one complete revolution until seated. Then tighten the fuel high-pressure fuel pump nuts in the following 2 stages.

     Torque:

     Stage 1: 177 lb.in (20 Nm)

     Stage 2: 45 °

     Courtesy of FORD MOTOR COMPANY

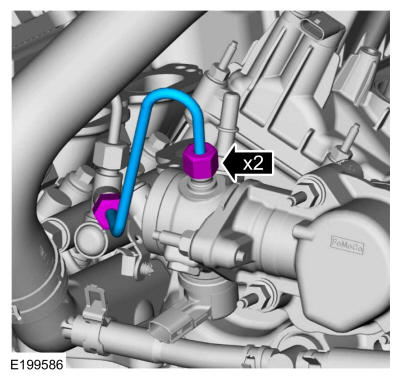

140. NOTE: Make sure that a new high-pressure fuel pump-to-fuel rail high-pressure fuel tube is installed.

     Install the high-pressure fuel pump-to-fuel rail high-pressure fuel tube and tighten the flare nuts finger tight, then tighten the flare nuts in the following 3 stages.

     Torque:

     Stage 1: 62 lb.in (7 Nm)

     Stage 2: 89 lb.in (10 Nm)

     Stage 3: 25 °

     Courtesy of FORD MOTOR COMPANY

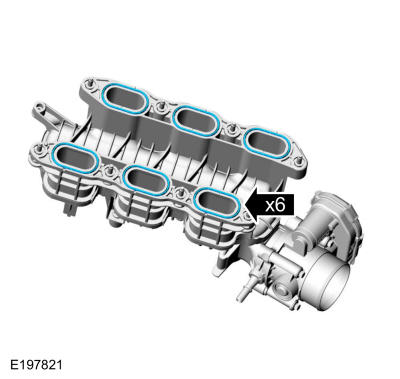

141. Install the gaskets.

     Courtesy of FORD MOTOR COMPANY

142. NOTE: If the engine is repaired or replaced because of upper engine failure, typically including valve or piston damage, check the intake manifold for metal debris. If metal debris if found, install a new intake manifold. Failure to follow these instructions can result in engine damage.

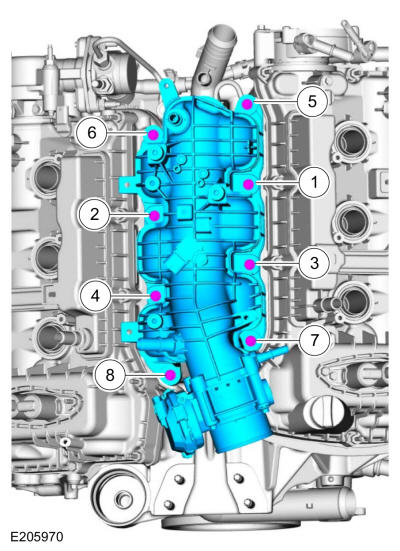

     Install the intake manifold and tighten the bolts.

     Torque: 89 lb.in (10 Nm)

     Courtesy of FORD MOTOR COMPANY

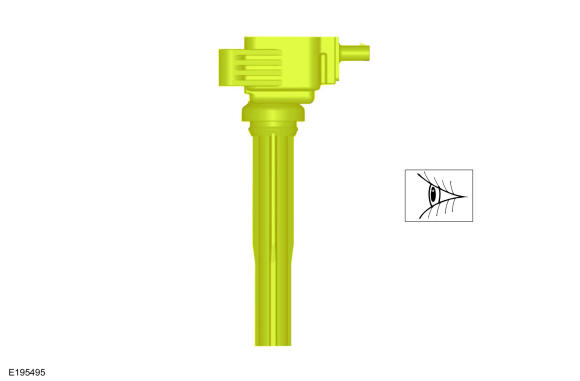

143. Inspect and replace any ignition coil-on-plugs that have rubber boots with cracks, rips or tears.

     Courtesy of FORD MOTOR COMPANY

144. 1. Install the ignition coil-on-plugs.
     2. Install and tighten the ignition coil-on-plug stud bolts.

        Torque: 53 lb.in (6 Nm)

     Courtesy of FORD MOTOR COMPANY

145. Install the oil level indicator.

     Courtesy of FORD MOTOR COMPANY

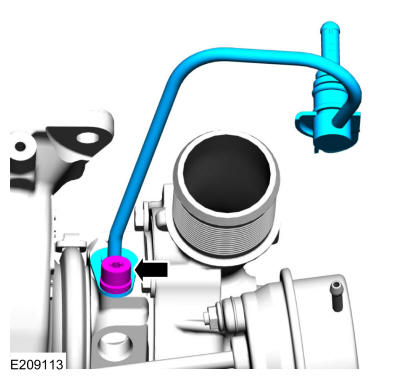

146. 1. Install the vacuum tube assembly onto the engine and connect the vacuum hose and clamp to the TC.
     2. Install the vacuum control solenoid bolts.

        Torque: 62 lb.in (7 Nm)

     3. Connect the vacuum tube quick release coupling. Refer to: Quick Release Coupling .
     4. Attach the vacuum hose retainers.

     Courtesy of FORD MOTOR COMPANY

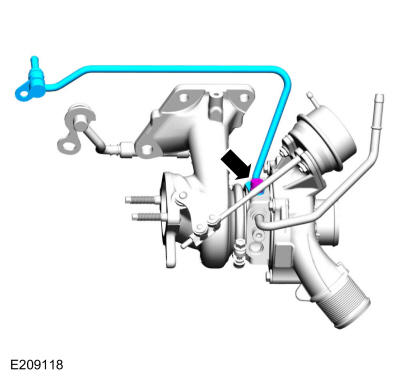

147. Connect the vacuum hose and clamp to the TC.
     • Attach the vacuum hose retainers.

     Courtesy of FORD MOTOR COMPANY

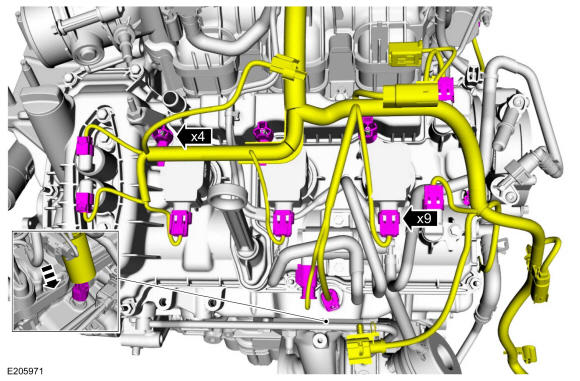

148. Install the engine wiring harness onto the engine.
     • Connect the engine wiring harness electrical connectors and attach the retainers.

     Courtesy of FORD MOTOR COMPANY

149. • Connect the engine wiring harness electrical connectors and attach the wiring harness retainers.
     • Slide the insulator down over the CHT electrical connector.

     Courtesy of FORD MOTOR COMPANY

150. 1. Install the vacuum harness pressure sensor bolt.

        Torque: 62 lb.in (7 Nm)

     2. Connect the MAP sensor electrical connector.
     3. Attach the wiring harness and vacuum harness retainers.

     Courtesy of FORD MOTOR COMPANY

151. Connect the engine wiring harness electrical connectors and attach the retainers.

     Courtesy of FORD MOTOR COMPANY

152. 1. Install the EVAP purge valve onto the intake manifold mounting tab.
     2. Disconnect the EVAP tube quick release coupling. Refer to: Quick Release Coupling .
     3. Connect the EVAP purge valve electrical connector.

     Courtesy of FORD MOTOR COMPANY

153. Install the EVAP tube and connect the quick release coupling. Refer to: Quick Release Coupling .

     Courtesy of FORD MOTOR COMPANY

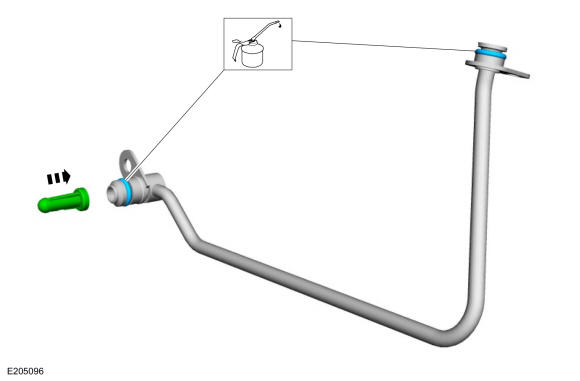

154. • Install the PCV tube and connect the quick release coupling. Refer to: Quick Release Coupling .
     • Connect the crankcase pressure sensor electrical connector.
     • Attach the PCV tube retainer.

     Courtesy of FORD MOTOR COMPANY

155. • Install the PCV tube and connect the quick release couplings. Refer to: Quick Release Coupling .
     1. Connect the throttle body electrical connector and attach the wiring harness retainer.

     Courtesy of FORD MOTOR COMPANY

156. • Install the ground wire and stud bolt.

       Torque: 89 lb.in (10 Nm)

     • Connect the high pressure fuel pump electrical connector.
     • Attach the wiring harness retainers.

     Courtesy of FORD MOTOR COMPANY

157. Install the ground wire and stud bolt.

     Torque: 89 lb.in (10 Nm)

     Courtesy of FORD MOTOR COMPANY

158. • Install the bracket, the nut and bolt.

       Torque: 53 lb.in (6 Nm)

     • Connect the KS electrical connector.
     • Attach the wiring harness retainer.

     Courtesy of FORD MOTOR COMPANY

159. Attach the wiring harness retainers.

     Courtesy of FORD MOTOR COMPANY

160. • Install the oil pressure control solenoid and the retainer.

       Torque: 89 lb.in (10 Nm)

     • Connect the oil pressure control solenoid electrical connector.

     Courtesy of FORD MOTOR COMPANY

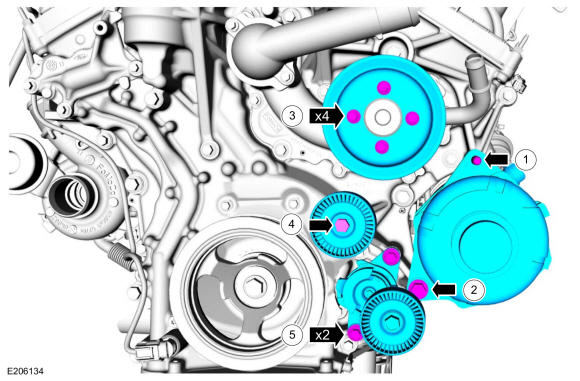

161. • Install the generator stud.

       Torque: 71 lb.in (8 Nm)

     • Install the generator and the bolt.

       Torque: 35 lb.ft (47 Nm)

     • Install the coolant pump pulley and the bolts.

       Torque: 89 lb.in (10 Nm)

     • Install the idler pulley and bolt.

       Torque: 18 lb.ft (24 Nm)

     • Install the accessory drive belt tensioner and the bolts.

       Torque: 18 lb.ft (25 Nm)

     Courtesy of FORD MOTOR COMPANY

162. Using a floor crane, remove the engine from the mounting stand. Install Special Service Tool: 303-1634 Lift Eyes (2)., 303-1246 Engine Spreader Bar. Use the General Equipment: Floor Crane Use the General Equipment: Mounting Stand

     Courtesy of FORD MOTOR COMPANY

163. Lubricate the crankshaft rear seal lips with clean engine oil.

     Material: Engine Oil - 5W30 - Synthetic Blend

     Courtesy of FORD MOTOR COMPANY

164. NOTE: The crankshaft rear seal and retainer plate must be installed within 10 minutes of applying the sealer and the bolts must be installed and tightened to 2-5 Nm (18-44 lb-in) within 15 of applying the sealer. Final tightening of the bolts must be completed within 60 minutes of applying the sealer. Failure to follow this procedure can cause future oil leakage.

     Apply a 4.5 mm (0.18 in) bead of Motorcraft ® High Performance Engine RTV Silicone to the crankshaft rear seal and retainer plate.

     Material: Motorcraft ® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

     Courtesy of FORD MOTOR COMPANY

165. • Position the special tool onto the end of the crankshaft. Use Special Service Tool: 303-1250 Seal Installer, Rear Main.
     • Slide the new crankshaft rear seal and retainer plate onto the tool and into the installed position.

     Courtesy of FORD MOTOR COMPANY

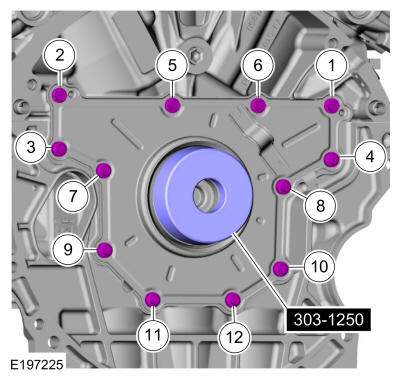

166. Install the crankshaft rear seal retainer plate bolts. Remove Special Service Tool: 303-1250 Seal Installer, Rear Main.

     Torque: 89 lb.in (10 Nm)

     Courtesy of FORD MOTOR COMPANY

167. 1. Install the CKP sensor and the bolt.

        Torque: 89 lb.in (10 Nm)

     2. Connect the CKP sensor electrical connector.

     Courtesy of FORD MOTOR COMPANY

168. Install the crankshaft sensor ring.

     Courtesy of FORD MOTOR COMPANY

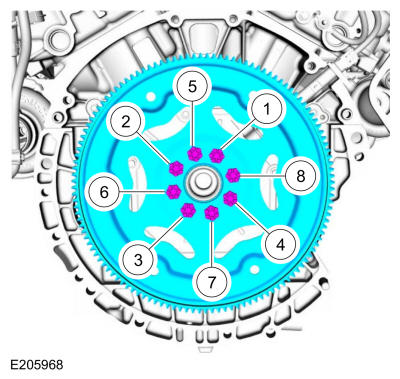

169. 1. Position the flexplate on the crankshaft.
     2. Install the bolts then rundown the bolts one turn at a time in sequence shown until the flexplate is snug against the rear face of the crankshaft.
     3. Final tighten the bolts in sequence shown.

        Torque: 59 lb.ft (80 Nm)

Courtesy of FORD MOTOR COMPANY
