VC Codes

WARNING: This page is about a different car, the 2016 Lincoln MKX. However, it is still accessible from the selected car via links, so may be relevant.

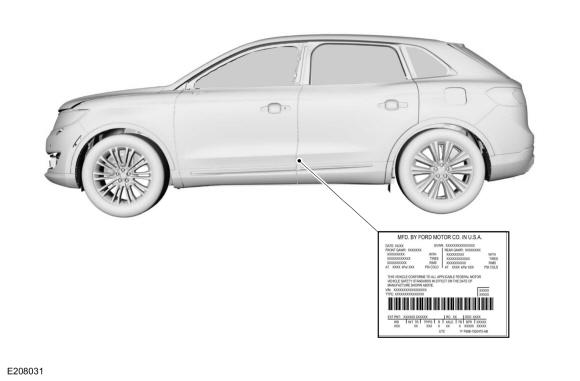

VC Label Locator

Courtesy of FORD MOTOR COMPANY

The VC label contains the manufacturer name, the month and year of manufacture, the certification statement and the VIN. It also includes GVW and tire information. If a vehicle requires replacement of the VC label and is 4 years old or less, an authorized dealer must submit the VIN to their respective regional office. The regional office will submit a web form to the assembly plant for the replacement label. Once the label has been printed, a representative from the regional office will deliver the label to the dealer and witness installation on the vehicle. If a vehicle is more than 4 years old and requires a replacement label, the dealer must submit a request to the Department of Motor Vehicles.

Courtesy of FORD MOTOR COMPANY

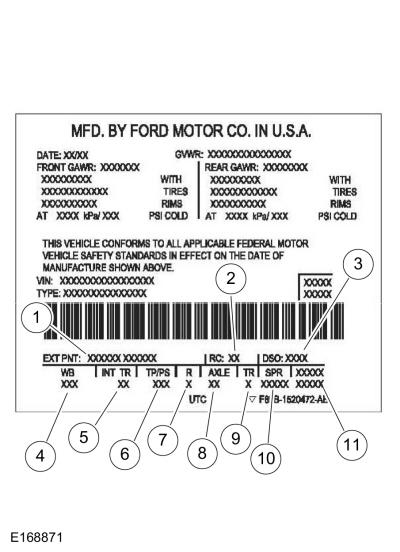

Item	Description
1	Exterior paint code
2	Region code
3	DSO (District Special Order) code
4	Wheelbase code
5	Interior trim code
6	Tape/paint stripe code
7	Radio code
8	Axle code
9	Transmission code
10	Spring code
11	Powertrain calibration information

Paint Code

Paint codes may be listed as a 2-part code. The first set of paint code numbers/letters indicate the vehicle primary body color. The second set of letters/numbers (if applicable) indicate a 2-tone or accent body color. All paint codes are a base coat/clear coat finish.

A2 - Chroma Elite Light Brown, Black Label
BK - Platinum Dune (tri-coat)
G1 - Black Velvet
H6 - Luxe
H9 - Bronze Fire (tinted clear-coat)
LC - Allure Blue
PV - Confidential White (tri-coat), Black Label
RR - Ruby Red
UG - White Platinum (tri-coat)
UX - Ingot Silver
W7 - Crystal Silver, Black Label
XE - Black Tie, Black Label
ZX - Chroma Couture Dark Brown, Black Label

Wheelbase

The following identifies the vehicle wheelbase:

112 - 2, 850 mm (112 in) wheelbase

Interior Trim Codes

Interior trim codes are listed as a 2-part code. The first digit listed indicates the seat and fabric style. The second digit listed indicates the interior trim color.

Interior Trim Type

A - Perforated leather #3
B - Perforated leather #4
E - Perforated leather #1, Black Label
F - Perforated leather/vinyl trim
V - Luxury Soft Touch

Interior Trim Color Codes

C - Cappuccino
E - Ebony
H - Hazelnut
T - Terracotta, Black Label
2 - Ganache
3 - Rouge Noir
4 - Jet Black
5 - Vianca White

Tape/Paint Stripe Codes

Tape and paint stripe codes do not apply.

Radio Codes

The following lists available radio codes:

S - AM/ FM stereo, CD player and SDARS (satellite digital audio receiver system)
T - AM/ FM stereo, CD player and SDARS (satellite digital audio receiver system) and HD (high definition)

Axle Type

The following lists the available axle ratios and associated codes:

3D - 3.36 axle ratio
3E - 3.16 axle ratio
3F - 3.39 axle ratio
3H - 3.65 axle ratio
3K - 2.51 axle ratio

Transmission Codes

Available transmissions are as follows:

6 - 6-speed AT (Automatic Transmission), mid-range - 6F
C - 6-speed AT (Automatic Transmission) - 6F55
J - 6-speed AT (Automatic Transmission) - 6F

Spring Codes

Spring codes are listed as a 2-part code. The first 2 characters identify the RH and LH front springs. The third and fourth characters identify the RH and LH rear springs.

Front Springs

Rear Springs
