Throttle Body: Removal

  1. Refer to: Jacking and Lifting - Overview .
  2. Remove the underbody shield fasteners.
    GFD228098Courtesy of FORD MOTOR COMPANY

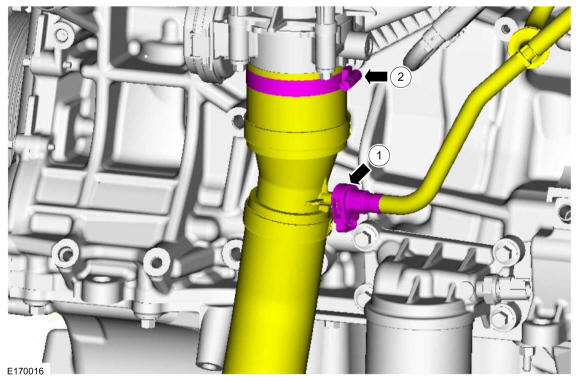

    1. Refer to: Quick Release Coupling .
    2. Loosen the clamp.
    GFD228491Courtesy of FORD MOTOR COMPANY

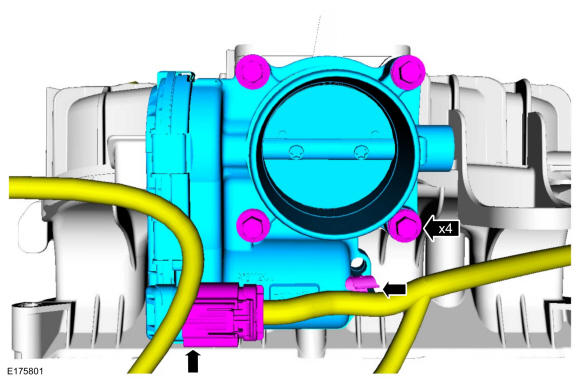

  4. NOTE: When disconnecting the Throttle Body (TB) electrical connector disengage the red locking tab on the Throttle Body (TB) electrical connector by sliding it to the rear of the Throttle Body (TB) electrical connector, away from the Throttle Body (TB). Squeeze the Throttle Body (TB) electrical connector while removing.
    GFD228492Courtesy of FORD MOTOR COMPANY

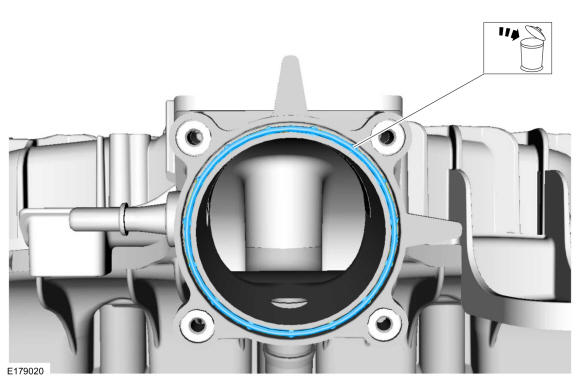

  5. Remove and discard the Throttle Body (TB) gasket.
    GFD228493Courtesy of FORD MOTOR COMPANY
