Fuel Pump Driver Module (FPDM): Installation

    1. Torque: 44 lb.in (5 Nm)

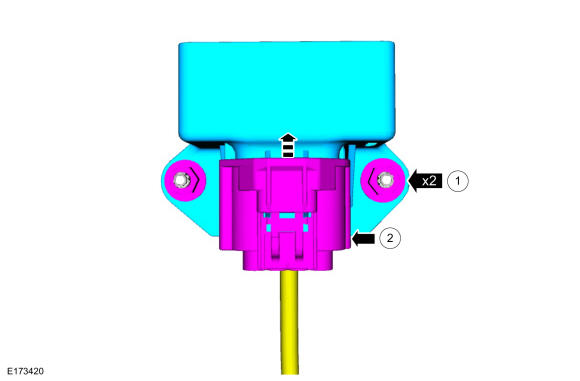

      GFD228455Courtesy of FORD MOTOR COMPANY

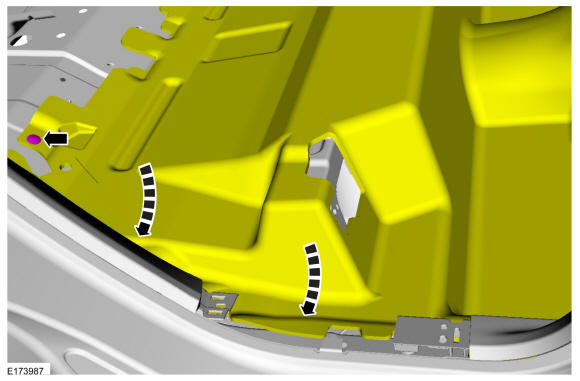

  2. GFD228456Courtesy of FORD MOTOR COMPANY
  3. NOTE:

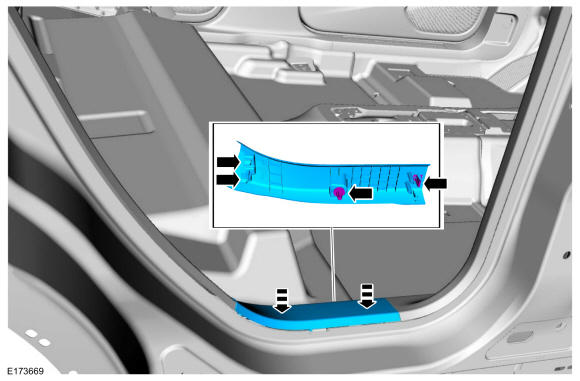

    GFD228457Courtesy of FORD MOTOR COMPANY

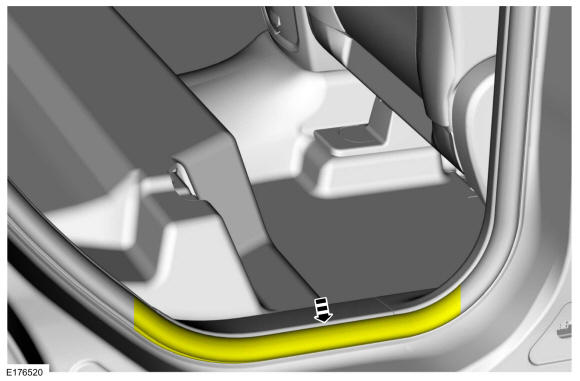

  4. GFD228458Courtesy of FORD MOTOR COMPANY
  5. Install the rear seat cushion. Refer to: Rear Seat Cushion .
