Brake Shift Interlock Override Switch: Installation

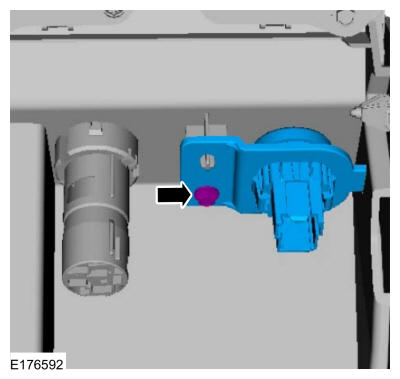

  1. Position the brake shift interlock override switch and install the screw.

    Torque: 44 lb.in (5 Nm)

    GFD229398Courtesy of FORD MOTOR COMPANY

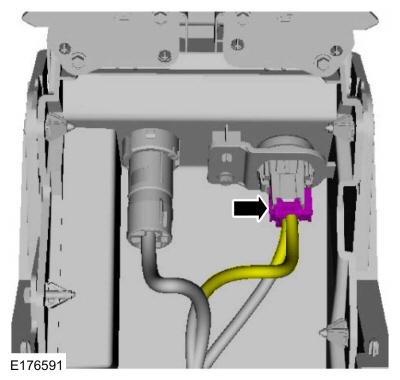

  2. Connect the brake shift interlock override switch electrical connector.
    GFD229397Courtesy of FORD MOTOR COMPANY

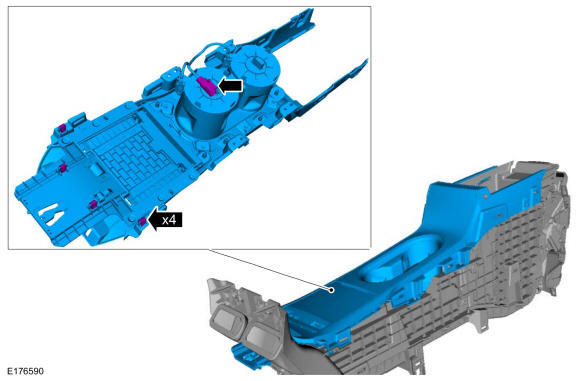

  3. Connect the electrical connector and install the console finish panel.
    GFD229396Courtesy of FORD MOTOR COMPANY

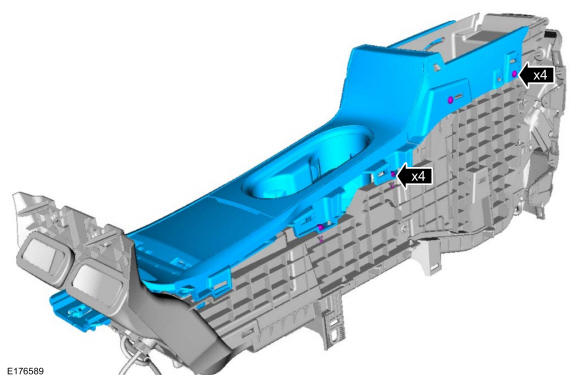

  4. Install the console finish panel screws.
    GFD229395Courtesy of FORD MOTOR COMPANY
  5. Install the floor console. Refer to: Floor Console .
