Transfer Case
WARNING: This page is about a different car, the 2015 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
- 1.

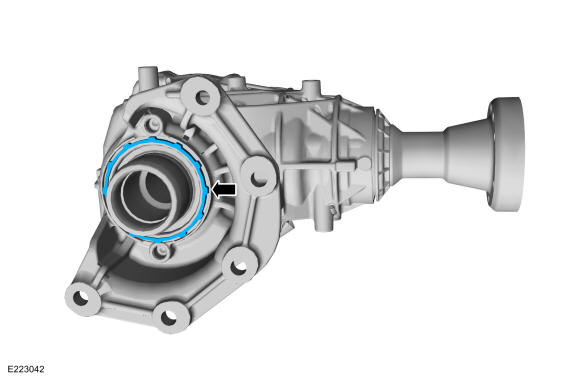

Install the new PTU to transmission compression seal.
 Courtesy of FORD MOTOR COMPANY
|
 Courtesy of FORD MOTOR COMPANY
|
- 3.

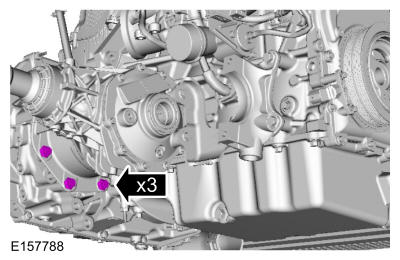

Install the new upper PTU bolts.Torque: 59 lb.ft (80 Nm)
 Courtesy of FORD MOTOR COMPANY
|
- 4.

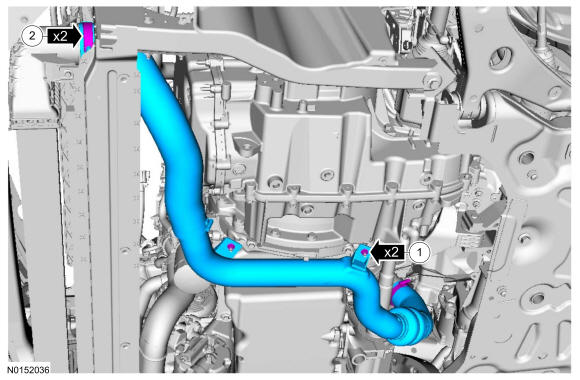

Install the new lower PTU bolts.Torque: 59 lb.ft (80 Nm)
 Courtesy of FORD MOTOR COMPANY
|
- 5.

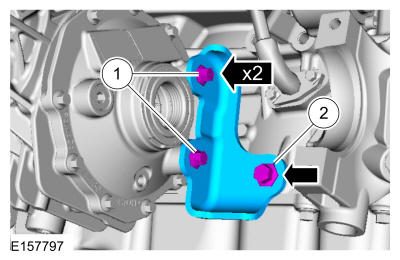

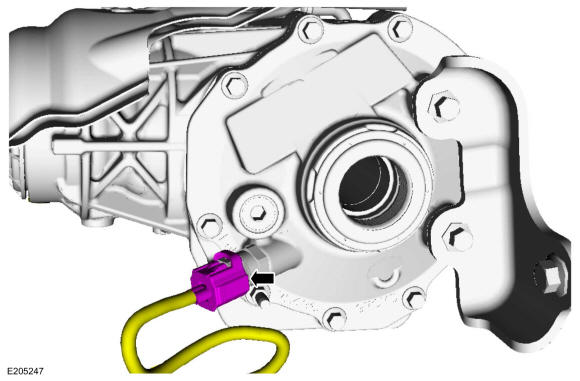

Install the PTU support bracket and bolts.Torque:
1: 18 lb.ft (25 Nm)
2: 46 lb.ft (63 Nm)
 Courtesy of FORD MOTOR COMPANY
|
- 6.

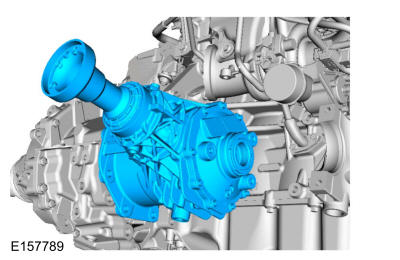

If equipped. Connect the PTU temperature sensor.
 Courtesy of FORD MOTOR COMPANY
|
- 7.

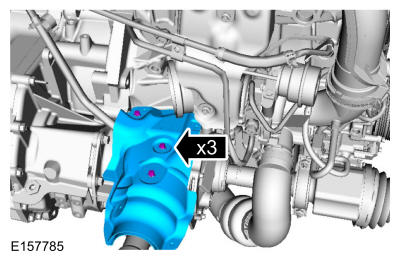

Connect the PTU vent hose.
 Courtesy of FORD MOTOR COMPANY
|
- 8.

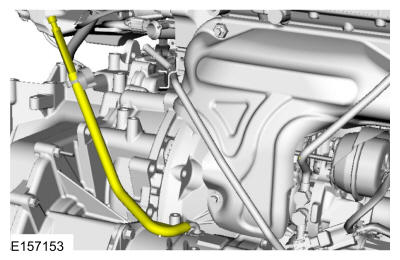

Install the PTU heat shield bolts and the heat shield.Torque: 97 lb.in (11 Nm)
 Courtesy of FORD MOTOR COMPANY
|
- 11.

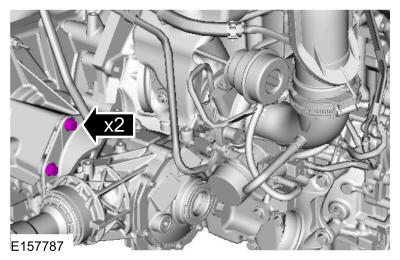

Install the CAC tube and the nuts, tighten the clamp.Torque:
1: 97 lb.in (11 Nm)
2: 44 lb.in (5 Nm)
 Courtesy of FORD MOTOR COMPANY
|
