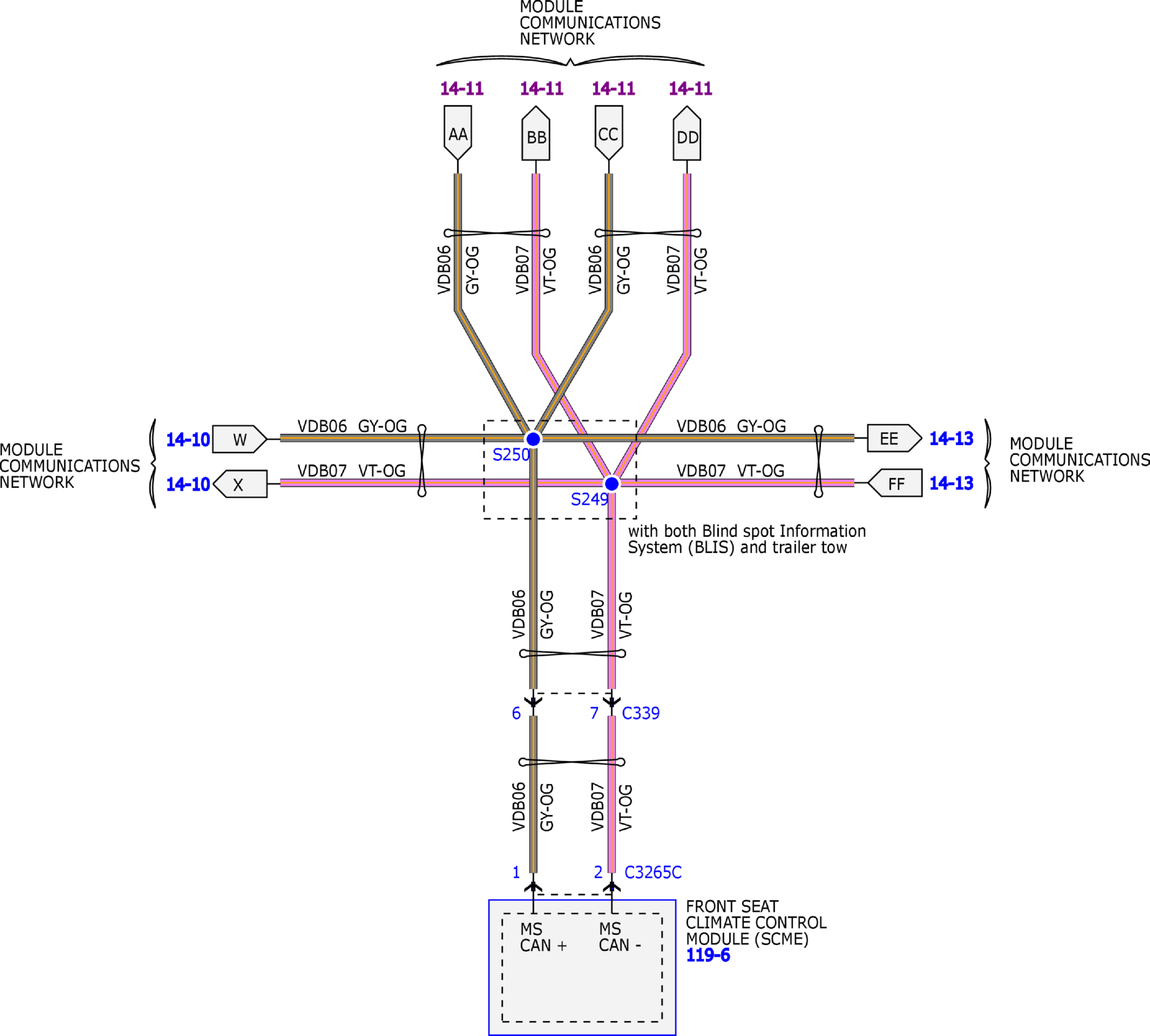

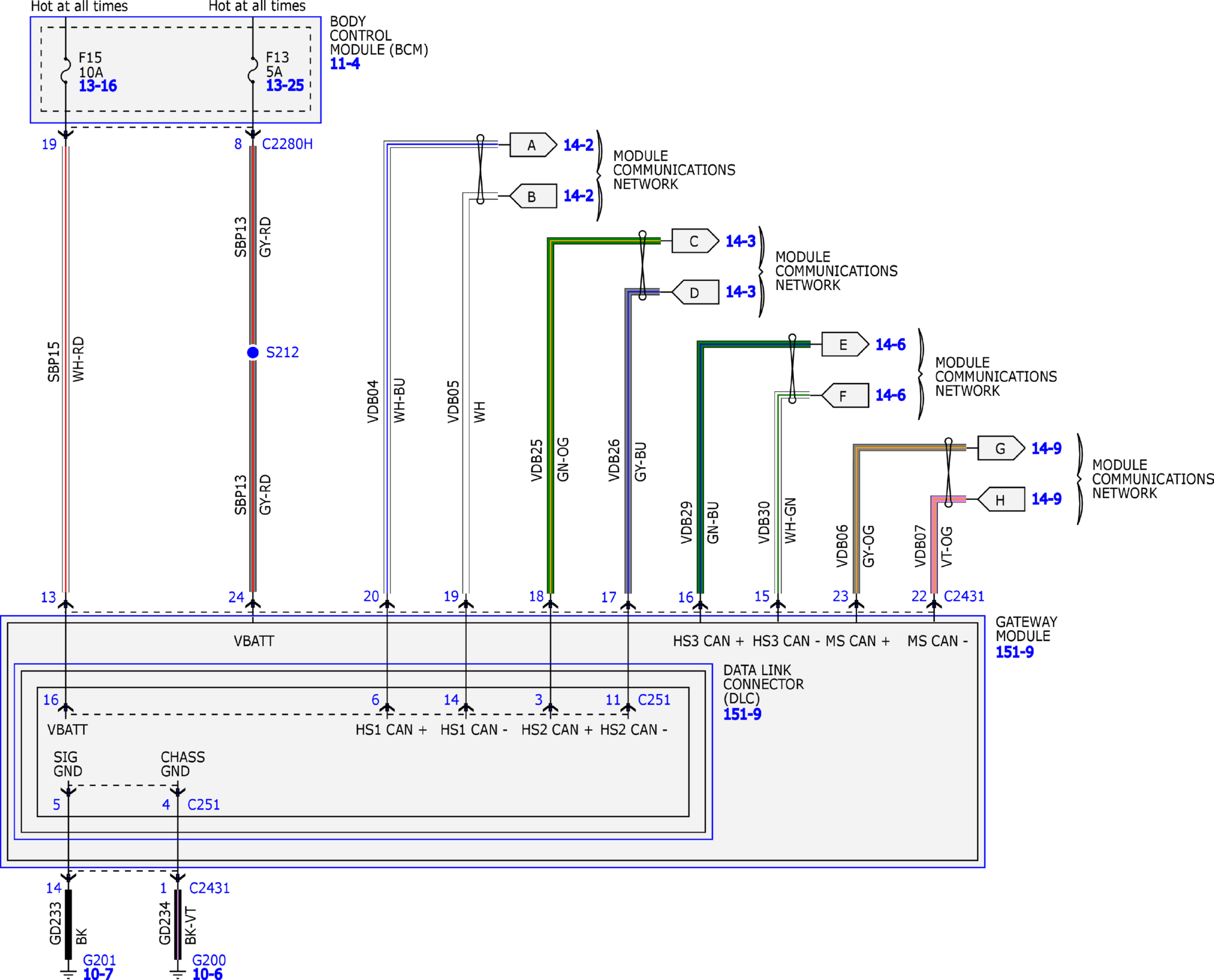

Fig 1: Module Communications Network Wiring Diagram (1 of 14)
Courtesy of FORD MOTOR COMPANY

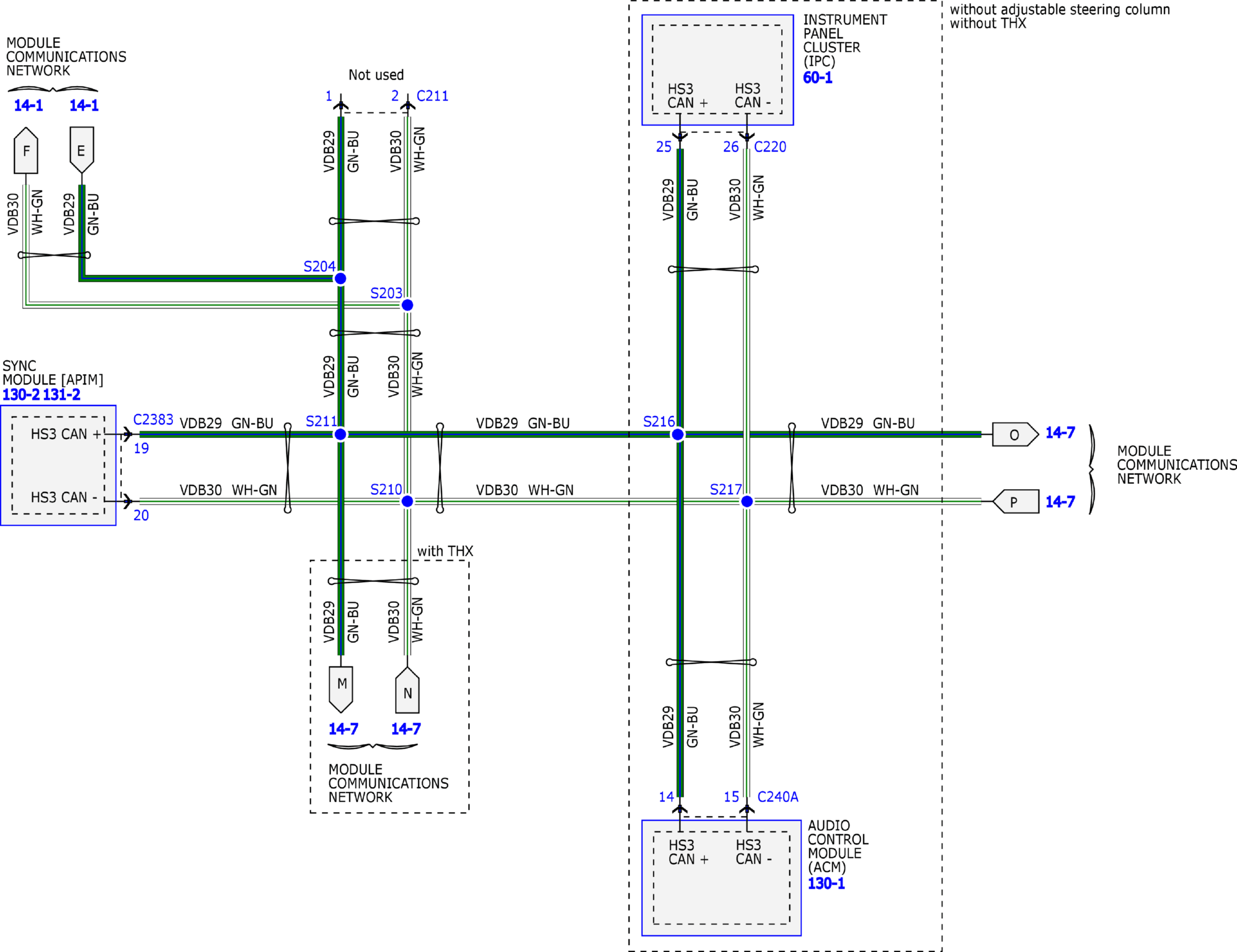

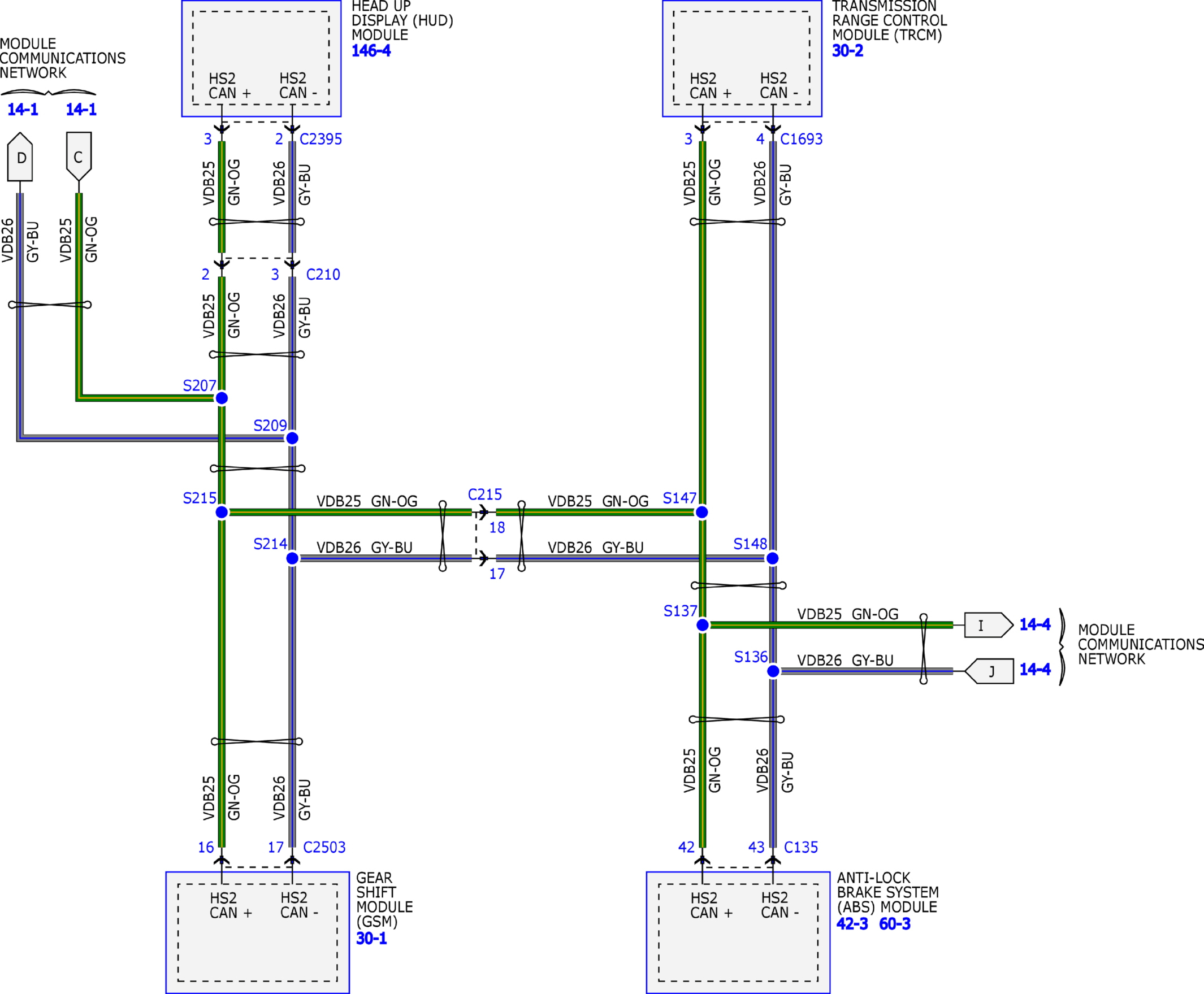

Fig 2: Module Communications Network Wiring Diagram (2 of 14)
Courtesy of FORD MOTOR COMPANY

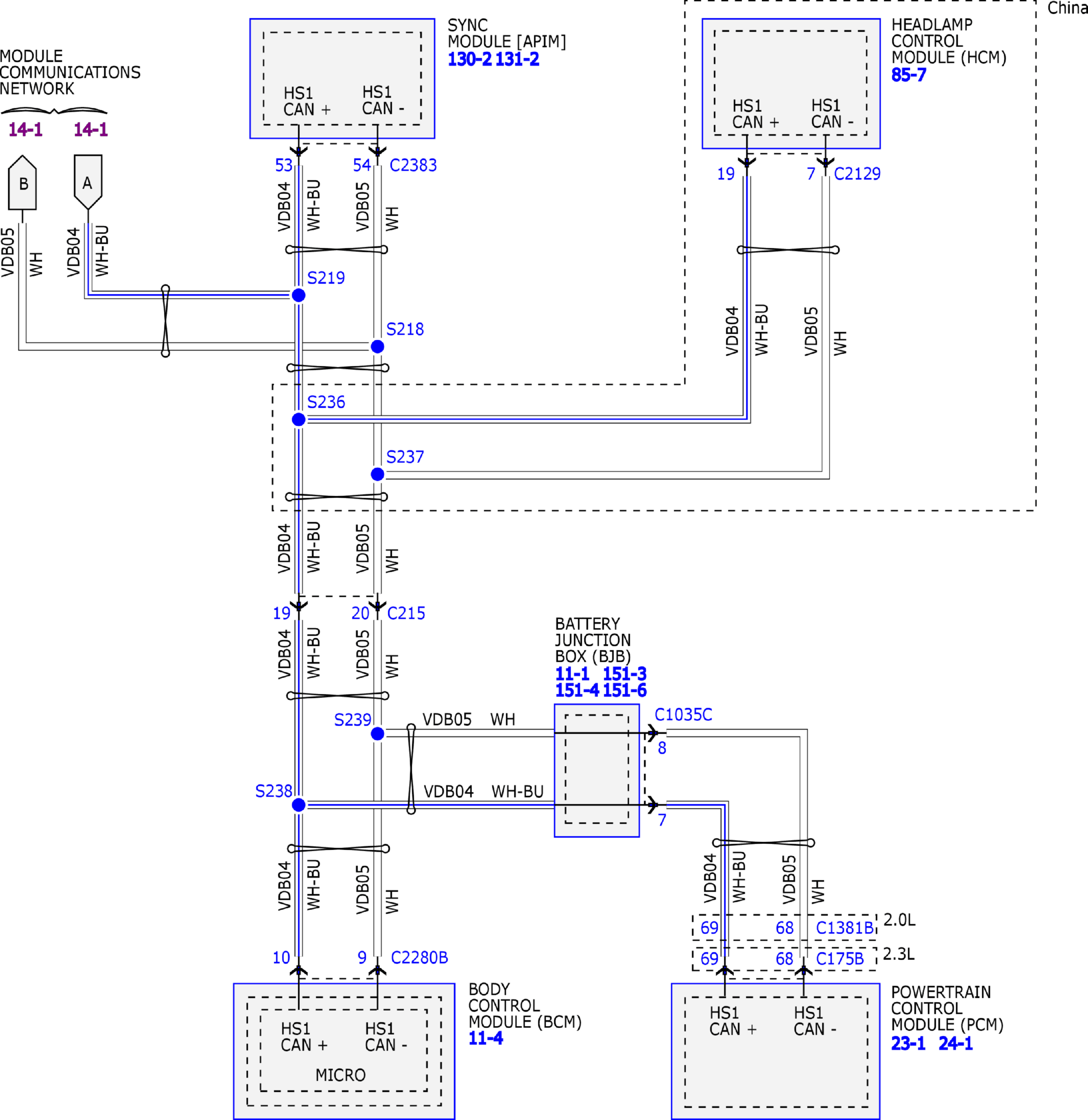

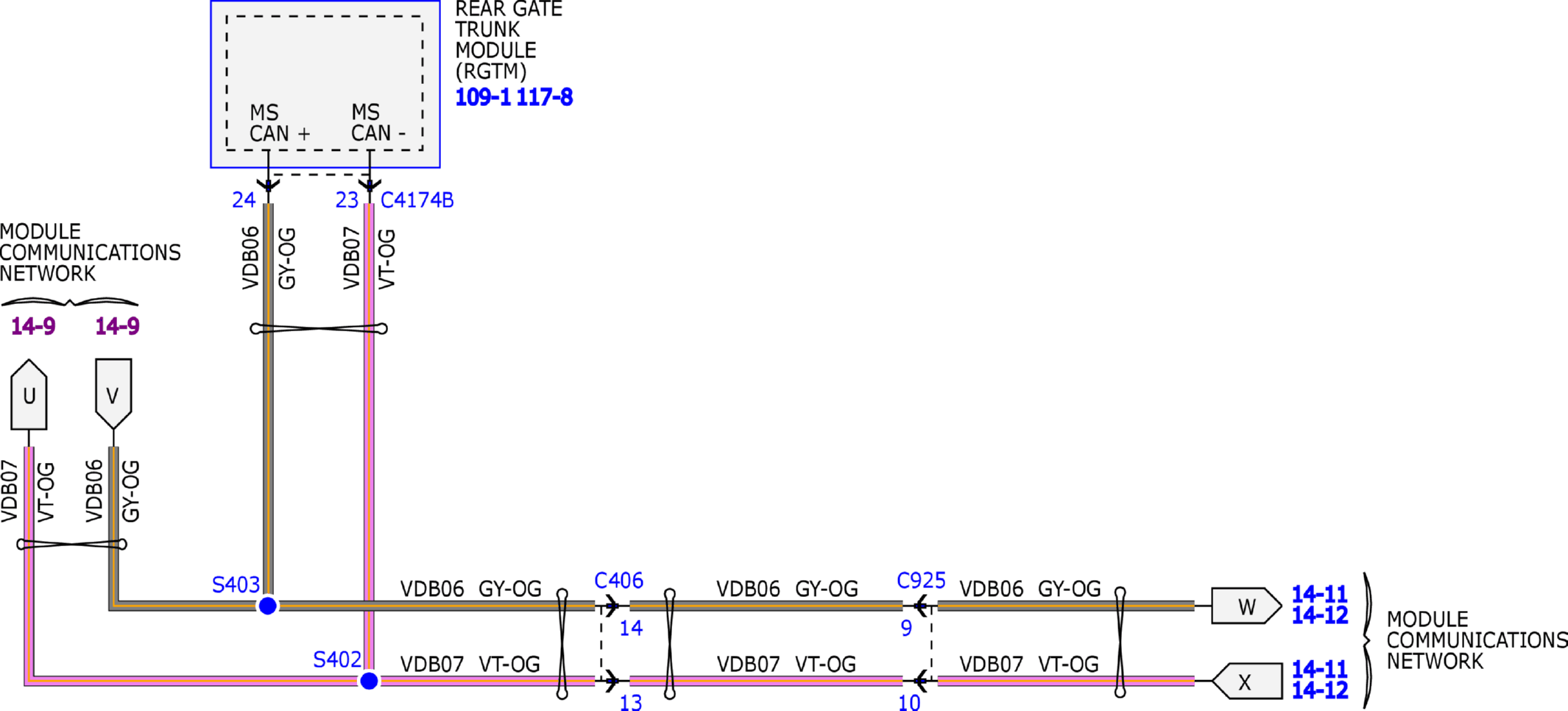

Fig 3: Module Communications Network Wiring Diagram (3 of 14)
Courtesy of FORD MOTOR COMPANY

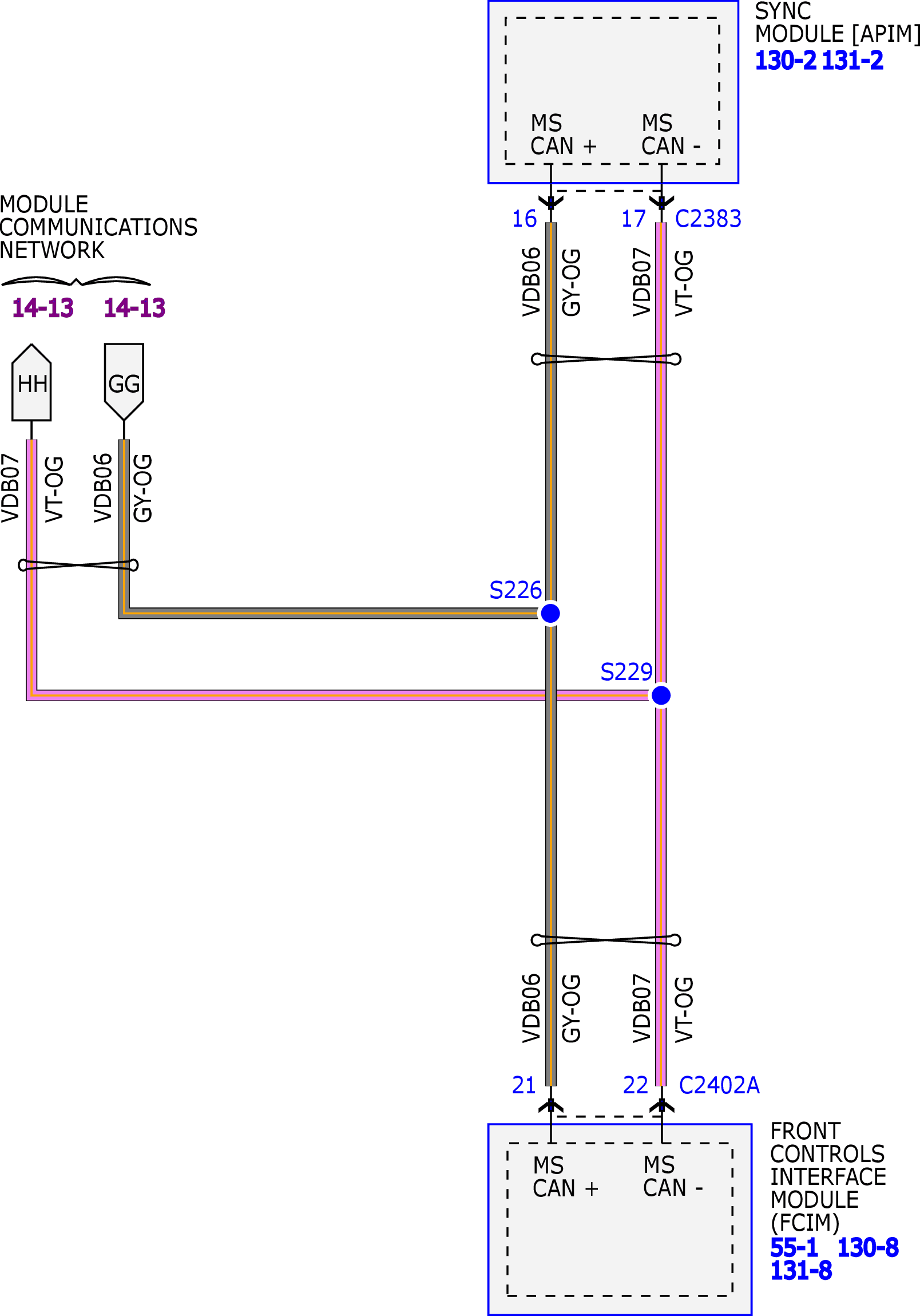

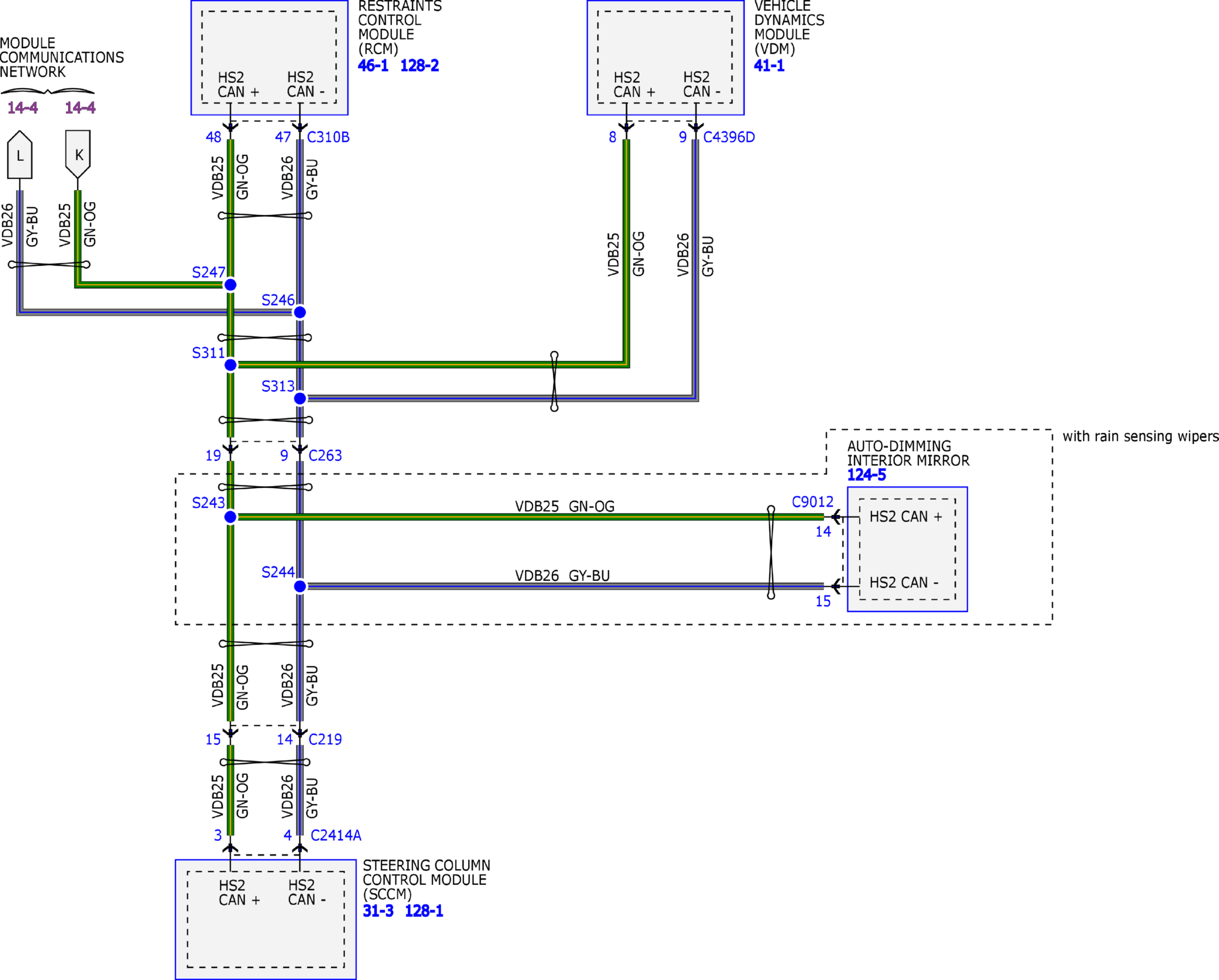

Fig 4: Module Communications Network Wiring Diagram (4 of 14)
Courtesy of FORD MOTOR COMPANY

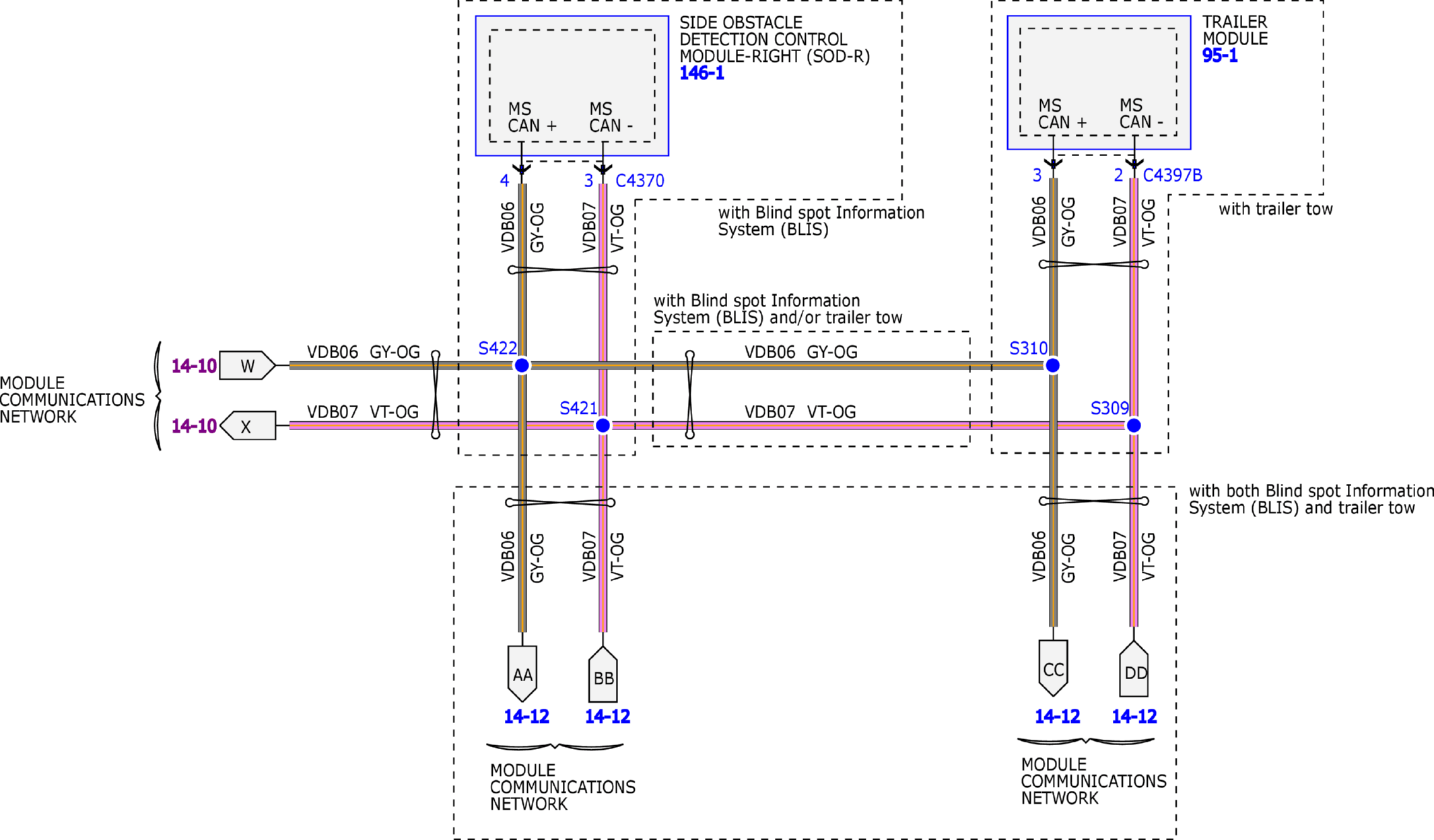

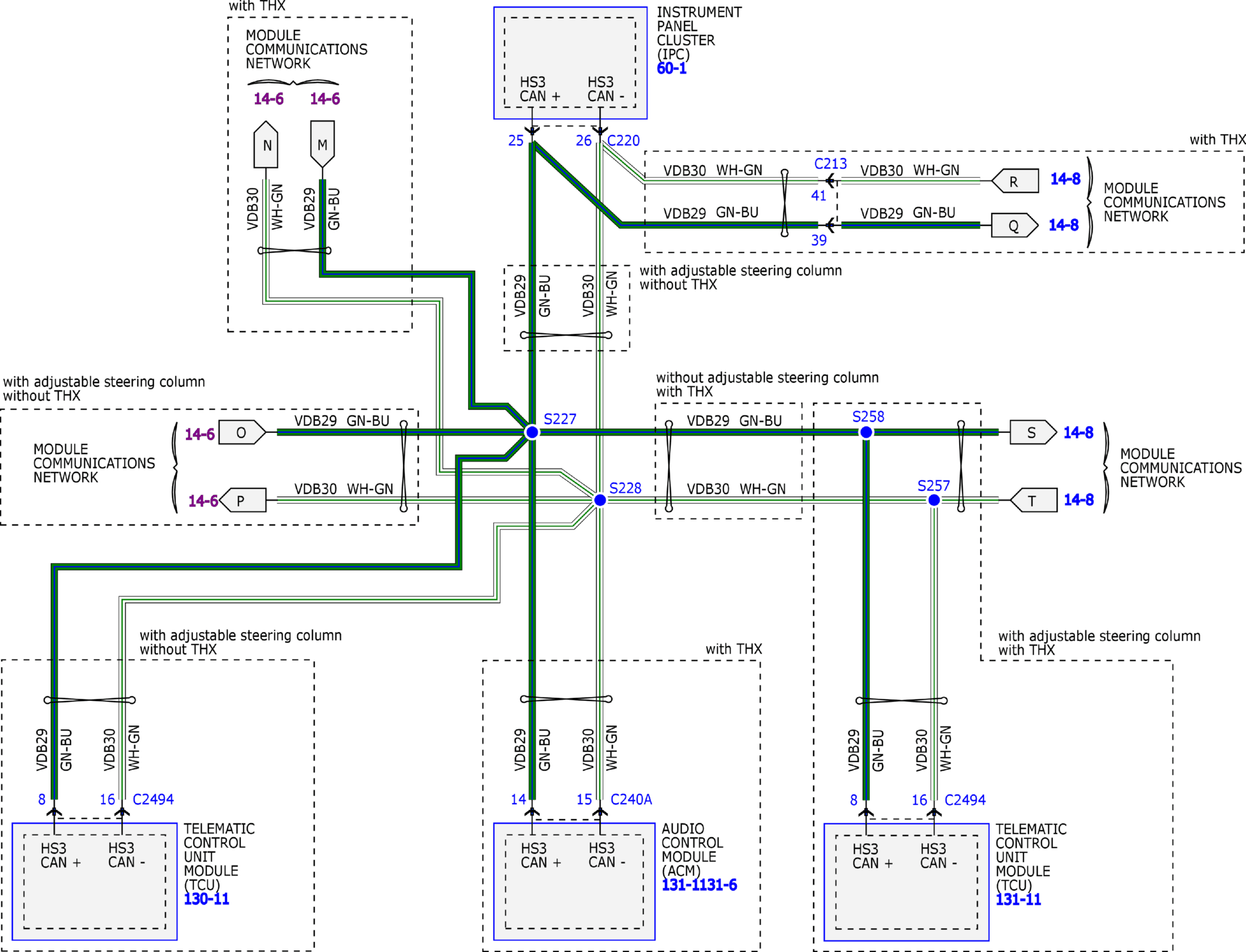

Fig 5: Module Communications Network Wiring Diagram (5 of 14)
Courtesy of FORD MOTOR COMPANY

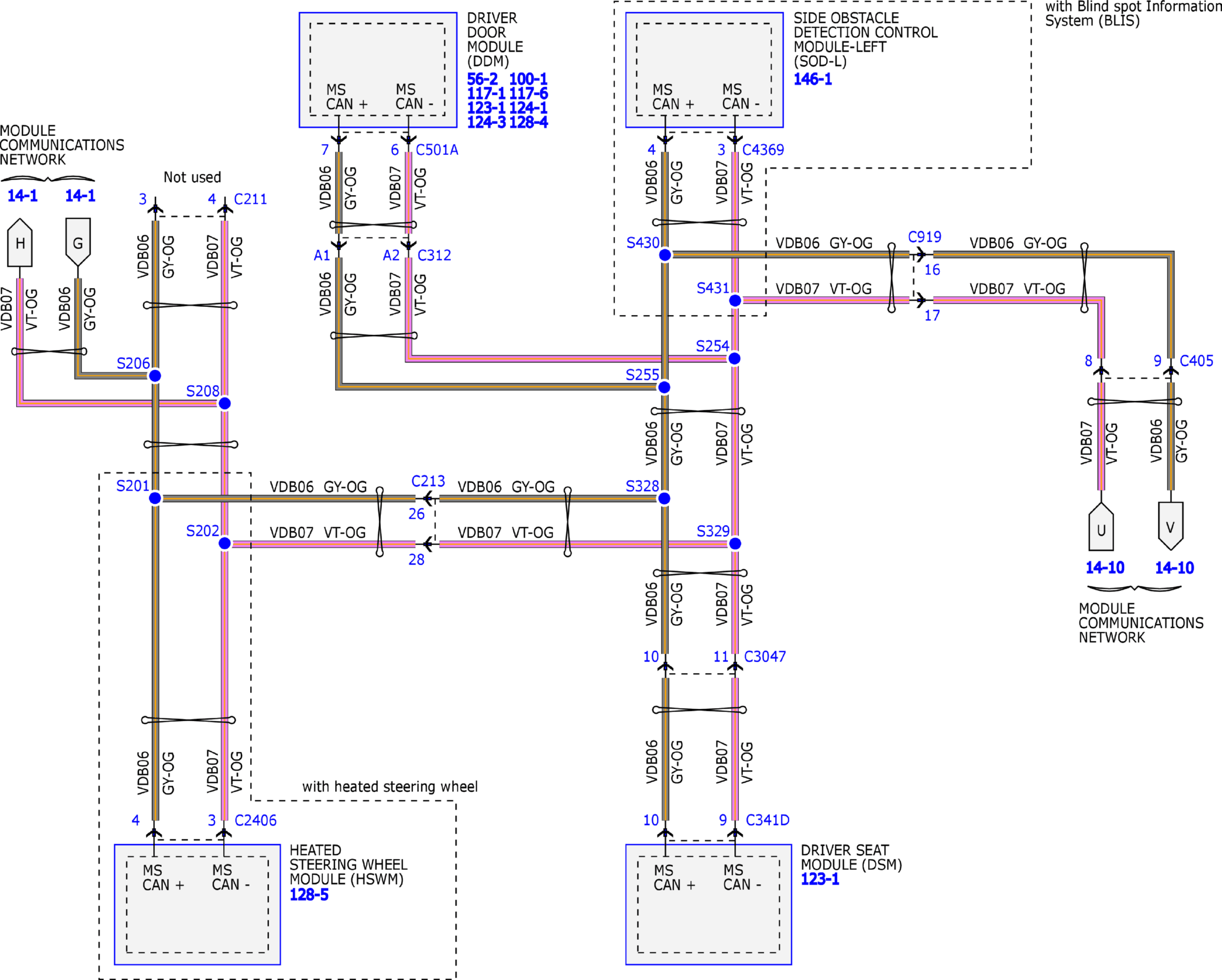

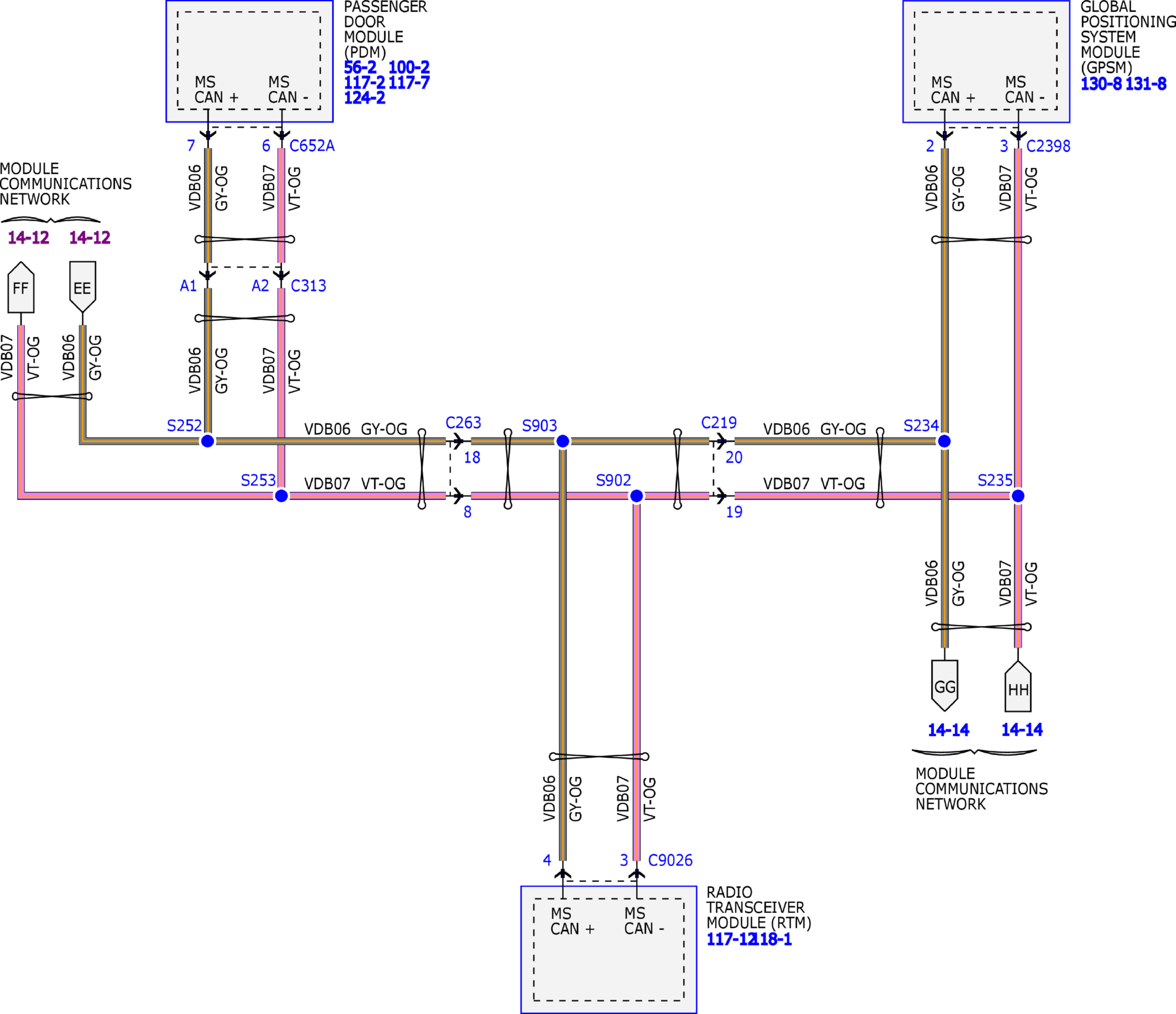

Fig 6: Module Communications Network Wiring Diagram (6 of 14)
Courtesy of FORD MOTOR COMPANY

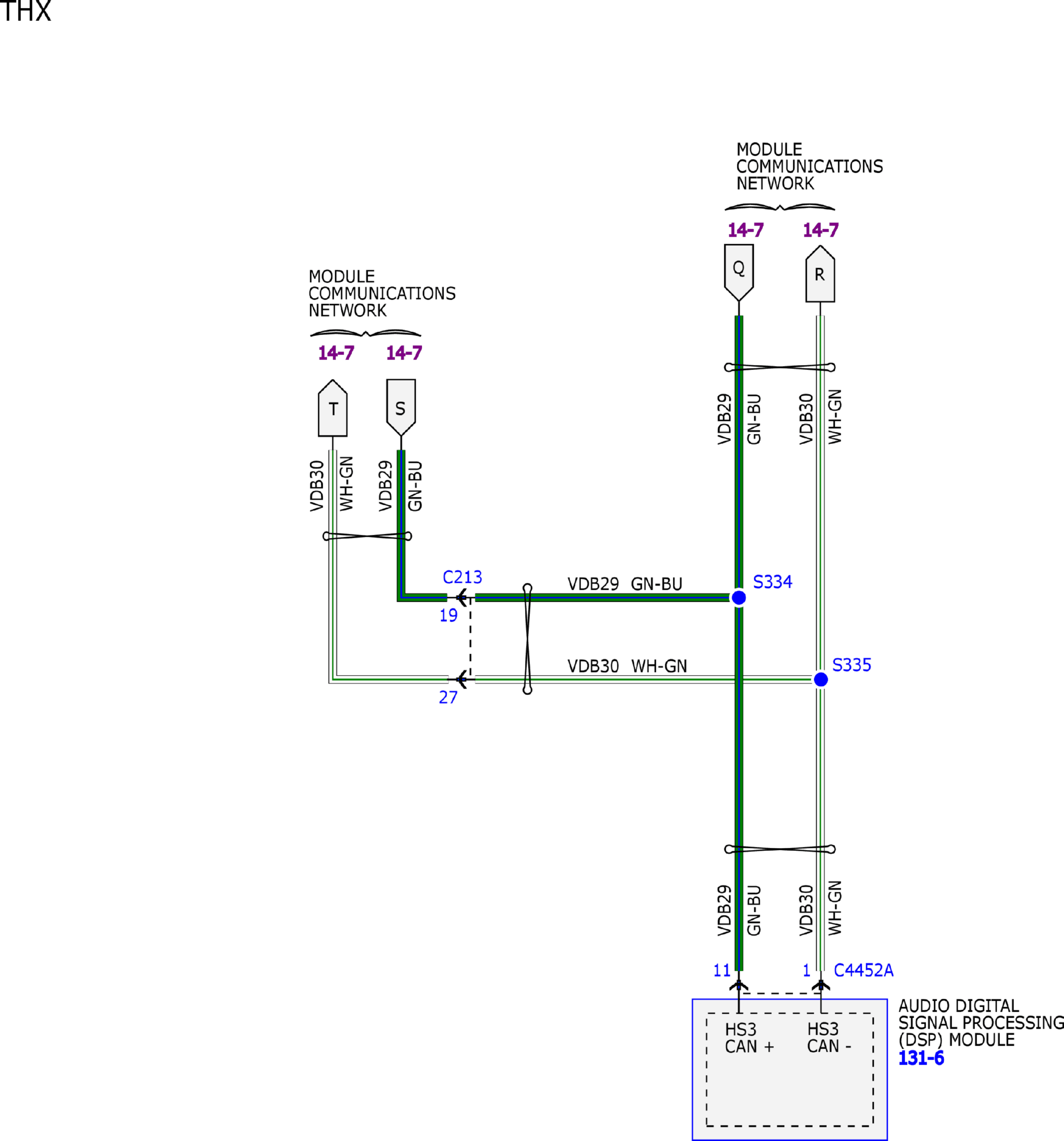

Fig 7: Module Communications Network Wiring Diagram (7 of 14)
Courtesy of FORD MOTOR COMPANY

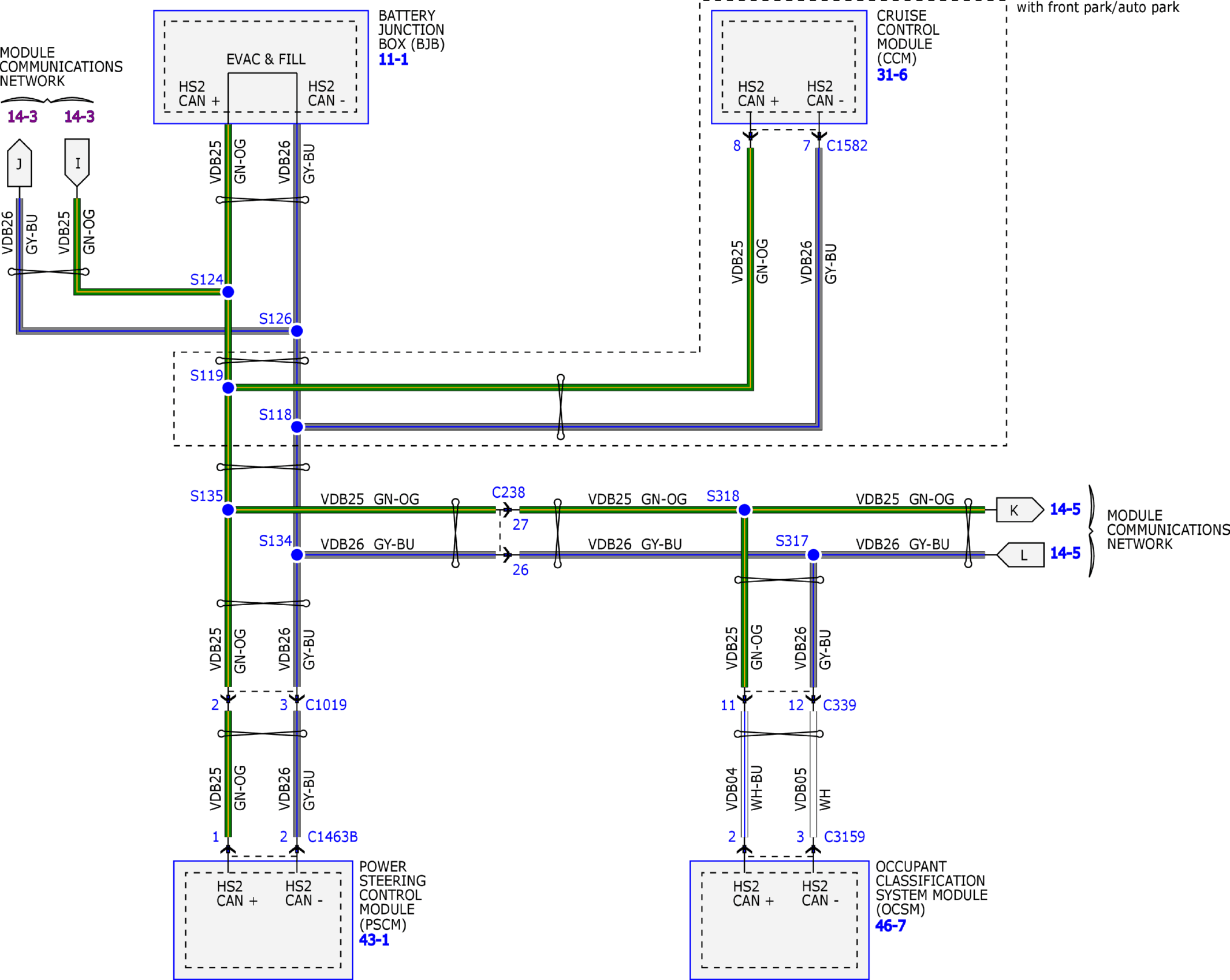

Fig 8: Module Communications Network Wiring Diagram (8 of 14)
Courtesy of FORD MOTOR COMPANY
Fig 9: Module Communications Network Wiring Diagram (9 of 14)
Courtesy of FORD MOTOR COMPANY
Fig 10: Module Communications Network Wiring Diagram (10 of 14)
Courtesy of FORD MOTOR COMPANY
Fig 11: Module Communications Network Wiring Diagram (11 of 14)
Courtesy of FORD MOTOR COMPANY
Fig 12: Module Communications Network Wiring Diagram (12 of 14)
Courtesy of FORD MOTOR COMPANY
Fig 13: Module Communications Network Wiring Diagram (13 of 14)
Courtesy of FORD MOTOR COMPANY
Fig 14: Module Communications Network Wiring Diagram (14 of 14)
