Brake System Pressure Bleeding

WARNING: This page is about a different car, the 2015 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

Special Tool(s) / General Equipment

Brake/Clutch System Pressure Bleeder/Filler

Fluid Container

Bleeding

All vehicles

NOTE: If the fluid is spilled on the paintwork, the affected area must be immediately washed down with cold water.

NOTE: The HCU bleeding procedure and a second brake system pressure bleed must be carried out if a new HCU has been installed.

1.

NOTE: Make sure the area around the master cylinder cap is clean and free of foreign material.

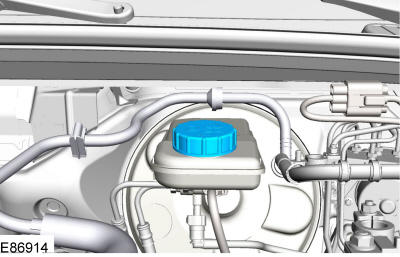

Remove the brake fluid reservoir cap.

GFD78128

Courtesy of FORD MOTOR COMPANY

2.

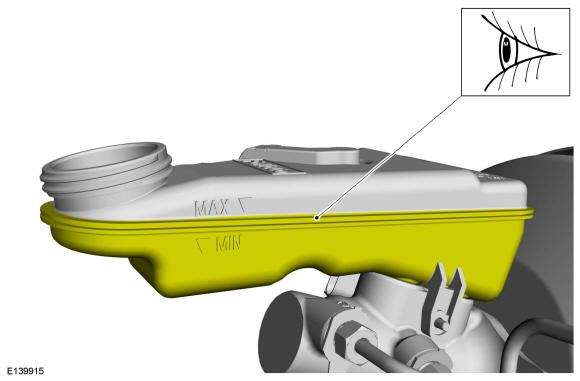

Make sure the fluid reservoir is filled with clean specified brake fluid. Refer to: Specifications .

GFD78129

Courtesy of FORD MOTOR COMPANY

3.
- 1.

  NOTE: Master cylinder pressure bleeder adapter tools are available from various manufacturers of pressure bleeding equipment. Follow the instructions of the manufacturer when installing the adapter.

  Install the bleeder adapter to the brake master cylinder reservoir and attach the bleeder tank hose to the fitting on the adapter. Use the General Equipment: Brake/Clutch System Pressure Bleeder/Filler
- 2.

  NOTE: Make sure the bleeder tank contains enough clean, specified brake fluid to complete the bleeding operation.

  Open the valve on the bleeder tank and apply 207-345 kPa (30-50 psi) to the brake system.

4.

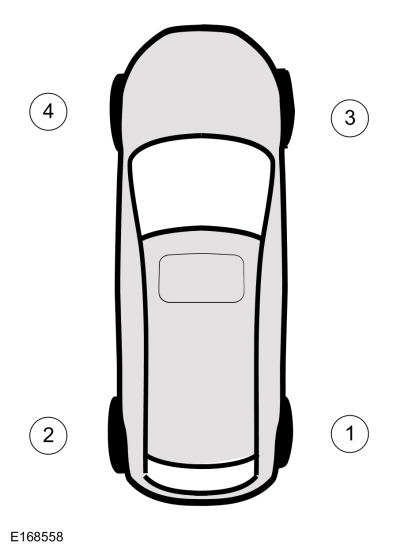

Bleeding steps must be followed in the order indicated in the graphic.

GFD78130

Courtesy of FORD MOTOR COMPANY

5.

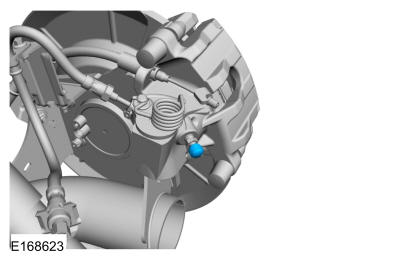

If equipped, remove the bleeder screw cap.

GFD78131

Courtesy of FORD MOTOR COMPANY

6.

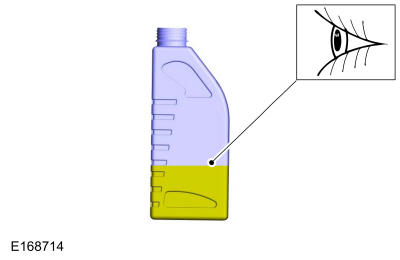

Partially fill a clean brake fluid container with clean specified brake fluid. Refer to: Specifications . Use the General Equipment: Fluid Container

GFD78132

Courtesy of FORD MOTOR COMPANY

7.

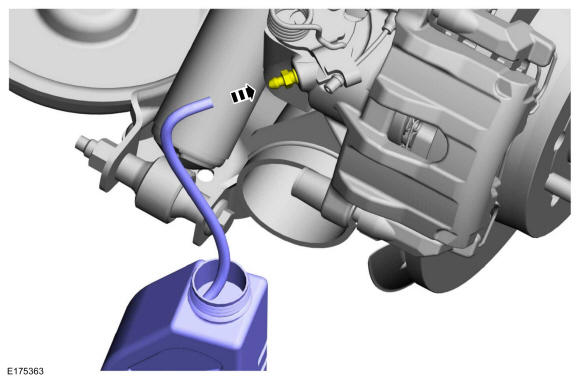

Submerge a hose into the brake fluid in the container and connect the hose to bleeder screw.

GFD78133

Courtesy of FORD MOTOR COMPANY

8.
- 1.

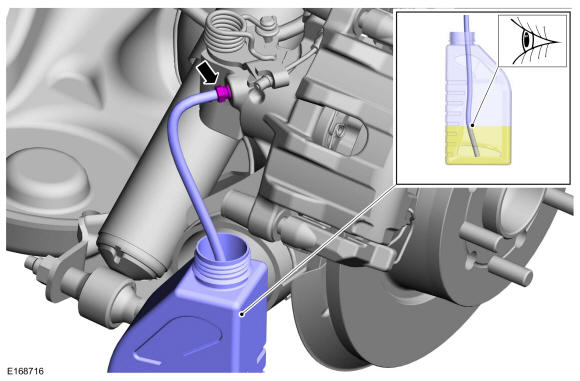

  Loosen the bleeder screw. Loosen: 180 °
- 2.

  Leave open until clear, bubble-free brake fluid flows, then tighten the bleeder screw.

GFD78134

Courtesy of FORD MOTOR COMPANY

9.
- 1.

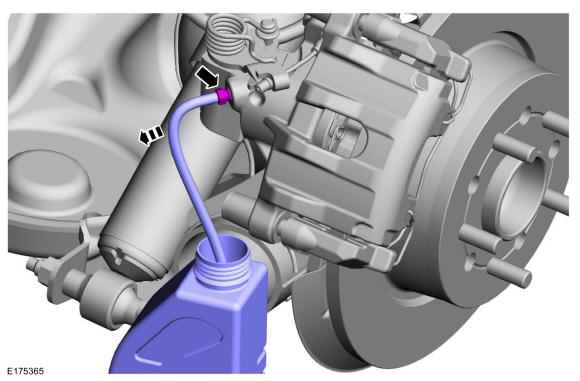

  Disconnect the hose and tighten the bleeder screw to specification. Refer to: Specifications .

GFD78135

Courtesy of FORD MOTOR COMPANY

10.

Repeat steps 8-10 at the remaining wheel ends.

Vehicles with rear integral parking brake calipers

11.

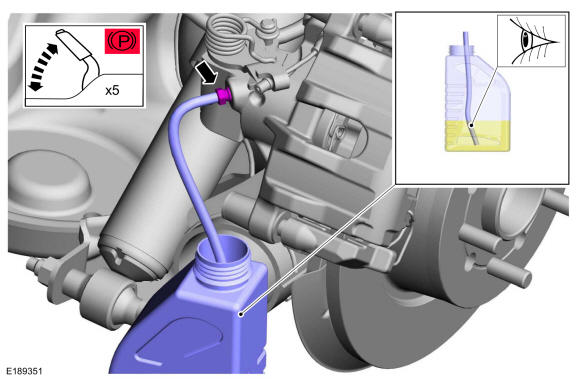

NOTE: Due to the complexity of the fluid path within the rear integral parking brake calipers, it is necessary to apply and release the parking brake during the bleed procedure.
- 1.

  Apply and release the parking brake 5 times.
- 2.

  Loosen the bleeder screw. Loosen: 180 °
- 3.

  Leave open until clear, bubble-free fluid flows and then tighten the bleeder screw to specification. Refer to: Specifications .
- 4.

  Repeat as necessary.

GFD78136

Courtesy of FORD MOTOR COMPANY

All vehicles

12.

If equipped, install the bleeder screw cap.

GFD78131

Courtesy of FORD MOTOR COMPANY

13.

Lower the vehicle.

14.

Close the bleeder tank valve and release the pressure. Remove the General Equipment: Brake/Clutch System Pressure Bleeder/Filler

15.

Fill the reservoir with clean, specified brake fluid. Refer to: Specifications .

GFD78129

Courtesy of FORD MOTOR COMPANY

16.

Install the brake fluid reservoir cap.

GFD78128

Courtesy of FORD MOTOR COMPANY

Vehicles with new hydraulic control unit (HCU) installed

NOTE: The HCU bleeding procedure and a second brake system pressure bleed must be carried out if a new HCU has been installed.

17.

Using the diagnostic scan tool, follow the ABS Service Bleed instructions.

18.

Repeat brake system pressure bleeding steps.
