Trailer Module (TRM): Removal

WARNING: This page is about a different car, the 2016 Lincoln MKX. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: This step is only necessary if the TRM is being replaced.

Using a diagnostic scan tool, begin the PMI process for the TRM following the on-screen instructions.
Remove the LH loadspace trim panel. Refer to: Loadspace Trim Panel .

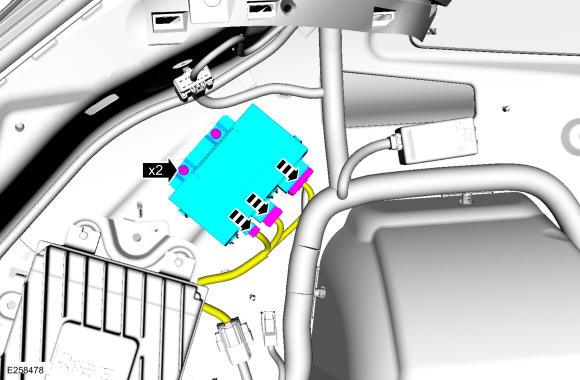

Disconnect the electrical connectors, remove the screws and the TRM.

Courtesy of FORD MOTOR COMPANY
NOTE: This step is only necessary if the TRM is being replaced.

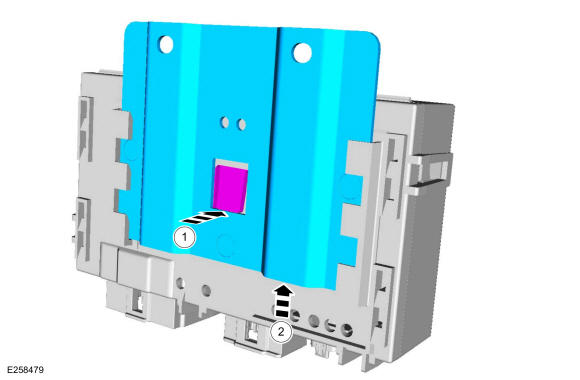

1. Depress the bracket tab.
2. Slide the bracket off the module.

Courtesy of FORD MOTOR COMPANY
