Gearshift Module (GSM): Removal

WARNING: This page is about a different car, the 2016 Lincoln MKX. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: It is not necessary to carry out a PMI when installing a new GSM.

NOTE: Removal steps in this procedure may contain installation details.

Remove the FCIM. Refer to: Front Controls Interface Module (FCIM) - Vehicles With: SYNC 2 . Refer to: Front Controls Interface Module (FCIM) - Vehicles With: Harman Revel Audio System/SYNC 2 .

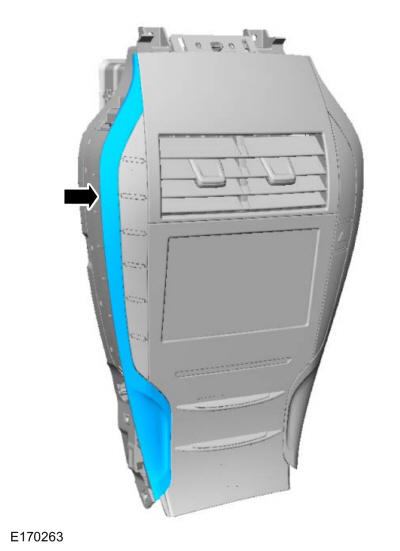

Remove the trim panel.

Courtesy of FORD MOTOR COMPANY

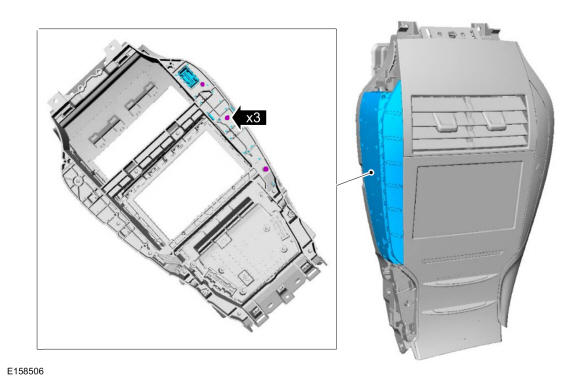

Remove the screws and the GSM

Courtesy of FORD MOTOR COMPANY
