Brake Shift Interlock Override Switch: Installation
WARNING: This page is about a different car, the 2015 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

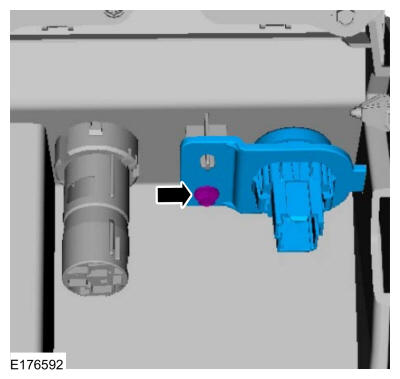

- 1.
Position the brake shift interlock override switch and install the screw.Torque: 44 lb.in (5 Nm)
 Courtesy of FORD MOTOR COMPANY
|

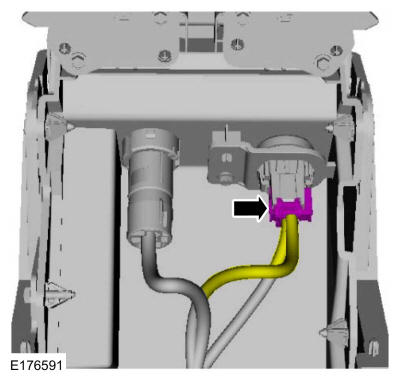

- 2.
Connect the brake shift interlock override switch electrical connector.
 Courtesy of FORD MOTOR COMPANY
|

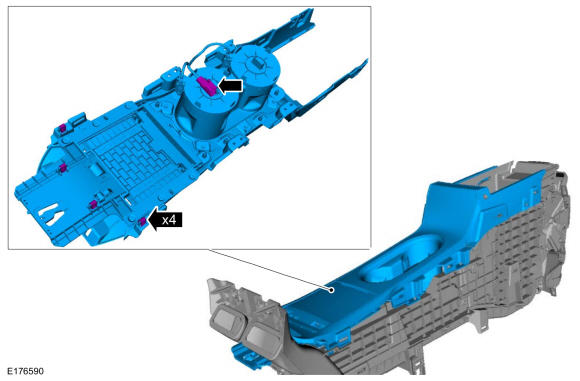

- 3.
Connect the electrical connector and install the console finish panel.
 Courtesy of FORD MOTOR COMPANY
|

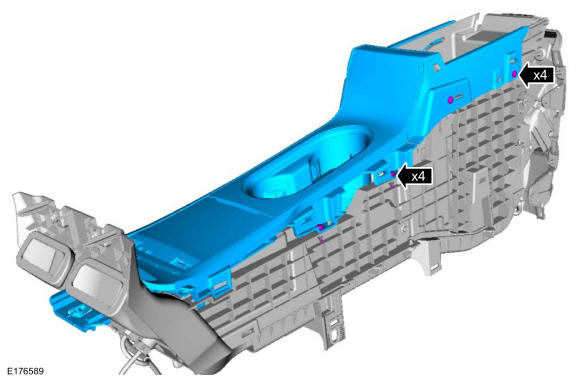

- 4.
Install the console finish panel screws.
 Courtesy of FORD MOTOR COMPANY
|
